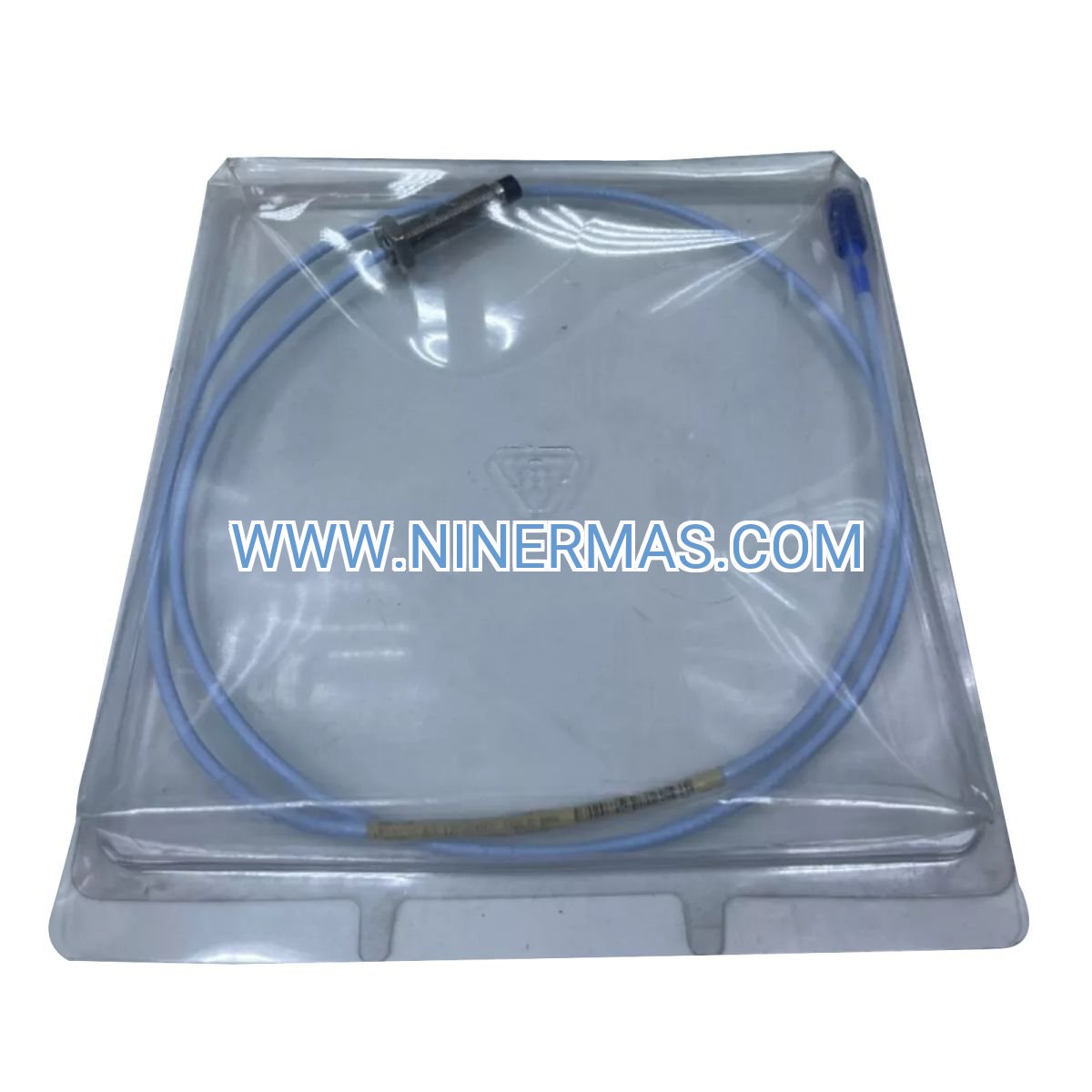

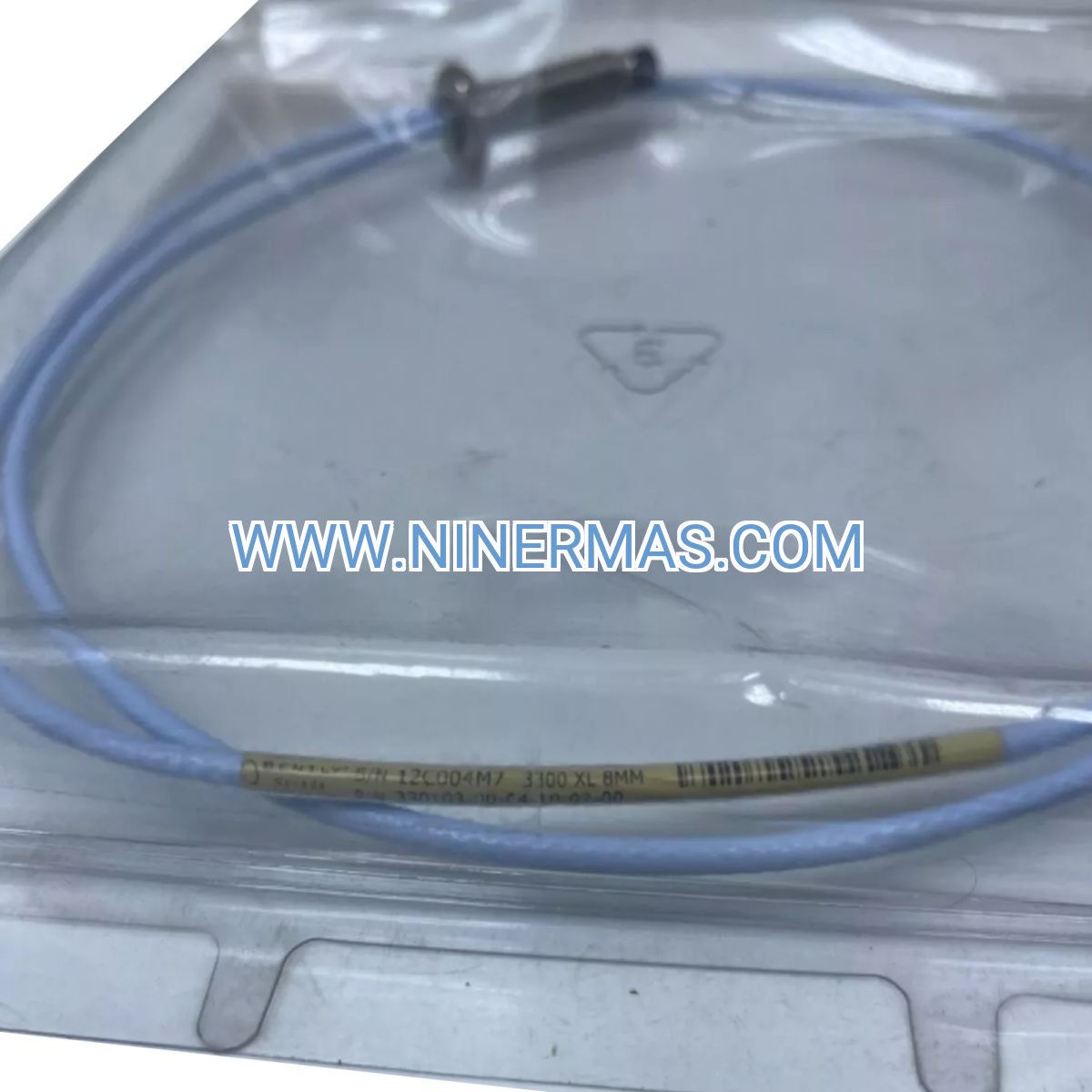

Bently Nevada 330103-00-04-10-02-00 Proximity Probe – Industrial Eddy Current Vibration Sensor

The Bently Nevada 330103-00-04-10-02-00 is a precision-engineered proximity probe designed for non-contact vibration, displacement, and rotational speed measurement in critical rotating machinery. Utilizing advanced eddy current sensing technology, this 8mm threaded probe delivers continuous, real-time monitoring to safeguard turbines, compressors, motors, and other high-value industrial assets from catastrophic failures.

Ideal for power generation plants, petrochemical facilities, manufacturing operations, and process industries, this probe addresses common challenges including undetected bearing degradation, shaft misalignment, rotor imbalance, and thermal growth. By providing early fault detection capabilities, it enables condition-based maintenance strategies that reduce unplanned downtime by up to 65% and extend equipment service life.

Built with rugged stainless steel construction and rated for extreme temperatures (-40°C to +125°C), the 330103-00-04-10-02-00 integrates seamlessly with Bently Nevada 3300 Series proximitor systems and monitoring platforms. Suitable for design engineers, maintenance teams, OEM integrators, and plant reliability managers seeking proven vibration sensing solutions with global technical support and customizable cable configurations.

Core Features & Technical Advantages

Non-Contact Eddy Current Sensing
Employs electromagnetic induction principles to measure shaft displacement without physical contact, eliminating wear-related sensor failures and enabling continuous operation in high-speed rotating equipment up to 100,000 RPM.

Wide Frequency Response (0–10 kHz)
Captures both low-frequency shaft runout and high-frequency bearing defect signatures, providing comprehensive diagnostic data for multi-fault detection across subsynchronous, synchronous, and supersynchronous vibration components.

Extended Temperature Range
Operates reliably from -40°C to +125°C (-40°F to +257°F), making it suitable for cryogenic pumps, steam turbine casings, exhaust gas compressors, and other extreme thermal environments without performance degradation.

Corrosion-Resistant Housing
Manufactured from 300-series stainless steel with hermetically sealed construction, offering superior resistance to moisture, industrial chemicals, hydraulic fluids, and salt spray in offshore and marine applications.

Flexible Cable Configurations
Available with customizable cable lengths (standard 5m/9m options) and armored or unarmored jacket selections to accommodate diverse installation geometries, routing constraints, and electromagnetic interference environments.

Factory Calibration & Traceability
Each probe ships with NIST-traceable calibration data specific to target material (4140 steel), ensuring measurement accuracy within ±1% of full scale and simplifying commissioning procedures for end users.

Typical Application Scenarios

This proximity probe is engineered for installations demanding high reliability, continuous monitoring, and early fault detection across multiple industries:

Steam & Gas Turbines in Power Generation
Monitors journal bearing clearances, thrust position, and differential expansion in utility-scale turbines (50–500 MW), providing trip protection against bearing failures and rotor-to-stator rubs that could cause multi-million dollar damage.

Centrifugal & Reciprocating Compressors
Tracks radial vibration and axial position in API 617/618 compressor trains used for natural gas processing, refinery hydrogen service, and LNG liquefaction, enabling predictive maintenance scheduling based on vibration trend analysis.

Large Electric Motors & Generators
Measures air gap variations and rotor eccentricity in synchronous motors (>1000 HP) and hydro/wind generators, detecting stator core looseness, rotor bar cracks, and magnetic center shifts before insulation breakdown occurs.

Industrial Pumps & Blowers
Provides continuous surveillance of boiler feed pumps, cooling water pumps, and forced draft fans in chemical plants, pulp & paper mills, and steel production facilities, reducing mean time to repair through automated alarm notifications.

Gearboxes & Rolling Mills
Captures shaft displacement in high-torque gearboxes and rolling mill drive trains, identifying gear tooth wear, coupling misalignment, and foundation settling issues that compromise product quality and throughput.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility with your monitoring system, please review the following specifications:

Selection Considerations:
When specifying this probe, evaluate the following application parameters: shaft diameter and surface finish (Ra < 1.6 μm recommended), available radial clearance for probe installation, ambient temperature and vibration levels at mounting location, required cable routing distance to proximitor, and target material composition. For non-standard shaft materials (aluminum, titanium, Inconel) or specialized environmental conditions, consult our application engineers for calibration curve adjustments and material compatibility verification.

System Integration & Compatibility

Proximitor Requirements
This probe requires pairing with a Bently Nevada 3300 Series proximitor (such as 330180, 330780, or 330980 models) to convert the probe's analog signal into industry-standard -10 to -2 VDC output proportional to gap distance. The proximitor provides probe excitation, signal conditioning, and buffered outputs for monitoring systems.

Monitoring System Connectivity
Seamlessly interfaces with Bently Nevada 3500 rack-based monitoring systems, ADAPT portable analyzers, System 1 condition monitoring software, and third-party DCS/SCADA platforms via 4-20 mA or Modbus protocols for centralized asset management.

Installation Accessories
Typically installed using probe mounting brackets, lock nuts, and jam nuts (sold separately). Requires proper grounding and shielding practices per API 670 machinery protection standards to minimize electrical noise and ensure measurement integrity.

Delivery, Warranty & Technical Support

Lead Time: Standard configuration probes ship within 3–5 business days from regional distribution centers. Custom cable lengths or special material certifications require 10–15 business days for manufacturing and quality verification.

Warranty Coverage: All Bently Nevada proximity probes include a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and calibration accuracy. Extended warranty programs available for critical service applications.

Technical Documentation: Each shipment includes factory calibration certificate with probe-specific sensitivity data, installation dimensional drawings, recommended mounting torque specifications, and cable termination instructions for field commissioning.

Application Engineering: Our certified vibration specialists provide complimentary pre-sale consultation for probe selection, installation layout review, and system integration planning. Post-installation support includes remote diagnostics, signal troubleshooting, and on-site commissioning services (regional availability applies).

Frequently Asked Questions

Q: How does the Bently Nevada 330103-00-04-10-02-00 proximity probe integrate with existing 3300 Series monitoring systems?
A: This probe connects directly to any 3300 Series proximitor via its integral coaxial cable. The proximitor converts the probe's high-impedance signal into a low-impedance voltage output compatible with monitoring racks, PLCs, or data acquisition systems. No additional signal conditioning is required.

Q: What is the optimal installation gap for accurate vibration measurement?
A: For maximum linearity and sensitivity, maintain a static gap of 1.0–1.5 mm (40–60 mils) between the probe tip and shaft surface. This positions the operating point in the center of the linear range, allowing ±0.5 mm dynamic displacement measurement without signal clipping.

Q: Can this proximity probe withstand high-vibration mounting environments?
A: Yes, the probe housing is designed for direct mounting to bearing pedestals and casings experiencing up to 10g RMS vibration. Use proper thread-locking compounds and safety wire per installation guidelines to prevent loosening under continuous vibration exposure.

Q: What maintenance or recalibration is required during service life?
A: Proximity probes are passive sensors requiring no routine maintenance. Periodic verification (annually or per plant procedures) can be performed using Bently Nevada TK-3 calibration fixtures. Cable integrity should be inspected during major overhauls for insulation damage or connector corrosion.

Q: How do I select the correct cable length for my application?
A: Measure the physical distance from the probe mounting location to the proximitor installation point, adding 20% for routing flexibility and service loops. Standard lengths are 5 meters and 9 meters; custom lengths up to 18 meters available. Longer cables may require signal compensation adjustments.

Q: Is this probe suitable for hazardous area installations?
A: When paired with intrinsically safe proximitor barriers (such as Bently Nevada 330780 or 330980 models), this probe can be installed in Class I Division 2 or ATEX Zone 2 classified areas. Consult factory for specific certifications and installation requirements.

Request Technical Consultation & Quotation

To receive a detailed application review, system integration proposal, or pricing for the Bently Nevada 330103-00-04-10-02-00 proximity probe, please provide the following information to our engineering team:

• Equipment type and model (turbine, compressor, motor, etc.)
• Shaft diameter, material, and surface finish specifications
• Operating speed range (RPM) and expected vibration amplitudes
• Ambient temperature and environmental conditions at installation site
• Required cable length and routing constraints
• Existing monitoring system model or desired output signal type
• Quantity required and project timeline

Our application engineers will respond within 24 hours with probe configuration recommendations, system compatibility verification, and delivered pricing tailored to your project requirements.
