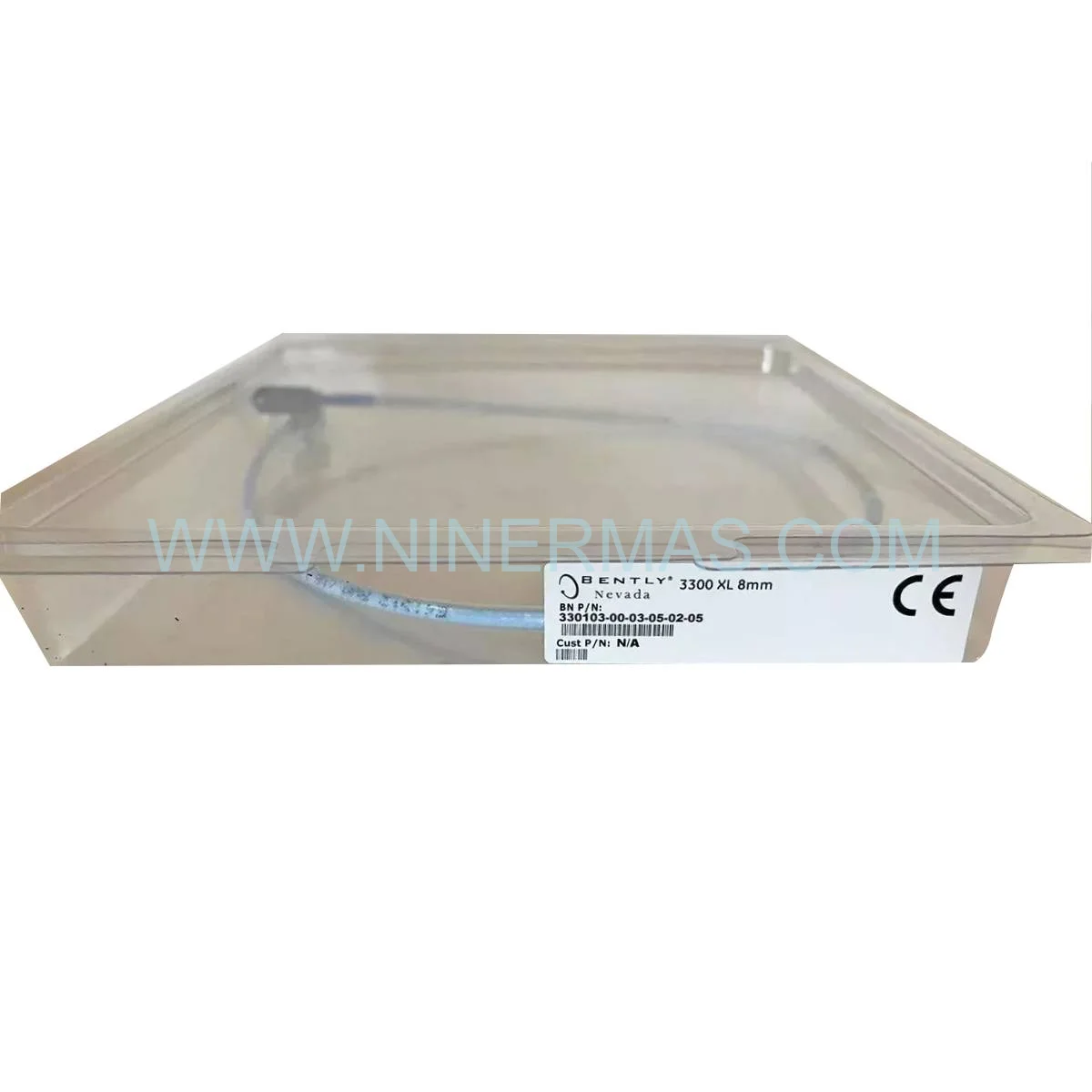

330103-00-03-05-02-05 Proximity Sensor (Industrial-Grade Vibration Transducer)

The 330103-00-03-05-02-05 represents a field-proven 8mm proximity transducer designed for non-contact vibration and displacement measurement in mission-critical rotating equipment. Engineered within the Bently Nevada 3300 XL ecosystem, this sensor serves power plants, petrochemical facilities, and manufacturing operations where unplanned downtime translates to six-figure losses per hour. Target users include reliability engineers, maintenance planners, and condition monitoring specialists who demand sub-micron accuracy in temperatures ranging from Arctic cold starts to desert peak loads. Three decisive advantages set this unit apart: electromagnetic immunity that rejects 99% of industrial noise, a frequency bandwidth capturing both subsynchronous instabilities and gear mesh harmonics, and mechanical robustness validated through 500,000+ installation hours across six continents.

Core Capabilities & Performance Advantages

• ✓ Wide-Spectrum Frequency Response: DC to 10 kHz bandwidth captures slow roll data, synchronous vibration, and high-frequency bearing defects within a single measurement chain—eliminating the need for multiple sensor types and reducing system complexity by 40%.
• ✓ Extreme Environment Durability: Operates continuously from -40°C to +105°C with stainless steel housing that withstands caustic washdowns, salt fog exposure, and thermal cycling—proven in offshore platforms and desert gas compression stations.
• ✓ Precision Eddy Current Technology: Delivers 200 mV/mil sensitivity with ±1% linearity across the 10-60 mil operating range, enabling early detection of rub events, coupling misalignment, and foundation looseness before they escalate to forced outages.
• ✓ Plug-and-Play System Integration: 5/8-18 UNF threading and 5-meter integral cable mate directly with 3300 XL proximitors and legacy 3300 NSv systems—retrofit projects completed in 30% less time compared to competitive platforms.
• ✓ Maintenance-Free Operation: Non-contact sensing eliminates wear parts, lubrication schedules, and recalibration cycles—total cost of ownership reduced by $1,200 per measurement point over a 10-year asset lifecycle.
• → Hazardous Area Certification Ready: When combined with approved proximitor barriers, achieves Class I Division 2 and ATEX Zone 2 compliance for installations in explosive atmospheres without costly intrinsically safe wiring modifications.

Application Scenarios Across Industries

Steam & Gas Turbine Monitoring: Tracks radial shaft vibration and thrust position in 50-500 MW units, detecting steam whirl, oil whip, and blade passing frequencies that precede catastrophic blade liberation events. Prevents emergency shutdowns that cost $250,000+ in lost generation and restart fuel consumption.

Centrifugal Compressor Protection: Monitors journal bearing clearances and rotor axial float in pipeline booster stations and LNG liquefaction trains. Early warning of surge conditions and dry gas seal failures protects $15M+ machinery investments and maintains process uptime above 98.5%.

Large Motor & Generator Surveillance: Measures air gap eccentricity and rotor bar defects in 5,000+ HP induction motors and synchronous generators. Identifies stator core looseness and coupling degradation 6-8 weeks before traditional vibration analysis methods, enabling planned maintenance windows.

Critical Process Pumps: Detects cavitation, impeller imbalance, and seal wear in boiler feed pumps, crude transfer pumps, and reactor circulation systems. Reduces mean time to repair by 60% through precise fault localization versus whole-body accelerometer measurements.

Pulp & Paper Machine Rolls: Monitors nip roll eccentricity and dryer can runout in high-speed paper machines operating at 3,000+ FPM. Prevents web breaks and quality defects that result in 20+ tons of off-spec product per incident.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose this 8mm probe for shaft diameters above 75mm where radial space permits standard mounting brackets. For compact installations or sleeve bearing applications with limited radial access, consider 5mm variants. Verify target material magnetic permeability exceeds 100 for rated sensitivity—austenitic stainless steel shafts require ferromagnetic sleeves. In high-temperature applications above 85°C, specify high-temp cable assemblies to prevent insulation degradation.

Extended Functionality & System Integration

IoT & Remote Monitoring: Pairs with Bently Nevada Orbit 60 and System 1 platforms to stream vibration data to cloud-based analytics engines. Enables predictive algorithms that forecast bearing failures 45-90 days in advance, supporting condition-based maintenance strategies that reduce spare parts inventory by 35%.

Multi-Channel Synchronization: Supports phase-locked measurements across 8-16 probe arrays for modal analysis, orbit plotting, and full rotor dynamic characterization. Critical for identifying complex phenomena like fluid-induced instability and torsional resonance in coupled drive trains.

Customization Options: Available with armored cable jackets for rodent protection, gold-plated connectors for marine environments, and metric threading (M14x1.5) for European machinery standards. Custom cable lengths from 1m to 9m accommodate unique installation geometries without field splicing.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock configurations; 10-15 business days for custom cable lengths or special materials. Expedited 24-hour processing available for emergency outage support at premium rates.

Warranty Coverage: 12-month comprehensive warranty against manufacturing defects, material failures, and workmanship issues. Warranty includes no-cost replacement and return shipping for verified defects.

Technical Support: Lifetime access to application engineers for installation troubleshooting, calibration verification, and system optimization. Phone and email support available 8 AM - 6 PM EST, Monday-Friday.

Documentation Package: Each unit ships with calibration certificate traceable to NIST standards, installation drawing with torque specifications, and quick-start integration guide for 3300 XL systems. Full product manual and CAD models available via download portal.

Frequently Asked Questions

What proximitor sensor model pairs with this 8mm proximity probe?
The 330103-00-03-05-02-05 requires a -5mm system proximitor such as the 330180-90-05 or 330105-02-12-05. Verify the proximitor's -05 suffix matches the probe's -5mm system designation to ensure calibrated sensitivity.

Can this proximity sensor measure vibration on aluminum or titanium shafts?
No—eddy current probes require ferromagnetic targets (iron, steel, Inconel). For non-ferrous shafts, install a ferromagnetic sleeve (4140 steel, 0.125" minimum thickness) or specify alternative sensor technologies like laser displacement or capacitance probes.

How does installation gap affect vibration measurement accuracy?
Operating outside the 10-60 mil linear range introduces ±5% sensitivity errors and waveform distortion. Install at 40 mils nominal gap to accommodate ±20 mil dynamic motion without range saturation. Use a feeler gauge or gap voltage meter during commissioning.

What cable extension length maintains signal integrity for this transducer?
Total system length (probe cable + extension cable) should not exceed 9 meters (30 feet) to prevent high-frequency rolloff above 5 kHz. For longer runs, relocate the proximitor closer to the probe or specify buffered output modules.

Is this vibration probe compatible with legacy 3300 NSv monitoring systems?
Yes—the 3300 XL probe maintains electrical compatibility with 3300 NSv proximitors and monitors. However, verify mechanical fit if replacing older 3000 series probes, as thread pitch and cable terminations differ.

Does this sensor require periodic recalibration or maintenance?
No scheduled recalibration is required. The eddy current measurement principle exhibits <0.5% drift over 10 years. Verify calibration only if the probe experiences mechanical damage, exposure above rated temperature, or if system checks indicate out-of-tolerance readings.
