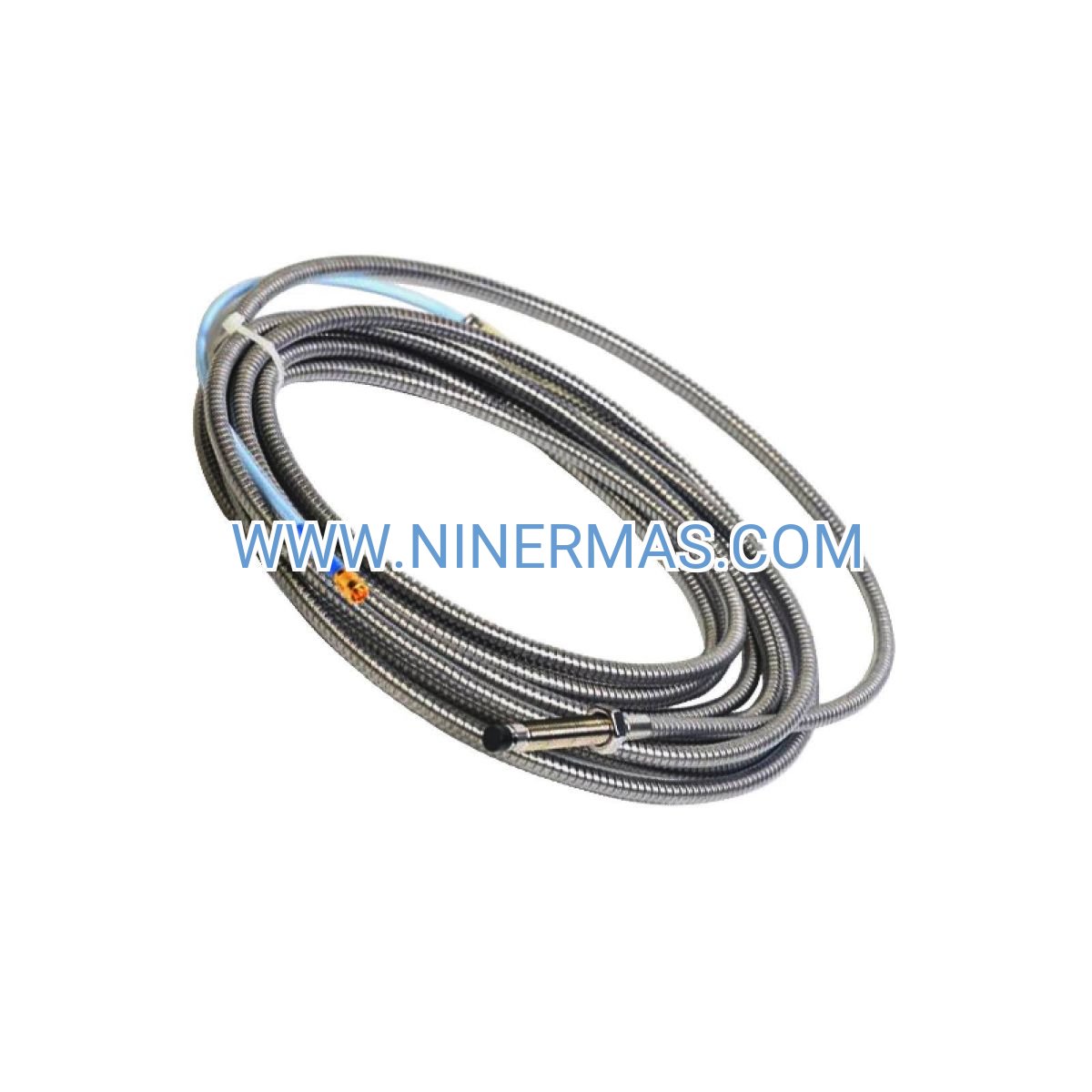

Bently Nevada 330102-60-90-10-02-05 8mm Proximity Probe (Industrial Vibration Monitoring Solution)

The Bently Nevada 330102-60-90-10-02-05 is an industrial-grade 8mm proximity probe engineered for critical rotating machinery applications. Utilizing advanced eddy current technology combined with precision signal conditioning, this sensor delivers real-time shaft displacement measurement, vibration amplitude tracking, and axial position monitoring with exceptional accuracy and reliability.

Designed for high-stakes environments including power generation plants, petrochemical facilities, oil & gas processing units, and aerospace test facilities, this probe addresses common challenges such as unpredictable equipment failures, costly unplanned downtime, inaccurate vibration data under extreme temperatures, and delayed fault detection in mission-critical turbomachinery systems.

Through factory-calibrated precision and rugged stainless steel construction, the 330102-60-90-10-02-05 offers superior measurement linearity (±2% FSO), extended frequency response (0-10kHz), wide operating temperature range (-40°C to +105°C), and seamless integration with existing Bently Nevada monitoring ecosystems. Ideal for design engineers, maintenance managers, system integrators, and plant operators seeking to implement condition-based monitoring strategies. Contact our application engineers for customized configuration recommendations and project-specific technical support.

Core Features & Advantages

• High-Precision Eddy Current Sensing
  Non-contact measurement technology with ±2% linearity over the full calibrated range ensures accurate detection of shaft radial vibration, axial displacement, and differential expansion without mechanical wear or drift.
• Extended Frequency Response for Dynamic Events
  DC to 10kHz bandwidth (-3dB) captures both slow-roll baseline data and high-frequency transient events such as blade pass frequencies, gear mesh harmonics, and bearing fault signatures that conventional sensors miss.
• Extreme Temperature Resilience
  Operates reliably from -40°C to +105°C, maintaining calibration accuracy in cryogenic compressor applications, high-temperature steam turbine environments, and outdoor installations subject to seasonal temperature swings.
• Robust Industrial Construction
  Stainless steel housing with PEEK insulation resists corrosive atmospheres, mechanical shock, and electromagnetic interference. IP67-rated sealing protects against moisture ingress and particulate contamination in harsh process environments.
• Plug-and-Play System Integration
  Direct compatibility with Bently Nevada 3300 XL proximitor modules, extension cables, and monitoring platforms eliminates complex configuration procedures. Factory calibration certificates with NIST-traceable data ensure immediate deployment readiness.
• Predictive Maintenance Enablement
  Continuous condition monitoring enables early detection of bearing degradation, rotor imbalance, misalignment, shaft cracks, and rub conditions—reducing catastrophic failure risk by up to 70% and optimizing maintenance resource allocation.

Typical Application Scenarios

This proximity probe is engineered for applications demanding high reliability, measurement precision, and continuous uptime assurance, particularly in:

• Steam & Gas Turbine Monitoring
  Measures shaft radial vibration and thrust position in power generation turbines operating at speeds from 1,800 to 10,000 RPM, protecting multi-million dollar assets from bearing failures and rotor dynamic instabilities.
• Centrifugal & Axial Compressor Systems
  Tracks compressor shaft displacement and casing vibration in petrochemical, refinery, and natural gas processing applications where unplanned shutdowns result in significant production losses and safety risks.
• High-Speed Rotating Equipment
  Monitors critical machinery in paper mills, steel manufacturing, mining operations, and chemical processing plants where equipment operates continuously under variable load conditions and environmental stresses.
• Pump & Motor Condition Monitoring
  Provides real-time vibration analysis for large industrial pumps, electric motors, and gearbox assemblies in water treatment facilities, HVAC systems, and material handling operations requiring 24/7 operational availability.
• Aerospace Engine Testing & Research
  Delivers precision shaft position data during jet engine development testing, rotor dynamics research, and certification programs where measurement accuracy directly impacts safety validation and performance optimization.

Technical Specifications & Selection Guide

To facilitate accurate system design and component selection, we provide comprehensive technical parameters for the 330102-60-90-10-02-05 proximity probe. Custom configurations are available to meet project-specific requirements.

Selection Recommendations: When specifying the 330102-60-90-10-02-05 proximity probe, consider the following critical factors: target shaft material composition and surface finish quality, required measurement range and dynamic response characteristics, ambient temperature extremes and thermal cycling conditions, available mounting space and installation orientation constraints, cable routing distance from probe to proximitor module, and integration requirements with existing monitoring infrastructure. For complex applications or multi-channel systems, our application engineering team can provide detailed configuration worksheets, mounting hardware recommendations, and system validation support. Submit your machinery specifications including shaft diameter, operating speed range, bearing type, and environmental conditions for personalized selection guidance.

Advanced Integration Capabilities

• Multi-Channel Monitoring Architectures
  Deploy multiple probes in XY radial configurations, axial thrust monitoring arrays, or differential expansion measurement setups. Synchronized data acquisition enables orbit analysis, phase relationships, and modal vibration characterization.
• Digital Communication Protocols
  Integrate with Bently Nevada 3500 rack monitoring systems supporting Modbus, OPC, and proprietary protocols for SCADA connectivity, historian data logging, and enterprise asset management platforms.
• Automated Alarm & Shutdown Logic
  Configure multi-level alert thresholds (Alert, Danger, Trip) with programmable time delays and voting logic to prevent nuisance trips while ensuring rapid response to genuine fault conditions.
• Calibration & Validation Tools
  Utilize factory-supplied calibration curves, field verification procedures, and portable calibration fixtures to maintain measurement accuracy throughout the sensor lifecycle and satisfy regulatory compliance requirements.

Delivery, Service & Quality Assurance

Lead Times: Standard catalog configurations ship within 3-5 business days from regional distribution centers. Custom cable lengths, special thread configurations, or high-temperature variants require 2-3 weeks manufacturing lead time. Expedited processing available for critical outage support and emergency replacement scenarios.

Warranty Coverage: Every 330102-60-90-10-02-05 proximity probe includes a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and calibration accuracy. Extended warranty programs and service level agreements available for large-scale installations and fleet deployments.

Technical Support Services: Our application engineering team provides pre-sale consultation for system design optimization, installation guidance including mounting hardware selection and gap adjustment procedures, commissioning assistance with baseline data acquisition and alarm setpoint determination, and post-installation troubleshooting support via phone, email, and remote diagnostics.

Documentation Package: Each shipment includes factory calibration certificate with NIST-traceable measurement data, dimensional drawings with mounting interface specifications, electrical connection diagrams for proximitor wiring, installation instructions with torque specifications and gap setting procedures, and operation manual covering maintenance intervals and field verification methods.

Quality Certifications: Manufactured under ISO 9001:2015 quality management systems with full material traceability. Complies with API 670 machinery protection system standards and applicable CE directives for industrial equipment.

Frequently Asked Questions (FAQ)

Q: What target materials are compatible with the Bently Nevada 330102-60-90-10-02-05 proximity probe?
A: The probe is optimized for ferrous metals including carbon steel, stainless steel (300/400 series), and nickel-based alloys such as Inconel. Non-ferrous materials like aluminum, brass, or titanium require special calibration curves and may exhibit reduced sensing range. Target surface finish should be better than 63 micro-inches Ra for optimal linearity.

Q: Can this 8mm proximity probe replace older Bently Nevada 3300 series sensors in existing installations?
A: Yes, the 3300 XL series maintains mechanical and electrical backward compatibility with legacy 3300 systems. The 5/8-18 UNF thread interface and proximitor connector pinout are standardized. However, verify that your existing proximitor modules support the enhanced frequency response and temperature range of XL-series probes to fully utilize performance improvements.

Q: What is the recommended installation gap for the 330102-60-90-10-02-05, and how critical is gap tolerance?
A: The optimal operating gap is 1.0mm (40 mils) from the target shaft surface, providing maximum linearity and dynamic range. Acceptable gap range is typically 0.5mm to 1.5mm (20-60 mils). Gap variations beyond ±0.25mm can introduce measurement errors exceeding ±5%. Use precision shim stock or micrometer-adjustable mounting hardware during installation to achieve specified gap within ±0.1mm tolerance.

Q: How often does the Bently Nevada proximity probe require recalibration or verification?
A: Under normal operating conditions (stable temperature, no mechanical damage, clean environment), annual verification against factory calibration data is recommended. Harsh environments with extreme temperature cycling, corrosive atmospheres, or high vibration exposure may warrant semi-annual validation. Field verification can be performed using portable calibration fixtures without removing the probe from service.

Q: What cable length options are available, and can extension cables be used?
A: The model suffix indicates factory-configured cable length. Standard options range from 1 meter to 9 meters. For installations requiring longer distances, use Bently Nevada 3300 XL extension cables (available in 1m, 3m, 5m, 9m lengths) between the probe and proximitor module. Total system cable length (probe cable + extension) should not exceed 9 meters to maintain signal integrity and frequency response specifications.

Q: Is the 330102-60-90-10-02-05 suitable for hazardous area installations requiring intrinsic safety certification?
A: The standard probe configuration is designed for general industrial environments. For Class I Division 1/2 or ATEX Zone 1/2 hazardous locations, specify intrinsically safe (IS) barrier modules compatible with the 3300 XL system. Consult factory application engineers for proper barrier selection, entity parameters verification, and certification documentation requirements for your specific hazardous area classification.

Request Technical Consultation & Quotation

To receive a customized system configuration recommendation, detailed pricing quotation, or application-specific technical support, please provide the following information to our engineering team:

• Project name and application description (turbine type, compressor model, etc.)
• Machinery specifications: shaft diameter, operating speed range (RPM), bearing configuration
• Measurement requirements: radial vibration, axial position, differential expansion, or combination
• Number of monitoring channels and probe mounting locations
• Environmental conditions: temperature range, humidity, corrosive atmosphere presence
• Cable length requirements and routing constraints
• Existing monitoring system details (if retrofit/expansion project)
• Delivery timeline and installation schedule

Our application engineers will respond within 24 hours with tailored recommendations including probe configuration verification, proximitor module selection, mounting hardware specifications, system wiring diagrams, and comprehensive budget quotation. For urgent outage support or emergency replacement requirements, contact our technical hotline for expedited processing.
