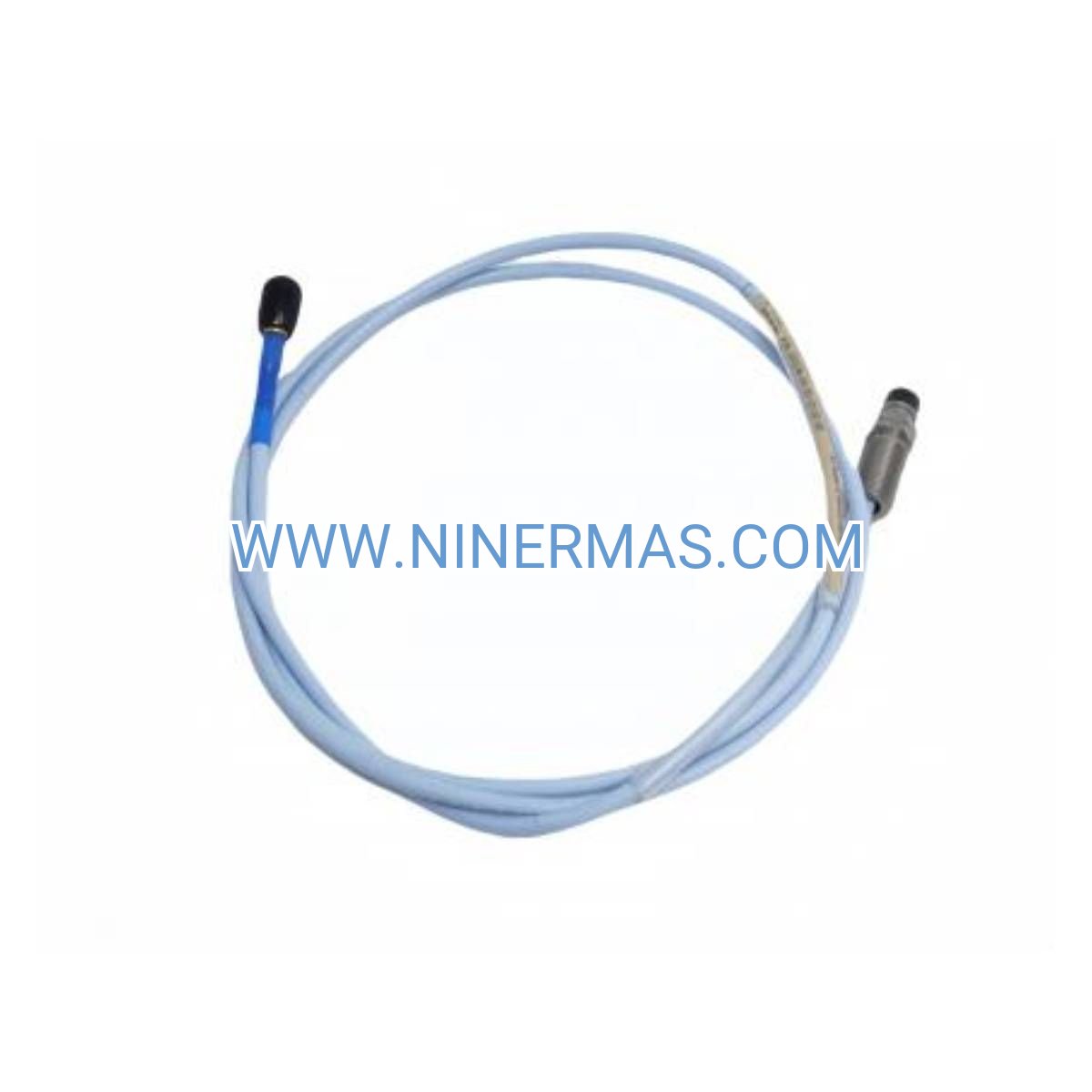

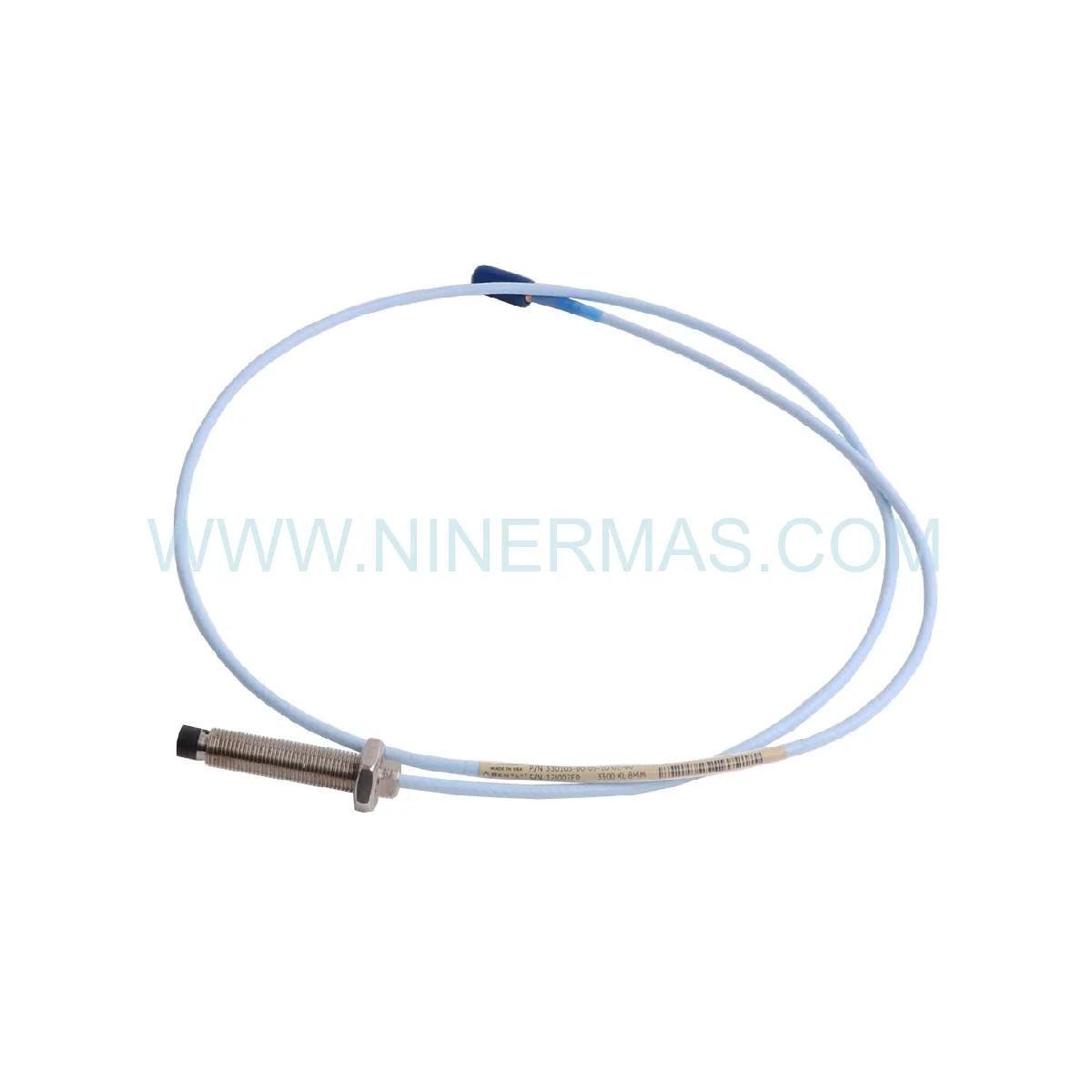

330102-00-12-10-02-05 Proximity Probe (Industrial-Grade Vibration Monitoring Solution)

The 330102-00-12-10-02-05 represents a precision-engineered proximity sensor designed specifically for continuous machinery health surveillance in mission-critical industrial operations. This 8mm non-contact displacement transducer delivers micron-level accuracy for rotating equipment monitoring, enabling early fault detection before catastrophic failures occur. Built on the proven 3300 XL platform, this probe serves as the frontline defense in protecting high-value turbomachinery assets across power generation, oil & gas, and heavy manufacturing sectors.

Industrial facilities face constant pressure to maximize uptime while minimizing maintenance costs. Traditional reactive maintenance approaches lead to unexpected breakdowns, production losses, and safety hazards. The 330102-00-12-10-02-05 addresses these challenges by providing real-time shaft position and vibration data, allowing maintenance teams to transition from time-based to condition-based strategies. This probe is engineered for reliability engineers, vibration analysts, and plant managers who demand uncompromising performance in harsh process environments.

What sets this sensor apart is its combination of rugged construction, measurement precision, and seamless integration with Bently Nevada monitoring ecosystems. The Viton O-ring seal maintains integrity under differential pressure up to 3.4 MPa (500 psi), while the 8mm sensing tip optimizes sensitivity for standard shaft applications. Whether you're monitoring steam turbines, centrifugal compressors, or critical pumps, this probe delivers the actionable intelligence needed to prevent unplanned outages and extend equipment service life.

Core Capabilities & Performance Advantages

✓ Micron-Level Displacement Accuracy
Detects shaft movement with ±0.5% linearity across the full measurement range, enabling precise tracking of radial vibration, axial position, and eccentricity. This sensitivity allows identification of bearing wear, misalignment, and rotor imbalance in early stages.

✓ Differential Pressure Sealing Technology
Viton elastomer O-ring withstands process pressures up to 3.4 MPa while maintaining hermetic seal integrity. Eliminates false readings caused by pressure fluctuations in compressor and pump applications, ensuring measurement reliability in demanding environments.

✓ Extended Temperature Operating Range
Functions reliably from -40°C to +125°C (-40°F to +257°F), accommodating both cryogenic and high-temperature applications without calibration drift. Ideal for steam turbines, hot gas expanders, and refrigeration compressors.

✓ Electromagnetic Interference Immunity
Shielded cable construction and optimized probe geometry reject electrical noise from VFDs, motors, and power distribution systems. Maintains signal integrity in electrically noisy industrial environments where conventional sensors fail.

→ Plug-and-Play 3300 XL Ecosystem Integration
Direct compatibility with 3300 XL Proximitor sensors and monitoring racks eliminates complex configuration. Pre-calibrated factory settings reduce commissioning time by 60% compared to legacy systems, accelerating project timelines and reducing installation costs.

→ Long-Term Stability & Drift Resistance
Proven sensor technology maintains calibration accuracy over 10+ year service intervals. Reduces recalibration frequency and associated downtime, lowering total cost of ownership while ensuring continuous protection.

Industrial Application Scenarios

Steam & Gas Turbine Protection Systems
In power generation facilities, this probe monitors journal bearing clearances and thrust position on turbine-generator sets. By detecting excessive shaft movement before bearing damage occurs, operators avoid forced outages that cost $500K-$2M per day. The sensor's high-temperature capability handles turbine casing environments exceeding 100°C.

Centrifugal Compressor Vibration Analysis
Petrochemical plants deploy these probes on multi-stage compressors handling corrosive gases at pressures up to 200 bar. The differential pressure seal prevents process gas ingress while monitoring radial vibration across XY planes. Early detection of surge, fouling, or impeller damage prevents catastrophic failures and product contamination.

Critical Pump Monitoring in Refineries
Refineries install these sensors on boiler feed pumps, crude transfer pumps, and hydrotreater circulation pumps where failure impacts entire process units. Real-time shaft displacement data identifies cavitation, seal wear, and coupling misalignment, enabling predictive maintenance that reduces emergency repairs by 75%.

Paper Mill Dryer Section Surveillance
Paper manufacturers monitor dryer drum bearings using these probes to detect shell eccentricity and bearing wear. The sensor's ability to function in high-humidity, high-temperature environments (up to 125°C) makes it ideal for Yankee dryers and multi-cylinder machines where downtime costs exceed $50K per hour.

Mining Conveyor Drive Systems
Mining operations protect gearbox-driven conveyor systems by monitoring input and output shaft vibration. The probe's rugged construction withstands shock, dust, and temperature extremes in underground and surface mining applications, preventing gearbox failures that halt production.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose this 8mm probe for shaft diameters between 25mm and 300mm where standard bearing clearances apply. For smaller shafts (<25mm), consider 5mm probes; for larger shafts (>300mm) or extended range requirements, specify 11mm models. Verify that your mounting location provides the required 18mm threaded hole depth and clearance for the 5-meter integral cable routing. When monitoring through pressure boundaries exceeding 3.4 MPa, upgrade to high-pressure seal variants with Kalrez seals rated to 20 MPa.

Extended Functionality & Integration Options

Dual-Channel Redundancy Configuration: Deploy in XY pairs (90° orientation) to capture full orbital motion and calculate peak-to-peak vibration vectors. This configuration enables advanced diagnostics including mode shape analysis, unbalance identification, and misalignment detection.

Thrust Position Monitoring: Install axially to measure rotor float and thrust bearing wear. Critical for turbines and compressors where axial movement indicates thrust bearing degradation or aerodynamic imbalance.

Keyphasor Reference Integration: Combine with Bently Nevada keyphasor probes to enable phase-resolved vibration analysis. This allows precise identification of unbalance location, bent shaft orientation, and rub contact points for targeted corrective actions.

IIoT Connectivity via 3500 Rack Systems: Interface with 3500 monitoring racks equipped with Ethernet/IP or Modbus TCP for integration with plant-wide condition monitoring platforms, SCADA systems, and cloud-based analytics services. Enables remote diagnostics and machine learning-based anomaly detection.

Customization Options: Available with alternative cable lengths (1m to 9m), high-temperature cables (up to 260°C), and specialized seal materials (EPDM, Kalrez) for unique process conditions. Consult factory for explosion-proof certifications (ATEX, IECEx) required in hazardous area classifications.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 2-3 weeks for factory-configured variants with custom cable lengths or seal materials.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical applications requiring 5-year coverage.

Technical Support: Access to application engineers for mounting guidance, calibration verification, and troubleshooting assistance. Phone and email support available during business hours (GMT+8), with emergency hotline for critical outages.

Documentation Package: Each probe ships with calibration certificate, installation manual, dimensional drawings, and material certifications. Digital copies available for download including 3D CAD models (STEP, IGES formats) for design integration.

Calibration Services: Factory-traceable recalibration services available with ISO/IEC 17025 accredited test reports. Typical turnaround time 5-7 business days including shipping.

Frequently Asked Questions

Q: How does this proximity probe interface with existing DCS or PLC systems?
A: The probe connects to a 3300 XL Proximitor sensor which converts the probe signal to industry-standard 4-20mA or -10V to +10V outputs. These analog signals integrate directly with DCS/PLC analog input modules. For digital integration, pair with 3500 rack systems offering Modbus TCP, OPC-UA, or Ethernet/IP protocols.

Q: What shaft surface finish and material requirements ensure accurate measurement?
A: Target shaft surface finish of 0.4-1.6 μm Ra (16-63 μin) for optimal linearity. Compatible with ferromagnetic materials (carbon steel, stainless steel 400-series) and conductive non-ferrous metals (aluminum, brass, bronze) with appropriate calibration curves. Avoid chrome plating thicker than 0.05mm which affects eddy current penetration.

Q: Can this sensor detect bearing failures before audible noise or temperature rise occurs?
A: Yes. Proximity probes detect bearing clearance increases at the micron level, typically 2-4 weeks before thermal or acoustic symptoms appear. By monitoring vibration amplitude trends and orbital patterns, analysts identify inner race defects, outer race spalling, and cage wear in early stages when corrective action prevents secondary damage.

Q: What installation torque and thread sealant specifications prevent measurement errors?
A: Install to 20-25 N⋅m (15-18 lb-ft) torque using non-conductive thread sealant (Loctite 567 or equivalent). Avoid metallic sealants or excessive torque which distort the probe body and shift calibration. Verify gap voltage after installation to confirm proper target distance (typically 1.0-1.5mm for mid-range operation).

Q: How does the Viton seal perform in applications with hydrogen sulfide or amine exposure?
A: Viton (FKM) provides excellent resistance to hydrocarbons, acids, and moderate H₂S concentrations (<1000 ppm). For high H₂S environments (>5000 ppm) or amine service, specify Kalrez (FFKM) seal upgrade which offers superior chemical resistance across pH 1-14 and temperatures to 260°C.

Q: What is the expected service life in continuous operation at maximum temperature?
A: At the maximum rated temperature of 125°C, expect 5-7 years of continuous operation before seal degradation or cable insulation aging requires replacement. At typical operating temperatures (60-80°C), service life extends to 10-15 years. Regular gap voltage checks during planned outages verify sensor health and predict end-of-life.

Protect Your Critical Assets Today

Don't wait for catastrophic failure to impact your operations. The 330102-00-12-10-02-05 proximity probe provides the early warning intelligence your maintenance team needs to transition from reactive firefighting to proactive asset management. Contact our application engineers to discuss your specific monitoring requirements, receive mounting recommendations, and configure a complete vibration monitoring solution tailored to your machinery portfolio.

Ready to enhance your predictive maintenance program? Request a technical consultation or place your order today. Our team will ensure you receive the right sensor configuration, proper installation guidance, and ongoing support to maximize equipment reliability and minimize unplanned downtime.
