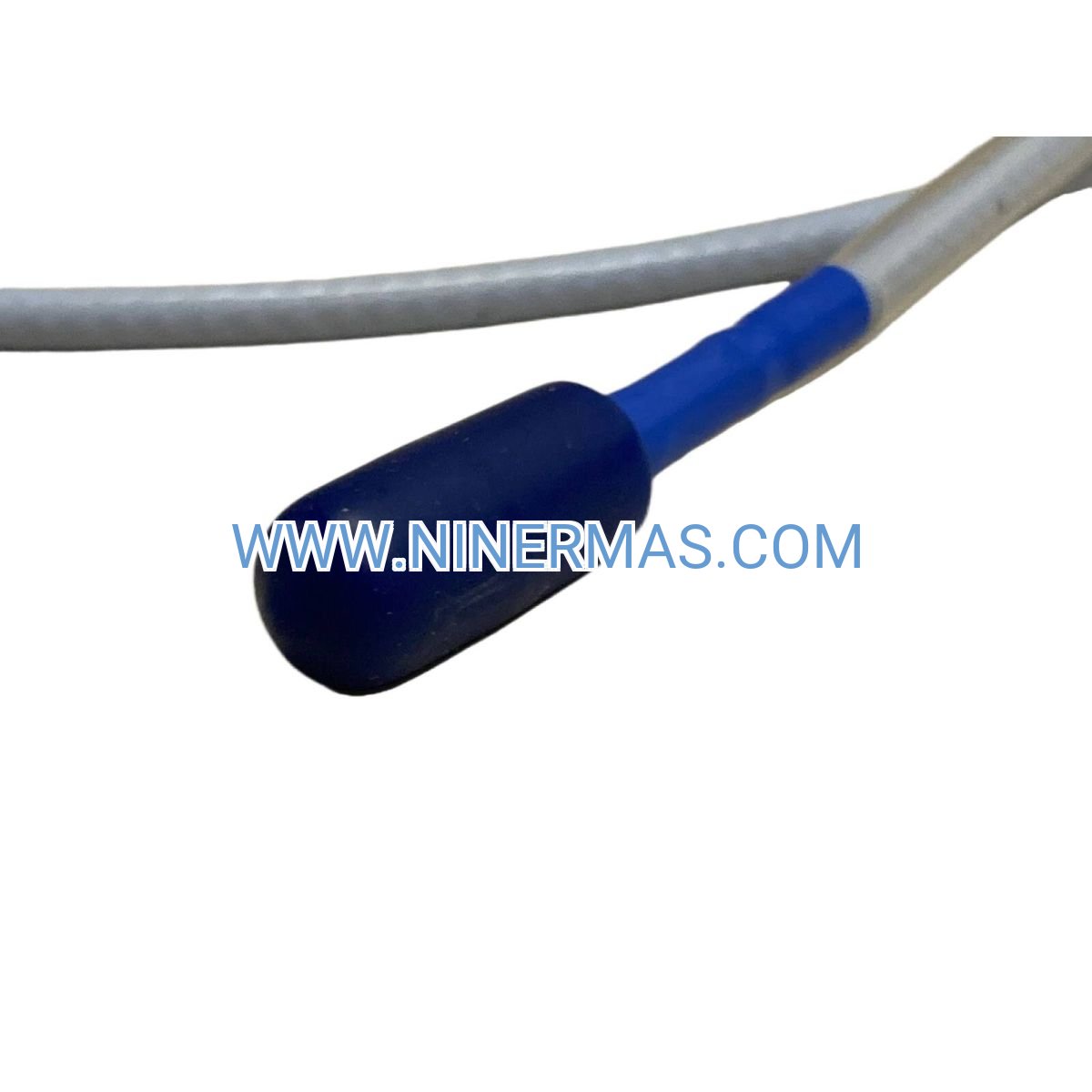

8mm Proximity Probe for Industrial Vibration Monitoring (Bently Nevada 3300 XL Compatible)

The 330101-00-50-10-02-00 is an industrial-grade 8mm proximity transducer engineered for continuous shaft displacement and vibration measurement in critical rotating machinery. Utilizing eddy current sensing technology with non-contact operation, this probe delivers precise radial vibration data, axial position tracking, and thrust bearing condition monitoring across turbines, compressors, pumps, and high-speed motors.

Designed for power generation plants, petrochemical facilities, oil & gas processing units, and heavy manufacturing operations, this sensor addresses common challenges including undetected bearing wear, shaft misalignment, rotor imbalance, and thermal growth anomalies. By providing real-time displacement signals to 3300 XL monitoring systems, it enables early fault detection before catastrophic failures occur.

Built on proven Bently Nevada engineering standards with field-tested reliability across thousands of global installations, the 330101 series combines rugged stainless steel construction, wide temperature tolerance, and high-frequency response capability. Suitable for design engineers, maintenance teams, OEM integrators, and plant reliability specialists seeking standardized or application-specific vibration monitoring solutions. Contact our technical team for system integration guidance, calibration support, and project-specific configurations.

Core Features & Technical Advantages

• Non-Contact Eddy Current Sensing
  Eliminates mechanical wear and friction-related failures through electromagnetic induction measurement. Maintains consistent accuracy over millions of operating cycles without physical degradation, reducing replacement frequency and maintenance costs.
• Wide Frequency Bandwidth (0-10 kHz)
  Captures both low-frequency shaft displacement (0-100 Hz) and high-frequency vibration events up to 10,000 Hz. Enables detection of gear mesh frequencies, blade pass harmonics, and transient shock events in high-speed rotating equipment exceeding 30,000 RPM.
• Extended Temperature Range (-40°C to +105°C)
  Operates reliably in extreme thermal environments from arctic outdoor installations to high-temperature turbine casings. Stainless steel 300-series housing provides corrosion resistance and thermal stability across industrial process conditions.
• Optimized Linear Measurement Range
  Delivers linear voltage output across 0.5mm to 2.0mm gap range (typical), providing accurate displacement measurement for standard shaft runout and vibration amplitudes. Factory calibration ensures ±1% linearity for repeatable trending and alarm setpoint accuracy.
• Multi-Pump Auto-Rotation & Backup Protection
  Seamless integration with Bently Nevada 3300 XL Proximitor modules, rack-mount monitors, and distributed control systems (DCS). Standard 5/8-18 UNF-2A thread mounting enables retrofit compatibility with legacy installations and cross-platform system upgrades.
• Ruggedized Industrial Construction
  Hermetically sealed sensor tip protects internal coil assembly from moisture, oil mist, and particulate contamination. 5-meter integral cable (customizable lengths available) with Teflon insulation withstands flexing, vibration exposure, and chemical environments.

Typical Application Scenarios

This proximity probe serves industries requiring continuous machinery health monitoring with high reliability and measurement precision, particularly in:

• Steam & Gas Turbine Monitoring
  Tracks journal bearing clearances, thrust position, and differential expansion in power generation turbines. Detects rotor bow during startup/shutdown thermal transients and monitors critical speed resonance amplitudes to prevent blade rubs and bearing failures.
• Centrifugal Compressor Protection
  Measures radial vibration at compressor bearing housings and axial float in thrust bearings for surge detection and anti-surge control validation. Commonly deployed in natural gas pipeline stations, refinery process units, and LNG liquefaction trains.
• High-Speed Motor & Generator Sets
  Monitors rotor eccentricity, magnetic center position, and vibration signatures in synchronous motors, induction motors, and turbine-driven generators. Supports condition-based maintenance programs in steel mills, mining hoists, and marine propulsion systems.
• Industrial Pump & Fan Systems
  Provides continuous surveillance of shaft displacement in boiler feed pumps, cooling water pumps, induced draft fans, and forced draft fans. Enables early detection of impeller imbalance, coupling misalignment, and foundation settling issues.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive specifications for the 330101-00-50-10-02-00 model. Custom configurations available for non-standard cable lengths, special thread types, and extreme environment applications.

Selection Recommendations: When specifying proximity probes, consider target shaft material (ferrous vs. non-ferrous), required measurement range, installation gap constraints, ambient temperature extremes, and cable routing distance to proximitor module. For applications involving non-standard shaft materials, high-vibration mounting locations, or hazardous area classifications, consult our application engineering team with machinery drawings, operating parameters, and environmental conditions. We provide system-level design support including probe quantity determination, mounting bracket selection, and cable termination specifications.

System Integration & Connectivity

The 330101 proximity probe operates as part of a complete vibration monitoring architecture:

• Proximitor Module Interface: Connects to Bently Nevada 3300 XL Proximitor modules (e.g., 3300 XL 8mm, 3300 XL 11mm) that provide -24 VDC excitation and signal conditioning. Output voltage proportional to gap distance enables direct connection to PLC analog inputs, DCS systems, or dedicated vibration monitors.
• Multi-Channel Monitoring: Typically deployed in pairs (X-Y radial configuration) or triplets (X-Y radial + Z axial) per bearing location. Supports full orbit analysis, phase angle measurement, and vector filtering for comprehensive rotor dynamic characterization.
• Digital Communication Options: When paired with modern rack monitors (e.g., 3500 series), enables Modbus TCP/IP, OPC UA, or proprietary protocol integration for SCADA systems, asset performance management (APM) platforms, and cloud-based analytics.
• Alarm & Trip Logic: Configurable alert and shutdown setpoints based on peak-to-peak vibration amplitude, DC gap voltage, or rate-of-change thresholds. Supports dual-voting redundancy for critical machinery protection applications.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom cable lengths or special configurations require 10-15 business days for factory assembly and testing.

Warranty Coverage: All proximity probes include a comprehensive 12-month warranty against manufacturing defects and material failures under normal operating conditions. Extended warranty programs available for critical applications.

Technical Support: Our global support network provides remote troubleshooting assistance, on-site commissioning services (region-dependent), and application engineering consultation. Post-installation support includes calibration verification, signal quality assessment, and system optimization recommendations.

Documentation Package: Each shipment includes installation manual with mounting torque specifications, electrical connection diagrams, calibration curves (gap voltage vs. distance), and dimensional drawings. Digital copies available in PDF format for documentation control systems.

Quality Certifications: Manufactured under ISO 9001:2015 quality management systems with full traceability. Calibration certificates traceable to national standards available upon request for regulated industries.

Frequently Asked Questions (FAQ)

Q: What target materials are compatible with this 8mm proximity probe?
A: The 330101 series is optimized for ferrous metal targets (carbon steel, stainless steel, cast iron) commonly used in shaft construction. For non-ferrous targets such as aluminum, titanium, or Inconel, sensitivity and linear range will differ—consult factory specifications or request application-specific calibration data. Avoid non-metallic targets (ceramic, composite) as eddy current sensing requires conductive materials.

Q: Can I retrofit this probe into existing Bently Nevada monitoring systems?
A: Yes, the 330101 series maintains backward compatibility with legacy 3300 XL Proximitor modules and earlier 3300 NSv systems when paired with appropriate signal conditioners. Verify proximitor module voltage rating (-24 VDC typical) and frequency response match your application requirements. Mounting thread (5/8-18 UNF) is industry-standard for most Bently Nevada installations.

Q: What is the recommended installation gap for optimal performance?
A: Maintain a nominal gap of 1.0mm to 1.5mm (40-60 mils) between probe tip and target surface for best linearity and signal-to-noise ratio. This positions the operating point in the center of the linear range, allowing ±0.5mm vibration measurement without signal clipping. Use a feeler gauge or dial indicator during installation, then verify DC gap voltage at the proximitor output (typically -10 VDC at 1.27mm gap). Refer to installation manual for detailed calibration procedures and gap voltage charts.

Q: Is this proximity probe suitable for high-speed rotating machinery?
A: Absolutely. The 10 kHz frequency bandwidth supports vibration monitoring on machinery operating at speeds exceeding 30,000 RPM (500 Hz fundamental). This bandwidth captures up to the 20th harmonic of shaft speed, enabling detection of gear mesh frequencies, blade pass events, and bearing defect signatures. For ultra-high-speed applications (>50,000 RPM), consult regarding extended frequency response options.

Q: How do I select cable length for my installation?
A: Standard 5-meter cable suits most applications where proximitor modules mount near machinery. For remote monitoring rooms or distributed I/O architectures, order custom cable lengths up to 9 meters (consult for longer runs). Avoid excessive cable length as capacitance affects high-frequency response—use extension cables with impedance matching for runs exceeding 9 meters. Cable routing should minimize exposure to electromagnetic interference (EMI) from VFDs, welders, or high-current conductors.

Q: What maintenance does the proximity probe require?
A: Proximity probes are maintenance-free sensors with no moving parts or consumables. Periodic inspection (annually or per plant PM schedule) should verify probe tip cleanliness (remove oil residue, metal particles), cable integrity (check for abrasion, kinks), and mounting tightness (verify locknut torque). Validate system performance by comparing gap voltage readings against baseline commissioning data—significant drift may indicate target surface corrosion or probe degradation.

Request Technical Support & Quotation

For detailed system design assistance, application-specific configurations, or volume pricing, please provide the following information to our engineering team:

• Project name and machinery type (e.g., steam turbine, centrifugal compressor)
• Number of measurement points and probe quantity required
• Shaft material and diameter at measurement location
• Operating speed range (RPM) and expected vibration amplitudes
• Ambient temperature range and environmental conditions (humidity, chemical exposure)
• Cable length requirements and proximitor module model (if known)
• Delivery timeline and destination location

Our application engineers will provide one-on-one consultation including probe selection validation, mounting recommendations, system architecture review, and budget quotations. Expedited delivery available for emergency replacements and critical outage support.
