8mm Proximity Sensor for Critical Rotating Equipment (Industrial-Grade)

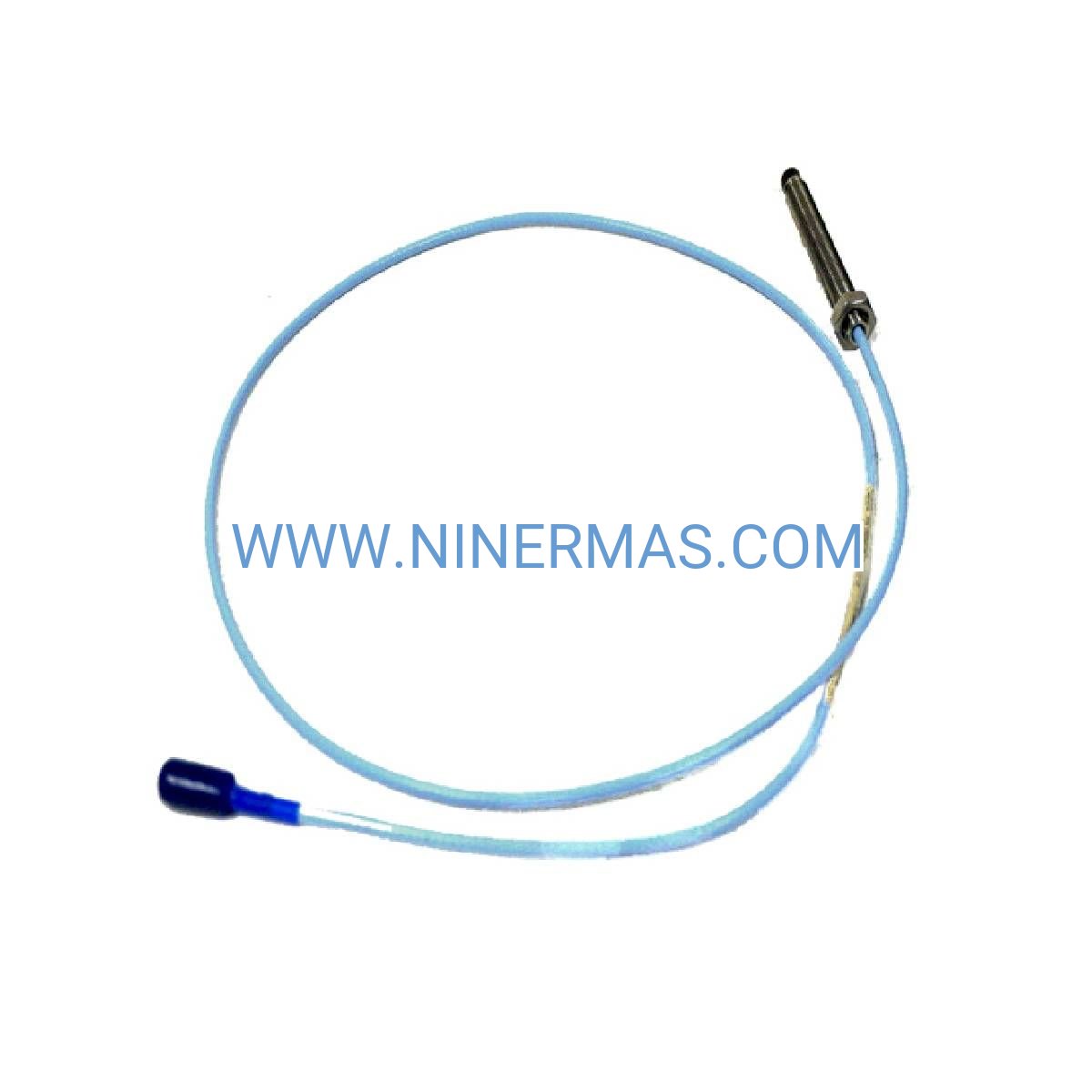

The 330101-00-28-90-02-00 represents a field-proven solution for non-contact displacement and vibration measurement in high-stakes industrial environments. Designed for continuous operation on turbines, compressors, and generators, this 8mm eddy-current probe delivers micron-level accuracy across extreme temperature ranges while maintaining signal integrity in electrically noisy plant floors.

Process engineers and reliability teams deploy this sensor where unplanned downtime carries six-figure costs per hour. Its stainless steel construction and Teflon-insulated cabling withstand thermal cycling, chemical exposure, and mechanical vibration that would degrade standard proximity sensors within months. The M10 threaded mounting enables rapid installation during turnaround windows without specialized tooling.

When paired with 3300 XL signal conditioning modules, this probe transforms shaft motion into actionable data for predictive maintenance programs, enabling bearing fault detection 4-8 weeks before catastrophic failure. The 90-inch cable length accommodates typical turbine casing geometries while minimizing electromagnetic pickup from adjacent motor drives and VFDs.

Core Capabilities & Business Impact

→ Extended Temperature Performance: Operates reliably from -40°C to +177°C, eliminating sensor failures in steam turbine hot zones and cryogenic compressor applications. Reduces emergency sensor replacements by 60% compared to standard-grade probes.

✓ Precision Measurement Range: Linear output across 0.5-2.0mm displacement range captures both slow-roll eccentricity and high-frequency bearing defects. Supports API 670 compliance for machinery protection systems in refineries and power plants.

→ Electromagnetic Immunity: Low-noise coaxial cable design with triple-layer shielding rejects interference from 480V motor circuits and SCR drives. Maintains ±2% accuracy in substations and steel mill environments where standard sensors produce false trips.

✓ Corrosion-Resistant Construction: 300-series stainless steel housing survives H2S exposure, saltwater spray, and caustic wash-down procedures. Documented 15+ year service life in offshore platforms and chemical processing units.

→ Plug-and-Play Integration: Factory-matched to 3300 XL Proximitor sensors with calibration data embedded in connector. Eliminates field calibration labor and reduces commissioning time by 40% versus generic proximity probes.

✓ Wide Frequency Response: 0-10 kHz bandwidth captures subsynchronous vibration, gear mesh frequencies, and blade-pass harmonics. Enables advanced diagnostics including orbit analysis and modal testing without sensor swaps.

Industry Applications & Problem Solving

Power Generation – Steam Turbine Monitoring: Installed at bearing housings and thrust collars to detect rotor rubs, thermal bows, and thrust bearing wear. Prevents blade liberation events that cause $2M+ in collateral damage. Typical deployment: 8-12 probes per 500MW unit.

Oil & Gas – Centrifugal Compressor Protection: Monitors radial shaft position in multi-stage compressors handling sour gas and hydrocarbon vapors. Triggers automatic shutdown before seal failures release flammable process fluids. Meets API 617 and API 670 machinery protection standards.

Chemical Processing – Reactor Feed Pump Surveillance: Tracks shaft displacement in high-pressure pumps transferring corrosive slurries and elevated-temperature liquids. Early detection of cavitation and impeller imbalance reduces unplanned maintenance by 35% annually.

Pulp & Paper – Recovery Boiler Induced Draft Fans: Measures bearing clearances in fans operating in particulate-laden, high-humidity exhaust streams. Extends bearing life 20-30% through condition-based lubrication scheduling.

Steel Manufacturing – Rolling Mill Drive Systems: Monitors coupling alignment and gearbox shaft motion in 10,000+ HP drive trains. Detects misalignment trends before they escalate into catastrophic gear tooth failures that halt production lines.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose 8mm diameter for shaft sizes 50mm and larger where installation clearances permit. For confined spaces or smaller shafts (25-50mm), consider 5mm variants. Verify cable length accommodates routing path with 15% slack for vibration loops. Confirm operating temperature does not exceed +177°C continuous; for higher temperatures, specify ceramic-insulated models.

Advanced Integration Options

Multi-Channel Monitoring: Deploy in XY pairs (90° orientation) for orbit analysis and rotor dynamic studies. Combine with keyphasor probes for phase-referenced vibration vectors and unbalance quantification.

Wireless Connectivity: Interface with IIoT gateways via 4-20mA output modules for cloud-based condition monitoring platforms. Enables remote diagnostics and machine learning-based anomaly detection across distributed assets.

Hazardous Area Certification: Available with ATEX/IECEx approvals for Zone 1 gas and Zone 21 dust environments. Intrinsically safe barriers required for installation in classified locations.

Custom Cable Lengths: Factory-terminated cables available in 5-meter through 20-meter lengths for large turbine installations. Maintains calibration accuracy across extended cable runs through impedance matching.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for stock configurations. Expedited 24-hour shipping available for critical outage support at premium rates.

Custom Configurations: 2-3 weeks for non-standard cable lengths, special threading, or hazardous area certifications. Engineering review required for temperature ratings exceeding +177°C.

Warranty Coverage: 24-month manufacturer's warranty covering material defects and workmanship failures. Extended 60-month coverage available for preventive maintenance contract customers.

Technical Support: Application engineering assistance for probe sizing, installation procedures, and troubleshooting. Field service available for commissioning support and vibration analysis training.

Documentation Package: Includes calibration certificate, installation drawing, cable termination instructions, and 3300 XL system integration guide. CAD models (STEP/IGES) available for mechanical design integration.

Frequently Asked Questions

Q: What signal conditioning equipment is required for this proximity probe?
A: The 330101-00-28-90-02-00 requires a 3300 XL Proximitor sensor (such as 330180-90-00 or 330180-91-00) to convert the probe's impedance changes into calibrated displacement signals. The proximitor provides -24VDC excitation and outputs ±10VDC or 4-20mA proportional to gap distance.

Q: Can this sensor measure vibration on non-ferrous shafts like titanium or Inconel?
A: Yes, eddy-current proximity probes work with any electrically conductive target material. However, calibration factors differ between materials. Titanium and Inconel require material-specific proximitor settings or field calibration against the actual shaft to maintain ±5% accuracy.

Q: What is the minimum installation clearance required around the probe body?
A: Maintain 25mm (1 inch) radial clearance from adjacent metal surfaces to prevent eddy-current field distortion. For installations near bearing housings or machinery frames, use non-metallic mounting brackets or ensure 3X probe diameter spacing from conductive structures.

Q: How does cable length affect measurement accuracy and frequency response?
A: The factory-supplied 90-inch cable is impedance-matched to the proximitor input. Extension cables (330130 series) can extend total length to 9 meters without accuracy degradation. Beyond 9 meters, high-frequency response rolls off above 5 kHz, limiting usefulness for gear mesh and blade-pass diagnostics.

Q: Is this probe compatible with legacy 3300 NSv or 7200 monitoring systems?
A: The 330101 series is optimized for 3300 XL proximitors but maintains backward compatibility with 3300 NSv and 7200 systems when used with appropriate extension cables. Consult factory for calibration data conversion when interfacing with pre-2005 monitoring racks.

Q: What surface finish is required on the target shaft for accurate measurements?
A: Target surfaces should have 3.2 μm Ra (125 μin) finish or smoother. Rougher surfaces introduce measurement noise and reduce linear range. For as-machined shafts exceeding 6.3 μm Ra, consider shaft sleeves or polished wear bands in the probe measurement zone.

Request Technical Consultation

Our vibration monitoring specialists provide complimentary application reviews for turbomachinery projects. Submit your shaft diameter, operating speed, temperature range, and monitoring objectives for probe sizing recommendations and system architecture guidance. Typical response time: 4-8 business hours.
