Bently Nevada 330101-00-25-10-02-00 Proximity Probe (Industrial Vibration Monitoring Solution)

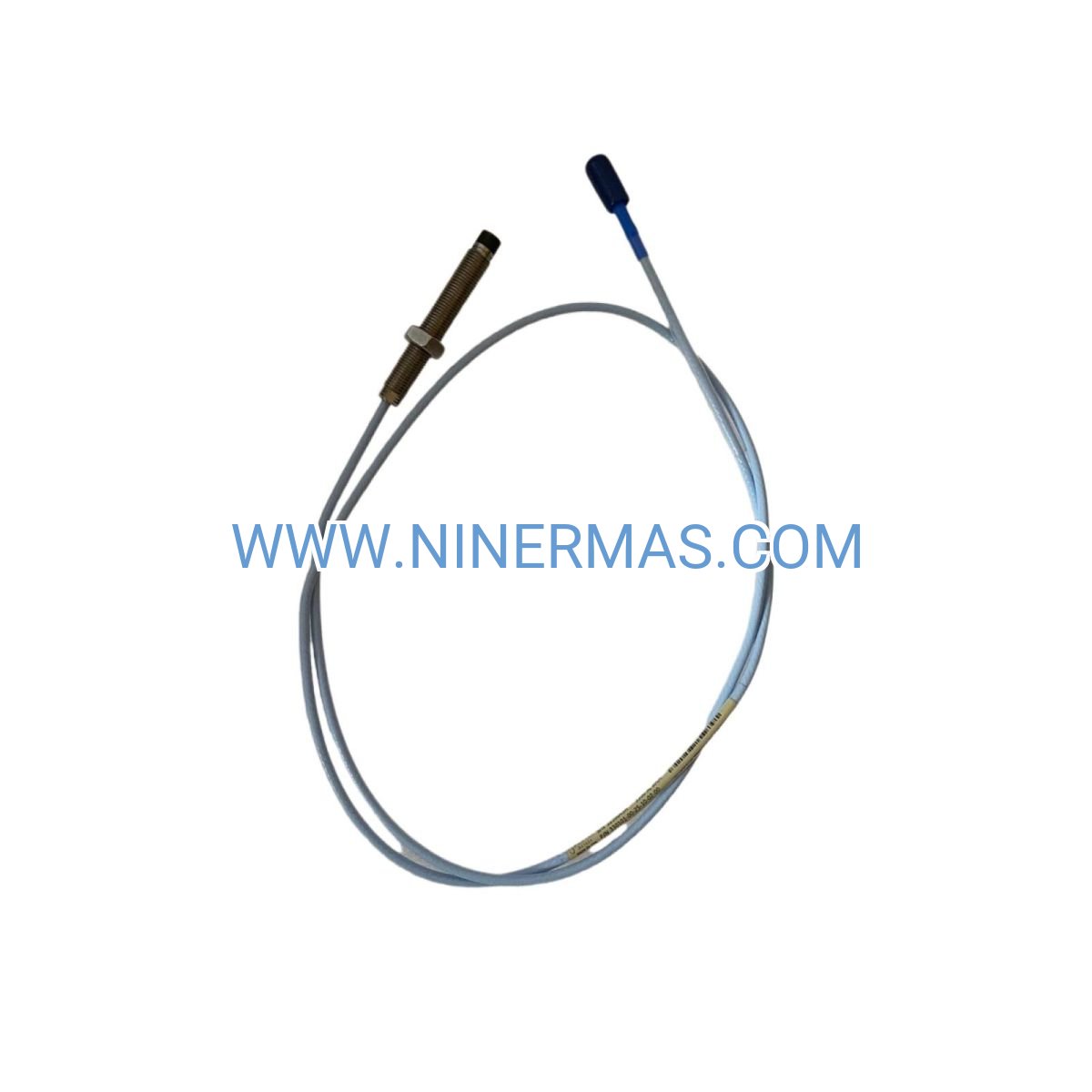

The Bently Nevada 330101-00-25-10-02-00 is a precision-engineered 8mm proximity probe designed for continuous vibration monitoring in critical rotating machinery. As part of the proven 3300 XL NSv series, this sensor delivers real-time shaft displacement measurement through advanced eddy current technology, enabling early fault detection and preventing catastrophic equipment failures in turbines, compressors, pumps, and generators.

Widely deployed across power generation facilities, oil & gas refineries, petrochemical plants, and heavy manufacturing operations, this probe addresses critical challenges including bearing wear detection, rotor imbalance identification, shaft misalignment monitoring, and thermal growth tracking. Its API 670 certification ensures compliance with international machinery protection standards for high-risk industrial environments.

Engineered with rugged construction and field-proven reliability, the 330101-00-25-10-02-00 features standardized mounting dimensions for seamless retrofits, wide temperature tolerance for harsh operating conditions, and compatibility with Bently Nevada 3300 XL proximity systems. Ideal for OEMs, plant maintenance teams, condition monitoring specialists, and EPC contractors requiring dependable vibration sensing solutions. Contact our application engineers for system integration guidance and technical specifications.

Core Features & Performance Advantages

High-Precision Eddy Current Sensing
Utilizes non-contact electromagnetic induction to measure shaft displacement with ±1% linearity across the full operating range, eliminating mechanical wear and ensuring long-term measurement stability in continuous-duty applications.

API 670 Certified Reliability
Meets stringent American Petroleum Institute standards for machinery protection systems, providing verified performance in safety-critical applications where equipment failure could result in production loss or personnel hazards.

Extended Frequency Response (0-10 kHz)
Captures both low-frequency rotor dynamics (imbalance, misalignment) and high-frequency bearing defects (rolling element faults, gear mesh issues), enabling comprehensive machinery health assessment from a single sensor.

Robust Environmental Protection
Hermetically sealed construction withstands temperatures from -40°C to +120°C, resists moisture ingress, chemical exposure, and electromagnetic interference—ensuring reliable operation in steam turbines, offshore platforms, and corrosive process environments.

Standardized Installation Interface
8mm diameter × 25mm active length conforms to industry-standard mounting dimensions, allowing direct replacement of legacy sensors without machining modifications or system recalibration, reducing retrofit costs and downtime.

Seamless System Integration
Factory-matched to Bently Nevada 3300 XL proximity transducers and monitoring systems, delivering plug-and-play compatibility with existing infrastructure while supporting Modbus RTU, 4-20mA, and relay output protocols for SCADA/DCS integration.

Typical Application Scenarios

This proximity probe is engineered for demanding industrial environments where continuous machinery monitoring is essential for operational safety and asset protection:

Steam & Gas Turbine Monitoring
Tracks rotor axial position, differential expansion, and thrust bearing wear in power generation turbines operating at 3,000-3,600 RPM, preventing blade rubs and catastrophic rotor failures that could cause multi-million dollar outages.

Centrifugal Compressor Protection
Monitors radial vibration and shaft runout in API 617 compressors serving natural gas pipelines, LNG facilities, and air separation plants, detecting surge conditions and bearing degradation before performance deterioration occurs.

Rotating Equipment in Refineries & Petrochemical Plants
Provides continuous surveillance of pumps, blowers, and process compressors handling flammable/toxic fluids, ensuring compliance with API 670 machinery protection requirements and minimizing unplanned shutdowns in 24/7 operations.

Critical Infrastructure & Utilities
Safeguards hydroelectric generators, cooling tower fans, and large motor-driven equipment in water treatment plants, district heating systems, and municipal facilities where equipment reliability directly impacts public services.

Heavy Industry & Manufacturing
Supports predictive maintenance programs in steel mills, paper machines, mining conveyors, and cement kilns, enabling condition-based maintenance strategies that reduce spare parts inventory and extend mean time between failures (MTBF).

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, the 330101-00-25-10-02-00 probe is designed with the following key parameters:

Sensor Specifications:

• Probe Diameter: 8mm (0.315 inches)
• Active Length: 25mm (0.98 inches)
• Frequency Range: 0 Hz to 10 kHz (-3dB)
• Linear Range: 0.5mm to 2.0mm (typical, target material dependent)
• Sensitivity: 200 mV/mil (7.87 mV/μm) nominal
• Operating Temperature: -40°C to +120°C (-40°F to +248°F)
• Housing Material: Stainless steel (corrosion-resistant)
• Cable Connection: Integral armored cable with BNC/MIL-C connector
• Compliance: API 670, ISO 7919, ISO 10816

System Compatibility:

• Bently Nevada 3300 XL 8mm Proximity Transducer System
• 3300 XL NSv Proximitor Sensor (requires matching proximitor)
• Compatible with 3500 Rack Monitoring Systems
• Supports -24 VDC proximitor power supply

Selection Considerations:
When specifying this probe, please evaluate: (1) Target material conductivity and surface finish (ferromagnetic vs. non-magnetic metals affect linear range); (2) Mounting location accessibility and vibration exposure during installation; (3) Cable routing length and environmental protection requirements; (4) Existing proximitor system voltage and output signal format; (5) Calibration curve availability for your specific shaft material.

For custom applications involving exotic materials, extreme temperatures beyond standard range, or specialized mounting configurations, our engineering team can provide application-specific calibration data and installation recommendations. Submit your machinery specifications for tailored sensor selection.

Advanced Integration Capabilities

Multi-Channel Monitoring Architecture
Deploy in XY probe pairs for radial vibration vector analysis, or combine with keyphasor sensors for phase-resolved orbit plots, enabling advanced diagnostics such as rotor unbalance separation, fluid-induced instability detection, and rub identification.

Condition Monitoring System Connectivity
Integrates with Bently Nevada System 1 software, OSIsoft PI historians, and third-party CMMS platforms via standard industrial protocols, supporting automated alarm generation, trend analysis, and predictive maintenance workflows.

Redundant Protection Schemes
Supports dual-probe configurations for critical machinery requiring 2oo3 (two-out-of-three) voting logic in safety instrumented systems (SIS), meeting IEC 61508 SIL 2/3 requirements for emergency shutdown applications.

Delivery, Quality Assurance & Technical Support

Product Availability & Lead Time
Standard catalog items ship within 3-5 business days from regional distribution centers. Custom cable lengths or special certifications (ATEX, IECEx) require 4-6 weeks manufacturing lead time. Expedited processing available for emergency outage support.

Quality & Warranty Coverage
Each probe undergoes factory calibration against NIST-traceable standards and includes serialized calibration certificate. Backed by a 24-month warranty covering materials and workmanship defects. Extended warranty and calibration recertification services available.

Installation & Commissioning Support
Comprehensive documentation package includes: dimensional drawings with mounting tolerances, electrical termination diagrams, calibration curves for common shaft materials, and installation best practices guide. Field service engineers available for on-site commissioning and system validation (regional availability applies).

Technical Resources
Access to application notes covering gap voltage optimization, cable shielding techniques, and troubleshooting procedures. Complimentary pre-sales engineering consultation for system design review and sensor placement optimization.

Frequently Asked Questions (FAQ)

Q: How do I verify the Bently Nevada 330101-00-25-10-02-00 proximity probe is compatible with my existing monitoring system?
A: This probe requires a matching 3300 XL 8mm proximitor (such as 330180 series) to convert the probe's oscillator signal into a usable DC voltage output. Verify your system uses -24 VDC proximitor power and accepts 200 mV/mil sensitivity. If upgrading from legacy 3300 or 7200 series systems, proximitor replacement may be necessary—contact us with your current system model for compatibility assessment.

Q: What is the recommended installation gap for optimal measurement accuracy?
A: For standard carbon steel shafts, maintain a 40-60 mil (1.0-1.5mm) static gap to position the probe in the linear measurement range. Gap voltage should read approximately 8-12 VDC on the proximitor output. Non-ferrous materials (aluminum, titanium) require different gap settings—refer to material-specific calibration curves or request custom calibration data.

Q: Can this proximity probe withstand high-vibration environments during installation or machinery transients?
A: Yes, the probe housing is designed to survive installation vibration up to 10g RMS and shock loads to 50g. However, the probe tip must maintain consistent gap spacing during operation—use rigid mounting brackets and verify probe holder torque specifications. For severe vibration applications (>25 mm/s RMS), consider vibration-isolated mounting adapters.

Q: How often does the proximity probe require recalibration, and can it be performed in the field?
A: Under normal operating conditions, these probes maintain calibration accuracy for 5+ years. Recalibration is recommended only after cable replacement, physical damage, or if gap voltage drifts beyond ±5% of nominal. Field recalibration requires a calibration fixture and oscilloscope—most users opt for factory recertification service with 10-day turnaround.

Q: Does the 330101-00-25-10-02-00 support remote monitoring and predictive maintenance platforms?
A: When paired with Bently Nevada 3500 rack systems or 1900/65A monitors, the probe data can be transmitted via Modbus TCP/IP, OPC-UA, or 4-20mA analog signals to SCADA systems, cloud-based condition monitoring platforms (e.g., System 1, Azure IoT), and mobile diagnostic apps. Direct digital output requires compatible proximitor and monitoring hardware—consult system integration guides for protocol details.

Q: What environmental protection rating does this probe carry for hazardous area installations?
A: The standard version is rated for general industrial use (IP65 equivalent when properly installed). For Zone 1/Division 1 hazardous locations requiring ATEX/IECEx certification, specify the intrinsically safe (IS) version at time of order. IS-rated probes include blue-coded cable and require approved IS barriers—lead time extends to 6-8 weeks for certified units.

Request Technical Consultation & Custom Solutions

To receive a tailored sensor selection recommendation, detailed system integration proposal, or project-specific pricing, please provide the following information to our application engineering team:

• Project Overview: Facility type, machinery criticality classification, and monitoring objectives
• Equipment Details: Rotating machinery type, operating speed range (RPM), shaft material and diameter
• Measurement Requirements: Number of monitoring points, radial/axial measurement needs, alarm setpoint criteria
• Existing Infrastructure: Current monitoring system brand/model, available proximitor channels, control system interface requirements
• Environmental Conditions: Ambient temperature range, hazardous area classification, moisture/chemical exposure
• Installation Constraints: Mounting space limitations, cable routing distance, accessibility for maintenance

Our engineers will respond within 24 hours with sensor recommendations, system architecture diagrams, and budget pricing. For urgent machinery protection upgrades or emergency replacement requirements, expedited quoting and same-day shipping options are available.
