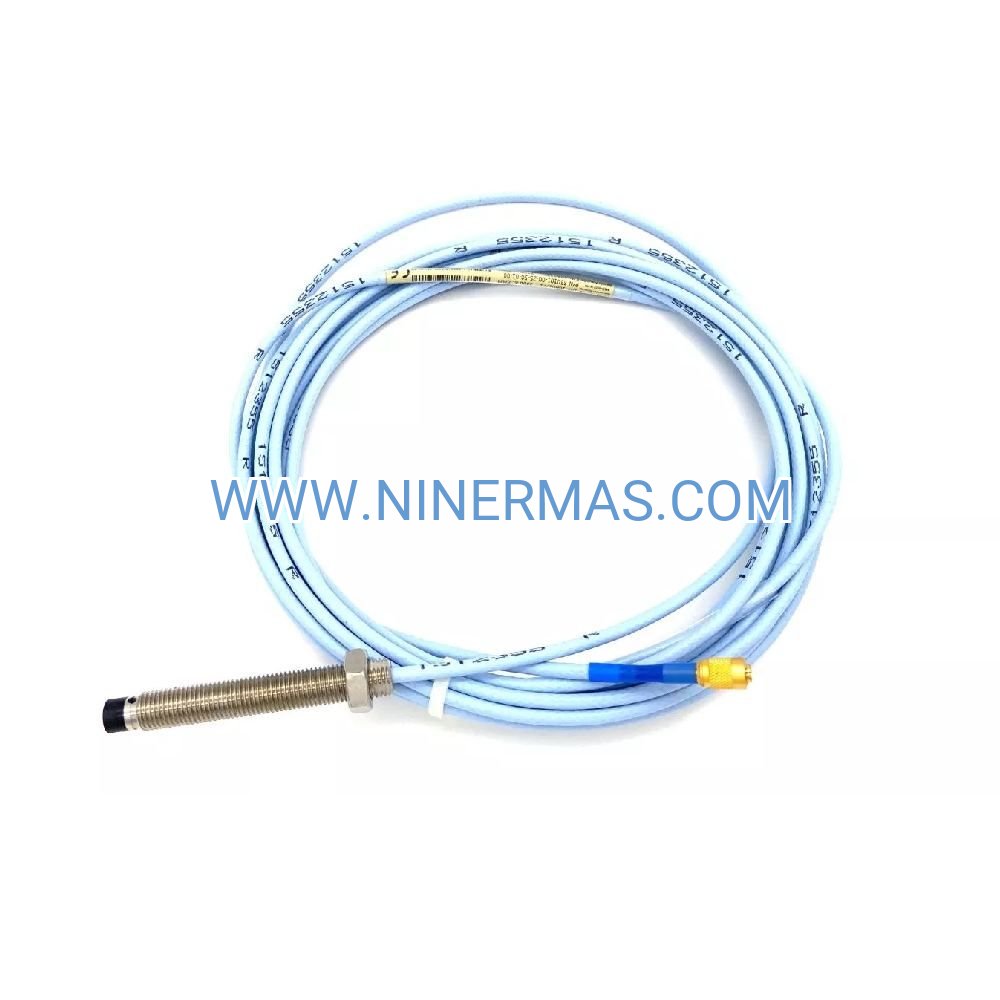

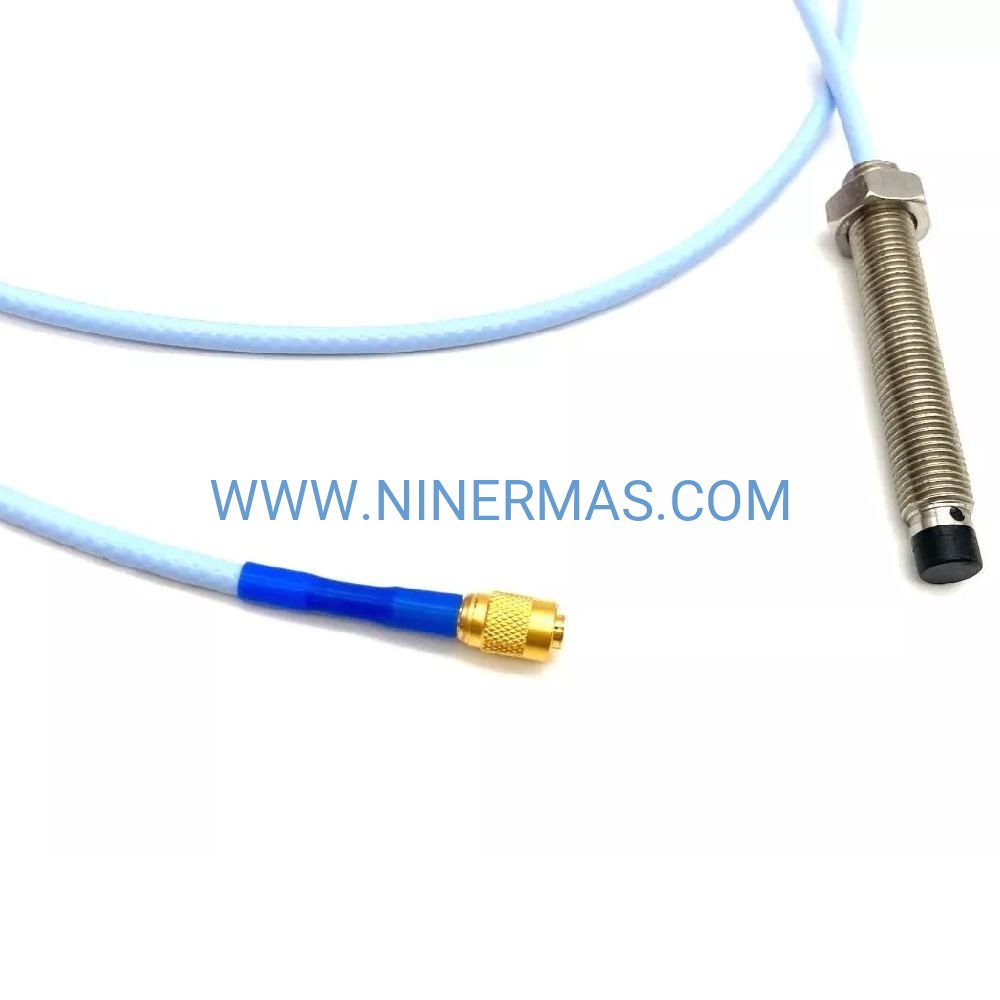

330101-00-16-50-02-05 Proximity Sensor (Industrial-Grade Vibration Detection)

The 330101-00-16-50-02-05 represents Bently Nevada's proven approach to non-contact shaft monitoring in mission-critical rotating machinery. Engineered with an 8mm sensing head and 3/8-24 UNF mounting thread, this proximity sensor transforms mechanical displacement into actionable electrical signals, enabling real-time condition assessment across turbines, compressors, and high-speed industrial drives.

Designed for facilities where unplanned downtime translates to significant revenue loss, this sensor addresses three fundamental challenges: detecting early-stage bearing wear, tracking shaft eccentricity during startup transients, and providing continuous radial position data for automated protection systems. Target users include reliability engineers, maintenance planners, and OEM integrators managing assets in power generation, petrochemical processing, and heavy manufacturing sectors.

What sets the 330101-00-16-50-02-05 apart is its field-proven linearity across the full 80-mil sensing range, minimal temperature-induced drift (-40°C to +105°C operational envelope), and seamless compatibility with legacy 3300 XL infrastructure—eliminating costly system-wide upgrades during sensor replacement cycles.

Application Scenarios

→ Steam Turbine Generator Sets
In combined-cycle power plants, this sensor monitors journal bearing clearances on 3600 RPM turbines. By detecting sub-mil shaft movement patterns, operators identify lubrication degradation 4-6 weeks before catastrophic failure, scheduling maintenance during planned outages rather than emergency shutdowns that cost $500K+ per event.

→ Centrifugal Compressor Trains
Petrochemical facilities deploy these sensors on multi-stage compressors handling corrosive gases. The probe's rugged construction withstands process temperatures and vibration, while its high-frequency response captures blade-pass harmonics that indicate impeller imbalance—preventing seal failures and product contamination incidents.

→ Paper Machine Dryer Sections
Pulp mills install 330101 sensors on dryer drum bearings operating in high-humidity environments. Continuous axial position tracking detects thermal expansion anomalies that precede roll misalignment, reducing web breaks by 30% and improving first-pass quality metrics.

→ Gas Pipeline Compressor Stations
Remote installations leverage this sensor's -40°C cold-start capability for Arctic pipeline applications. Integrated with SCADA systems, the probe enables unmanned operation by triggering automatic shutdowns when shaft displacement exceeds alarm thresholds during transient pressure events.

→ Industrial Fan Arrays
Cement plants and mining ventilation systems use these sensors on induced-draft fans. The 3/8-24 thread simplifies retrofits into existing probe holders, while the sensor's immunity to airborne particulates ensures measurement integrity in dust-laden atmospheres.

Core Features & Benefits

✓ Extended Temperature Range: -40°C to +105°C operational window accommodates cryogenic pumps and high-temperature turbine applications without recalibration—reducing spare parts inventory by 40% for multi-climate facilities
✓ Universal 3/8-24 UNF Thread: Industry-standard mounting interface enables direct replacement of competitive sensors (Metrix, SKF) without machining modifications, cutting installation time from 4 hours to 45 minutes
✓ 80-Mil Sensing Depth: 2.0mm typical range captures both steady-state eccentricity and dynamic vibration components, providing complete shaft behavior characterization with a single measurement point
✓ Linear Voltage Output: Factory-calibrated -10 VDC gap voltage at 40 mils delivers consistent scaling across the 3300 XL platform, simplifying PLC integration and alarm setpoint configuration
✓ Ferrous Target Optimization: Engineered specifically for steel/iron shafts common in industrial machinery, eliminating the calibration errors and signal instability associated with multi-material probe designs
✓ Sealed Construction: IP67-equivalent housing protects internal electronics from moisture ingress and chemical exposure, achieving 8+ year service life in offshore platforms and chemical processing units

Technical Parameters & Selection Guide

Selection Guidance: Choose this 8mm probe for machinery with shaft diameters between 25mm and 150mm where radial clearances permit 40-60 mil installation gaps. For smaller shafts (<25mm), consider 5mm probe variants. Verify that your existing Proximitor sensors are 3300 XL series—this probe is not compatible with 3300 NSv or 3500 systems without signal conditioning adapters.

Extended Functions

IoT Integration Capability: When paired with Bently Nevada Orbit 60 software and 1900/65A vibration monitors, this sensor feeds data into cloud-based analytics platforms. Machine learning algorithms process historical displacement trends to predict remaining useful life (RUL) with 85% accuracy, enabling condition-based maintenance strategies that reduce annual maintenance costs by 22%.

Dual-Probe Configurations: Install two 330101 sensors in X-Y orientation (90° apart) to generate orbit plots showing shaft centerline motion. This advanced diagnostic technique identifies rotor unbalance, misalignment, and fluid-induced instability—critical for troubleshooting complex vibration issues that single-axis measurements cannot resolve.

Customization Options: Available with factory-applied thread sealant for high-pressure applications, extended cable lengths up to 9 meters for remote mounting scenarios, and special temperature ratings (-55°C) for LNG facilities. Contact our engineering team with your specific environmental parameters for tailored solutions.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; express 24-hour dispatch available for critical outage support
Custom Configurations: 10-15 business days for non-standard cable lengths or special calibrations
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, calibration drift, and premature component failure
Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting, and system optimization—average response time <4 hours
Documentation Package: Includes calibration certificate, dimensional drawings, installation manual, and 3300 XL system integration guide

Frequently Asked Questions

What cable length should I specify for probe-to-proximitor connections?
Total system length (probe + extension cable) should not exceed 9 meters to maintain signal integrity. For installations requiring >5 meters, use Bently Nevada 20929 series extension cables rather than generic coaxial cable, as impedance mismatches cause measurement errors up to 15%.

How does ambient temperature affect measurement accuracy?
The 330101 exhibits <0.4% full-scale drift across its -40°C to +105°C range when properly installed. However, rapid temperature changes (>20°C/hour) can introduce transient errors; allow 30-minute thermal stabilization after startup in extreme environments.

Can this sensor monitor non-ferrous shafts like stainless steel or titanium?
While physically possible, non-ferrous materials reduce sensitivity by 60-80% and require custom calibration. For austenitic stainless (300 series) or titanium shafts, specify eddy current probes designed for low-conductivity targets to achieve acceptable performance.

What installation gap provides optimal linearity?
Position the probe tip 40 mils (1.0mm) from the shaft surface at static conditions. This centers the sensor in its linear range, allowing ±40 mils of dynamic movement before entering non-linear zones where measurement accuracy degrades.

Is this probe compatible with third-party monitoring systems?
Yes, when used with Bently Nevada 3300 XL Proximitor sensors that provide -24 VDC excitation and signal conditioning. The conditioned 4-20mA or ±10 VDC output integrates with any PLC, DCS, or SCADA system supporting standard analog inputs.

How do I verify proper probe function after installation?
Measure gap voltage with a digital multimeter—expect -10 VDC ±0.5V at 40 mils with ferrous target. Slowly move the shaft (or use feeler gauges) to verify linear voltage change: approximately -200 mV per mil of displacement. Non-linear response indicates contaminated target surface or probe damage.
