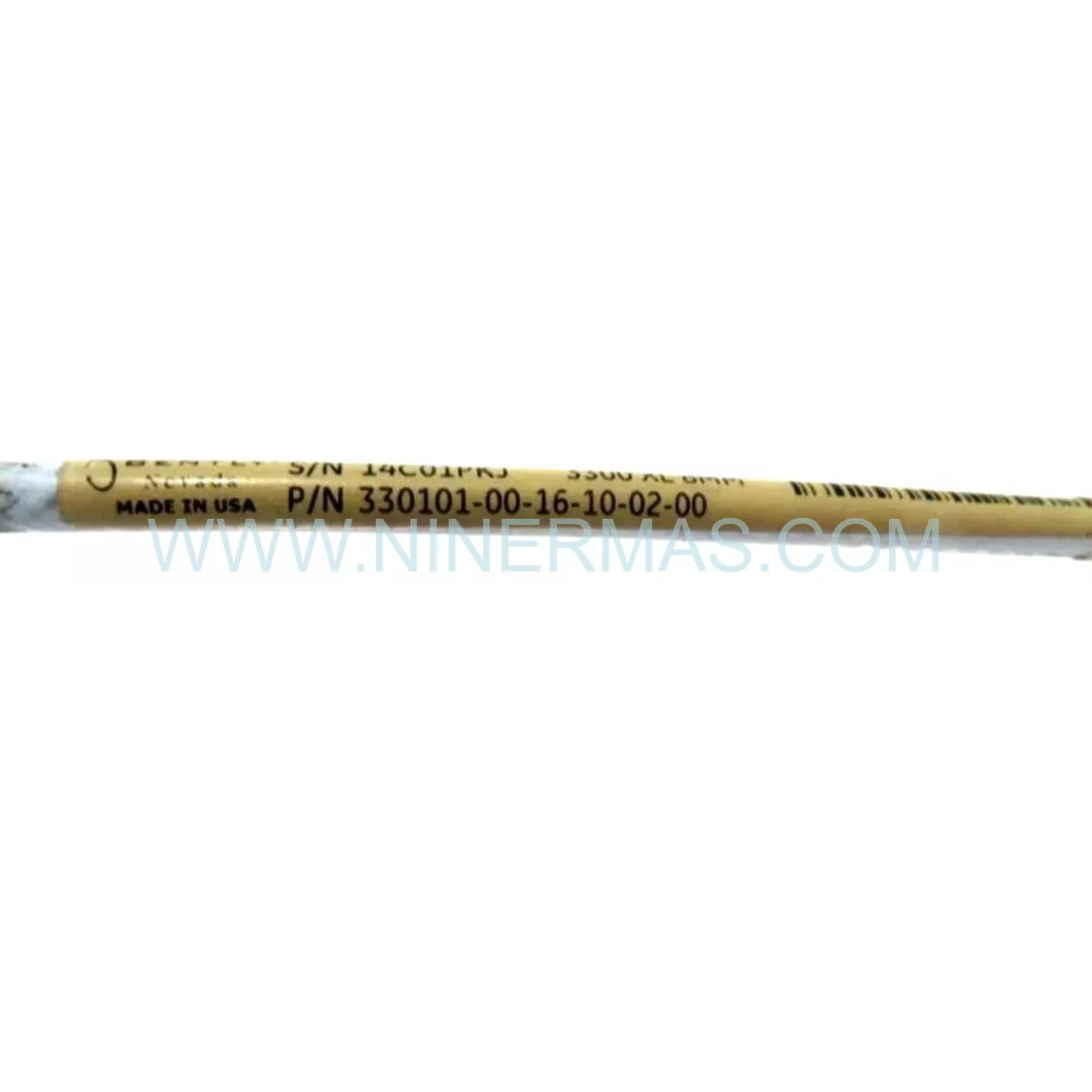

8mm Eddy Current Proximity Sensor (Industrial-Grade Vibration Monitoring)

The 330101-00-16-10-02-00 represents a field-proven eddy current displacement transducer engineered for non-contact measurement of shaft position and dynamic vibration in high-speed rotating equipment. Built on Bently Nevada's 3300 XL platform, this 8mm diameter sensor combines rugged construction with precision measurement capabilities, delivering consistent performance across temperatures from -40°C to +105°C in the most demanding industrial environments.

Designed for asset-intensive industries where machinery uptime directly impacts profitability, this proximity sensor addresses critical challenges in early fault detection and condition-based maintenance. Plant engineers, reliability managers, and maintenance teams rely on this technology to monitor bearing health, detect rotor anomalies, and prevent catastrophic failures in turbines, centrifugal compressors, large motors, and pumps operating in power plants, refineries, chemical facilities, and manufacturing operations.

What sets this sensor apart is its exceptional linearity across the full 0-80 mil measurement span, wide frequency response extending to 10 kHz for capturing high-frequency events, and proven compatibility with legacy and current-generation Bently Nevada monitoring infrastructure. The stainless steel construction with PEEK insulation ensures chemical resistance and mechanical durability, while factory calibration eliminates field setup complexity.

Core Capabilities & Business Value

✓ Precision Displacement Measurement
Captures radial shaft vibration and axial position with ±1% linearity across 80-mil range, enabling accurate trending of machinery degradation patterns and early identification of developing faults before they escalate into forced outages.

✓ Extended Frequency Response
DC to 10 kHz bandwidth captures both slow-roll eccentricity and high-frequency bearing defect signatures, providing comprehensive diagnostic information that supports root cause analysis and reduces troubleshooting time by 40-60%.

✓ Harsh Environment Resilience
-40°C to +105°C operating range with IP67-equivalent sealing protects against temperature extremes, moisture ingress, and chemical exposure common in offshore platforms, steel mills, and outdoor installations, minimizing sensor replacement costs.

✓ Compact Installation Footprint
8mm diameter with 5/16-24 UNF threading fits space-constrained mounting locations on gearboxes, motor housings, and compact turbine casings where larger probes cannot be accommodated, expanding monitoring coverage without equipment modification.

✓ Plug-and-Play System Integration
Factory-matched calibration with 3300 XL proximitor modules eliminates field calibration procedures, reducing commissioning time from hours to minutes and ensuring measurement accuracy from initial startup.

✓ Long-Term Measurement Stability
Temperature-compensated design maintains calibration accuracy over years of continuous operation, reducing recalibration frequency and supporting regulatory compliance in industries with stringent documentation requirements.

Industry Applications & Problem Resolution

→ Steam & Gas Turbine Monitoring
Measures journal bearing clearances and rotor axial position in power generation turbines operating at 3,000-3,600 RPM. Detects thrust bearing wear, thermal growth anomalies, and rotor bow conditions that precede blade rubs and catastrophic failures, protecting assets valued at $5-50 million per unit.

→ Centrifugal Compressor Protection
Tracks radial vibration and differential expansion in multi-stage compressors handling process gases in refineries and chemical plants. Early detection of surge conditions, seal degradation, and impeller fouling prevents unplanned shutdowns that cost $100,000-500,000 per day in lost production.

→ Large Motor Condition Assessment
Monitors shaft displacement in critical motors driving fans, pumps, and mill drives rated 500 HP and above. Identifies soft foot conditions, coupling misalignment, and bearing deterioration, extending motor life by 20-30% through timely intervention.

→ Pump Reliability Programs
Provides continuous surveillance of boiler feed pumps, cooling water pumps, and process pumps in utilities and industrial facilities. Detects cavitation, hydraulic instability, and mechanical looseness, reducing mean time between failures (MTBF) and maintenance costs.

→ Gearbox Vibration Analysis
Captures torsional and radial vibration signatures in high-speed gearboxes used in wind turbines, marine propulsion, and industrial drives. Enables gear tooth wear trending and lubrication effectiveness assessment, supporting predictive maintenance strategies.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this 8mm probe for applications requiring compact installation in bearing housings with limited radial clearance. For larger shafts (>100mm diameter) or higher vibration amplitudes, consider 11mm or 14mm probe variants. Verify target material magnetic permeability exceeds minimum requirements for eddy current sensing. Ensure proximitor module voltage output range matches your monitoring system input specifications (typically -10V to -2V for 0-80 mil span).

Advanced Integration Capabilities

Distributed Monitoring Networks: When deployed with Bently Nevada 3500 or ADAPT monitoring racks, multiple probes create comprehensive machinery protection systems with automated alarm logic, data historians, and remote access capabilities. Integration with plant DCS and SCADA systems enables centralized condition monitoring across entire facilities.

Wireless Connectivity Options: Pair with wireless proximitor modules for retrofit installations where cabling is cost-prohibitive or physically impractical. Wireless configurations reduce installation costs by 40-60% while maintaining measurement fidelity for non-critical monitoring points.

Customization Services: Extended cable lengths (up to 5 meters), specialized thread adapters, and high-temperature variants (up to 177°C) available for unique application requirements. Consult with our application engineers to specify custom configurations that meet your exact installation constraints.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with expedited shipping options available for emergency replacements. Custom configurations typically ship within 10-15 business days depending on specification complexity.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, material failures, and calibration drift beyond published specifications. Warranty includes free replacement and technical support for troubleshooting installation or integration issues.

Technical Support: Direct access to application engineers with expertise in vibration analysis, machinery diagnostics, and Bently Nevada system architecture. Support includes installation guidance, proximitor pairing recommendations, and measurement validation assistance.

Documentation Package: Each sensor ships with calibration certificate, dimensional drawings, installation instructions, and recommended proximitor pairing guide. Digital resources include CAD models, wiring diagrams, and integration manuals for common monitoring platforms.

Frequently Asked Questions

What proximitor module should I pair with this 8mm proximity probe?
The 330101-00-16-10-02-00 is factory-calibrated for use with Bently Nevada 330180 or 330780 series proximitor modules. These modules convert the probe's impedance changes into industry-standard -2V to -10V output signals proportional to gap distance. For legacy systems, the probe maintains compatibility with original 3300 series proximitors, though 3300 XL modules offer improved noise immunity and diagnostic capabilities.

Can this sensor measure vibration on non-ferrous shafts like aluminum or titanium?
Eddy current proximity probes require electrically conductive, magnetically permeable target materials for proper operation. While the sensor will respond to non-ferrous conductors like aluminum, sensitivity is significantly reduced (typically 10-20% of ferromagnetic response), and calibration becomes non-linear. For non-ferrous applications, consider alternative technologies such as capacitive probes or laser displacement sensors.

How does installation gap affect measurement accuracy and range?
Optimal installation gap is 40 mils (1.0mm), positioning the sensor in the center of its linear measurement range. This allows ±30 mils of shaft movement before approaching non-linear regions. Installing too close (<10 mils) risks contact during transient events, while excessive gaps (>70 mils) reduce sensitivity and increase temperature effects. Use Bently Nevada gap setting tools or dial indicators during installation to achieve specified clearances.

What maintenance intervals are recommended for proximity probe systems?
Proximity probes are passive sensors with no moving parts, requiring minimal maintenance under normal conditions. Recommended practices include annual visual inspection for cable damage or connector corrosion, verification of mounting torque (15-20 ft-lbs for 5/16-24 threads), and periodic gap measurement to detect probe migration. Electrical testing of probe impedance and proximitor output should occur during scheduled machinery outages or every 2-3 years.

Is this probe suitable for hazardous area installations requiring intrinsic safety?
The probe itself is a passive device compatible with intrinsically safe systems when paired with appropriately certified proximitor modules and barriers. For installations in Class I Division 1 or ATEX Zone 1 environments, specify intrinsically safe proximitor modules (e.g., 330780 series) and install approved Zener barriers between proximitors and monitoring systems. Consult local electrical codes and Bently Nevada hazardous area documentation for complete certification requirements.

Can I extend the 16-inch cable length for remote proximitor mounting?
Direct cable extension is not recommended as it alters the probe's electrical characteristics and invalidates factory calibration. For installations requiring proximitor separation beyond 16 inches, use Bently Nevada extension cables (part number 330130 series) designed to maintain system calibration. Extension cables are available in lengths from 1 to 5 meters and include impedance-matching components that preserve measurement accuracy.

Start Protecting Your Critical Assets Today

Implement proven vibration monitoring technology trusted by thousands of industrial facilities worldwide. Contact our technical sales team for application-specific recommendations, system design assistance, and volume pricing. Request a quote now or speak with an engineer to discuss your machinery protection requirements.
