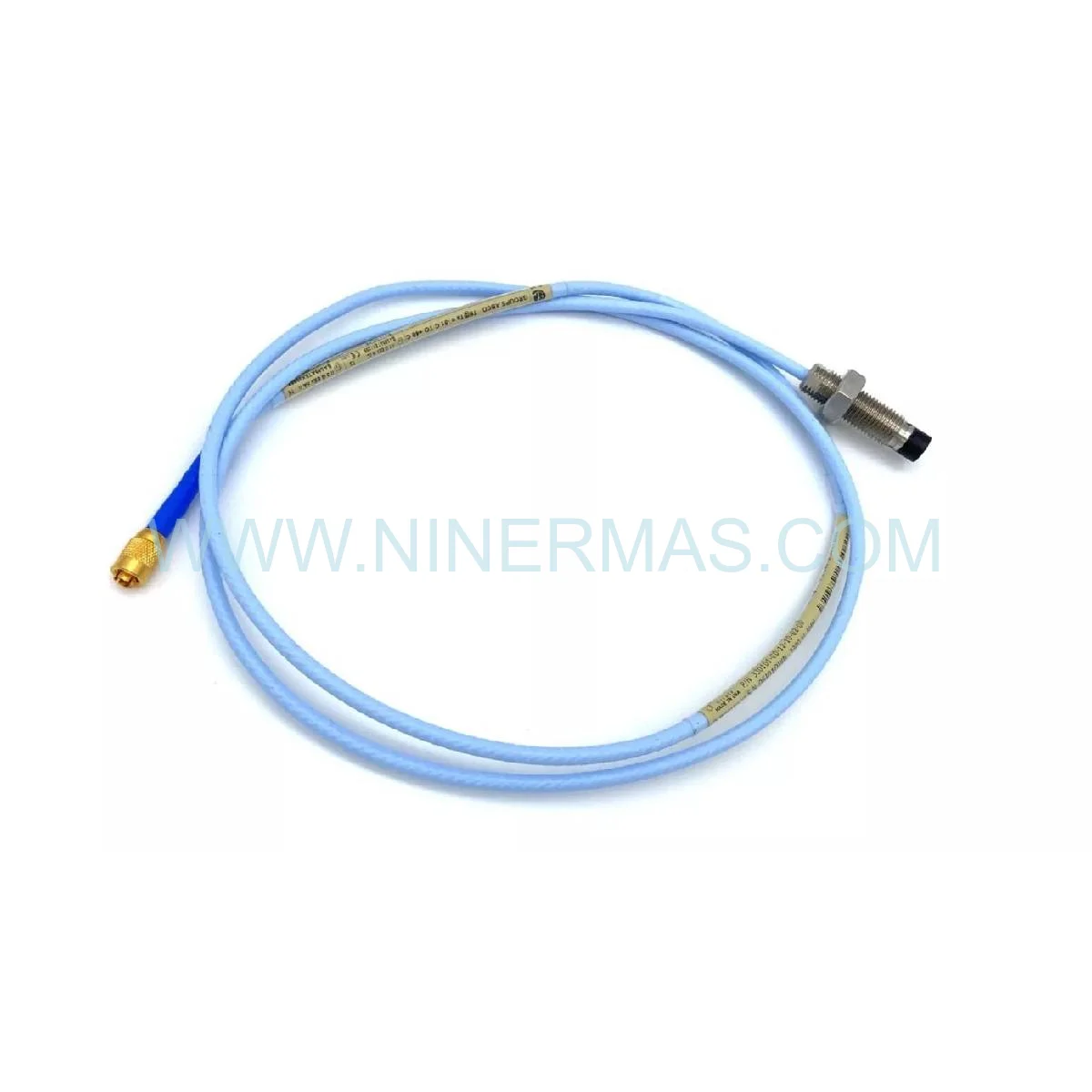

8mm Eddy-Current Proximity Probe (Industrial-Grade Shaft Monitoring)

The 330101-00-12-10-02-00 represents a precision-engineered non-contact displacement sensor designed for continuous shaft position tracking in mission-critical rotating equipment. Built on proven eddy-current principles, this 8mm probe delivers micron-resolution measurements across turbomachinery, reciprocating compressors, and high-speed motor applications where unplanned downtime carries severe operational and financial consequences.

Engineered for power plants, petrochemical facilities, and manufacturing operations requiring API 670 compliance, this sensor integrates seamlessly into 3300 XL monitoring architectures. Whether you're implementing predictive maintenance protocols or meeting regulatory vibration limits, the 330101 series provides the measurement fidelity and environmental resilience demanded by 24/7 industrial operations.

From initial commissioning through decades of service, this proximity probe maintains calibration stability while withstanding temperature extremes, electromagnetic interference, and mechanical shock inherent to industrial environments. The result: actionable vibration data that protects asset integrity and optimizes maintenance intervals.

Core Features & Technical Advantages

→ Wide-Bandwidth Frequency Response: Captures dynamic events from slow roll (0 Hz) through high-frequency bearing defects (10 kHz), enabling comprehensive fault detection across the vibration spectrum.

→ Extended Temperature Tolerance: Operates reliably from -40°C to +105°C without recalibration, supporting applications in arctic gas processing, desert power generation, and steam turbine environments.

→ Standardized 5/8-18 UNF Mounting: Universal thread specification ensures drop-in compatibility with existing probe holders, reducing installation time and eliminating custom machining requirements.

→ Eddy-Current Non-Contact Technology: Zero mechanical wear eliminates sensor degradation, while non-intrusive measurement preserves shaft surface integrity—critical for high-speed balancing and precision applications.

→ Backward-Compatible Architecture: Works with legacy 3300 proximitor systems and current XL platforms, protecting your monitoring infrastructure investment during phased upgrades.

→ Conductive Target Versatility: Optimized for ferrous shafts while maintaining accuracy on stainless steel, Inconel, and aluminum targets commonly found in aerospace-derivative turbines and food-grade equipment.

Industrial Application Scenarios

✓ Steam & Gas Turbine Protection: Monitors journal bearing clearances and thrust position in power generation units, triggering automated shutdowns before catastrophic bearing failures occur. Prevents multi-million-dollar turbine damage and extended outages.

✓ Centrifugal Compressor Surveillance: Tracks radial shaft motion in pipeline compressors and refrigeration systems, detecting rotor rubs, seal wear, and aerodynamic instabilities before efficiency losses escalate. Supports condition-based oil changes and seal replacement scheduling.

✓ Pump Reliability Programs: Measures shaft runout and axial float in boiler feed pumps, cooling water systems, and chemical transfer applications. Early detection of coupling misalignment and impeller imbalance reduces unplanned maintenance by 40-60%.

✓ Motor-Driven Equipment: Provides continuous bearing health assessment in large induction motors, synchronous machines, and variable-frequency drive applications. Identifies rotor bar cracks, eccentricity, and soft foot conditions during operation.

✓ Gearbox Condition Monitoring: Detects gear mesh anomalies, shaft deflection, and bearing preload changes in parallel-shaft and planetary gearboxes. Enables oil analysis correlation and predictive component replacement.

Technical Parameters & Selection Guide

Selection Criteria: Choose 8mm probes for shaft diameters above 50mm where measurement range and temperature stability outweigh space constraints. For compact installations or shafts below 50mm, consider 5mm alternatives. Verify target material conductivity and surface finish meet system calibration requirements. Consult factory for hazardous area certifications when installing in Class I Division 2 or ATEX Zone 2 locations.

Extended Functionality & Integration

IoT-Ready Monitoring: Pair with 3500 rack-based systems or ADAPT software for cloud-connected vibration analytics, remote diagnostics, and fleet-wide asset benchmarking. Supports OPC-UA, Modbus TCP, and proprietary protocols for SCADA/DCS integration.

Hazardous Area Deployment: When combined with certified intrinsic safety barriers and approved proximitors, achieves Class I Division 2 (North America) and ATEX Zone 2 (Europe) compliance for explosive atmosphere installations.

Custom Cable Configurations: Available with armored, high-temperature, or chemically resistant cable jackets. Standard lengths from 1m to 9m; custom lengths and connectors available for OEM applications and retrofit projects.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock configurations; 2-3 weeks for custom cable assemblies or special certifications.

Warranty Coverage: 12-month manufacturer's warranty against material and workmanship defects. Extended warranty programs available for critical spares inventory.

Technical Support: Application engineering assistance for probe placement, gap voltage optimization, and system commissioning. Field service available for installation supervision and startup validation.

Documentation Package: Includes calibration certificate, installation drawings, proximitor pairing recommendations, and dimensional specifications. Compliance declarations provided for regulated industries.

Frequently Asked Questions

What proximitor models are compatible with this 8mm proximity probe?
The 330101-00-12-10-02-00 pairs with 3300 XL proximitors (e.g., 330180 series) and legacy 3300 models (e.g., 3300 NSv). Verify system voltage and output requirements match your monitoring rack or PLC input specifications.

Can this sensor measure axial shaft position in addition to radial vibration?
Yes—when mounted perpendicular to a thrust collar or shaft shoulder, the probe accurately tracks axial displacement. Requires appropriate proximitor configuration and target surface preparation for optimal linearity.

How does probe diameter selection impact measurement accuracy?
8mm probes offer superior temperature stability and extended linear range compared to 5mm variants, making them ideal for large turbomachinery. Smaller probes provide better spatial resolution in confined geometries but may exhibit higher thermal drift.

What installation clearances are required around the probe body?
Maintain minimum 25mm (1 inch) separation from adjacent metallic structures to prevent eddy-current field distortion. Consult installation manual for specific clearance requirements in high-vibration or high-temperature zones.

Is recalibration necessary after extended storage or environmental exposure?
Probes maintain factory calibration indefinitely when stored properly. However, system-level verification using a calibrated micrometer or oscillator is recommended after installation or following impact/contamination events.

Does this proximity probe support remote condition monitoring and predictive analytics?
When integrated with 3500 monitoring systems or compatible data acquisition platforms, the probe enables continuous trending, alarm management, and machine learning-based anomaly detection for Industry 4.0 applications.

Request Technical Consultation

Our vibration monitoring specialists provide complimentary application reviews, system architecture recommendations, and ROI analysis for condition-based maintenance programs. Contact us to discuss your specific rotating equipment challenges and receive customized probe selection guidance.
