Bently Nevada 330101 Proximity Probe – Industrial-Grade Vibration & Position Monitoring Sensor

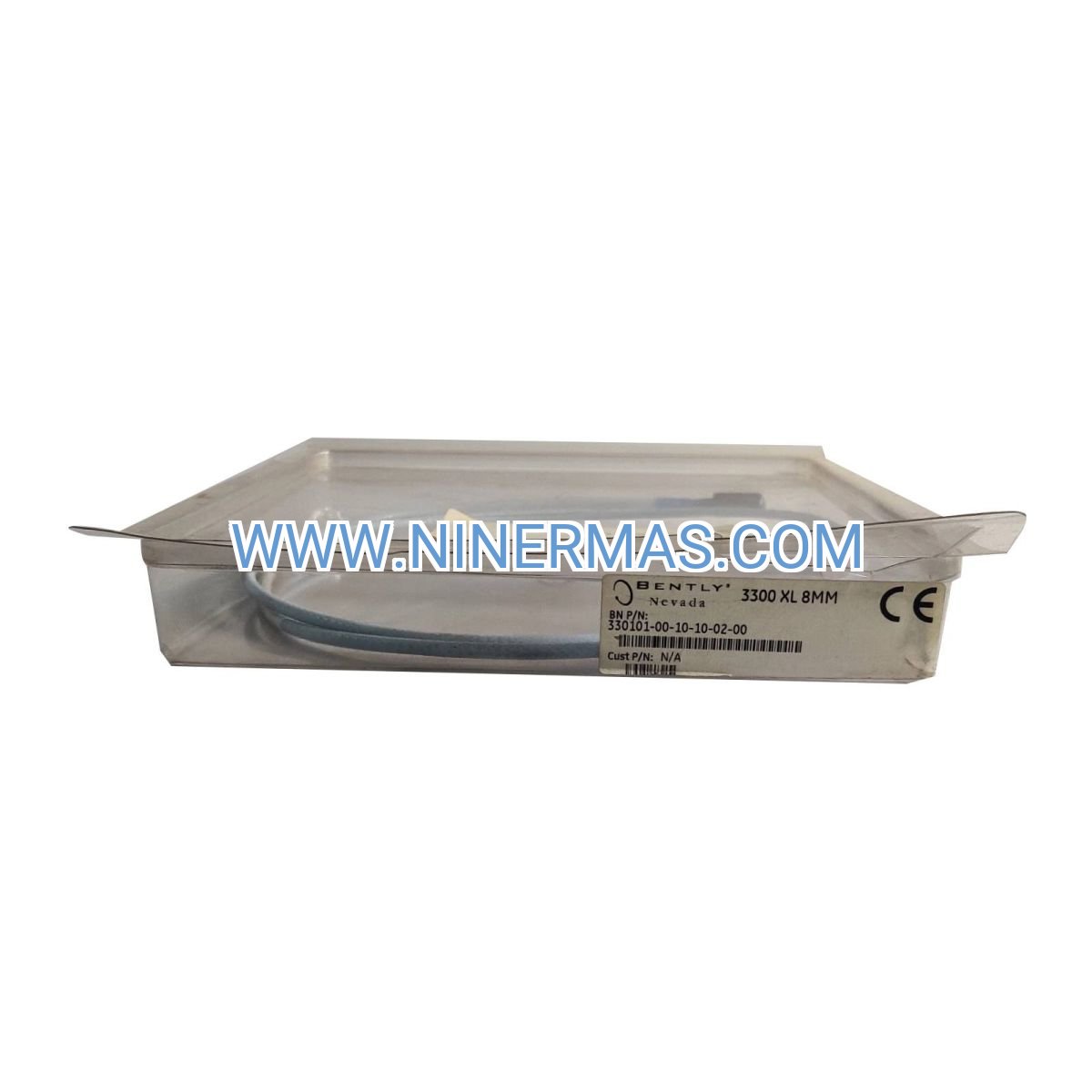

The Bently Nevada 330101-00-10-10-02-00 is a precision 8mm eddy current proximity probe engineered for continuous vibration and axial position measurement in critical rotating machinery. Utilizing non-contact sensing technology with DC to 10 kHz frequency response, this probe delivers reliable real-time data for turbines, compressors, pumps, motors, and generators across power generation, oil & gas, petrochemical, and heavy manufacturing sectors.

Designed for harsh industrial environments, the 330101 probe addresses common challenges including bearing wear detection, shaft displacement monitoring, rotor eccentricity measurement, and early fault diagnosis. Its API 670 certification ensures compliance with machinery protection standards, making it the preferred choice for plant engineers, maintenance teams, OEM integrators, and condition monitoring specialists.

With proven durability, wide temperature tolerance (-30°C to +120°C), and seamless integration with Bently Nevada 3300 XL monitoring systems, this proximity probe provides accurate, drift-free measurements that reduce unplanned downtime and extend equipment lifespan. Contact our application engineers for customized sensor selection, installation guidance, and technical documentation.

Core Features & Technical Advantages

• High-Precision Eddy Current Technology
  Non-contact measurement with 8mm sensing distance ensures accurate vibration and displacement data without mechanical wear, ideal for continuous 24/7 operation in critical machinery.
• Wide Frequency Response (DC – 10 kHz)
  Captures both slow-roll shaft position and high-frequency vibration events, enabling comprehensive rotor dynamics analysis and fault detection across all operating speeds.
• API 670 Certified Reliability
  Meets stringent American Petroleum Institute standards for machinery protection systems, ensuring compliance for upstream oil & gas, refining, and power plant applications.
• Extended Temperature Range (-30°C to +120°C)
  Robust construction withstands extreme ambient conditions in outdoor installations, desert climates, arctic facilities, and high-temperature process areas without calibration drift.
• Seamless System Integration
  Fully compatible with Bently Nevada 3300 XL proximitors, extension cables, and monitoring racks, simplifying retrofit projects and multi-channel vibration monitoring architectures.
• Long-Term Stability & Low Maintenance
  Solid-state design with no moving parts eliminates routine calibration requirements, reducing total cost of ownership and minimizing maintenance intervals.

Typical Application Scenarios

The Bently Nevada 330101 proximity probe is engineered for demanding industrial environments where machinery reliability and safety are paramount:

• Steam & Gas Turbines
  Monitor radial vibration, thrust position, and differential expansion in power generation turbines to prevent catastrophic failures and optimize performance efficiency.
• Centrifugal & Reciprocating Compressors
  Detect bearing degradation, rotor imbalance, and surge conditions in oil & gas compression trains, ensuring continuous process uptime and personnel safety.
• Large Electric Motors & Generators
  Track shaft eccentricity, magnetic center position, and bearing clearances in motors above 500 HP, enabling predictive maintenance strategies and avoiding costly emergency repairs.
• Industrial Pumps & Blowers
  Measure impeller clearance, axial float, and casing vibration in critical process pumps for chemical plants, water treatment facilities, and HVAC systems.
• Paper Mill & Steel Rolling Equipment
  Ensure precise roll positioning and vibration control in high-speed production machinery where dimensional tolerances directly impact product quality.

Technical Specifications & Selection Guide

To ensure optimal sensor performance and compatibility with your monitoring system, please review the following technical parameters:

Selection Considerations: When specifying a proximity probe, evaluate shaft diameter, maximum vibration amplitude, installation space constraints, ambient temperature extremes, and required cable length. For non-standard applications involving aluminum shafts, high-speed machinery above 20,000 RPM, or hazardous area installations (ATEX/IECEx), consult our engineering team for customized sensor solutions and calibration data.

Advanced Monitoring Capabilities

• Multi-Channel Synchronization: Deploy multiple 330101 probes in XY configuration for orbit analysis, phase measurement, and precise rotor centerline tracking.
• Keyphasor Integration: Combine with Bently Nevada keyphasor probes for once-per-revolution timing, enabling advanced diagnostics like Bode plots, polar plots, and startup/shutdown transient analysis.
• Remote Monitoring & SCADA Integration: Output signals interface with DCS, PLC, and cloud-based condition monitoring platforms via 4-20mA converters or Modbus RTU/TCP protocols for centralized asset management.
• Alarm & Trip Functionality: Configure dual-threshold monitoring for alert and danger levels, triggering automated shutdowns to protect personnel and prevent secondary equipment damage.

Delivery, Support & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom cable lengths or special certifications require 10-15 business days. Expedited delivery available for critical outage situations.

Warranty: All Bently Nevada proximity probes include a minimum 24-month manufacturer warranty covering material defects and workmanship. Extended warranty programs available for long-term service agreements.

Technical Documentation: Each probe ships with factory calibration certificate, installation manual, dimensional drawings, and recommended proximitor settings. CAD models (STEP/IGES) and FEA mounting analysis available upon request.

Installation & Commissioning: Our field service engineers provide on-site installation supervision, baseline vibration surveys, and operator training (regional availability applies). Remote technical support included for troubleshooting and system optimization.

Frequently Asked Questions (FAQ)

Q: How do I install the Bently Nevada 330101 proximity probe on existing machinery?
A: The probe requires a threaded mounting hole (M10 x 1.0) positioned perpendicular to the shaft surface, with the probe tip gap set to 40-60 mils (1.0-1.5 mm) from the target area. Use a feeler gauge or dial indicator for precise gap adjustment, then lock with the jam nut. Ensure the target surface is clean, smooth, and free from coatings or runout exceeding 2 mils.

Q: What is the maximum cable length between the probe and proximitor?
A: Standard configurations support up to 5 meters (16 feet) of integral cable plus 1 meter (3 feet) extension cable. For distances exceeding 6 meters, use Bently Nevada approved extension cables (part number 330130 series) with impedance matching to maintain signal integrity and avoid measurement errors.

Q: Can this probe measure vibration on non-ferrous shafts like aluminum or titanium?
A: The 330101 is optimized for ferrous targets (steel, iron). For non-ferrous materials, consider the Bently Nevada 330105 or 330106 series probes with specialized calibration curves. Contact our application engineers with shaft material specifications for proper sensor selection.

Q: What are the typical energy savings or reliability improvements from using proximity probes?
A: Continuous vibration monitoring enables predictive maintenance strategies that reduce unplanned downtime by 30-50% and extend bearing life by 20-40%. Early fault detection prevents catastrophic failures, avoiding repair costs that can exceed $500,000 for large turbomachinery.

Q: Does the probe require periodic calibration or maintenance?
A: Eddy current proximity probes are inherently stable and do not require field calibration. Recommended maintenance includes annual visual inspection of cable integrity, connector tightness, and target surface condition. Replace probes only if physical damage or electrical continuity issues are detected.

Q: Is remote monitoring and data logging supported?
A: Yes, when paired with Bently Nevada 3300 XL proximitors and rack monitoring systems, vibration data can be transmitted via 4-20mA analog outputs, Modbus protocols, or OPC UA to SCADA systems, cloud platforms, and mobile apps for real-time alerts and historical trending.

Request a Quote & Technical Consultation

For detailed application engineering support, custom sensor configurations, or project-specific pricing, please provide the following information:

• Equipment type and model (turbine, compressor, motor, etc.)
• Shaft diameter and material composition
• Operating speed range (RPM) and vibration amplitude expectations
• Ambient temperature and environmental conditions (humidity, corrosive gases, hazardous area classification)
• Monitoring system architecture (existing Bently Nevada rack, third-party DCS, standalone)
• Quantity required and delivery timeline

Our certified vibration specialists will respond within 24 hours with tailored recommendations, installation drawings, and competitive quotations.
