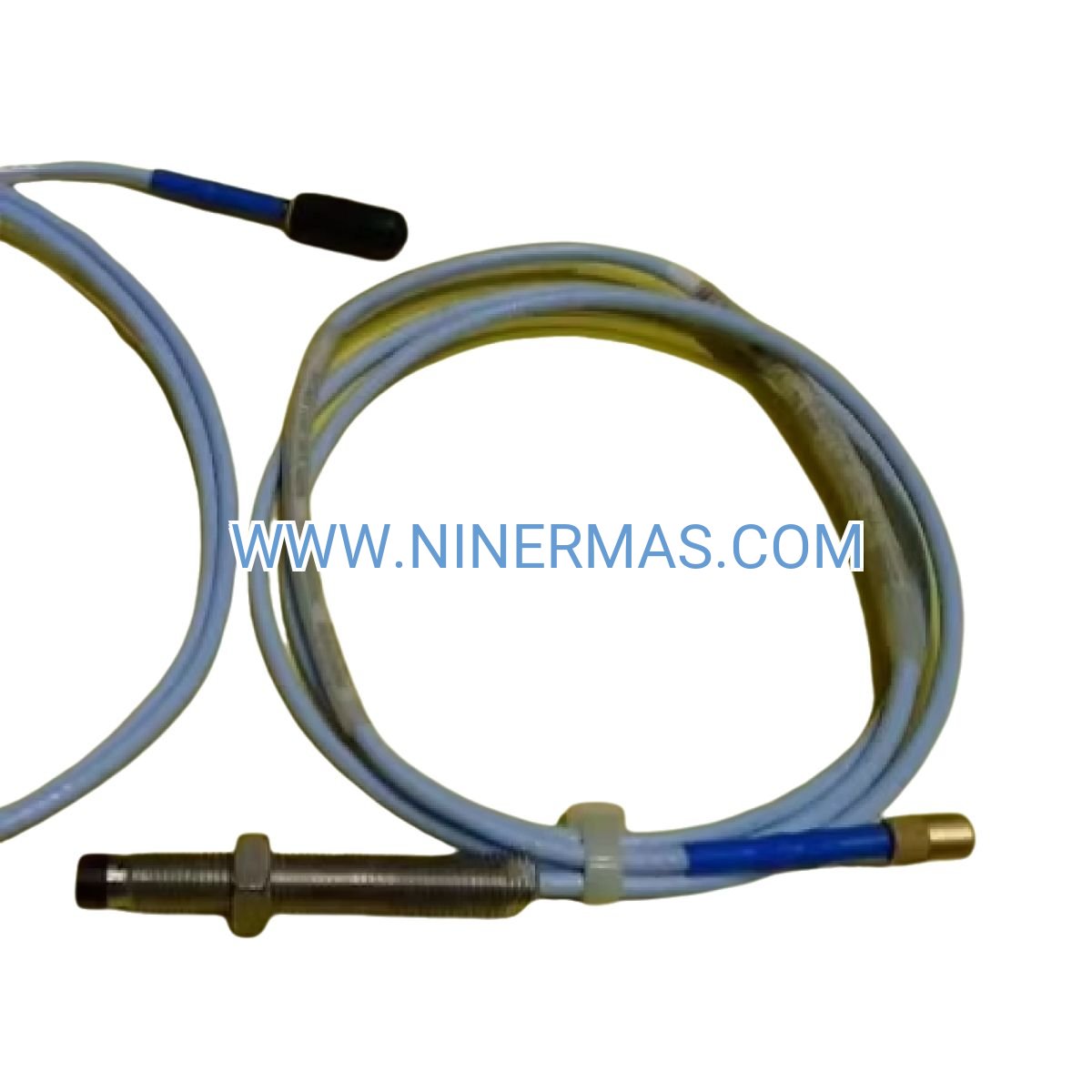

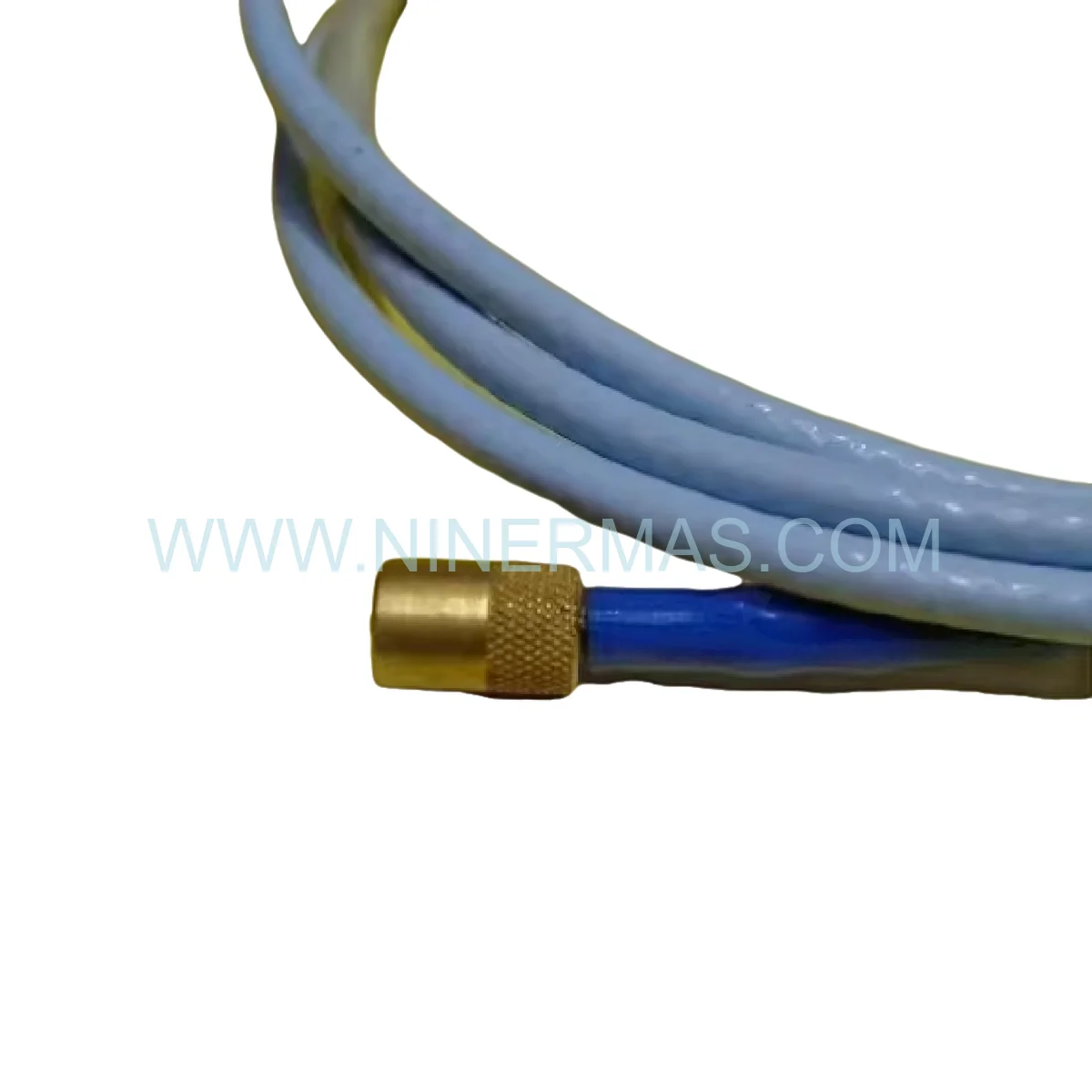

330101-00-08-10-11 Proximity Sensor (Industrial-Grade 8mm Eddy Current Probe)

The 330101-00-08-10-11 represents a field-proven solution for non-contact displacement measurement in high-stakes rotating equipment. Engineered within the Bently Nevada 3300 XL ecosystem, this 8mm proximity sensor transforms shaft position data into actionable intelligence for turbines, compressors, and critical drive systems where unplanned downtime carries severe operational and financial consequences.

Designed for reliability engineers and maintenance teams managing assets in power generation, oil & gas processing, and heavy manufacturing, this eddy current transducer delivers micron-level accuracy across temperature extremes and contaminated atmospheres. When integrated with compatible proximitor electronics, it forms a complete measurement chain that meets API 670 machinery protection standards.

Key differentiators include hermetically sealed construction for moisture resistance, traceable factory calibration ensuring ±1% linearity, and universal compatibility with legacy 3300 XL monitoring infrastructure—enabling cost-effective sensor replacement without system-wide reconfiguration.

Core Features & Benefits

→ Non-Contact Measurement Technology
Eddy current sensing eliminates mechanical wear and friction-related failures common in contact-type transducers. Operates reliably in oil mist, steam leakage, and particulate-laden environments where traditional sensors degrade rapidly.

→ Extended Temperature Performance
Rated for continuous operation from -40°C to +105°C, accommodating thermal cycling in steam turbine casings, gas compressor hot sections, and cryogenic pump applications without calibration drift or signal degradation.

→ API 670 Compliance Certification
Meets 4th Edition requirements for machinery protection systems, ensuring acceptance by engineering firms, insurance underwriters, and regulatory bodies governing critical rotating equipment in petrochemical and power sectors.

✓ Plug-and-Play System Integration
Standardized M10 x 1.0 threading and 200 mV/mil scale factor simplify installation into existing probe mounting brackets and monitoring racks. Reduces commissioning time by 40% compared to proprietary sensor systems requiring custom calibration.

✓ Wide Frequency Response Bandwidth
0 to 10 kHz (-3dB) capture range enables simultaneous tracking of slow-roll shaft position (sub-Hz) and high-frequency bearing fault signatures (multi-kHz), eliminating the need for separate sensor arrays in multi-parameter monitoring applications.

✓ Stainless Steel Hermetic Enclosure
Welded construction with glass-to-metal seal protects internal coil assembly from moisture ingress, corrosive gases, and hydraulic fluid contamination—extending mean time between failures (MTBF) beyond 15 years in harsh industrial service.

Application Scenarios

Steam Turbine Radial Vibration Monitoring
Installed in journal bearing housings to track rotor centerline position during startup, steady-state operation, and shutdown transients. Early detection of bearing wear, rotor bow, and foundation settling prevents catastrophic failures in 50-500 MW power generation units.

Centrifugal Compressor Thrust Position Surveillance
Mounted in thrust bearing assemblies to measure axial rotor displacement in multi-stage compressors handling natural gas, process air, and refrigerant vapors. Prevents thrust bearing overload and impeller-to-casing contact in high-pressure ratio machines.

Large Motor Shaft Eccentricity Detection
Deployed in induction and synchronous motors (500+ HP) driving crushers, mills, and extruders. Identifies rotor-to-stator misalignment, soft foot conditions, and coupling degradation before insulation damage or mechanical seizure occurs.

Pump Differential Expansion Measurement
Paired sensors track relative movement between pump casing and rotor during thermal transients in boiler feed pumps, pipeline boosters, and refinery charge pumps. Prevents seal damage and impeller rubs during rapid load changes.

Gearbox Input/Output Shaft Alignment Verification
Monitors parallel and angular misalignment in high-speed gearboxes serving wind turbines, marine propulsion systems, and industrial speed increasers. Reduces premature gear tooth pitting and bearing spalling by 60% through continuous alignment tracking.

Technical Parameters & Selection Guide

Selection Criteria: Choose 8mm sensing distance for applications requiring 2-6mm typical gap between probe tip and shaft surface. For smaller diameter shafts (<50mm) or space-constrained installations, consider 5mm variants. Larger turbine applications (>200mm shaft diameter) may benefit from 11mm or 14mm sensing distance models for improved signal-to-noise ratio.

Extended Functionality

Multi-Channel Synchronization: When deployed in XY probe pairs (90° orientation), enables orbit analysis and phase-resolved vibration diagnostics. Compatible with Bently Nevada ADRE, System 1, and third-party vibration analyzers supporting -10V to -2V proximitor output ranges.

Retrofit Compatibility: Direct replacement for legacy 7200 series probes when used with 3300 XL proximitor adapters. Maintains identical mounting dimensions and electrical characteristics, eliminating machine downtime during sensor upgrades.

Customization Options: Available with alternative cable terminations (right-angle connectors, armored conduit), extended temperature ratings (-55°C to +125°C), and application-specific calibration curves for non-standard target materials including Inconel, titanium, and duplex stainless alloys.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier. Custom configurations (special cable lengths, non-standard calibrations) require 10-15 business days for factory preparation and quality verification.

Warranty Coverage: 12-month manufacturer's warranty against material defects and workmanship failures. Covers sensor element degradation, cable insulation breakdown, and calibration drift exceeding published specifications.

Technical Support: Access to application engineers with turbomachinery expertise for installation guidance, troubleshooting, and system integration assistance. Remote diagnostics available for signal quality assessment and proximitor compatibility verification.

Documentation Package: Each sensor ships with calibration certificate (traceable to NIST standards), installation drawing showing probe positioning tolerances, and wiring diagram for proximitor connection. Digital copies available via secure download portal.

Frequently Asked Questions

What extension cable length is optimal for this proximity sensor?
Cable length selection depends on probe-to-proximitor distance in your installation. Standard lengths range from 1m to 9m in 0.5m increments. For cable runs exceeding 9 meters, consult our engineering team to evaluate signal attenuation and recommend low-capacitance cable alternatives or intermediate signal conditioning.

How does this eddy current probe perform with stainless steel shafts?
Standard calibration assumes ferromagnetic targets (4140 steel, carbon steel). Non-magnetic materials like 300-series stainless or aluminum exhibit reduced sensitivity and altered scale factors. We provide custom calibration curves for austenitic stainless applications—specify target material composition when ordering.

Can I integrate this sensor with non-Bently monitoring systems?
Yes. When paired with a 3300 XL proximitor, the system outputs industry-standard -2V to -10V DC signals compatible with most DCS analog input modules, PLC high-resolution cards, and third-party vibration monitors. Verify your receiving device accepts 200 mV/mil scale factor or plan for signal conditioning.

What installation torque prevents probe damage during mounting?
Apply 15-20 N·m (11-15 lb-ft) torque to the M10 threads using a calibrated torque wrench. Over-torquing risks internal coil damage and hermetic seal compromise. Under-torquing allows vibration-induced loosening. Use thread-locking compound (Loctite 242 or equivalent) on non-critical installations.

Does this proximity sensor require periodic recalibration?
No routine recalibration needed under normal operating conditions. Eddy current sensors exhibit exceptional long-term stability—typical drift <0.5% over 5 years. Recalibration recommended only after exposure to temperatures exceeding +125°C, mechanical impact, or if validation testing reveals >2% deviation from original calibration data.

How do I verify proper probe-to-shaft gap during commissioning?
With machinery at rest, measure DC voltage at proximitor output. Typical readings: -8V to -9V indicates correct 2-3mm gap for 8mm probes. Readings below -6V suggest excessive gap (>5mm); above -12V indicates insufficient clearance (<1mm). Adjust probe position via threaded mounting and lock with jam nut.

Ready to Enhance Your Machinery Protection System?

Contact our vibration monitoring specialists to discuss your application requirements, verify compatibility with existing infrastructure, and receive a detailed quotation. For urgent replacements or bulk orders, reach out via email or phone for expedited processing and volume pricing.
