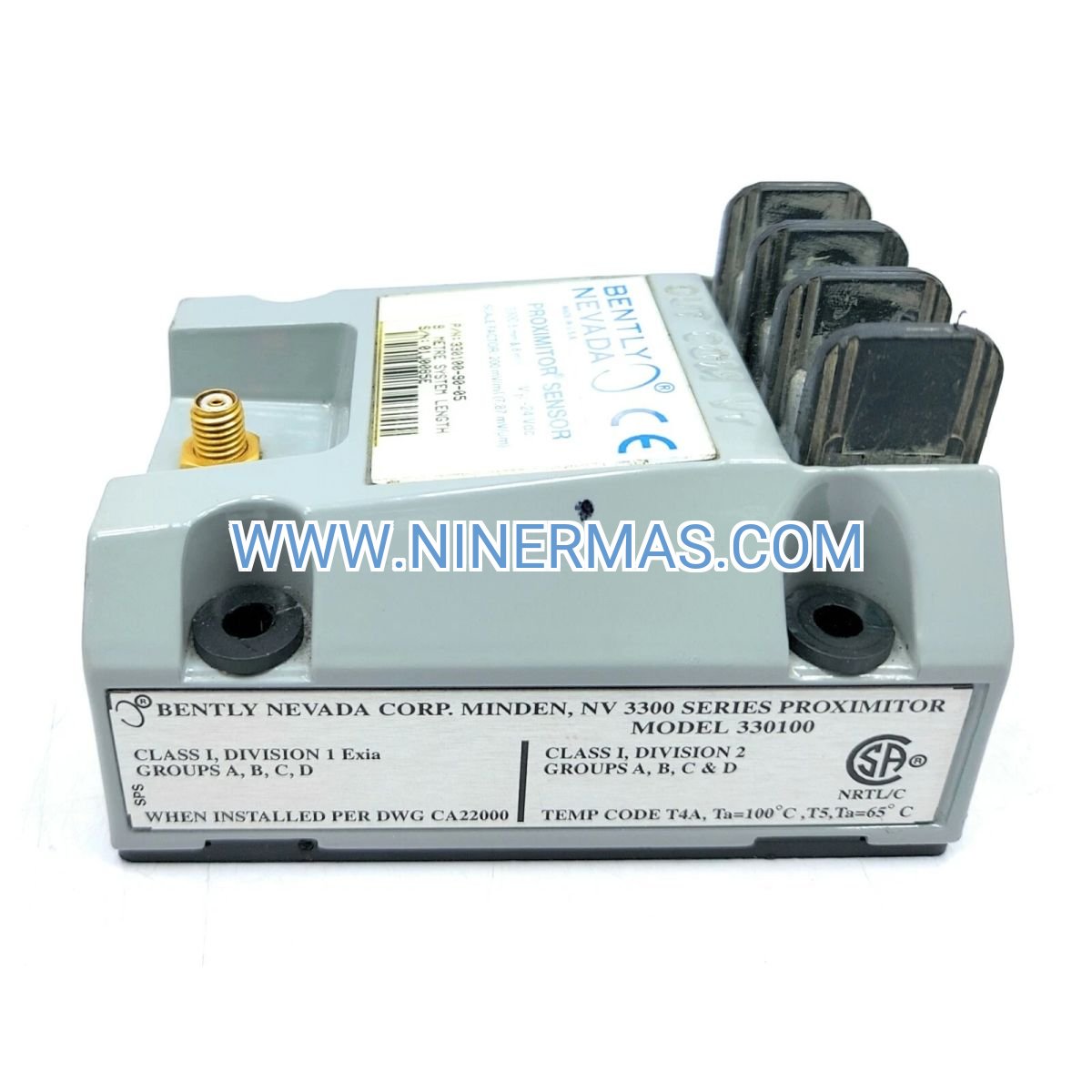

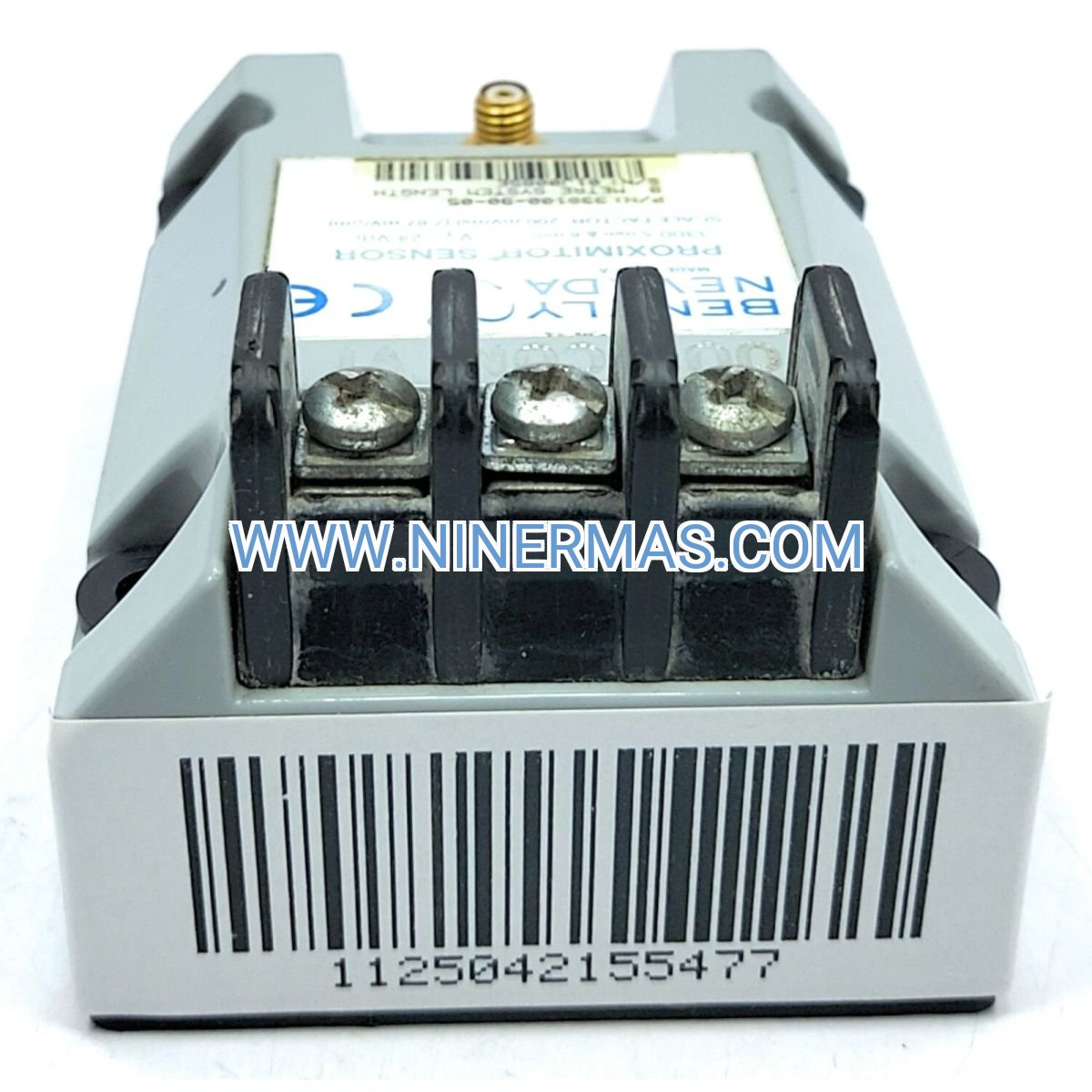

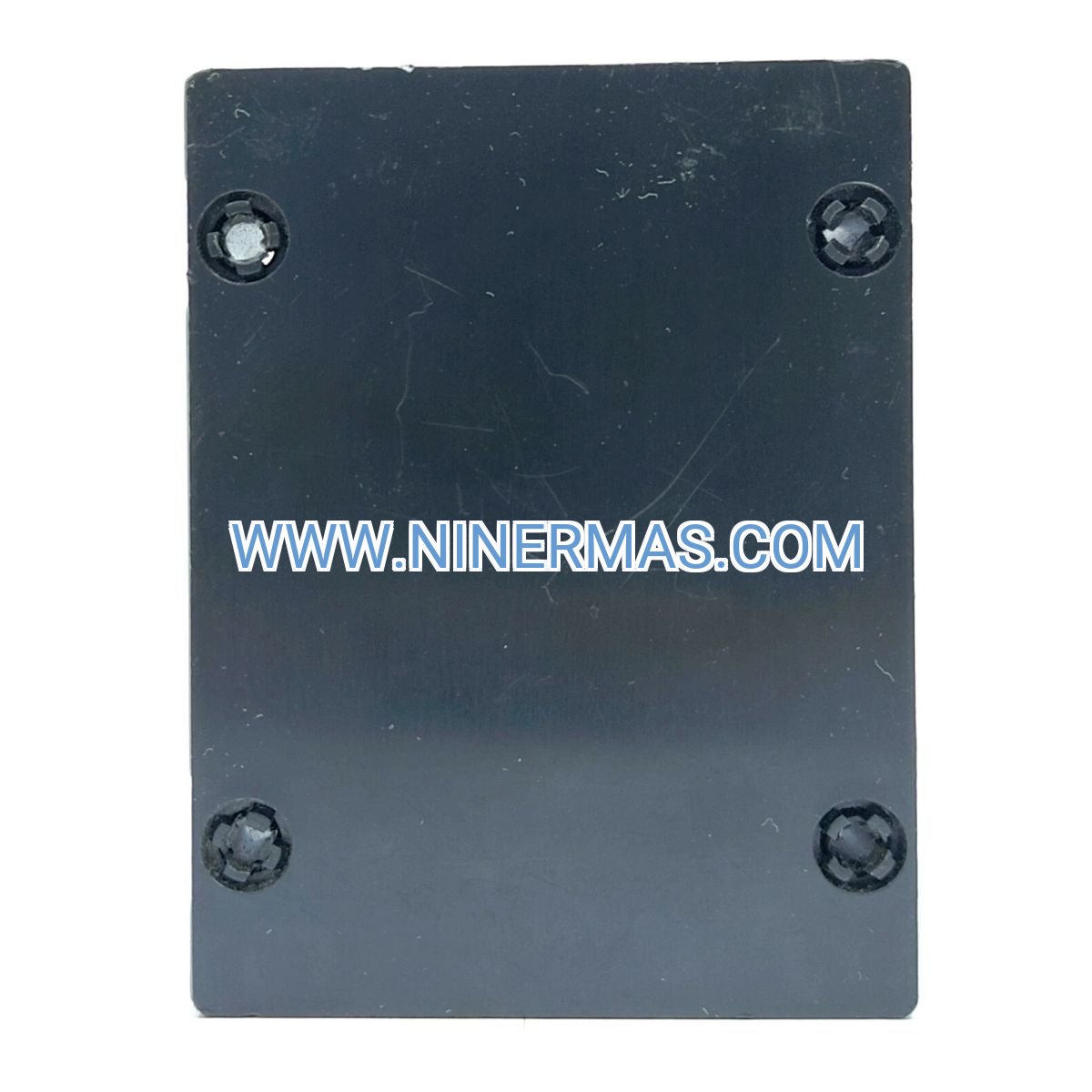

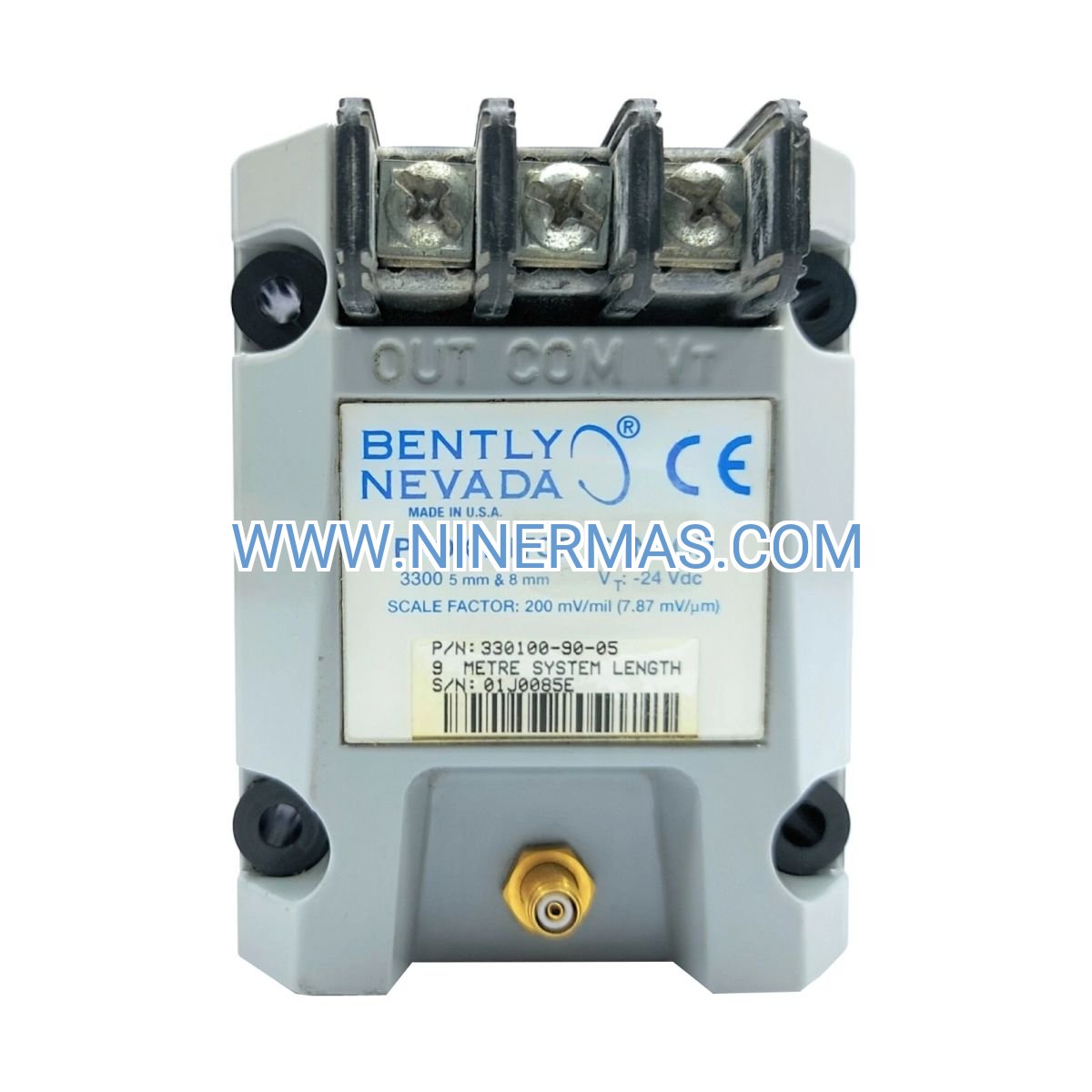

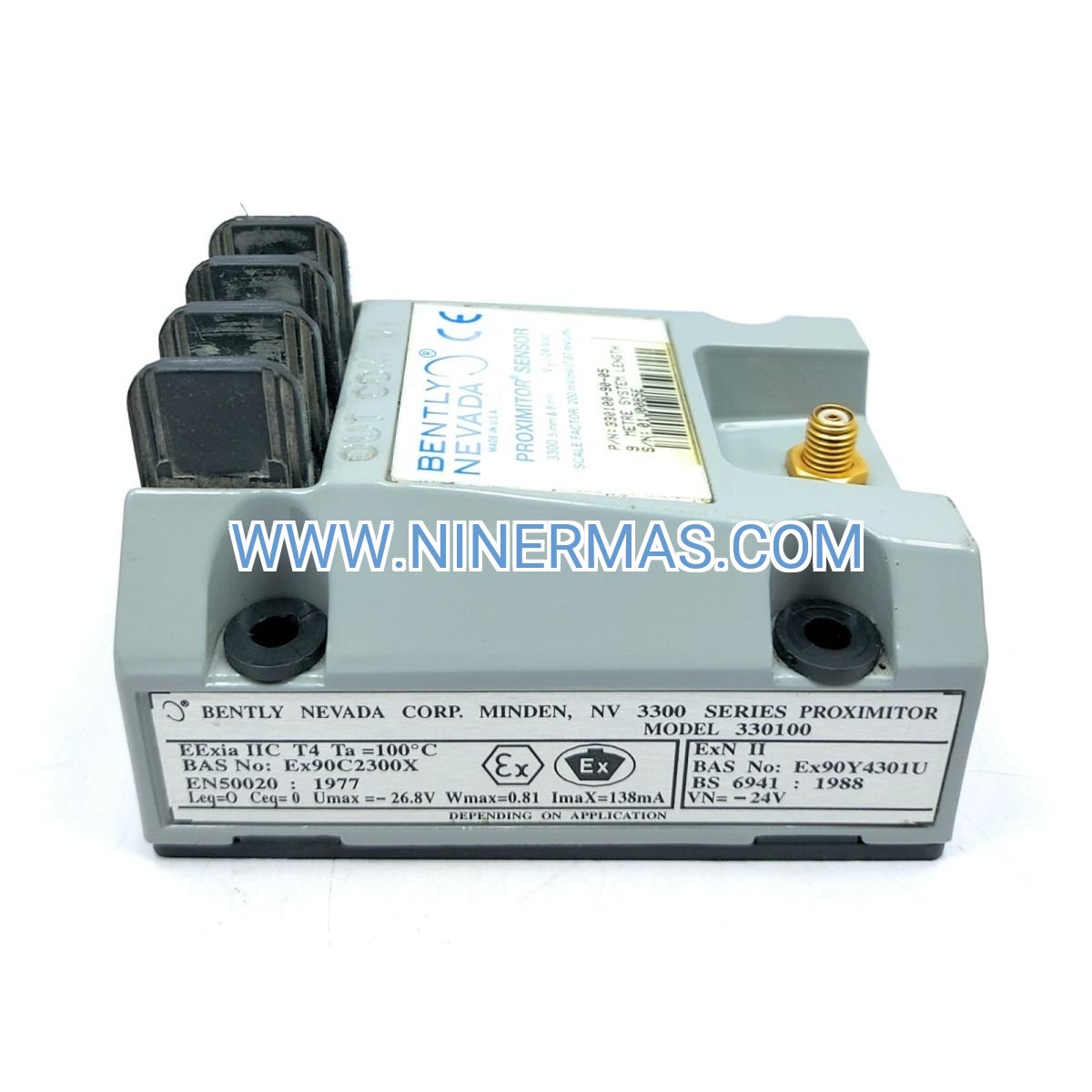

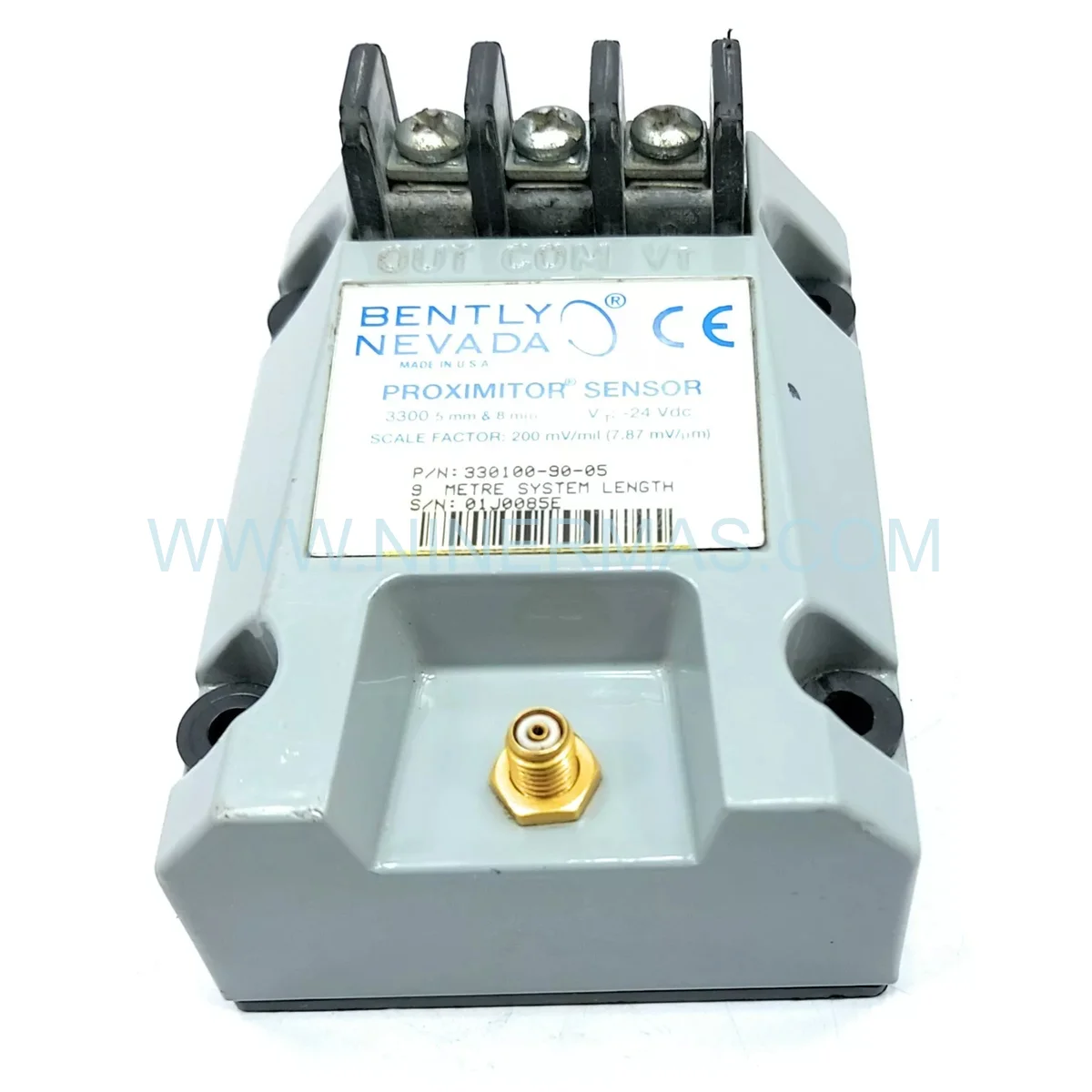

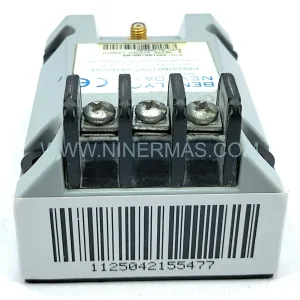

8mm Proximitor Sensor for Industrial Vibration Monitoring (3300 XL Compatible)

The 330100-90-05 Proximitor Sensor is an industrial-grade eddy current displacement transducer engineered for continuous vibration and position monitoring in rotating machinery. Through non-contact electromagnetic induction technology, it delivers real-time shaft displacement data to 3300 XL monitoring systems, enabling early fault detection, reduced downtime, and optimized maintenance scheduling.

Designed for critical applications in power generation, petrochemical processing, and heavy industry, this 8mm probe addresses common challenges including bearing wear, shaft misalignment, rotor imbalance, and thermal growth. Its wide frequency response captures both low-speed positional drift and high-frequency vibration signatures essential for comprehensive machinery health assessment.

Built to API 670 and ISO 20816 standards, the sensor features factory calibration, rugged construction for harsh environments, and seamless integration with existing 3300 XL infrastructure. Suitable for OEMs, maintenance engineers, reliability teams, and instrumentation contractors seeking proven vibration monitoring solutions. Contact our application engineers for system configuration guidance and technical specifications.

Core Features & Technical Advantages

High-Precision Non-Contact Measurement
Utilizes eddy current technology to measure shaft displacement without physical contact, eliminating wear and enabling continuous operation in high-speed rotating equipment. Linear range of 0.50mm (20 mils) with 200 mV/mil sensitivity ensures accurate data across normal operating conditions.

Wide Frequency Response for Comprehensive Diagnostics
Captures vibration signals from DC to 10 kHz (-3 dB), covering slow roll data, synchronous vibration, subsynchronous instabilities, and bearing defect frequencies. This bandwidth supports both steady-state monitoring and transient event analysis during startups and shutdowns.

Extreme Temperature Resilience
Operates reliably from -30°C to +120°C (-22°F to +248°F), maintaining calibration accuracy in steam turbine casings, compressor environments, and outdoor installations subject to seasonal temperature swings.

API 670 Compliance & Industry Standards
Meets American Petroleum Institute specifications for machinery protection systems, ensuring compatibility with safety instrumented systems (SIS) and regulatory requirements in oil & gas, chemical processing, and power generation facilities.

Factory Calibration & Plug-and-Play Integration
Each sensor ships with calibration data traceable to NIST standards, eliminating field calibration requirements. Standard 8mm x 1.0 metric threading and coaxial cable termination simplify installation and replacement in existing 3300 XL systems.

Robust Construction for Industrial Environments
Stainless steel housing withstands vibration, shock, and exposure to process fluids. Hermetically sealed design prevents moisture ingress and contamination, extending service life in demanding applications.

Typical Application Scenarios

This Proximitor Sensor is engineered for machinery protection and condition monitoring systems where shaft displacement and vibration data are critical for operational safety and asset reliability:

Steam & Gas Turbine Monitoring
Measures radial shaft vibration and differential expansion in power generation turbines, providing early warning of bearing degradation, rotor bow, and alignment issues. Supports compliance with NERC reliability standards and OEM protection requirements.

Centrifugal Compressor Surveillance
Tracks radial vibration at bearing locations in API 617 compressors used for natural gas transmission, refrigeration, and air separation. Detects surge conditions, aerodynamic instabilities, and mechanical looseness before catastrophic failure.

Large Motor & Generator Protection
Monitors rotor eccentricity and bearing clearance in motors above 500 HP and generators in combined-cycle plants. Identifies electrical faults (shorted turns, unbalanced magnetic pull) through vibration signature analysis.

Pump Thrust Position & Radial Vibration
Measures axial position in multistage pumps to prevent thrust bearing failure and impeller contact. Radial probes detect cavitation, recirculation, and hydraulic imbalance in boiler feed pumps, pipeline pumps, and process pumps.

Gearbox & Coupling Condition Monitoring
Captures torsional vibration and misalignment in high-speed gearboxes and flexible couplings. Frequency analysis reveals gear tooth wear, lubrication breakdown, and coupling degradation in paper mills, steel mills, and mining operations.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review the following specifications when integrating the 330100-90-05 into your monitoring system:

Selection Considerations
When specifying this sensor, consider the following factors: shaft material and surface finish (4140 steel with 32 RMS or better recommended), available mounting space and probe installation depth, required gap voltage range for your monitoring system, environmental conditions including temperature extremes and chemical exposure, and total system cable length (sensor cable plus extension cable should not exceed 3300 XL system limits). For custom configurations, non-standard cable lengths, or hazardous area certifications, consult with our application engineering team providing shaft diameter, operating speed, and installation constraints.

System Integration & Extended Capabilities

Compatible Extension Cables
Pair with 3300 XL extension cables in standard 5-meter or 9-meter lengths. Total system cable length (sensor integral cable + extension cable) must comply with 3300 XL proximitor module specifications to maintain signal integrity and calibration accuracy.

Multi-Channel Monitoring Configurations
Deploy in XY probe pairs for radial vibration vector analysis, or combine with keyphasor sensors for phase-referenced vibration measurements. Supports full orbit plots, Bode diagrams, and polar plots for advanced diagnostics.

Integration with DCS & SCADA Systems
When connected to 3300 XL proximitor modules with 4-20mA outputs or Modbus communication, vibration data can be transmitted to distributed control systems, plant historians, and predictive maintenance software platforms for trending and alarm management.

Hazardous Area Installations
For Class I Division 2 or ATEX Zone 2 applications, verify that the complete monitoring system (sensor + cable + proximitor module) carries appropriate certifications. Consult factory for intrinsically safe barrier requirements in Zone 0/1 installations.

Delivery, Quality Assurance & Technical Support

Lead Time & Availability
Standard 330100-90-05 sensors typically ship within 3-5 business days from stock. Custom cable lengths or special certifications may require 2-3 weeks. Expedited shipping available for critical outage support.

Warranty & Quality Standards
All sensors include a 12-month manufacturer warranty covering defects in materials and workmanship. Each unit undergoes factory testing per Bently Nevada quality procedures and ships with calibration data and certificate of conformance.

Technical Documentation Package
Delivery includes installation instructions, dimensional drawings, calibration curves, and recommended mounting practices. Complete 3300 XL system manuals and application notes available for download or upon request.

Installation & Commissioning Support
Remote technical assistance provided for installation planning, gap voltage verification, and system checkout. On-site commissioning services available in select regions for complex multi-channel installations or critical machinery applications.

Frequently Asked Questions (FAQ)

Q: Is the 330100-90-05 Proximitor Sensor backward compatible with older 3300 monitoring systems?
A: Yes, this sensor maintains full compatibility with legacy 3300 XL proximitor modules while offering improved temperature stability and frequency response compared to earlier generations. Verify your proximitor module accepts -24V DC excitation and 200 mV/mil sensitivity.

Q: What is the recommended installation gap between the probe tip and shaft surface?
A: For optimal linearity and sensitivity, maintain a gap of 10-40 mils (0.25-1.0 mm) at normal operating conditions. The 3300 XL proximitor module will display gap voltage; target -8 to -12 VDC for mid-range positioning. Consult installation drawings for specific machinery applications.

Q: Can this sensor measure both radial vibration and axial position?
A: Yes. When installed perpendicular to the shaft, it measures radial displacement and vibration. When aimed at a thrust collar or keyway, it accurately tracks axial shaft position and thrust bearing wear. Ensure target surface meets flatness and finish requirements for axial measurements.

Q: Does the sensor require field calibration after installation?
A: No. Each 330100-90-05 ships with factory calibration performed on certified target material. The calibration is valid for the sensor-cable-proximitor system as long as cable lengths match factory configuration. Replacement sensors can be installed without recalibration if system cable lengths remain unchanged.

Q: What shaft surface finish and material are required for accurate measurements?
A: Target surface should be ferrous material (4140 steel preferred) with surface finish of 32 RMS (0.8 μm Ra) or smoother. Avoid chrome plating, which reduces sensitivity. Non-ferrous shafts require special probe configurations—contact engineering for stainless steel or titanium shaft applications.

Q: How do I troubleshoot erratic readings or signal noise?
A: Common causes include cable damage, electrical noise coupling, improper grounding, or target surface contamination. Verify gap voltage is within -6 to -18 VDC range, inspect cable for cuts or kinks, ensure proximitor module chassis ground is connected, and clean shaft surface of rust, oil, or debris. Consult 3300 XL troubleshooting guide for systematic diagnostics.

Request Technical Consultation & Quotation

For detailed system design assistance, custom configurations, or project-specific quotations, please provide the following information to our application engineering team:

• Equipment type and model (turbine, compressor, motor, pump, etc.)
• Shaft diameter and material specification
• Operating speed range (RPM) and maximum vibration levels
• Number of measurement points and probe orientations (radial XY, axial, etc.)
• Environmental conditions (temperature range, hazardous area classification)
• Existing monitoring system details (3300 XL module model, available channels)
• Required cable lengths and routing constraints
• Project timeline and delivery requirements

Our engineers will provide system architecture recommendations, bill of materials, and technical support to ensure successful integration and commissioning.
