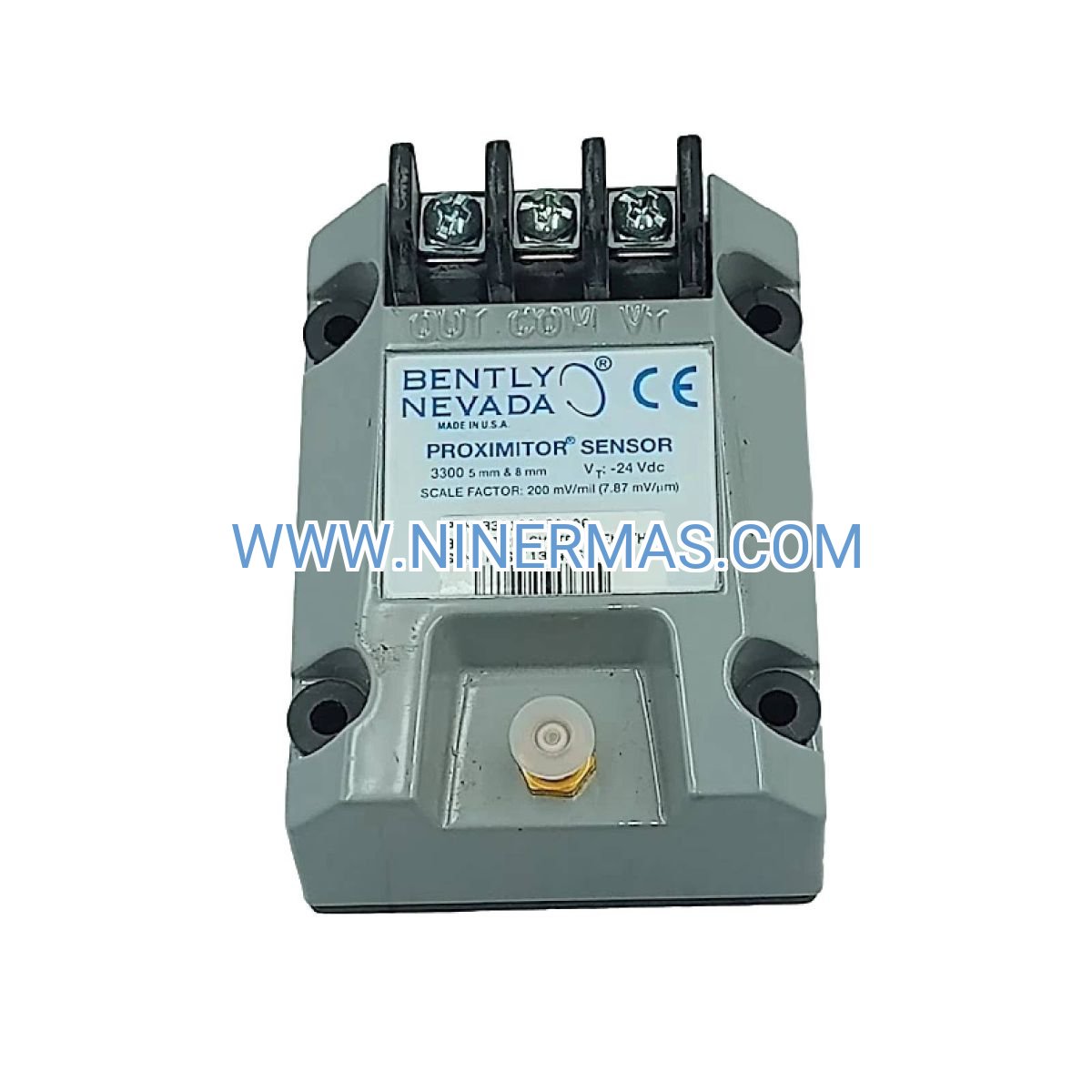

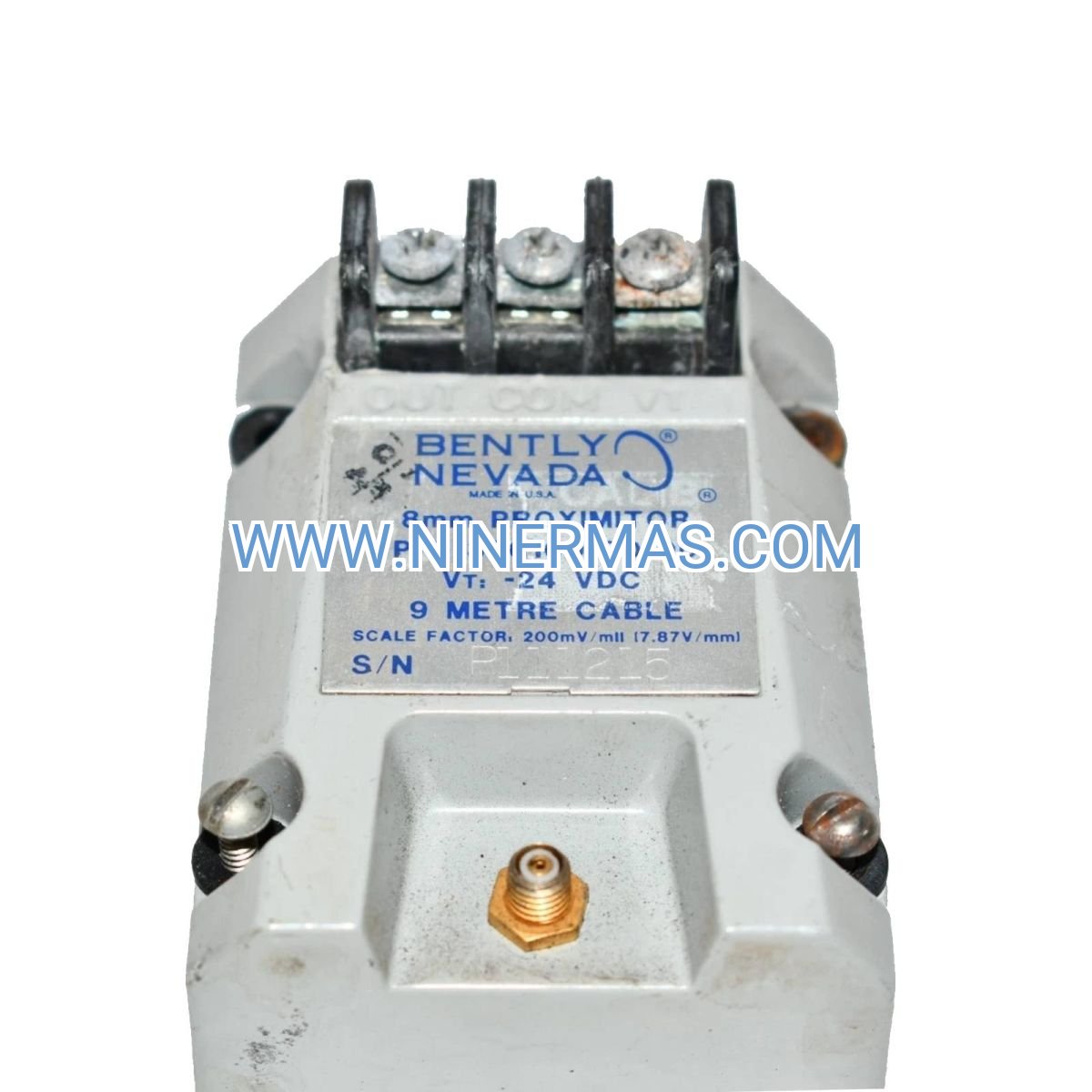

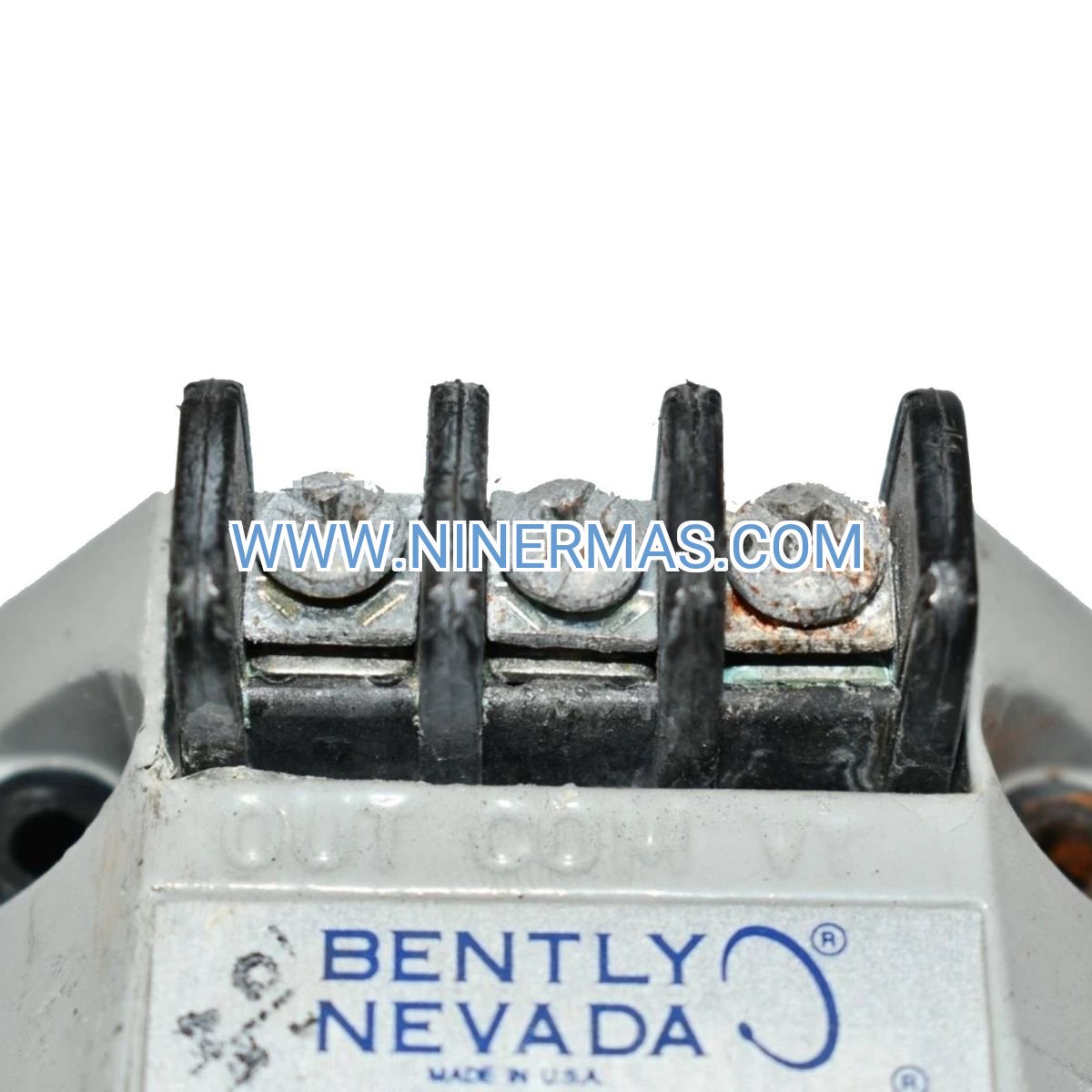

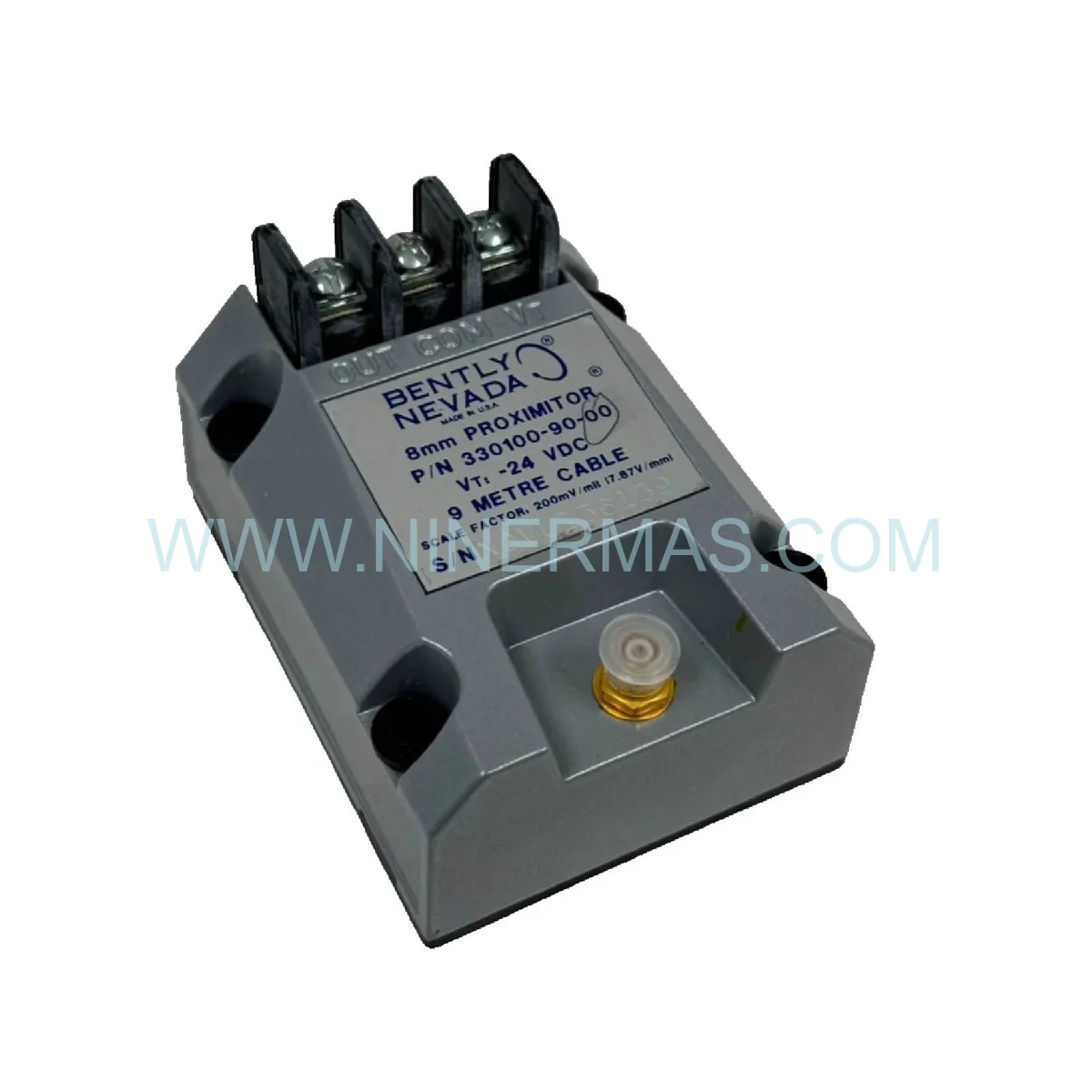

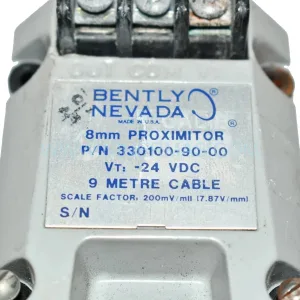

Bently Nevada 330100-90-00 Proximitor Sensor (Industrial-Grade Vibration Monitoring System)

The Bently Nevada 330100-90-00 is an 8mm eddy current Proximitor sensor designed for critical rotating machinery applications. Through non-contact displacement measurement and PLC-compatible signal conditioning, it enables real-time shaft vibration monitoring, radial position tracking, and predictive maintenance diagnostics.

Ideal for turbine protection systems, compressor surveillance, and high-speed motor monitoring scenarios, this sensor addresses challenges such as bearing wear detection, rotor eccentricity measurement, unbalanced vibration alerts, and thermal expansion tracking in continuous industrial operations.

With standardized 3300 XL platform compatibility and field-proven reliability, the 330100-90-00 delivers precision measurement accuracy, extended temperature tolerance, simplified installation procedures, and seamless integration with DCS/SCADA systems. Suitable for design engineers, maintenance teams, OEM integrators, and end-user facilities requiring condition-based monitoring solutions. Contact our application engineers for system configuration guidance and technical specifications.

Core Features & Advantages

• Non-Contact Eddy Current Technology
  Utilizes electromagnetic induction principles with stainless steel probe construction, eliminating mechanical wear and providing drift-free measurement stability over millions of operating cycles in harsh industrial environments.
• Wide Operating Temperature Range
  Functions reliably from -40°C to +105°C (-40°F to +221°F), accommodating extreme ambient conditions in steam turbines, cryogenic pumps, and high-temperature process equipment without performance degradation.
• Precision Linear Measurement Range
  Offers 0.40 mm to 1.78 mm (16 to 70 mils) linear operating range with 200 mV/mil sensitivity, ensuring accurate gap voltage output for both static position and dynamic vibration analysis applications.
• Robust Industrial Construction
  Features M18 x 1.0 threaded mounting, integral armored cable with TNC connector, and IP67-rated stainless steel housing that withstands oil mist, coolant spray, vibration shock, and electromagnetic interference.
• Comprehensive System Compatibility
  Seamlessly integrates with 3300 XL extension cables, proximity transducers, and Bently Nevada monitoring racks, supporting modular expansion for multi-channel vibration surveillance and centralized data acquisition platforms.
• Advanced Diagnostic Capabilities
  Enables frequency spectrum analysis, orbit plotting, phase measurement, and trending functions when paired with compatible signal processors, facilitating root cause analysis and condition-based maintenance strategies.

Typical Application Scenarios

This sensor is engineered for installations demanding high reliability, continuous operation, and precise shaft displacement measurement, particularly in:

• Steam & Gas Turbine Protection Systems
  Monitors journal bearing clearances, thrust position, and differential expansion in power generation turbines, preventing catastrophic failures through early detection of rotor rubs, bearing degradation, and thermal distortion.
• Centrifugal & Axial Compressor Surveillance
  Tracks radial vibration and axial float in multi-stage compressors for petrochemical, refinery, and gas processing plants, ensuring operational stability and compliance with API 670 machinery protection standards.
• Large Motor & Generator Monitoring
  Provides X-Y radial vibration measurement on induction motors, synchronous generators, and variable frequency drive applications, detecting rotor eccentricity, magnetic pull, and coupling misalignment issues.
• Industrial Pump & Fan Systems
  Assesses bearing condition and shaft runout in centrifugal pumps, cooling tower fans, and forced draft blowers, reducing unplanned downtime through vibration-based predictive maintenance programs.
• Gearbox & Coupling Diagnostics
  Measures torsional vibration, gear mesh frequencies, and coupling wear in speed increasers, reducers, and flexible coupling assemblies across mining, steel, and paper manufacturing industries.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement decisions, we provide standardized specifications and application-specific configuration options. Custom cable lengths, mounting adapters, and calibration certificates are available upon request.

Selection Recommendations: When specifying this sensor, consider maximum shaft vibration amplitude, installation space constraints, ambient temperature extremes, target material composition, and total system cable length requirements. For installations exceeding 9 meters, select appropriate extension cables (330130 series) to maintain signal integrity. Our engineering team can provide application-specific recommendations based on machinery type, operating speed, bearing configuration, and monitoring objectives.

System Integration & Configuration Options

The 330100-90-00 functions as part of a complete vibration monitoring architecture:

• Extension Cables: 330130 series cables (1m to 9m lengths) for flexible installation routing
• Proximitor Modules: 3300 XL signal conditioners providing -24 Vdc excitation and buffered outputs
• Monitoring Racks: Compatible with 3500 series rack-mount systems for centralized data processing
• Communication Protocols: Supports 4-20mA output, Modbus RTU, and proprietary Bently Nevada protocols
• Calibration Services: Factory calibration certificates and field verification tools available

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days from regional distribution centers. Custom cable configurations and special calibrations require 10-15 business days lead time. All sensors include a 12-month manufacturer warranty covering materials and workmanship defects.

Technical support services include remote installation guidance, system commissioning assistance (subject to geographic availability), and troubleshooting consultation. Complete documentation packages accompany each shipment: dimensional drawings, wiring diagrams, calibration data sheets, installation instructions, and maintenance guidelines for seamless integration and long-term serviceability.

Frequently Asked Questions (FAQ)

Q: How does the 330100-90-00 Proximitor sensor interface with existing vibration monitoring systems?
A: The sensor connects via TNC connector to 3300 XL extension cables, which terminate at proximitor signal conditioning modules. These modules provide -24 Vdc excitation and convert probe impedance changes into proportional voltage outputs (typically ±10 Vdc) compatible with PLC analog inputs, DCS systems, or dedicated vibration monitors. Verify power supply voltage, cable length limits, and signal conditioner compatibility before installation.

Q: What is the maximum number of measurement points supported in a single monitoring system?
A: A standard 3300 XL rack can accommodate up to 16 dual-channel proximitor modules, supporting 32 simultaneous measurement points. For larger installations, multiple racks can be networked using Modbus or proprietary communication protocols. Each sensor requires dedicated signal conditioning and should be installed per API 670 guidelines for radial and axial vibration monitoring.

Q: What level of vibration reduction or energy savings can be achieved with this monitoring system?
A: While the sensor itself does not reduce vibration, early detection of mechanical issues enables proactive maintenance interventions that prevent catastrophic failures. Studies indicate predictive maintenance programs utilizing continuous vibration monitoring can reduce unplanned downtime by 30-50% and extend bearing life by 20-40%, resulting in significant operational cost savings and improved equipment availability.

Q: What are the environmental installation requirements and ingress protection specifications?
A: The 330100-90-00 carries IP67 rating, suitable for temporary water immersion and dust exposure. Ambient temperature must remain within -40°C to +105°C range. Avoid direct steam impingement, corrosive chemical contact, and high-frequency electromagnetic fields exceeding specified immunity levels. Mounting surfaces should be clean, flat, and vibration-isolated per installation manual specifications.

Q: Does the sensor support remote monitoring, data logging, and industrial communication protocols?
A: When integrated with 3500 series monitoring systems, the sensor data can be transmitted via Modbus TCP/IP, Ethernet/IP, or OPC protocols to SCADA platforms, historian databases, and cloud-based analytics services. Real-time trending, alarm notification, and predictive analytics capabilities depend on the selected monitoring hardware and software configuration.

Request Technical Support & Custom Solutions

For detailed application engineering, system sizing, or procurement quotations, please provide the following project information: machinery type and operating speed, number of measurement points required, ambient temperature range, mounting constraints, preferred communication protocol, and any special certification requirements (ATEX, IECEx, SIL rating). Our specialists will deliver tailored recommendations, CAD drawings, and competitive pricing within 24-48 hours.
