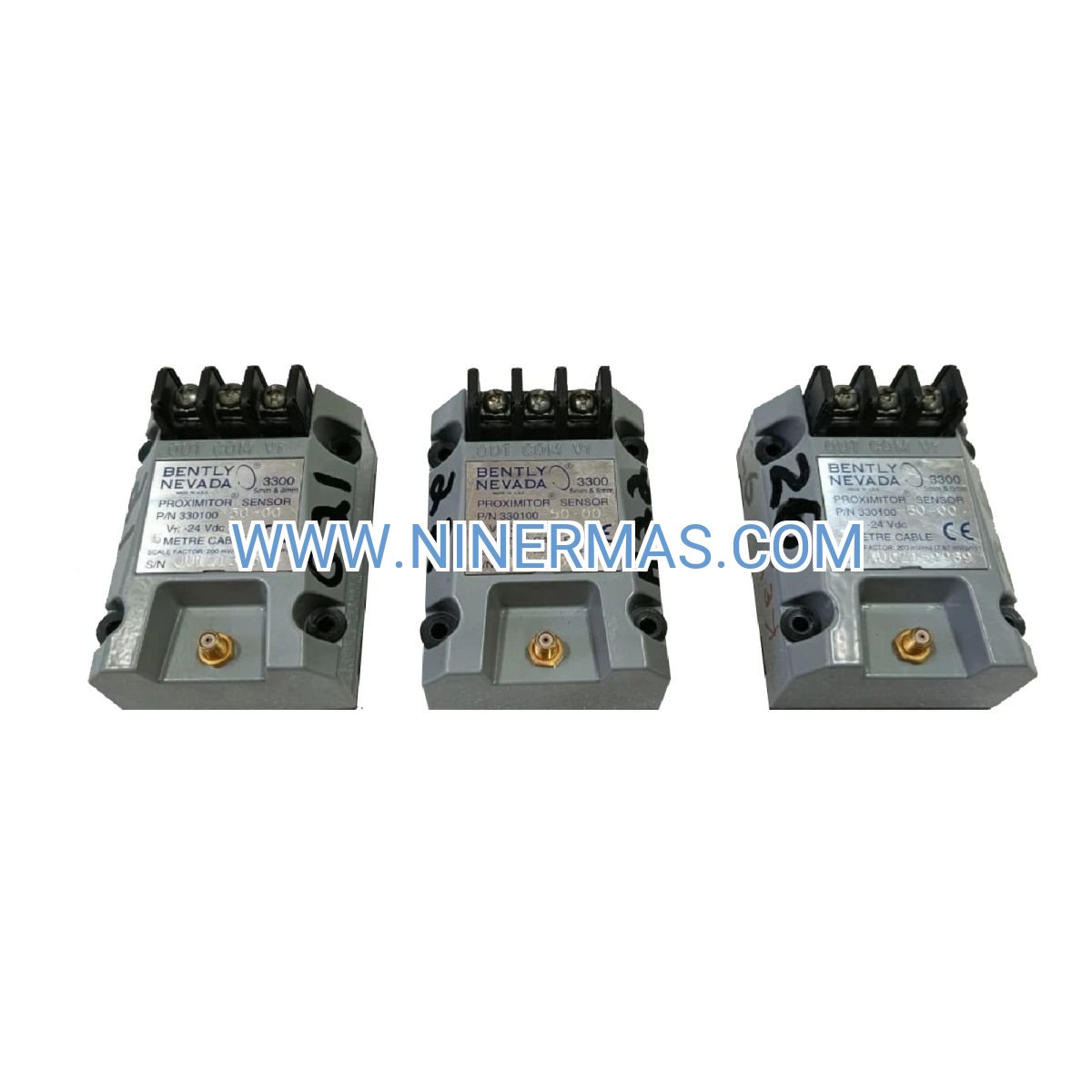

8mm Proximitor Sensor for Industrial Rotating Machinery Monitoring

The 330100-50-00 Proximitor Sensor is an industrial-grade eddy current displacement transducer designed for continuous vibration, axial position, and rotational speed measurement in critical rotating equipment. Through non-contact electromagnetic sensing technology and precision signal conditioning, this 8mm probe delivers real-time shaft displacement data with ±1% full-scale accuracy, enabling predictive maintenance strategies that reduce unplanned downtime by up to 40%.

Engineered for high-stakes applications including steam turbines, centrifugal compressors, industrial pumps, and power generation systems, this sensor addresses common operational challenges such as bearing degradation, shaft misalignment, rotor imbalance, and thermal growth monitoring. It serves design engineers, maintenance teams, OEM integrators, and plant reliability managers who require continuous condition monitoring in environments where equipment failure carries significant safety and financial consequences.

Built on proven Bently Nevada 3300 XL platform architecture with API 670 and ISO 20816 compliance, the 330100-50-00 combines factory calibration traceability, hermetically sealed construction for harsh environment durability, and backward compatibility with legacy monitoring systems. Available with comprehensive technical documentation and application engineering support, this sensor enables data-driven maintenance decisions and extends mean time between failures (MTBF) for mission-critical rotating assets.

Core Capabilities & Performance Advantages

High-Frequency Response for Dynamic Event Capture
With a 0 to 10 kHz bandwidth, the sensor captures transient vibration events including blade pass frequencies, gear mesh harmonics, and bearing fault signatures that lower-frequency systems miss. This wide response range supports both slow-roll measurements and high-speed dynamic analysis up to 100,000 RPM operating speeds.

Extended Temperature Range for Extreme Environments
Operates reliably from -40°C to +105°C (-40°F to +221°F), maintaining calibration accuracy across arctic offshore platforms, desert petrochemical facilities, and high-temperature turbine casings. Hermetic sealing prevents moisture ingress and contamination in humid or corrosive atmospheres.

Factory-Calibrated Precision with Traceable Documentation
Each sensor ships with NIST-traceable calibration certificates documenting sensitivity, linearity, and frequency response against ferrous target standards. This eliminates field calibration requirements and ensures measurement consistency across multi-sensor installations, critical for phase analysis and cross-channel comparison.

Drop-In Compatibility with Existing Infrastructure
Standard 5/8-18 UNF-2A threading and -24 VDC system voltage match legacy 3300 series installations, allowing seamless sensor replacement without proximitor module reconfiguration or cable modifications. Compatible with both 3300 XL and 3500 rack-based monitoring platforms through appropriate signal conditioners.

Robust Mechanical Design for Vibration Resistance
Integral armored cable construction and stainless steel probe body withstand installation torque up to 20 ft-lbs and operational vibration levels exceeding 10g RMS. Coil potting and connector strain relief prevent premature failure in high-vibration mounting locations common to reciprocating compressors and diesel engines.

Cost-Effective Lifecycle Ownership
OEM-equivalent performance at competitive pricing, combined with 3-5 year recalibration intervals and minimal maintenance requirements, delivers lower total cost of ownership compared to alternative sensing technologies. Standardized spare parts inventory reduces procurement complexity for multi-site operations.

Industrial Application Scenarios

This Proximitor sensor addresses critical monitoring requirements across diverse rotating equipment installations where continuous condition assessment prevents catastrophic failures and optimizes maintenance scheduling:

Steam & Gas Turbine Generator Sets
Monitors journal bearing radial vibration, thrust bearing axial position, and differential expansion in utility-scale power generation units. Detects rotor bow during startup/shutdown thermal transients, identifies steam whirl instability, and provides keyphasor reference for balancing operations. Typical installations include 4-8 sensors per turbine measuring X-Y vibration at each bearing pedestal.

Centrifugal & Axial Compressor Trains
Tracks shaft displacement in multi-stage compressors handling natural gas, air, refrigerants, and process gases. Early detection of surge conditions, aerodynamic instability, and seal rub events prevents secondary damage to impellers and diffusers. Essential for API 617 compliance in oil & gas processing facilities and LNG liquefaction plants.

Industrial Pump Systems & Fluid Handling Equipment
Measures rotor eccentricity and bearing clearance degradation in boiler feed pumps, cooling water circulation pumps, and chemical transfer pumps. Identifies cavitation-induced vibration, hydraulic unbalance, and mechanical seal wear patterns. Supports condition-based maintenance strategies that extend pump rebuild intervals from 18 to 36+ months.

Rotating Kilns, Dryers & Material Processing Equipment
Monitors shell runout and support roller alignment in cement kilns, ore processing rotary dryers, and calcination equipment. Detects refractory degradation, tire wear, and structural deformation before catastrophic shell failure. Operates reliably in dusty, high-temperature environments where optical sensors fail.

High-Speed Spindles & Machine Tool Applications
Provides non-contact runout measurement for precision grinding spindles, milling centers, and turning machines. Supports active vibration control systems and adaptive machining strategies that improve surface finish quality and extend cutting tool life. Frequency response adequate for spindle speeds exceeding 60,000 RPM.

Technical Specifications & Selection Parameters

To facilitate engineering design and procurement decisions, the following specifications define sensor performance characteristics and installation requirements:

Selection Guidance for System Designers

When specifying the 330100-50-00 for new installations or retrofit projects, consider the following application-specific factors to ensure optimal performance:

• Installation Gap: Maintain 1.0mm (40 mil) nominal gap between probe tip and target surface for centered linear range operation. Verify mechanical design allows ±1.0mm (±40 mil) dynamic displacement without exceeding sensor limits.
• Target Surface Preparation: Ensure shaft observation area has <5 μm surface finish, is free from keyways or discontinuities, and provides minimum 25mm (1") axial sensing length. Magnetic runout should not exceed 10% of total indicated runout (TIR).
• Proximitor Module Compatibility: Pair with Bently Nevada 3300 XL NSv proximitor modules (e.g., 330180 series) or equivalent -24 VDC signal conditioners. Verify module output scaling matches monitoring system input requirements (typically 4-20mA or ±10 VDC).
• Cable Routing Considerations: Route sensor cables separately from power conductors to minimize electromagnetic interference. Use grounded conduit or shielded trays in electrically noisy environments. Avoid sharp bend radii <100mm to prevent cable damage.
• Environmental Protection: For installations exceeding +85°C ambient, specify high-temperature cable variants or use remote mounting with extension cables. In corrosive atmospheres, consider additional probe coating options or protective boots.

For complex multi-sensor arrays, vibration vector analysis, or custom monitoring requirements, consult with application engineers who can provide system-level design validation, cable schedules, and proximitor module configuration recommendations based on your specific machinery characteristics and protection objectives.

Advanced Integration Capabilities

Multi-Channel Synchronization for Phase Analysis
When deployed in X-Y orthogonal pairs, sensors enable orbit plot generation, mode shape identification, and directional vibration analysis. Synchronized data acquisition across 4-16 channels supports operational deflection shape (ODS) studies and finite element model validation.

Keyphasor Event Triggering & Speed Measurement
Configured with reflective tape or keyway targets, the sensor provides once-per-revolution timing signals for tachometer functions, order tracking analysis, and balancing machine applications. Phase accuracy better than ±1° supports precision balancing to ISO G2.5 standards.

Digital Communication Protocol Support
When interfaced through modern monitoring systems, sensor data integrates with Modbus RTU, HART, OPC-UA, and proprietary DCS protocols. Enables remote diagnostics, automated alarm management, and integration with plant-wide asset performance management (APM) platforms.

Predictive Analytics & Machine Learning Integration
High-resolution time-domain data supports advanced analytics including spectral kurtosis, envelope analysis, and AI-driven anomaly detection algorithms. Historical trend databases enable remaining useful life (RUL) prediction and optimized maintenance scheduling.

Delivery, Quality Assurance & Technical Support

Lead Times & Inventory Availability
Standard 330100-50-00 configurations with 5m or 9m integral cables ship from stock within 3-5 business days. Custom cable lengths, special threading, or high-temperature variants require 2-3 weeks manufacturing lead time. Expedited processing available for emergency outage support.

Quality Control & Testing Protocols
Every sensor undergoes 100% electrical testing including sensitivity verification, frequency response characterization, and temperature cycling per Bently Nevada QA procedures. Calibration performed against NIST-traceable standards with certificates documenting serial number, test date, and measured parameters.

Warranty Coverage & Service Terms
Manufacturer provides 12-month warranty covering defects in materials and workmanship from shipment date. Warranty includes free replacement for failed units and technical support for installation troubleshooting. Extended warranty and advance replacement programs available for critical spares inventory.

Technical Documentation Package
Each sensor ships with comprehensive documentation including installation drawings with dimensional tolerances, electrical connection diagrams, calibration certificates, material certifications (MTRs), and recommended spare parts lists. Digital copies available in PDF and CAD formats for engineering file integration.

Application Engineering Assistance
Pre-sales support includes sensor selection guidance, system architecture review, and compatibility verification with existing monitoring infrastructure. Post-installation services cover commissioning support, baseline data interpretation, and alarm setpoint recommendations based on machinery-specific acceptance criteria.

Frequently Asked Questions

Q: How does the 330100-50-00 integrate with Bently Nevada 3500 rack monitoring systems?
A: The sensor connects to 3500 rack systems through 3300 XL proximitor modules (such as 330180-X0-00 variants) that provide -24 VDC excitation and signal conditioning. The proximitor module output then feeds into 3500 monitor modules (e.g., 3500/42M for vibration, 3500/45 for position). This two-stage architecture maintains backward compatibility while enabling advanced diagnostics available in 3500 platform firmware.

Q: What is the maximum shaft speed this sensor can accurately measure?
A: With a 10 kHz frequency response, the sensor reliably measures vibration components up to approximately 100,000 RPM (1,667 Hz fundamental). For higher-speed applications exceeding 120,000 RPM, consider 5mm probe variants with extended bandwidth. Actual usable speed range also depends on number of events per revolution and required harmonic analysis depth.

Q: Can this Proximitor sensor measure displacement on non-ferrous targets like aluminum or titanium?
A: Standard 330100-50-00 sensors are optimized for ferrous targets (steel, iron, magnetic stainless) with conductivity ≥10% IACS. Non-ferrous materials require specialized NSv probes with adjusted coil designs and recalibrated sensitivity curves. For aluminum shafts common in aerospace applications, specify non-ferrous sensor variants and provide target material specifications for proper calibration.

Q: How often does the sensor require recalibration, and can it be performed in the field?
A: Under normal industrial conditions (stable temperature, no mechanical damage, proper installation), recalibration intervals of 3-5 years are typical per API 670 recommendations. Field recalibration is not recommended due to specialized equipment requirements; sensors should be returned to authorized calibration facilities with NIST-traceable standards. Maintain calibrated spare inventory to minimize downtime during recalibration cycles.

Q: What cable length options are available, and how does cable length affect measurement accuracy?
A: Standard integral cable lengths include 5 meters and 9 meters. Extension cables up to 18 meters total system length are supported when using Bently Nevada approved extension cables with proper impedance matching. Cable length affects system sensitivity and requires proximitor module adjustment; always specify total cable length when ordering proximitor modules to ensure factory calibration matches installed configuration.

Q: Is the sensor suitable for hazardous area installations requiring ATEX or IECEx certification?
A: The 330100-50-00 sensor itself is a passive device suitable for intrinsically safe (IS) installations when paired with appropriately certified proximitor modules and barriers. For Zone 0/1 or Division 1 hazardous locations, specify intrinsically safe proximitor modules with entity parameters matching sensor characteristics. Consult factory for complete IS system certification documentation and installation drawings.

Request Technical Consultation & Custom Quotation

To receive detailed application-specific recommendations, system integration guidance, or project quotations, please provide the following information to our engineering team:

• Equipment Details: Machinery type (turbine, compressor, pump, etc.), manufacturer, model number, and rated operating speed (RPM)
• Monitoring Objectives: Measurement parameters required (radial vibration, axial position, speed), number of measurement points, and protection/diagnostic requirements
• Installation Constraints: Available mounting locations, shaft material and diameter, ambient temperature range, and hazardous area classification (if applicable)
• System Architecture: Existing monitoring system (3300 XL, 3500 rack, third-party DCS), required output signals, and communication protocols
• Project Timeline: Required delivery date, installation schedule, and commissioning support needs

Our application engineers will respond within 24 hours with sensor selection validation, proximitor module recommendations, cable specifications, and comprehensive pricing. For urgent outage support or emergency replacements, expedited processing and same-day shipping options are available.
