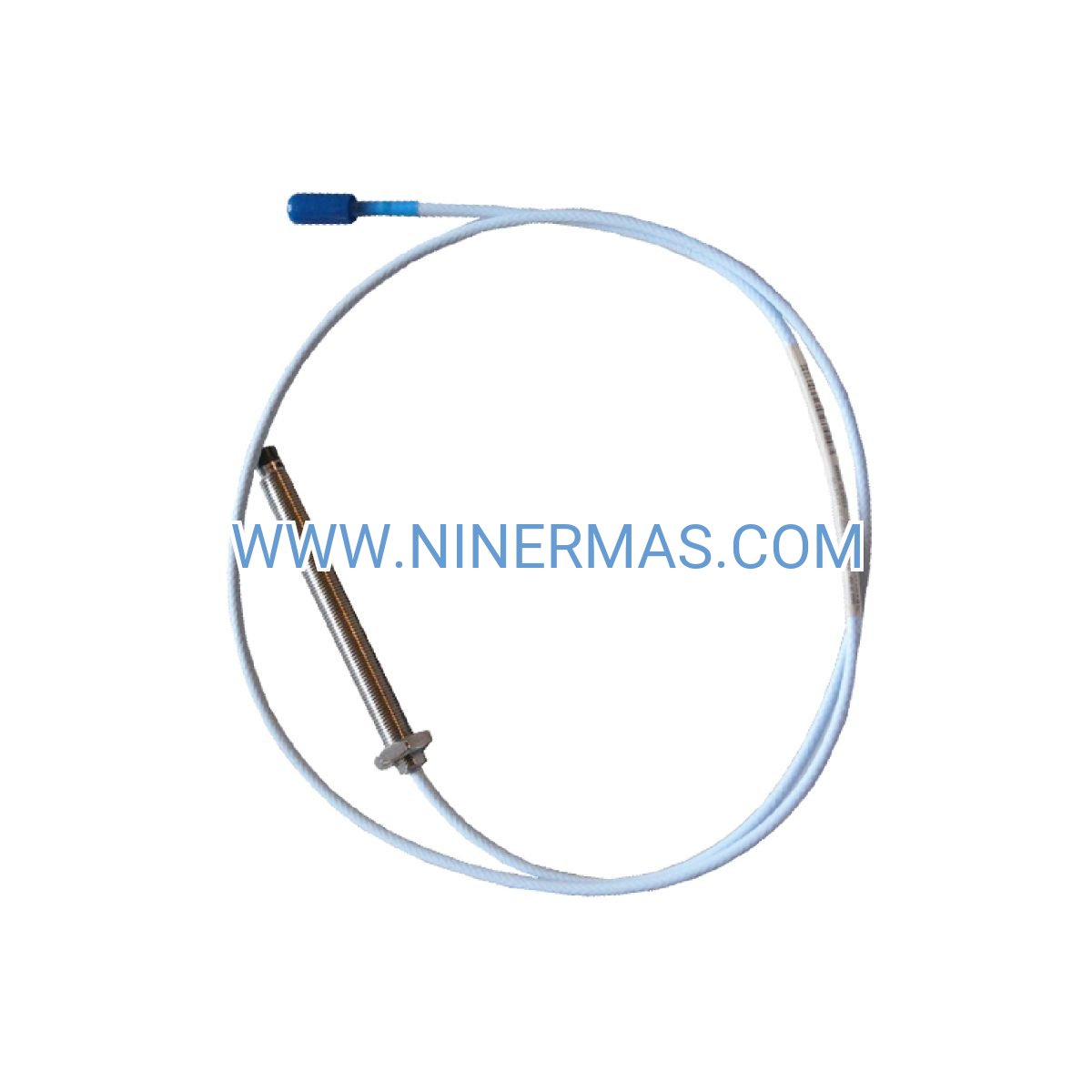

8mm Eddy Current Proximity Probe for Industrial Rotating Machinery Monitoring

The 330103-00-08-10-12-05 is an industrial-grade eddy current proximity sensor designed for continuous vibration and axial displacement monitoring in critical rotating equipment. Utilizing non-contact measurement technology, this 8mm probe delivers precise shaft position data for turbines, compressors, motors, and pumps across power generation, petrochemical, oil & gas, and heavy manufacturing sectors. When integrated with compatible proximitor signal conditioning modules, it forms a complete machinery health surveillance solution that enables predictive maintenance strategies and prevents catastrophic failures.

Engineered for harsh industrial environments, this proximity probe addresses common operational challenges including bearing degradation, shaft misalignment, rotor eccentricity, and thermal growth. It serves design engineers, maintenance teams, reliability engineers, and system integrators who require dependable condition monitoring data to optimize asset performance and minimize unplanned downtime. The sensor's robust construction and wide temperature tolerance make it suitable for both continuous process industries and intermittent duty applications.

Through standardized mounting configurations and proven compatibility with industry-standard monitoring systems, this probe offers rapid deployment, straightforward calibration, and long-term measurement stability. Technical support is available to assist with gap voltage setup, cable routing, grounding practices, and integration with DCS/SCADA platforms. Contact our application engineers for customized selection guidance and project-specific recommendations.

Core Features & Technical Advantages

Non-Contact Eddy Current Technology
Employs electromagnetic induction principles to measure shaft displacement without physical contact, eliminating wear and enabling continuous operation in high-speed rotating machinery. The 8mm sensing tip provides optimal sensitivity for standard shaft diameters while maintaining linear response across the measurement range.

Wide Operating Temperature Range
Functions reliably from -40°C to +105°C (-40°F to +221°F), accommodating extreme ambient conditions in outdoor installations, high-temperature process areas, and cold climate facilities. Stainless steel housing ensures dimensional stability and corrosion resistance throughout the operational envelope.

High-Frequency Response Capability
Captures dynamic events up to 10 kHz bandwidth (-3dB point), enabling detection of blade pass frequencies, gear mesh harmonics, and high-speed imbalance conditions that lower-frequency sensors cannot resolve. This frequency range supports both slow-roll measurements and transient event analysis.

API 670 Compliance & Industry Standards
Meets American Petroleum Institute API 670 requirements for machinery protection systems, ensuring compatibility with safety instrumented systems (SIS) and emergency shutdown logic. Suitable for applications requiring IEC 61508 functional safety certification and ISO 20816 vibration severity assessments.

Integral Armored Cable Construction
Features factory-terminated BNC connector and ruggedized cable sheath that resists mechanical damage, chemical exposure, and electromagnetic interference. This integrated design reduces installation time and eliminates field termination errors that can compromise signal integrity.

Proven System Compatibility
Seamlessly interfaces with 3300 XL proximitor modules, rack-mounted monitoring systems, and distributed control architectures. Standard output voltage range (-10 to -12 VDC) ensures plug-and-play integration with existing infrastructure, minimizing retrofit complexity and commissioning duration.

Typical Application Scenarios

This proximity probe addresses critical monitoring requirements across diverse industrial sectors where rotating equipment reliability directly impacts production continuity and personnel safety:

Steam & Gas Turbine Vibration Surveillance
Monitors radial shaft vibration and thrust position in power generation turbines, enabling early detection of bearing clearance changes, rotor bow, and blade fouling. Supports compliance with NFPA 850 and manufacturer-specific protection schemes for turbine-generator sets ranging from 5 MW to 500+ MW capacity.

Centrifugal Compressor Condition Monitoring
Tracks shaft displacement in multi-stage compressors used for natural gas transmission, air separation, and refrigeration cycles. Detects surge events, seal rubs, and aerodynamic instabilities before they escalate into forced outages. Essential for API 617 and API 672 compliant installations.

Large Motor & Generator Bearing Protection
Provides continuous bearing clearance monitoring in electric motors above 500 HP and synchronous generators, preventing catastrophic bearing failures that can destroy rotor assemblies and cause extended downtime. Integrates with motor protection relays and plant-wide asset management systems.

Industrial Pump Rotor Position Tracking
Measures axial and radial position in high-energy pumps serving boiler feed, cooling water circulation, and process fluid transfer applications. Enables condition-based maintenance scheduling and reduces mean time to repair (MTTR) through early fault identification.

Critical Fan & Blower Eccentricity Analysis
Identifies shaft runout and dynamic imbalance in forced draft fans, induced draft fans, and process blowers where unplanned failures disrupt production sequences. Supports root cause analysis for recurring vibration issues and validates balancing procedures.

Technical Specifications & Selection Parameters

To facilitate accurate system design and procurement, the following specifications define the probe's operational characteristics and physical attributes:

Selection Guidance for System Designers
When specifying this proximity probe for new installations or retrofit projects, consider the following application-specific factors: shaft diameter and surface finish quality, available mounting space and access for installation, required measurement range and resolution, environmental conditions including temperature extremes and chemical exposure, cable routing distance to signal conditioning equipment, and compatibility with existing monitoring infrastructure. For applications requiring custom cable lengths, non-standard thread configurations, or specialized calibration certificates, consult with application engineers who can provide tailored solutions. Submit machinery drawings, operating parameters, and monitoring objectives to receive detailed selection recommendations and integration support.

System Integration & Configuration Options

Signal Conditioning Requirements
This probe requires pairing with a compatible proximitor module that provides excitation voltage, signal amplification, and output scaling. Recommended modules include the 3300 XL series proximitors that offer adjustable gain, buffered outputs for multiple monitoring points, and diagnostic LEDs for troubleshooting. The proximitor converts the probe's raw impedance change into a calibrated voltage or current signal suitable for PLC analog inputs, chart recorders, or vibration analyzers.

Multi-Channel Monitoring Architectures
For comprehensive machinery surveillance, deploy multiple probes in XY configuration (90-degree separation) to capture radial vibration orbits, plus additional probes for axial position and keyphasor timing reference. Rack-mounted monitor systems can accommodate 4 to 16 channels per chassis, with Ethernet connectivity for SCADA integration and alarm management. This scalable approach supports both single-machine protection and plant-wide condition monitoring programs.

Calibration & Commissioning Procedures
Field calibration involves positioning the probe at the midpoint of its linear range (typically 60 mils gap) and verifying output voltage against the calibration curve supplied with the proximitor module. Use precision feeler gauges or micrometer-adjustable fixtures to establish accurate gap settings. Document calibration data including shaft material, surface finish, and ambient temperature for future reference and trending analysis.

Delivery, Warranty & Technical Support

Inventory Availability & Lead Times
Standard configuration units ship from stock within 2-5 business days for most global destinations. Custom cable lengths or specialized thread adapters require 10-15 business days for manufacturing and quality verification. Expedited shipping options available for critical outage situations and emergency replacements.

Warranty Coverage & Quality Assurance
All proximity probes include a comprehensive 12-month warranty covering material defects and workmanship failures under normal operating conditions. Warranty support includes no-cost replacement, technical troubleshooting assistance, and return shipping coordination. Extended warranty programs available for long-term service agreements.

Technical Documentation Package
Each probe ships with complete technical documentation including dimensional drawings, electrical specifications, installation instructions, calibration data sheets, and material certifications. Digital resources available for download include CAD models, wiring diagrams, and integration guides for common monitoring platforms.

Application Engineering Services
Our technical team provides pre-sales consultation for system design, installation guidance for field personnel, remote commissioning support via video conference, and post-installation troubleshooting assistance. Services include gap voltage optimization, cable routing recommendations, grounding best practices, and integration with third-party monitoring systems.

Frequently Asked Questions

Q: What is the optimal installation gap for the 330103-00-08-10-12-05 proximity probe?
A: The recommended operating gap is 40 to 80 mils (1.0 to 2.0mm) from the target shaft surface, with calibration performed at the midpoint (60 mils) for maximum linearity and dynamic range. Gap voltage should be verified during commissioning using the proximitor module's calibration curve specific to your shaft material and surface finish.

Q: Can this probe be used with existing 3300 series monitoring systems?
A: Yes, the 330103-00-08-10-12-05 maintains full backward compatibility with legacy 3300 proximitor modules and current 3300 XL signal conditioners. The standard -10 to -12 VDC output range ensures seamless integration with rack-mounted monitors, portable analyzers, and DCS analog input cards without requiring system modifications.

Q: What cable extension options are available for remote installations?
A: This model features an integral cable with BNC termination. For installations requiring extended reach, use shielded extension cables rated for the probe's frequency response and impedance characteristics. Consult cable specification sheets to ensure total cable length (probe cable + extension) does not exceed manufacturer-recommended limits that could degrade signal quality.

Q: Does the probe require field calibration after installation?
A: Factory calibration is provided for standard 4140 steel targets. Field calibration is strongly recommended to account for actual shaft material properties, surface finish variations, and proximitor module tolerances. Use precision gap-setting fixtures and document calibration results for baseline trending and future diagnostic comparisons.

Q: How does shaft surface finish affect measurement accuracy?
A: Surface roughness below 125 microinches RMS provides optimal performance. Heavily pitted, grooved, or corroded shaft surfaces can introduce measurement errors and reduce linear range. For shafts with questionable surface quality, consider installing wear sleeves or polished target areas in the probe sensing zone.

Q: What are the grounding requirements for proper installation?
A: Maintain single-point grounding at the proximitor module to prevent ground loops that introduce noise and measurement drift. The probe housing should be electrically isolated from the machine casing unless specifically required by the monitoring system design. Follow manufacturer grounding diagrams and consult with electrical engineers for complex installations involving multiple monitoring points.

Request Technical Consultation & Quotation

To receive customized selection guidance, detailed pricing, and application-specific recommendations, please provide the following project information: machinery type and operating speed range, shaft diameter and material composition, required measurement parameters (radial vibration, axial position, or both), environmental conditions including temperature and chemical exposure, existing monitoring infrastructure and communication protocols, quantity requirements and delivery timeline. Our application engineers will respond within one business day with tailored solutions, integration support, and competitive pricing for your condition monitoring project.
