Bently Nevada 3300/50 Tachometer Monitor (Industrial-Grade RPM Monitoring System)

The Bently Nevada 3300/50 Tachometer Monitor is a precision industrial control module designed for continuous rotational speed measurement and machinery protection. Through advanced signal processing and proximity probe integration, it delivers real-time RPM monitoring with exceptional accuracy, enabling predictive maintenance and critical equipment safeguarding in demanding industrial environments.

Ideal for turbomachinery applications including steam turbines, gas turbines, centrifugal compressors, pumps, and high-speed motors, this monitor addresses common operational challenges such as overspeed conditions, startup/shutdown monitoring, speed deviation detection, and integration with distributed control systems (DCS). It is widely deployed in power generation, oil & gas, petrochemical, and heavy manufacturing facilities.

Featuring standardized design with customizable alarm setpoints, the 3300/50 offers reliable performance, straightforward installation, excellent compatibility with Bently Nevada 3300 series ecosystems, and comprehensive diagnostic capabilities. Suitable for design engineers, system integrators, maintenance teams, and plant operators seeking robust speed monitoring solutions. Contact our application engineers for selection guidance and technical quotations.

Core Features & Advantages

• Precision Speed Measurement
  Utilizes proximity probe input with digital signal processing to deliver ±0.01% accuracy across 60 to 100,000 RPM range, ensuring reliable detection of speed variations and transient events critical for machinery protection.
• Dual Programmable Alarm Outputs
  Configurable high/low speed alarms with independent setpoints and time delays, providing flexible integration with emergency shutdown systems (ESD) and reducing false trips during normal operation.
• API 670 Compliance
  Meets API Standard 670 requirements for vibration, axial position, and speed monitoring systems in petroleum, chemical, and gas industry services, ensuring regulatory compliance and industry best practices.
• Comprehensive Protection Functions
  Incorporates probe fault detection, signal loss monitoring, power supply supervision, and self-diagnostics to minimize downtime and maintenance costs while maximizing system availability.
• Intuitive Interface & Diagnostics

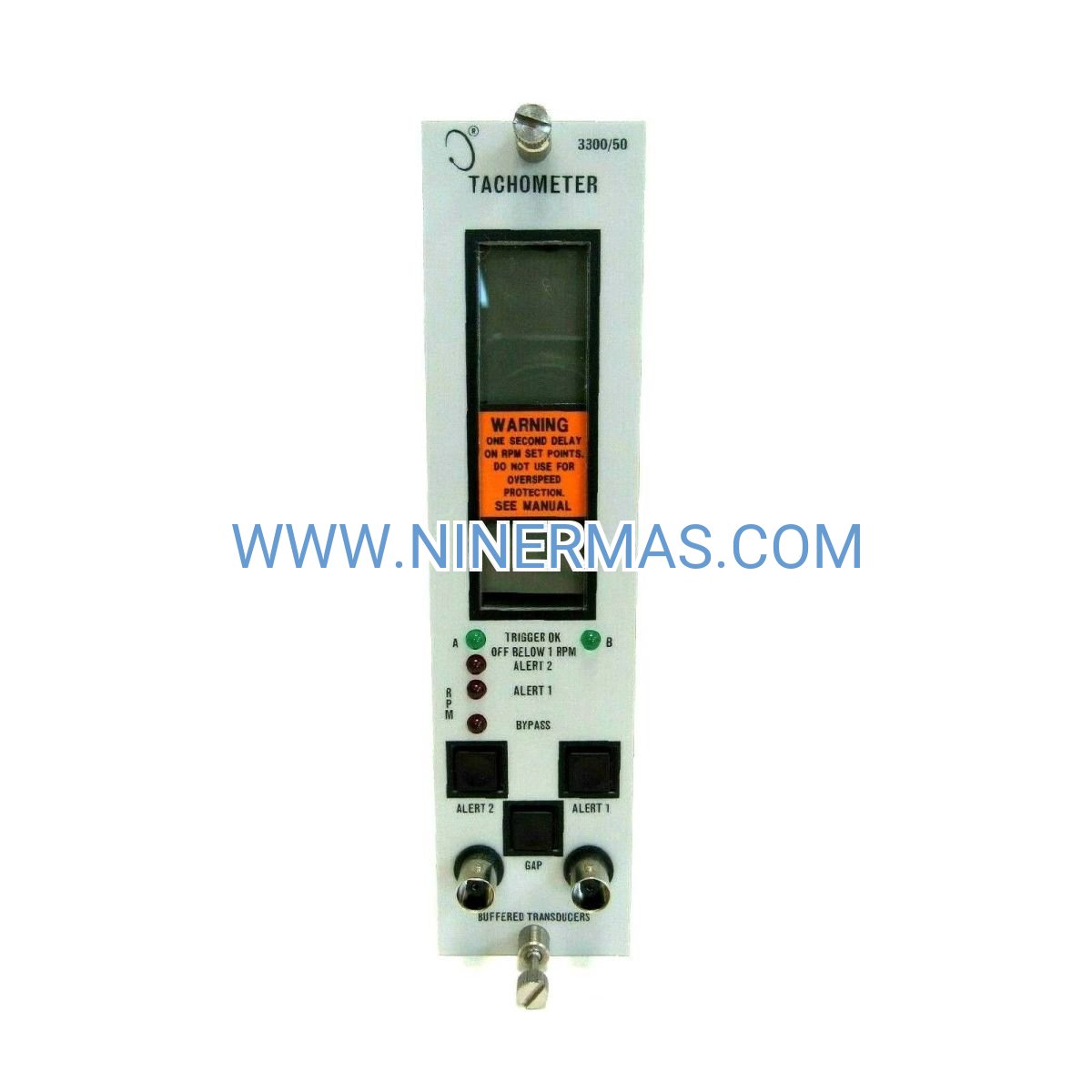

  Front-panel LED indicators display operational status, alarm conditions, and fault codes in real-time, with optional 4-20mA buffered output for seamless integration with SCADA, DCS, or data acquisition systems.
• Rugged Industrial Construction
  Designed for harsh environments with wide operating temperature range (-30°C to +65°C), EMI/RFI immunity, and conformal coating options for corrosive atmospheres, ensuring long-term reliability in challenging installations.

Typical Application Scenarios

The 3300/50 Tachometer Monitor is engineered for applications demanding high reliability, continuous operation, and precise speed control, particularly in:

• Steam & Gas Turbine Monitoring
  Provides critical overspeed protection and startup sequence monitoring for power generation turbines, preventing catastrophic failures and ensuring safe operation during load changes and emergency shutdowns.
• Centrifugal Compressor & Pump Protection
  Monitors rotational speed in oil & gas compression trains and process pumps, detecting bearing failures, coupling issues, and abnormal operating conditions before they escalate into major equipment damage.
• High-Speed Motor & Generator Systems
  Ensures stable speed control in variable frequency drive (VFD) applications, synchronous generators, and high-speed spindle systems used in manufacturing, testing, and research facilities.
• Petrochemical & Refinery Rotating Equipment
  Integrates with distributed control systems to provide continuous speed surveillance for critical process machinery, supporting predictive maintenance programs and regulatory compliance requirements.
• Marine Propulsion & Auxiliary Systems
  Delivers reliable speed monitoring for main engines, auxiliary generators, and propulsion systems in marine environments, where space constraints and vibration resistance are paramount.

Technical Parameters & Selection Guide

To facilitate engineering design and system integration, we provide standardized configuration options with customization available for project-specific requirements:

Selection Recommendations: When specifying the 3300/50 monitor, consider maximum/minimum operating speed, number of events per revolution (keyphasor pulses), probe type and gap voltage, alarm setpoint requirements, output signal integration needs, environmental conditions (temperature, humidity, vibration), and available panel space. For assistance with configuration, please provide machinery type, rated speed, probe specifications, and control system interface requirements. Our application engineers will recommend the optimal model and configuration.

Extended Functionality & Integration

• Modbus RTU/TCP Communication – Optional digital communication module enables integration with modern SCADA systems, supporting remote monitoring, alarm management, and data logging for Industry 4.0 initiatives.
• Redundant Configuration Support – Dual-channel monitoring capability with automatic failover ensures continuous protection in critical applications where single-point failures are unacceptable.
• Keyphasor Integration – Synchronizes with Bently Nevada keyphasor systems for phase-referenced vibration analysis, enabling advanced diagnostics and root cause analysis of machinery faults.
• Custom Alarm Logic – Programmable alarm delays, hysteresis, and voting logic accommodate complex protection schemes and reduce nuisance trips during transient conditions.

Delivery, Service & Quality Assurance

Standard catalog items are typically available from stock with 3-5 business day lead time; custom-configured solutions require 10-15 business days depending on specification complexity. All units include a minimum 24-month manufacturer warranty covering defects in materials and workmanship. We provide remote technical support for installation troubleshooting and on-site commissioning assistance (subject to location and project scope).

Each monitor ships with complete documentation package including: electrical connection diagrams, dimensional drawings, configuration worksheets, calibration certificates, and comprehensive operation & maintenance manual. All technical materials are provided in English with optional translation services available for international projects.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 3300/50 Tachometer Monitor interface with existing proximity probe systems?
A: The 3300/50 accepts standard Bently Nevada proximity probe inputs (8mm or 11mm) with -24VDC bias voltage. It processes the probe signal to extract speed information and provides isolated alarm outputs. Verify probe gap voltage, target material, and cable length to ensure compatibility. Our engineers can review your existing probe specifications for seamless integration.

Q: What is the maximum number of machines one monitor can handle?
A: Each 3300/50 module monitors one speed input (single shaft). For multi-shaft applications or redundant monitoring, multiple modules are required. The compact DIN-rail design allows efficient rack mounting of multiple channels in limited panel space.

Q: What level of energy savings or efficiency improvement can be expected?
A: While the monitor itself does not directly reduce energy consumption, it enables optimized machinery operation by preventing overspeed conditions, reducing unplanned downtime (which can cost $10,000-$100,000+ per hour in process industries), and supporting predictive maintenance programs that extend equipment life by 20-40%.

Q: What are the environmental requirements for installation? What is the protection rating?
A: Standard panel-mount version is IP20, suitable for controlled environments (control rooms, electrical cabinets). Field-mount variant with IP65 enclosure is available for harsher conditions. Operating temperature range is -30°C to +65°C with conformal coating option for corrosive atmospheres. Avoid direct exposure to moisture, excessive vibration (>2g), and strong electromagnetic interference.

Q: Can the monitor support remote monitoring and data acquisition? Which protocols are supported?
A: Standard configuration provides 4-20mA analog output and relay contacts for basic integration. Optional communication modules support Modbus RTU (RS-485) and Modbus TCP/IP for connection to SCADA, DCS, or plant information management systems. OPC UA and HART protocol support available upon request for specific projects.

Q: Is the 3300/50 compatible with non-Bently Nevada vibration monitoring systems?
A: Yes, the 4-20mA output and relay contacts are industry-standard interfaces compatible with most control systems. However, for full diagnostic integration and advanced features (keyphasor synchronization, TrendMaster compatibility), use within a Bently Nevada 3300 series ecosystem is recommended.

Request Technical Support & Quotation

For detailed selection assistance, custom configuration, or project quotation, please provide the following information: project name and application, machinery type and rated speed, number of monitoring points required, probe type and specifications (if existing), power supply availability, control system interface requirements, environmental conditions, and any specific compliance or certification needs. Our application engineers will respond within 24 hours with tailored recommendations and pricing.
