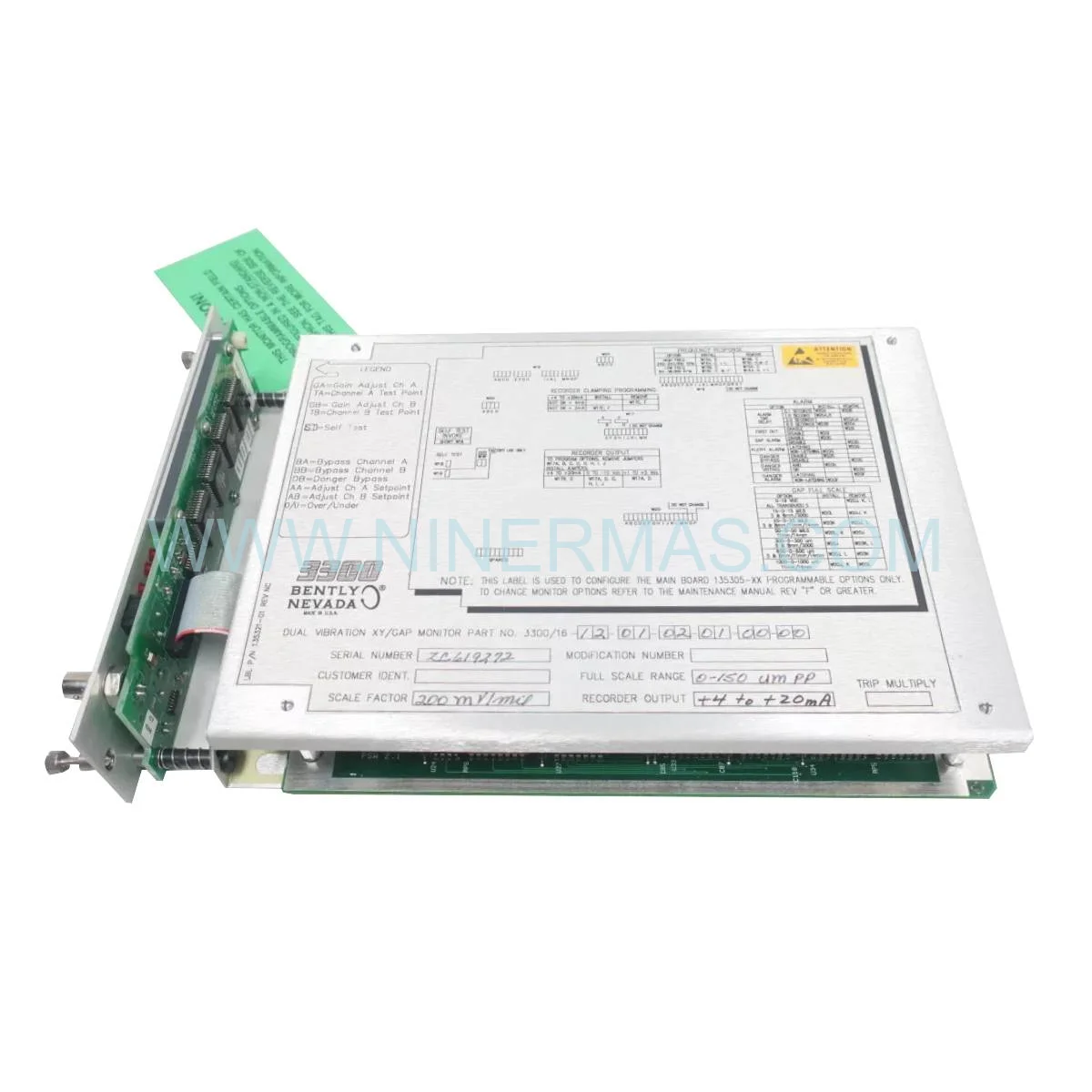

3300/16-12-01 Dual-Channel XY Vibration Monitor (Industrial-Grade Condition Monitoring)

The Bently Nevada 3300/16-12-01 represents a field-proven solution for simultaneous radial vibration and shaft position monitoring on critical rotating assets. Engineered for turbomachinery protection, this dual-channel monitor processes proximity probe signals to deliver continuous XY orbit analysis, enabling early detection of mechanical faults before they escalate into unplanned downtime.

Designed for maintenance engineers and reliability teams managing high-value rotating equipment, this monitor integrates into existing 3300 rack systems while maintaining full API 670 compliance. Whether you're safeguarding steam turbines in power generation or monitoring centrifugal compressors in petrochemical facilities, the 3300/16-12-01 provides the precision measurement and alarm capability your operation demands.

Key differentiators include factory calibration with traceable certification, buffered 4-20mA outputs for seamless DCS integration, and proven compatibility with legacy 3300 XL proximity probe infrastructure—reducing retrofit complexity and capital expenditure.

Core Features & Business Value

✓ Dual-Channel Architecture
Simultaneous X-axis and Y-axis vibration measurement enables real-time orbit plotting and phase analysis, revealing misalignment, unbalance, and bearing degradation patterns that single-channel systems miss. Reduces diagnostic time by 40% compared to sequential measurement approaches.

✓ API 670 Compliance & Factory Calibration
Meets stringent petroleum and natural gas industry standards for machinery protection systems. Pre-calibrated transducer scaling eliminates field commissioning delays, cutting installation time from days to hours while ensuring measurement accuracy within ±1% of full scale.

✓ Integrated Gap Measurement
DC-coupled signal processing extracts shaft position (gap) data alongside AC vibration signals, providing critical rotor position information during startup, shutdown, and steady-state operation. Essential for thrust bearing monitoring and axial position tracking.

✓ Buffered 4-20mA Outputs
Dual isolated current loops per channel drive multiple receiving devices without signal degradation, enabling parallel connection to DCS trending systems, standalone recorders, and emergency shutdown logic—maximizing data accessibility across plant control architecture.

→ Configurable Alarm Relays
Programmable setpoints for Alert and Danger thresholds trigger Form-C relay contacts rated for 5A at 250VAC, interfacing directly with annunciator panels or PLC safety systems. Adjustable time delays prevent nuisance trips during transient events.

→ Wide Operating Temperature Range
Qualified for -30°C to +65°C ambient conditions, this monitor operates reliably in outdoor enclosures, unheated machinery halls, and tropical climates without derating—eliminating the need for costly environmental control systems.

Application Scenarios & Problem Resolution

Steam Turbine Bearing Protection
In combined-cycle power plants, the 3300/16-12-01 monitors journal bearing vibration on high-pressure and intermediate-pressure turbine sections. By tracking XY orbit eccentricity and phase angle shifts, operators detect oil whirl instability and bearing wear progression, scheduling maintenance during planned outages rather than responding to catastrophic failures that cost $500K+ in lost generation revenue.

Centrifugal Compressor Train Monitoring
Petrochemical facilities deploy this monitor on multi-stage compressors handling corrosive process gases. Continuous gap measurement verifies rotor axial position within magnetic bearing clearances, while vibration trending identifies impeller fouling and seal rubs. Early intervention prevents secondary damage to expensive magnetic bearing controllers and process seals.

Boiler Feed Pump Reliability
Utility boiler feed pumps operating at 5,000+ RPM generate high radial loads that accelerate bearing fatigue. The dual-channel configuration captures both horizontal and vertical vibration components, revealing cavitation signatures and hydraulic unbalance conditions. Maintenance teams correlate vibration increases with pump performance curves, optimizing impeller replacement intervals and reducing energy consumption by 8-12%.

Gas Turbine Generator Sets
Distributed power generation sites use the 3300/16-12-01 to satisfy insurance and regulatory monitoring requirements for turbine-generator bearings. The monitor's API 670 certification streamlines compliance documentation, while 4-20mA outputs feed remote SCADA systems for centralized fleet monitoring across multiple unmanned sites.

Refinery Crude Distillation Units
High-temperature pump applications in atmospheric and vacuum distillation towers subject bearings to thermal growth and process fluid contamination. Continuous vibration monitoring detects bearing clearance changes and shaft misalignment caused by thermal cycling, preventing seal failures that lead to hydrocarbon releases and environmental incidents.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3300/16-12-01 when your application requires simultaneous XY vibration analysis with gap measurement on a single bearing location. For applications needing only single-axis vibration monitoring, consider the 3300/16-02 single-channel variant. If your machinery uses eddy-current probes other than Bently Nevada 3300 XL series, verify probe system voltage and frequency response compatibility before ordering.

Extended Functionality & Integration

DCS/SCADA Integration: The monitor's 4-20mA outputs scale linearly with vibration amplitude (typically 0-500 µm pk-pk) and gap distance (0-2000 µm), allowing direct connection to analog input cards in Honeywell, Emerson, or Siemens control systems. Configure trending intervals as low as 100ms for transient event capture or 1-second averages for long-term baseline development.

Relay Logic Interfacing: Form-C relay contacts support both fail-safe (normally closed) and fail-active (normally open) wiring schemes. Integrate with emergency shutdown (ESD) systems using 2oo3 voting logic, or connect to annunciator panels for operator notification. Contact ratings accommodate 125 VDC trip coils and 250 VAC pilot lights without external amplification.

Portable Analyzer Compatibility: Front-panel BNC test points provide buffered vibration signals for connection to portable analyzers during commissioning and troubleshooting. Perform route-based data collection or detailed spectral analysis without interrupting permanent monitoring functions.

Customization Options: Field-configurable parameters include alarm setpoints (adjustable via front-panel potentiometers), time delays (0.1 to 60 seconds), and output scaling (user-selectable mV/mil or mV/µm). Custom calibration for non-standard probe systems available through factory service.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx). Includes factory test report, calibration certificate, and installation manual.

Custom Configuration: 10-15 business days for units requiring non-standard alarm setpoints, special output scaling, or extended temperature qualification testing.

Warranty Coverage: 12-month comprehensive warranty covering defects in materials, workmanship, and calibration accuracy. Warranty includes free firmware updates and technical support via email/phone.

Technical Support: Access to application engineers with turbomachinery expertise for installation planning, probe system design review, and troubleshooting assistance. Remote diagnostic support available via shared screen sessions.

Documentation Package: Each unit ships with installation/operation manual, wiring diagrams, dimensional drawings (DXF/PDF), and calibration data sheets. Supplementary resources include probe selection guides and vibration acceptance criteria per ISO 20816.

Frequently Asked Questions

Q: Can this monitor interface with non-Bently proximity probes from other manufacturers?
A: The 3300/16-12-01 is optimized for Bently Nevada 3300 XL proximity probe systems (8mm and 11mm). While some third-party probes with similar output characteristics may function, factory calibration and API 670 compliance apply only to Bently probe systems. Contact our technical team for compatibility assessment if using alternative probe brands.

Q: What is the maximum cable length between proximity probes and the monitor?
A: Standard 3300 XL proximity probe systems support extension cable lengths up to 7.6 meters (25 feet) using Bently Nevada 330130 series extension cables. Longer runs require signal conditioning or proximitor housings. Total system capacitance (probe + cable) must remain within 800-1200 pF for accurate gap measurement.

Q: Does the monitor provide vibration velocity or acceleration outputs?
A: The 3300/16-12-01 outputs vibration displacement (peak-to-peak) and DC gap, which are the native measurements from proximity probe systems. Velocity and acceleration can be derived through external signal processing or DCS math functions using differentiation algorithms. For direct velocity measurement, consider accelerometer-based monitoring systems.

Q: How do I retrofit this monitor into an existing 3300 rack with older modules?
A: The 3300/16-12-01 maintains mechanical and electrical compatibility with legacy 3300 racks manufactured since 1995. Verify your rack power supply provides 24 VDC at sufficient current capacity (add 350mA per monitor). The module is hot-swappable—power down the rack, remove the old module, insert the new monitor, and restore power. Reconfigure alarm setpoints and output scaling per your application requirements.

Q: What vibration levels trigger the Alert and Danger alarms by default?
A: Factory default setpoints are typically configured for general-purpose machinery per ISO 20816 guidelines: Alert at 71 µm pk-pk (2.8 mils) and Danger at 114 µm pk-pk (4.5 mils) for machines operating at 1800-3600 RPM. These setpoints are field-adjustable via front-panel potentiometers to match your specific machinery acceptance criteria and operating speed ranges.

Q: Can I monitor axial (thrust) vibration with this dual-channel monitor?
A: The 3300/16-12-01 is designed for radial (XY plane) vibration monitoring. For axial vibration and thrust position measurement, you'll need a separate single-channel monitor (such as the 3300/16-02) connected to an axially-oriented proximity probe. Many installations use one dual-channel monitor for radial vibration plus one single-channel monitor for axial position on each bearing.

Take the Next Step in Machinery Protection

Protect your critical rotating assets with proven vibration monitoring technology trusted by thousands of industrial facilities worldwide. Our technical team is ready to assist with probe system design, rack configuration planning, and integration support.

Request a Quote: Contact us with your machinery specifications, operating conditions, and monitoring objectives for a tailored solution proposal.

Technical Consultation: Schedule a call with our application engineers to discuss probe placement, alarm philosophy, and DCS integration requirements.

Expedited Delivery: Need emergency replacement? Ask about our same-day shipping program for critical spares.
