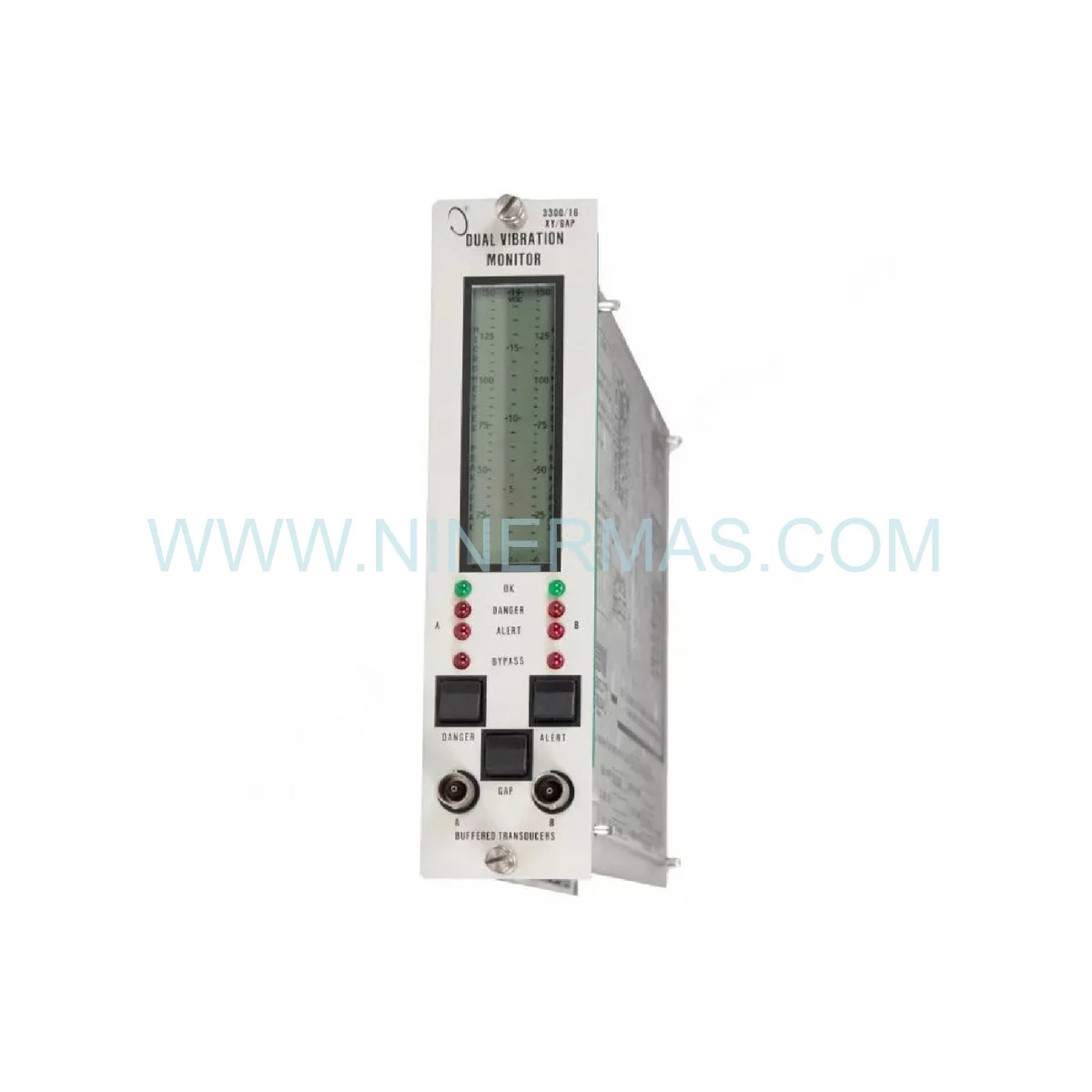

Bently Nevada 3300/16 Dual Vibration Monitor (Industrial-Grade Machinery Protection System)

The Bently Nevada 3300/16-12-01-01-00-00-02 is an industrial-grade dual-channel vibration monitoring system designed for critical rotating machinery applications. Through precision proximity probe technology and real-time signal processing, it delivers continuous radial vibration measurement and axial position tracking, enabling predictive maintenance strategies and asset protection for turbines, compressors, pumps, and high-speed rotating equipment.

Engineered for demanding industrial environments including power generation, oil & gas, petrochemical processing, and heavy manufacturing, this monitor addresses common operational challenges: unexpected equipment failures, costly unplanned downtime, bearing degradation, rotor imbalance, misalignment detection, and compliance with machinery protection standards. It serves design engineers, maintenance teams, reliability engineers, plant operators, and system integrators who require dependable condition monitoring solutions.

Leveraging factory calibration, API 670 4th Edition compliance, and ISO 20816 alignment, the 3300/16 monitor provides immediate deployment capability, seamless DCS/SCADA integration via 4-20mA outputs, adjustable alarm setpoints with relay outputs, and hot-swappable design for minimal maintenance downtime. Contact our application engineers for customized configuration guidance, probe selection assistance, and technical specifications tailored to your machinery protection requirements.

Core Capabilities & Performance Advantages

Dual-Channel Simultaneous Monitoring
Independently measures radial vibration and axial thrust position through two dedicated channels, providing comprehensive machinery health visibility. Each channel features isolated signal conditioning, independent alarm circuits, and buffered outputs, ensuring redundant protection for high-value assets while eliminating single-point failure risks.

Factory-Calibrated Precision Measurement
Every unit ships with NIST-traceable calibration certificates and pre-configured measurement ranges, eliminating field calibration requirements and reducing commissioning time by 60-70%. Measurement accuracy of ±1% full scale ensures reliable trending data for condition-based maintenance programs and regulatory compliance documentation.

Universal Proximity Probe Compatibility
Supports both 8mm and 11mm Bently Nevada 3300 XL proximity probe systems with cable lengths up to 9 meters, accommodating diverse machinery configurations. Automatic probe detection and gap voltage compensation maintain measurement integrity across temperature variations and installation geometries, reducing installation errors and false alarms.

Intelligent Alarm Management
Field-adjustable Alert and Danger setpoints with independent relay outputs enable multi-tier protection strategies. LED status indicators provide instant visual diagnostics for vibration levels, power status, and fault conditions, while latching alarm options ensure transient events are captured for root cause analysis.

Seamless System Integration
Industry-standard 4-20mA current loop outputs interface directly with existing DCS, PLC, and SCADA platforms without signal conditioning requirements. Isolated outputs prevent ground loops and electrical noise interference, while optional Modbus RTU/TCP protocols enable advanced diagnostics and remote configuration capabilities.

Rugged Industrial Construction
IP65-rated enclosure withstands harsh environments including temperature extremes (-30°C to +65°C), humidity, vibration, and electromagnetic interference. Conformal-coated circuit boards resist moisture and chemical exposure, while DIN rail or panel mounting options provide flexible installation in control cabinets, field junction boxes, or machinery-mounted enclosures.

Typical Application Scenarios

This dual vibration monitoring system is engineered for applications demanding continuous machinery health surveillance, regulatory compliance, and asset protection:

Steam & Gas Turbine Protection
Continuous monitoring of journal bearing vibration and rotor axial position prevents catastrophic thrust bearing failures in power generation turbines. Early detection of rub conditions, blade imbalance, and foundation resonance issues enables scheduled maintenance interventions, avoiding forced outages that cost $500K-$2M per day in lost generation capacity.

Centrifugal Compressor Surveillance
Real-time tracking of radial vibration and thrust position in multi-stage compressors detects surge events, aerodynamic instability, seal degradation, and bearing wear before performance degradation occurs. Meets API 617 and API 672 machinery protection requirements for critical compression services in refineries, LNG facilities, and chemical plants.

Large Motor & Generator Monitoring
Protects high-horsepower induction motors, synchronous motors, and generators from mechanical faults including soft foot conditions, coupling misalignment, rotor bar defects, and air gap eccentricity. Vibration trending identifies developing issues 4-8 weeks before failure, enabling planned maintenance during scheduled outages rather than emergency shutdowns.

Critical Pump & Fan Systems
Early warning of cavitation, impeller erosion, bearing lubrication issues, and structural resonance in boiler feed pumps, cooling water pumps, and induced draft fans. Axial position monitoring detects thrust bearing wear and hydraulic imbalance conditions that lead to seal failures and unplanned maintenance events.

API 670 Mandated Installations
Compliance monitoring for petroleum, natural gas, and petrochemical facilities where API 670 4th Edition machinery protection systems are contractually required. Pre-certified design reduces engineering review cycles and accelerates project commissioning timelines for new installations and brownfield upgrades.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized configuration options with customization available for project-specific requirements:

Selection Considerations
When specifying the 3300/16 monitor for your application, consider these critical parameters: machinery type and operating speed range, required measurement sensitivity and frequency response, proximity probe specifications (8mm vs 11mm, cable length), DCS/PLC input requirements (4-20mA scaling, update rate), alarm setpoint strategy (Alert/Danger levels, latching vs non-latching), environmental conditions (temperature, humidity, vibration exposure), and mounting location constraints (control room vs field installation).

For application-specific guidance, provide our engineering team with: machinery description and nameplate data, bearing locations requiring monitoring, existing proximity probe specifications (if retrofit), control system interface requirements, hazardous area classification (if applicable), and project timeline. Our specialists will recommend optimal configuration, probe selection, and integration approach within 24-48 hours.

Advanced Configuration Options

Communication Protocol Upgrades
Optional Modbus RTU (RS-485) or Modbus TCP (Ethernet) modules enable remote diagnostics, setpoint adjustment, and integration with condition monitoring software platforms. Digital communication provides access to raw vibration waveforms, spectral data, and diagnostic parameters beyond basic 4-20mA trending.

Hazardous Area Certifications
Intrinsically safe (IS) barrier kits and ATEX/IECEx certified enclosures available for Zone 1/Division 1 installations in explosive atmospheres. Consult our compliance specialists for documentation requirements and certification scope.

Extended Temperature Range
Custom configurations support -40°C to +75°C operation for extreme climate applications including Arctic facilities, desert installations, and outdoor machinery monitoring without environmental enclosures.

Redundant Power Supply
Dual 24 VDC input modules with automatic failover ensure continuous monitoring during power system maintenance or single-source failures, meeting SIL 2 availability requirements for critical machinery protection.

Delivery, Service & Quality Assurance

Lead Times & Logistics
Standard catalog configurations ship within 5-7 business days from regional distribution centers. Custom-configured units (modified setpoints, special certifications, protocol modules) require 3-4 weeks for factory programming and testing. Expedited processing available for emergency replacements and critical project deadlines.

Comprehensive Warranty Coverage
All units include 12-month manufacturer warranty covering materials, workmanship, and factory calibration accuracy. Warranty services encompass advance replacement for failed units, technical troubleshooting support, and application engineering consultation. Extended warranty programs (24/36 months) available for fleet purchases and long-term service agreements.

Installation & Commissioning Support
Remote technical assistance included for wiring verification, probe gap voltage checks, alarm setpoint configuration, and DCS integration testing. On-site commissioning services available (quoted separately) for complex installations, multi-unit systems, and greenfield projects requiring startup supervision and operator training.

Technical Documentation Package
Each monitor ships with complete installation manual, wiring diagrams, dimensional drawings, calibration certificates, and quick-start guide. Digital resources include CAD models (STEP/DWG), PLC integration examples, and troubleshooting flowcharts accessible via product support portal.

Factory Quality Verification
Every 3300/16 monitor undergoes rigorous multi-stage testing protocol: incoming component inspection, automated functional testing at rated specifications, environmental stress screening (thermal cycling, vibration exposure), calibration verification against NIST-traceable standards, and final quality audit with documented test results. Traceability records maintained for 7 years to support regulatory audits and failure analysis investigations.

Frequently Asked Questions (FAQ)

Q: How do I select between 8mm and 11mm proximity probe systems for the 3300/16 monitor?
A: Probe selection depends on target material, operating speed, and required measurement range. 8mm probes offer higher sensitivity (200 mV/mil) ideal for small-displacement measurements on precision machinery, while 11mm probes provide extended range (±100 mils) suitable for large turbomachinery and slower-speed equipment. The 3300/16 monitor auto-detects probe type and applies appropriate scaling. Consult our probe selection guide or contact applications engineering for machinery-specific recommendations.

Q: What is the maximum proximity probe cable length supported by this dual vibration monitor?
A: Standard 3300 XL proximity systems support cable lengths up to 9 meters (30 feet) without signal degradation. For installations requiring longer cable runs (machinery-mounted junction boxes to control room), use Bently Nevada extension cables (part number 20929-04 or equivalent) which maintain signal integrity up to 18 meters total system length. Cable length affects gap voltage and must be considered during calibration verification.

Q: Can the 3300/16 monitor measure both radial vibration and axial position simultaneously on the same machine?
A: Yes, this is the primary design advantage of the dual-channel configuration. Channel 1 typically monitors radial vibration at a bearing location (perpendicular to shaft axis), while Channel 2 tracks axial thrust position (parallel to shaft axis) using a thrust collar or shaft shoulder as the target surface. This provides comprehensive machinery health visibility including bearing condition, rotor balance, and thrust bearing wear in a single monitoring device.

Q: How do I integrate 4-20mA outputs from the vibration monitor into my existing DCS or PLC system?
A: The 3300/16 provides isolated 4-20mA current loop outputs (500Ω maximum load impedance) that connect directly to analog input modules on most DCS/PLC platforms. Configure your control system analog input for 4-20mA range, then scale the engineering units based on monitor configuration (typically 4mA = 0 mils, 20mA = full scale vibration or position range). Consult the installation manual Section 4.3 for wiring diagrams and grounding requirements to prevent ground loops.

Q: What alarm setpoint strategy should I use for turbomachinery vibration monitoring?
A: Industry best practice follows API 670 guidelines: set Alert alarm at 1.5× normal operating vibration level (triggers maintenance investigation), and Danger alarm at 2.5× normal level (initiates automatic machinery shutdown or operator intervention). For example, if baseline vibration is 2 mils pk-pk, configure Alert at 3 mils and Danger at 5 mils. Actual setpoints depend on machinery type, operating speed, bearing design, and manufacturer recommendations. Our application engineers can assist with setpoint optimization based on your specific equipment.

Q: Is the factory calibration certificate included, and how often does the monitor require recalibration?
A: Yes, every 3300/16 monitor ships with NIST-traceable calibration certificate documenting measurement accuracy at time of manufacture. Under normal operating conditions, annual calibration verification is recommended, with full recalibration every 2-3 years or per your facility's quality management system requirements. Field calibration checks can be performed using portable vibration calibrators; factory recalibration services available through authorized service centers.

Q: What technical support is available during installation and commissioning of the vibration monitoring system?
A: Comprehensive technical support includes: pre-installation application review (probe selection, wiring verification, setpoint recommendations), remote commissioning assistance via phone/email (gap voltage checks, alarm testing, DCS integration), troubleshooting support during warranty period, and access to online resources (installation videos, wiring diagrams, configuration tools). On-site commissioning services available for complex installations or multi-unit systems requiring startup supervision and operator training.

Request Engineering Support & Quotation

To receive detailed application guidance, customized configuration recommendations, or project quotation, please provide the following information to our technical sales team:

• Project Overview: Facility name, machinery type, application description
• Machinery Details: Equipment manufacturer, model, operating speed (RPM), bearing locations
• Monitoring Requirements: Number of measurement points, vibration/position parameters, alarm strategy
• Existing Infrastructure: Proximity probe specifications (if retrofit), DCS/PLC platform, communication protocols
• Environmental Conditions: Operating temperature range, hazardous area classification, mounting location
• Project Timeline: Required delivery date, commissioning schedule, budget constraints

Our application engineers will respond within 24-48 hours with tailored recommendations, configuration specifications, and commercial proposal. For urgent requirements or emergency replacements, contact our technical hotline for expedited support.
