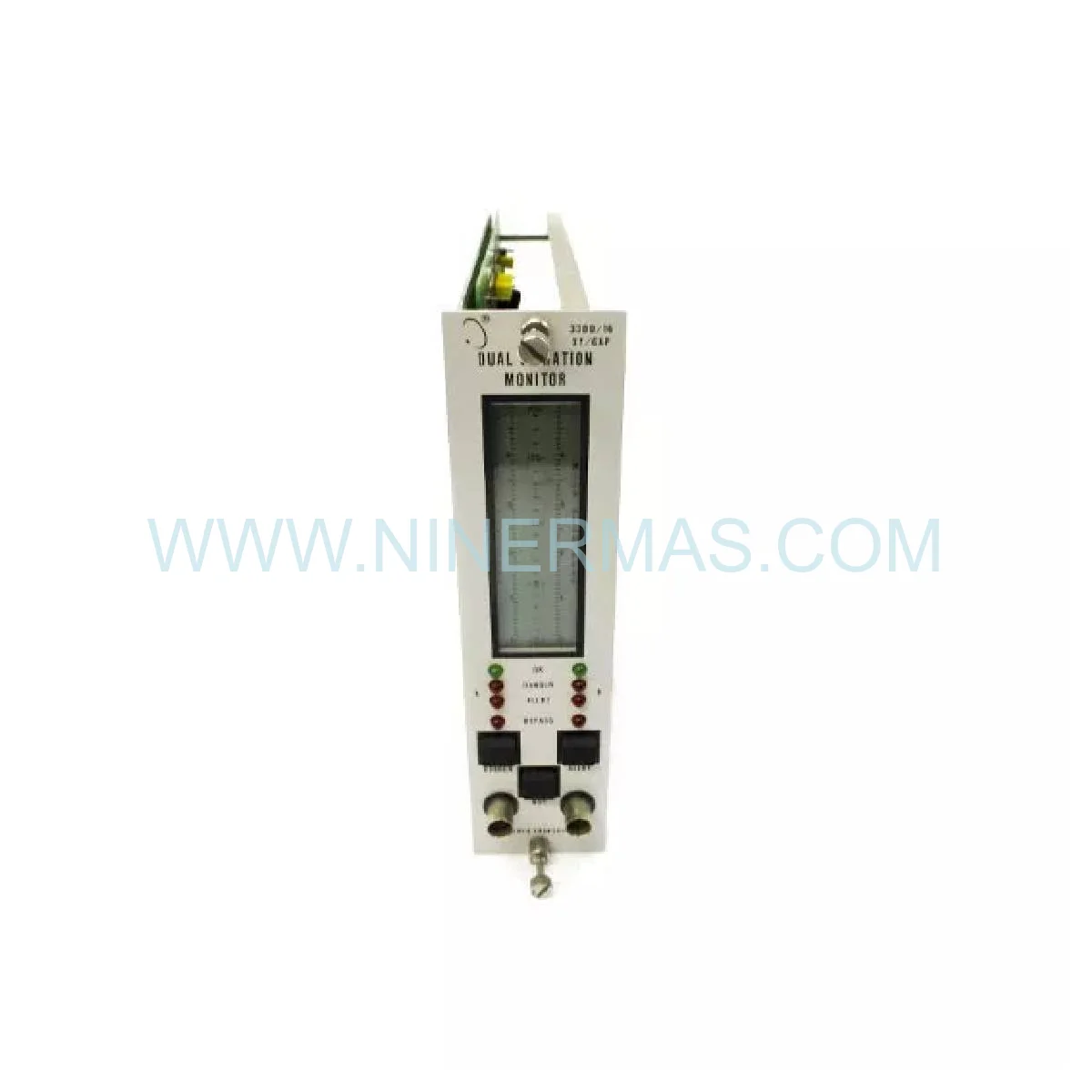

Industrial-Grade Dual Vibration Monitor 3300/16-02-01-00-00

The Bently Nevada 3300/16-02-01-00-00 delivers precision radial shaft displacement monitoring for mission-critical rotating machinery. Engineered for turbomachinery protection systems, this rack-mounted dual-channel monitor simultaneously tracks perpendicular vibration planes (X and Y axes) while measuring gap voltage—providing operators with comprehensive rotor health intelligence to prevent catastrophic failures in power generation, petrochemical processing, and heavy industrial environments.

Built to API 670 fourth edition standards, this monitor transforms raw proximitor sensor signals into actionable 4-20 mA outputs and configurable alarm contacts. Plant engineers rely on the 3300/16-02-01-00-00 to detect bearing degradation, rotor imbalance, and alignment issues before they escalate into unplanned shutdowns costing millions in lost production.

Whether safeguarding steam turbines spinning at 10,000 RPM or protecting centrifugal compressors in continuous operation, this monitor provides the measurement accuracy and alarm reliability demanded by API machinery protection specifications. Its dual-channel architecture enables real-time orbit analysis—the gold standard for diagnosing complex rotor dynamics in high-value assets.

Key Performance Features & Business Value

→ Dual-Channel XY Measurement Architecture
Simultaneous monitoring of two perpendicular vibration planes enables orbit generation for advanced rotor diagnostics. Detect precession patterns, clearance issues, and shaft centerline position that single-channel systems miss—reducing diagnostic time by 60% during fault investigations.

→ Integrated Gap Voltage Monitoring
Continuous validation of proximitor sensor health and target surface quality ensures measurement integrity. Automatically identifies sensor cable damage, connector corrosion, and target coating buildup before they compromise protection system reliability.

→ Configurable Multi-Stage Alarm Logic
Independent Alert and Danger setpoints per channel with adjustable time delays (0.1 to 60 seconds) eliminate nuisance trips while maintaining rapid response to genuine faults. SPDT relay contacts rated for direct PLC/DCS interface or emergency shutdown system activation.

→ Wide Dynamic Range with Precision Linearity
Measures 0-500 mils peak-to-peak with ±1% full-scale accuracy across the entire range. Frequency response from 10 Hz to 1 kHz captures both low-speed rotor dynamics and high-frequency bearing defects in a single measurement channel.

→ Buffered Analog Outputs for System Integration
4-20 mA outputs proportional to vibration amplitude interface seamlessly with distributed control systems, SCADA platforms, and condition monitoring databases. Buffered direct outputs preserve signal fidelity for external analyzers without loading the measurement circuit.

✓ API 670 Fourth Edition Certified
Full compliance with petroleum and natural gas industry machinery protection standards ensures acceptance in refineries, LNG facilities, and pipeline compressor stations worldwide.

Typical Application Scenarios

Power Generation Turbine Protection
In combined-cycle power plants, the 3300/16-02-01-00-00 monitors journal bearing vibration on steam turbines operating at 3,600 RPM. By tracking XY orbit patterns, operators identify rotor thermal bows during startup sequences and detect bearing wear progression—scheduling maintenance during planned outages rather than responding to emergency trips that cost $500,000+ per event in lost generation capacity.

Petrochemical Compressor Train Monitoring
Critical centrifugal compressors handling explosive hydrocarbons require continuous shaft displacement monitoring to prevent rotor-to-stator contact. This monitor provides trip-level protection against bearing failures, detecting 50-micron displacement increases within 200 milliseconds—fast enough to initiate emergency shutdown before catastrophic damage occurs.

Refinery Pump Surveillance
High-energy pipeline pumps and boiler feedwater pumps experience complex vibration signatures from hydraulic forces, cavitation, and mechanical wear. The dual-channel configuration distinguishes between process-induced vibration and mechanical faults, reducing false alarms by 75% compared to single-axis monitoring while maintaining full protection coverage.

Mining Industry Heavy Equipment
Large grinding mills, SAG mills, and crusher drives in mineral processing facilities operate in harsh environments with significant background vibration. The monitor's configurable alarm delays and adjustable sensitivity prevent nuisance trips from transient events while reliably detecting progressive bearing deterioration and foundation looseness.

Steel Production Rolling Mill Drives
High-torque synchronous motors driving rolling mill stands experience cyclic loading that generates complex vibration patterns. XY orbit analysis reveals mechanical looseness, soft foot conditions, and coupling misalignment—enabling predictive maintenance that extends bearing life by 40% and reduces unplanned downtime.

Technical Specifications & Selection Guide

Selection Guidance: Choose the 3300/16-02-01-00-00 when your application requires simultaneous XY vibration monitoring with gap measurement for orbit analysis. For applications needing only single-axis monitoring, consider the 3300/16-01 variant. If digital communication and enhanced diagnostics are required, evaluate the 3300/16-03 series with Modbus protocol support.

Critical Sizing Factors: Verify that your existing proximitor sensors provide -24 VDC outputs compatible with this monitor. Confirm that bearing clearances and expected vibration levels fall within the 0-500 mil measurement range. For machinery with vibration exceeding 500 mils, consult factory for extended-range options.

Extended Capabilities & Integration Options

Real-Time Orbit Display Integration: The dual-channel outputs connect directly to oscilloscopes or dedicated orbit display units, enabling maintenance teams to visualize rotor motion patterns during startup, shutdown, and steady-state operation. This capability accelerates root cause analysis during fault investigations—reducing diagnostic time from hours to minutes.

Historian System Connectivity: The 4-20 mA outputs integrate with PI System, OSIsoft, Honeywell PHD, and other industrial historians for long-term trending and predictive analytics. Historical vibration data enables machine learning algorithms to predict bearing failures 30-90 days in advance based on subtle trend changes invisible to threshold-based alarms.

Portable Analyzer Interface: Buffered direct outputs allow connection of portable vibration analyzers and data collectors without disrupting the protection system. Field technicians perform detailed spectral analysis and phase measurements while the monitor maintains continuous protection coverage.

Redundant Monitoring Architectures: Deploy dual 3300/16-02-01-00-00 modules in 2oo3 (two-out-of-three) voting configurations for SIL 2/SIL 3 safety instrumented systems. Independent measurement channels eliminate common-mode failures while maintaining high availability in critical machinery protection applications.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with factory calibration documentation
Express Shipping: Next-day delivery available for emergency replacements and critical outage support
Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and calibration stability
Technical Support: Unlimited phone and email support for installation, configuration, and troubleshooting
Documentation Package: Includes calibration certificate, configuration worksheet, wiring diagrams, and quick-start guide
Replacement Program: Advance replacement units available for critical applications requiring zero downtime

Frequently Asked Questions

How does the 3300/16-02-01-00-00 differ from earlier 3300 XY monitor models?
The -02-01-00-00 configuration provides enhanced alarm relay isolation and improved EMI immunity compared to legacy models. It maintains backward compatibility with existing 3300 rack infrastructure while offering superior noise rejection in electrically harsh environments. The -01-00-00 suffix specifically denotes the relay contact configuration and output scaling options.

What probe spacing is required for accurate XY orbit measurement?
Proximitor sensors must be mounted 90 degrees apart (±5 degrees) on the bearing housing to generate accurate orbit displays. Typical installations place one probe at the 3 o'clock position (X-axis) and the second at 12 o'clock (Y-axis) when viewing the shaft end. Precise angular alignment ensures that orbit eccentricity measurements reflect true rotor behavior rather than geometric errors.

Can this monitor interface with legacy DCS systems using 1-5 VDC inputs?
Yes, the 4-20 mA outputs can drive precision 250-ohm resistors to generate 1-5 VDC signals compatible with older distributed control systems. This passive conversion maintains signal isolation and eliminates the need for active signal conditioners. Consult your DCS input specifications to verify impedance compatibility and grounding requirements.

What is the recommended alarm setpoint strategy for centrifugal compressors?
For API 617 centrifugal compressors, set Alert at 1.5 mils (38 microns) and Danger at 2.5 mils (64 microns) for journal bearings with typical clearances of 4-6 mils. These values provide early warning of developing issues while maintaining adequate margin to trip setpoints. Adjust based on manufacturer recommendations, historical baseline data, and bearing clearance measurements. Time delays of 1-3 seconds prevent transient spikes during startup from causing false alarms.

Does the gap voltage measurement require separate calibration?
No, gap voltage monitoring uses the same proximitor sensor signals as the vibration channels and requires no additional calibration. The monitor continuously displays gap voltage on front-panel meters, allowing technicians to verify that sensors are operating within the -8 to -18 VDC range specified for Bently Nevada proximitor systems. Gap voltage outside this range indicates sensor problems, cable damage, or target surface contamination.

How do I configure alarm setpoints without specialized programming tools?
All configuration is performed using front-panel potentiometers accessible through the module faceplate. Rotate the full-scale range pot to match your bearing clearance, then adjust Alert and Danger pots to desired setpoint percentages. Time delay pots set alarm persistence from 0.1 to 60 seconds. LED indicators provide immediate feedback during adjustment—no laptop, software licenses, or proprietary tools required.

Request Technical Consultation

Our vibration monitoring specialists provide complimentary application engineering support to ensure optimal system configuration for your specific machinery. Contact us with your equipment details, operating parameters, and protection requirements for customized recommendations on sensor selection, alarm setpoint strategies, and system integration approaches.

Ready to enhance your machinery protection system? Submit a technical inquiry or request a quotation using the contact information below. Volume pricing available for multi-unit installations and plant-wide standardization projects.
