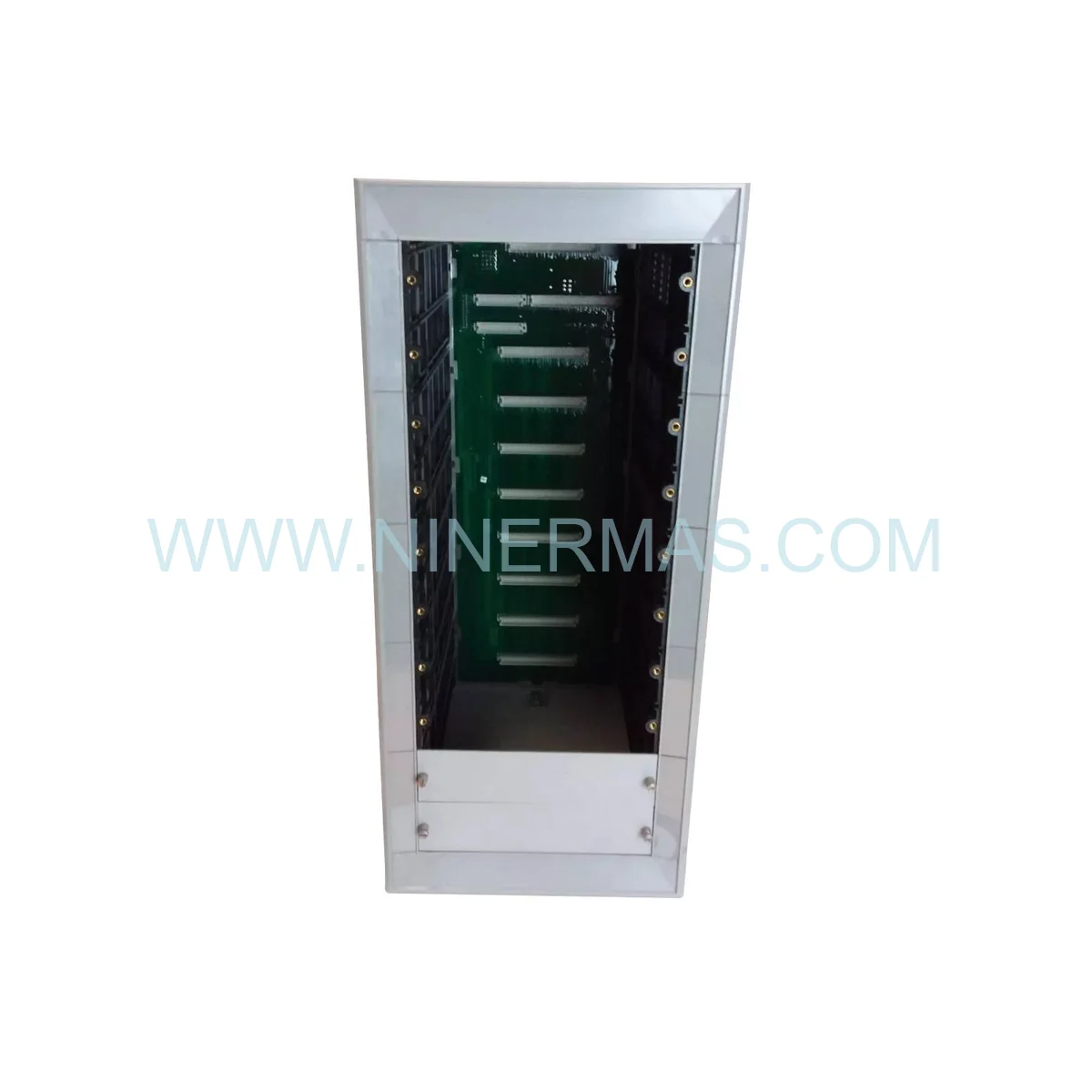

Industrial 24-Slot Rack Chassis for Bently Nevada 3300 XL Vibration Monitoring Systems

The Bently Nevada 3300/05-24-00-00 rack chassis delivers enterprise-grade infrastructure for continuous machinery health monitoring across power generation, petrochemical, and heavy industrial facilities. Engineered to house a complete array of 3300 XL Series monitors, power modules, and I/O components, this 24-position platform enables scalable protection architectures for critical rotating equipment including turbines, compressors, and generator sets.

Designed for reliability-critical environments where unplanned downtime carries severe operational and financial consequences, this rack system provides the structural foundation for API 670-compliant machinery protection schemes. Its modular backplane architecture supports flexible channel configurations from basic single-machine monitoring to complex multi-train surveillance networks, while maintaining electromagnetic compatibility in electrically noisy industrial settings.

With proven field performance across thousands of global installations, the 3300/05-24-00-00 combines OEM-equivalent build quality with comprehensive compatibility across the entire 3300 XL ecosystem, offering maintenance teams a dependable platform for both new installations and legacy system upgrades.

Core Capabilities & Technical Advantages

→ Maximum Channel Density: Accommodates up to 24 monitoring modules in a single 19-inch rack unit, optimizing panel space utilization while centralizing machinery surveillance for simplified wiring and maintenance access.

→ Universal Module Compatibility: Accepts all 3300 XL Series components including proximity monitors, velocity sensors, system monitors, AC/DC power supplies, and specialty I/O modules without requiring adapter hardware or backplane modifications.

→ Enhanced EMI/RFI Protection: Industrial-grade steel construction with integrated electromagnetic shielding safeguards sensitive electronics from interference generated by VFDs, motor starters, and high-voltage switchgear in plant environments.

→ Hot-Swap Service Capability: Enables module replacement during operation when properly configured with redundant power and monitoring channels, minimizing system downtime during maintenance activities.

✓ OEM-Specification Manufacturing: Precision-fabricated to original design tolerances using factory-grade materials, ensuring dimensional accuracy, electrical performance, and mechanical durability equivalent to Bently Nevada factory production.

✓ Gold-Plated Backplane Contacts: High-reliability interconnect system resists corrosion and maintains low contact resistance across temperature cycling and vibration exposure typical of industrial installations.

Industrial Application Scenarios

Power Generation Facilities:
Centralized monitoring infrastructure for steam turbine-generator sets, gas turbines, and balance-of-plant rotating equipment. The 24-slot capacity supports comprehensive bearing monitoring with redundant channels for critical machines, alarm logic processing, and integration with distributed control systems. Ideal for combined-cycle plants requiring simultaneous surveillance of multiple turbine trains.

Petrochemical & Refining Operations:
API 670-compliant machinery protection systems for compressor trains, centrifugal pumps, and process gas equipment. Addresses the challenge of monitoring high-value assets in hazardous areas by consolidating electronics in safe-area control rooms while maintaining transducer connectivity to field-mounted sensors. Supports both continuous monitoring and trip-shutdown logic.

Heavy Manufacturing & Process Industries:
Condition-based maintenance programs for paper mills, steel plants, cement production, and mining operations. Enables transition from reactive maintenance to predictive strategies by providing real-time vibration trending, alarm notification, and historical data integration with CMMS platforms. Reduces unplanned outages and extends equipment service life.

System Modernization Projects:
Retrofit solution for aging Bently Nevada installations requiring capacity expansion or component replacement. Maintains compatibility with existing 3300 Series transducers, cabling infrastructure, and DCS interfaces, allowing phased upgrades without complete system replacement. Preserves capital investment while improving reliability.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 24-slot configuration for large monitoring systems requiring 12+ channels or installations anticipating future expansion. For compact applications, consider 12-slot or 6-slot alternatives. Verify power supply requirements (one 3300/12 or 3300/14 per 12 monitors) and ensure adequate panel space for rack mounting and cable management. Confirm environmental conditions fall within operating specifications, particularly in extreme temperature or high-humidity locations.

System Integration & Expansion Options

The 3300/05-24-00-00 serves as the central infrastructure component within a complete vibration monitoring architecture. Pair with 3300/12 AC Power Supplies (110-240VAC input) or 3300/14 DC Power Supplies (18-30VDC input) based on facility power availability—each supply supports up to 12 monitors. Incorporate 3300/03 System Monitors for alarm logic, relay outputs, and 4-20mA analog signals to DCS/PLC systems.

Populate with specialized transducer monitors including 3300/16 Dual Proximitor Monitors for radial vibration and axial position, 3300/55 Velocity Monitors for bearing housing measurements, and 3300/70 Valve Position Monitors for steam turbine control valve feedback. The modular design permits incremental channel additions as monitoring requirements evolve, protecting initial capital investment while maintaining upgrade flexibility.

Advanced configurations support integration with System 1 condition monitoring software for centralized data management, trending analysis, and predictive maintenance workflows across enterprise-wide machinery populations.

Quality Assurance & Regulatory Compliance

Every chassis undergoes comprehensive factory inspection protocols to verify conformance with API 670 machinery protection system standards and ISO 20816 vibration severity criteria. Our manufacturing process employs OEM-equivalent materials, precision fabrication techniques, and rigorous quality control checkpoints to ensure dimensional accuracy, electrical continuity, and mechanical integrity.

All units ship with complete technical documentation including installation manuals, wiring diagrams, backplane pinout specifications, and compliance certificates. Products are factory-tested for grounding integrity, EMI shielding effectiveness, and backplane contact resistance prior to shipment. CE marking confirms compliance with European Union electromagnetic compatibility and safety directives.

Delivery Timeline & Service Support

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for custom configurations or large quantity orders
Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: Application engineering assistance for system design, module selection, and configuration optimization
Documentation Package: Installation guide, wiring schematics, backplane specifications, compliance certificates

Our technical team provides pre-sales consultation for rack layout planning, power budget calculations, and module compatibility verification. Post-delivery support includes installation guidance, troubleshooting assistance, and access to online resources including application notes, technical bulletins, and configuration examples.

Frequently Asked Questions

What types of monitoring modules can be installed in this 24-slot rack chassis?
The 3300/05-24-00-00 accepts all standard 3300 XL Series modules including 3300/03 System Monitors, 3300/12 AC and 3300/14 DC Power Supplies, 3300/16 Dual Proximitor Monitors, 3300/55 Velocity Monitors, 3300/70 Valve Position Monitors, and 3300/25 Dual Monitors. No adapter hardware is required—all modules use the universal backplane interface.

How do I determine the correct number of power supplies for my monitoring system?
Each 3300/12 (AC) or 3300/14 (DC) power supply supports up to 12 monitors. For a fully populated 24-slot rack, you'll need two power supplies plus your required complement of system monitors and transducer monitors. Always verify total power consumption against supply capacity, particularly when using high-power specialty modules.

Can this rack chassis be used in hazardous area installations?
The rack chassis itself is designed for general industrial environments (non-hazardous areas). For Class I Division 2 or ATEX Zone 2 installations, ensure all installed modules carry appropriate hazardous location certifications and follow local electrical codes for enclosure selection, grounding practices, and cable entry methods. Consult with a certified electrical engineer for hazardous area system design.

Is it possible to mix AC and DC power supplies within the same rack?
While technically feasible, best practice recommends using a single power type per rack to simplify maintenance procedures and troubleshooting workflows. Select AC (3300/12) or DC (3300/14) based on your facility's available power infrastructure and backup power strategy. For critical applications, consider redundant power supplies of the same type.

What distinguishes the 3300/05-24-00-00 from other rack configurations?
The 24-slot model offers maximum channel density for large-scale monitoring systems and multi-machine installations. Smaller configurations (12-slot, 6-slot) are available for compact applications or single-machine monitoring. The model suffix -24-00-00 indicates 24 slots with standard backplane configuration and no special options.

Does this product include installation and commissioning services?
The rack chassis ships with comprehensive installation documentation and wiring diagrams. Field installation, system commissioning, and startup support are available through our certified partner network. Contact our sales team for turnkey system integration quotes including on-site services, training, and DCS interface configuration.

Request a Quote or Technical Consultation

Our application engineering team is ready to assist with system design, module selection, and configuration optimization for your specific machinery monitoring requirements. Whether you're planning a new installation, expanding an existing system, or modernizing legacy infrastructure, we provide expert guidance to ensure optimal performance and reliability.

Contact us today for: Product availability confirmation, volume pricing, custom configuration options, technical specifications, installation support, or application-specific recommendations.
