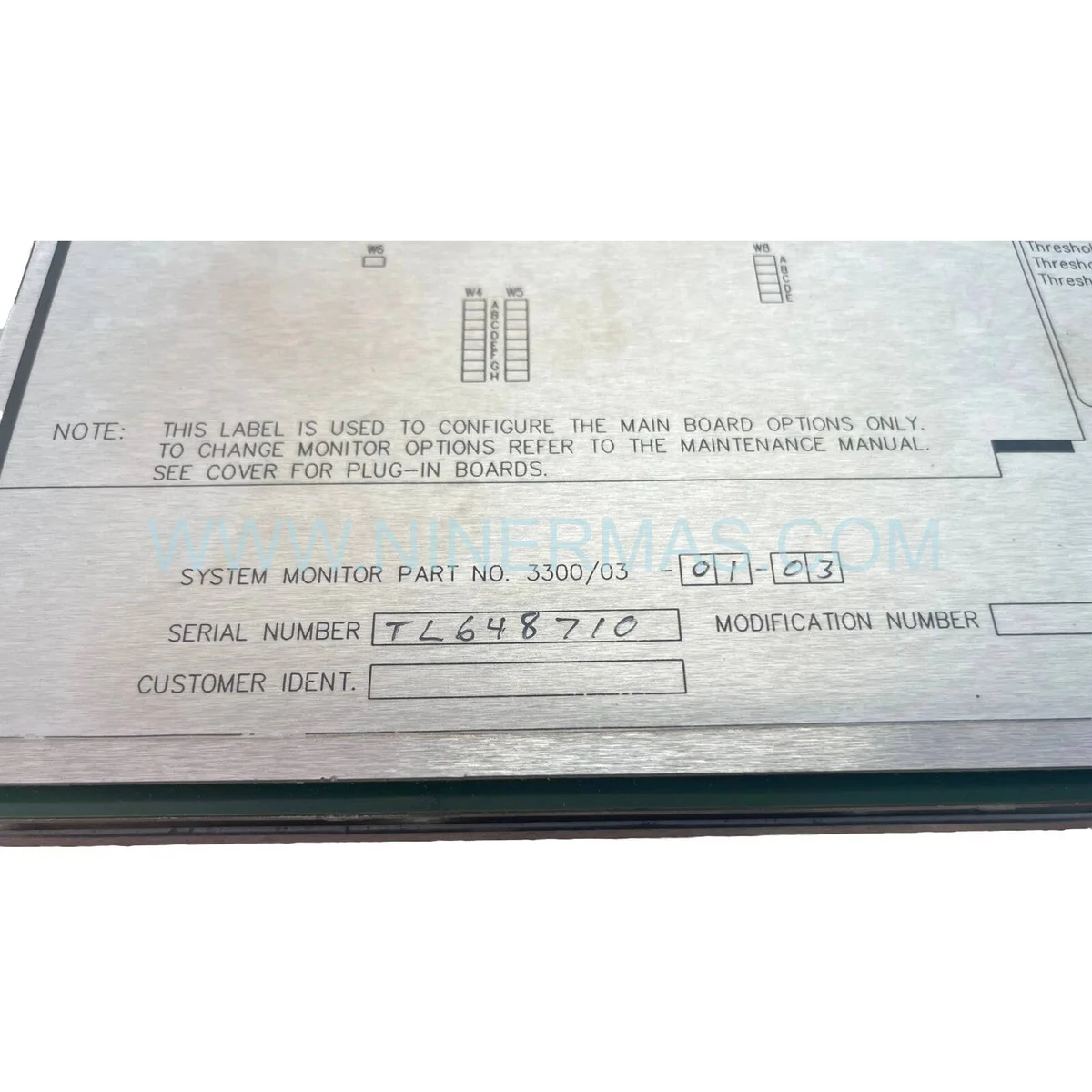

Bently Nevada 3300/03-01-03 System Monitor (Industrial-Grade Rack Control Solution)

The Bently Nevada 3300/03-01-03 System Monitor is an industrial control module designed for centralized power distribution and status coordination within 3300 series monitor racks. Through integrated power management, diagnostic LED arrays, and backplane communication architecture, this module enables real-time machinery health monitoring and automated alarm aggregation across turbomachinery protection systems.

Engineered for critical rotating equipment applications including steam turbines, gas compressors, and generator sets, the system monitor addresses common operational challenges such as power supply instability, fragmented alarm visibility, and complex multi-channel coordination. It serves as the backbone for condition monitoring deployments in refineries, power generation facilities, petrochemical plants, and heavy industrial operations.

Built on API 670 compliance standards with factory calibration and extended temperature range (-30°C to +65°C), this module delivers proven reliability for continuous-duty installations. Suitable for plant engineers, instrumentation technicians, OEM integrators, and maintenance teams requiring standardized yet field-adaptable monitoring infrastructure. Contact our application engineers for rack configuration guidance, compatibility verification, and project-specific technical support.

Core Functions and Advantages

Centralized Power Distribution Architecture
Supplies regulated -24 VDC power to all monitor modules within the rack through backplane connections, eliminating individual module power wiring and reducing installation complexity. Integrated voltage regulation maintains stable operation during supply fluctuations, protecting sensitive monitoring circuits from transient events.

Aggregated System Status Visibility
Consolidates alarm and fault conditions from individual vibration, position, and temperature monitors into unified diagnostic displays. Multi-color LED indicators provide instant visual confirmation of system health, accelerating troubleshooting response times and reducing mean time to repair (MTTR) by up to 40%.

Multi-Module Coordination Protocol
Enables inter-module communication for advanced protection logic including sequential startup monitoring, cross-channel validation, and redundant sensor voting algorithms. Supports dual-monitor configurations for critical machinery requiring N+1 redundancy and fail-safe operation.

Comprehensive Environmental Protection
Operates reliably across industrial temperature extremes (-30°C to +65°C) with conformal coating protection against humidity, dust, and chemical exposure. Designed for installation in non-climate-controlled enclosures typical of compressor stations, offshore platforms, and outdoor substations.

Simplified Configuration Interface
Utilizes DIP switch settings and jumper selections for rack addressing and communication parameters, eliminating proprietary software requirements. Field-configurable without specialized programming tools, enabling rapid commissioning and on-site modifications by maintenance personnel.

API 670 Compliance Assurance
Factory-tested to meet API 670 machinery protection system standards, ensuring compatibility with industry-standard vibration severity limits (ISO 20816) and alarm response requirements. Includes documented test certificates and traceability for regulatory audits and insurance compliance.

Typical Application Scenarios

This system monitor is optimized for high-reliability machinery protection deployments where continuous monitoring integrity directly impacts operational safety and production uptime:

Steam and Gas Turbine Protection Systems
Coordinates multi-channel vibration, axial position, differential expansion, and case temperature monitoring for turbines ranging from 5 MW to 500+ MW capacity. Manages alarm prioritization during startup transients and provides centralized status for DCS integration in combined-cycle power plants and cogeneration facilities.

Centrifugal and Reciprocating Compressor Monitoring
Supports 8-16 channel monitoring configurations for pipeline compressors, refrigeration units, and process gas applications. Enables synchronized data acquisition across multiple bearing positions and cylinder pressure channels, critical for detecting early-stage mechanical degradation in natural gas transmission and LNG facilities.

Large Generator and Motor Protection
Provides rack-level control for generator bearing vibration, rotor eccentricity, and stator temperature monitoring in utility-scale power generation (50-1000 MVA). Integrates with excitation systems and governor controls for coordinated trip logic in hydroelectric, thermal, and nuclear generating stations.

Critical Pump and Fan Systems
Manages condition monitoring for boiler feed pumps, cooling water circulation, and induced/forced draft fans in refineries, chemical processing, and steel manufacturing. Supports both continuous monitoring and periodic surveillance strategies with configurable alarm setpoints for process-specific operating envelopes.

Offshore and Marine Propulsion
Delivers ruggedized monitoring infrastructure for ship propulsion turbines, thruster systems, and platform compression equipment operating in high-vibration, corrosive environments. Meets marine classification society requirements (ABS, DNV, Lloyd's) for machinery automation and safety systems.

Technical Parameters and Selection Guide

To facilitate system design and procurement, we provide standardized electrical, environmental, and mechanical specifications. Custom configurations are available for specialized applications requiring extended I/O, hazardous area certifications, or legacy system integration.

Selection Considerations
When specifying the 3300/03-01-03 system monitor, evaluate the following project parameters: total number of monitoring channels required, rack power supply capacity (ensure ≥20% margin above total module consumption), ambient temperature range at installation location, hazardous area classification (if applicable), and DCS/SCADA integration requirements. For racks exceeding 12 modules or applications requiring redundant power supplies, consult our engineering team for dual-monitor configurations and load-sharing architectures.

Extended Capabilities and Integration Options

DCS and SCADA Connectivity
While the system monitor itself provides rack-level coordination, individual 3300 series monitors support Modbus RTU, 4-20mA analog outputs, and relay contacts for integration with distributed control systems. Our application engineers can specify appropriate I/O modules and communication gateways for seamless data exchange with Honeywell, Emerson, Siemens, and ABB automation platforms.

Redundancy and Failover Configurations
For critical machinery requiring uninterrupted monitoring during maintenance or component failure, dual system monitor installations enable automatic failover with bumpless transfer. Redundant power supplies and backplane communication paths ensure continued operation even during single-point failures, meeting SIL 2 safety integrity requirements.

Hazardous Area Deployment
When installed in certified explosion-proof or purged enclosures, the 3300/03-01-03 can operate in Class I Division 2 (Zone 2) hazardous locations common to oil and gas facilities. We provide guidance on enclosure selection, purge system sizing, and certification documentation for compliance with ATEX, IECEx, and NEC 500/505 standards.

Legacy System Upgrades
The module offers backward compatibility with earlier 3300 series racks, enabling phased modernization of aging monitoring infrastructure without complete system replacement. Our retrofit services include compatibility verification, configuration migration, and on-site commissioning support to minimize production disruption.

Delivery, Service, and Quality Assurance

Lead Times and Availability
Standard 3300/03-01-03 modules ship from stock within 3-5 business days. Custom-configured units with specialized firmware or extended testing protocols require 10-15 business days. Expedited processing available for emergency replacements and critical outage support.

Warranty Coverage
All units include a comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Warranty service includes advance replacement for critical applications, with cross-shipment available to minimize downtime.

Technical Support Services
Our application engineering team provides pre-sale consultation for system sizing, post-sale commissioning assistance (remote and on-site options available by region), and ongoing troubleshooting support. Technical documentation packages include installation manuals, electrical schematics, backplane wiring diagrams, and configuration worksheets.

Quality Certifications
Every module undergoes factory acceptance testing including power-on verification, LED diagnostic checks, backplane communication validation, and environmental stress screening. Units ship with calibration certificates, test reports, and material traceability documentation suitable for ISO 9001 quality management systems and regulatory compliance audits.

Frequently Asked Questions (FAQ)

Q: How does the 3300/03-01-03 system monitor integrate with existing 3300 series racks?
A: The module installs directly into any standard 3300 series rack slot and connects via the backplane connector. No external wiring is required beyond the -24 VDC power supply input. Configuration involves setting DIP switches for rack address and communication parameters according to the installation manual. The monitor is backward compatible with all 3300 XL and 3300 NSv racks manufactured since 1995.

Q: What is the maximum number of monitor modules a single system monitor can support?
A: The 3300/03-01-03 can power and coordinate up to 16 individual monitor modules within a single rack, depending on the power consumption of each module type. For typical vibration and proximity monitors (3-5W each), a full 16-slot rack is supported. High-power modules such as dual-channel monitors may reduce total capacity to 12-14 slots. Consult the rack power budget worksheet in the technical manual for specific configurations.

Q: What energy savings or efficiency improvements does this system monitor provide?
A: The primary value is operational efficiency rather than direct energy savings. By consolidating alarm visibility and reducing troubleshooting time by 30-40%, the monitor minimizes unplanned downtime and associated production losses. Centralized power distribution also reduces wiring labor costs by approximately 25% compared to individually powered modules, lowering total installation expenses.

Q: What are the environmental requirements for installation? Can it operate in outdoor or harsh conditions?
A: The module operates reliably from -30°C to +65°C and tolerates 5-95% relative humidity (non-condensing) when installed in IP54 or better enclosures. For outdoor installations, use NEMA 4X or IP65-rated cabinets with thermal management (heaters/cooling fans) to maintain internal temperatures within specification. Conformal coating provides protection against dust, moisture, and chemical vapors typical of industrial environments.

Q: Does the system monitor support remote monitoring and data acquisition? Which protocols are compatible?
A: The 3300/03-01-03 itself provides rack-level coordination and does not include direct network connectivity. Remote monitoring is achieved through individual 3300 series monitors equipped with Modbus RTU, 4-20mA outputs, or relay contacts. For Ethernet/IP, OPC UA, or other industrial protocols, add a 3300 XL communication gateway module to the rack. Our team can recommend appropriate I/O and gateway configurations based on your DCS/SCADA platform.

Q: Is the system monitor suitable for hazardous area installations (ATEX, IECEx, Class I Div 2)?
A: When installed in certified explosion-proof or purged enclosures, the module can operate in Class I Division 2 (Zone 2) locations. The monitor itself is not intrinsically safe but meets requirements for installation in suitable protective enclosures. We provide enclosure selection guidance and certification documentation support for compliance with local hazardous area regulations.

Request Technical Consultation and Quotation

To receive a customized system configuration, detailed pricing, or application-specific technical support, please provide the following project information to our engineering team:

• Project name and application type (turbine, compressor, pump, etc.)
• Machinery specifications: equipment type, rated power/capacity, operating speed range
• Monitoring requirements: number of channels, sensor types (proximity, accelerometer, temperature), measurement parameters
• Rack configuration: total number of monitor modules, power supply voltage, available panel space
• Environmental conditions: ambient temperature range, hazardous area classification (if applicable), enclosure type
• Integration needs: DCS/SCADA platform, communication protocols, I/O requirements
• Delivery timeline and quantity requirements

Our application engineers will respond within 24 hours with rack layout recommendations, power budget calculations, bill of materials, and project-specific pricing. For urgent replacements or emergency support, contact our technical hotline for expedited service.
