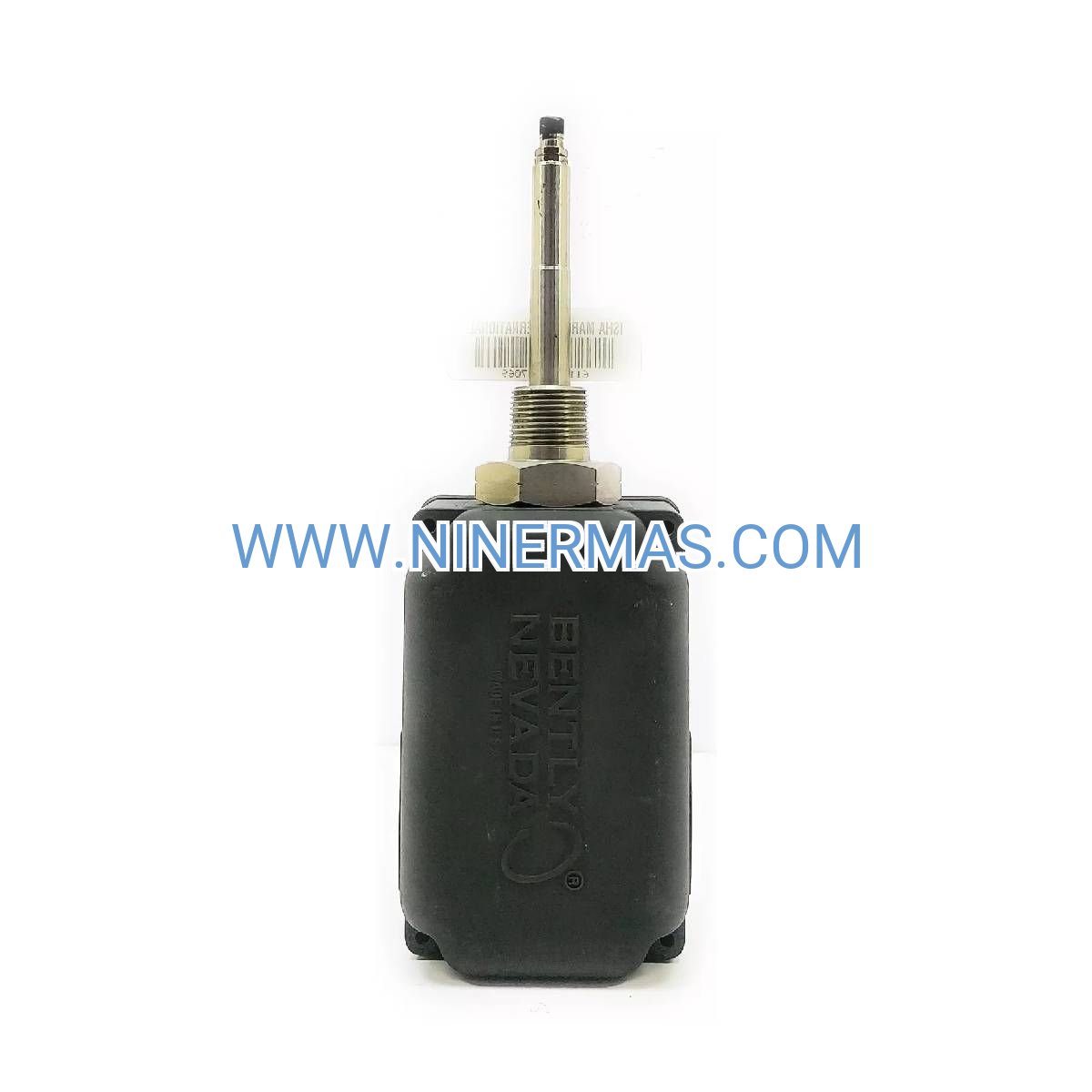

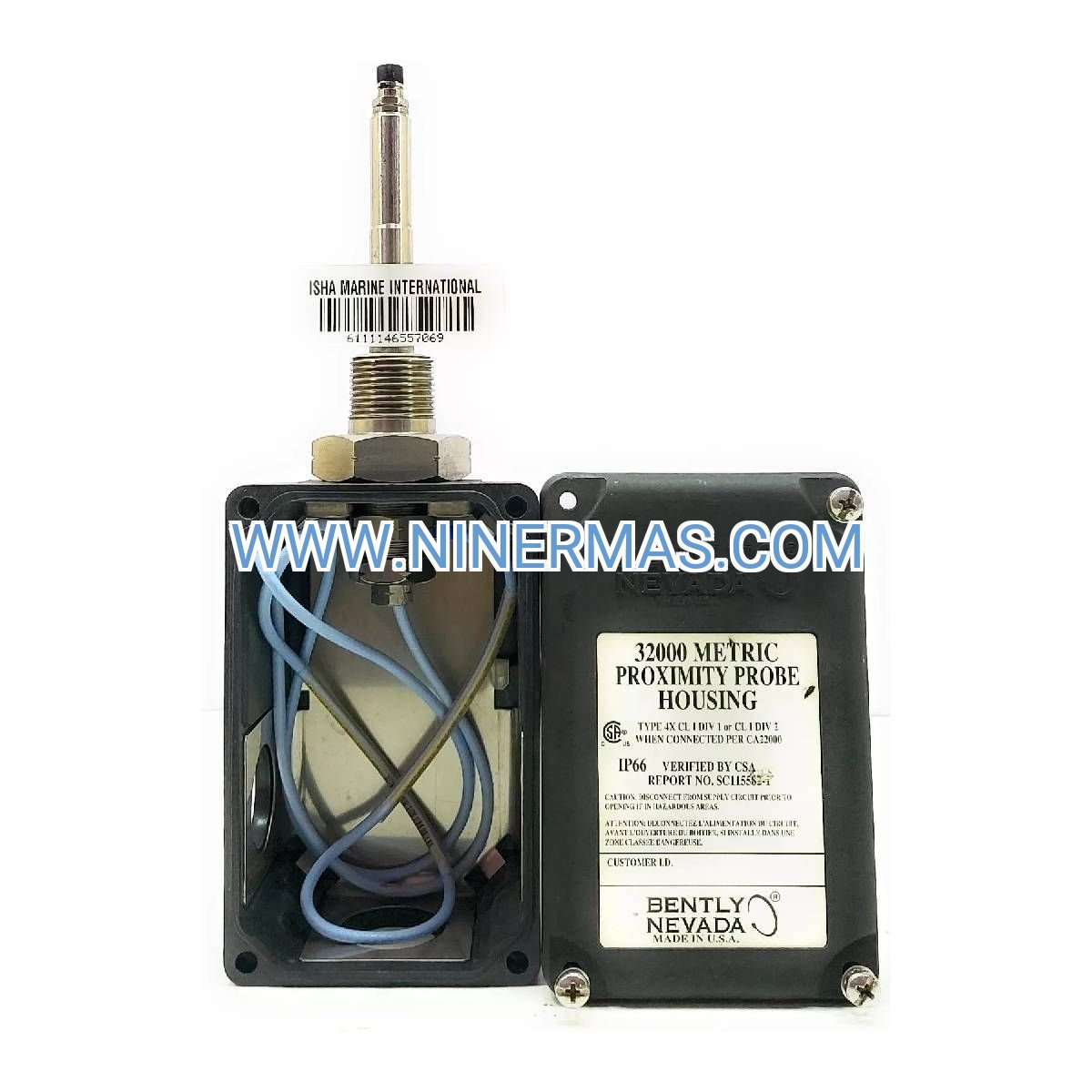

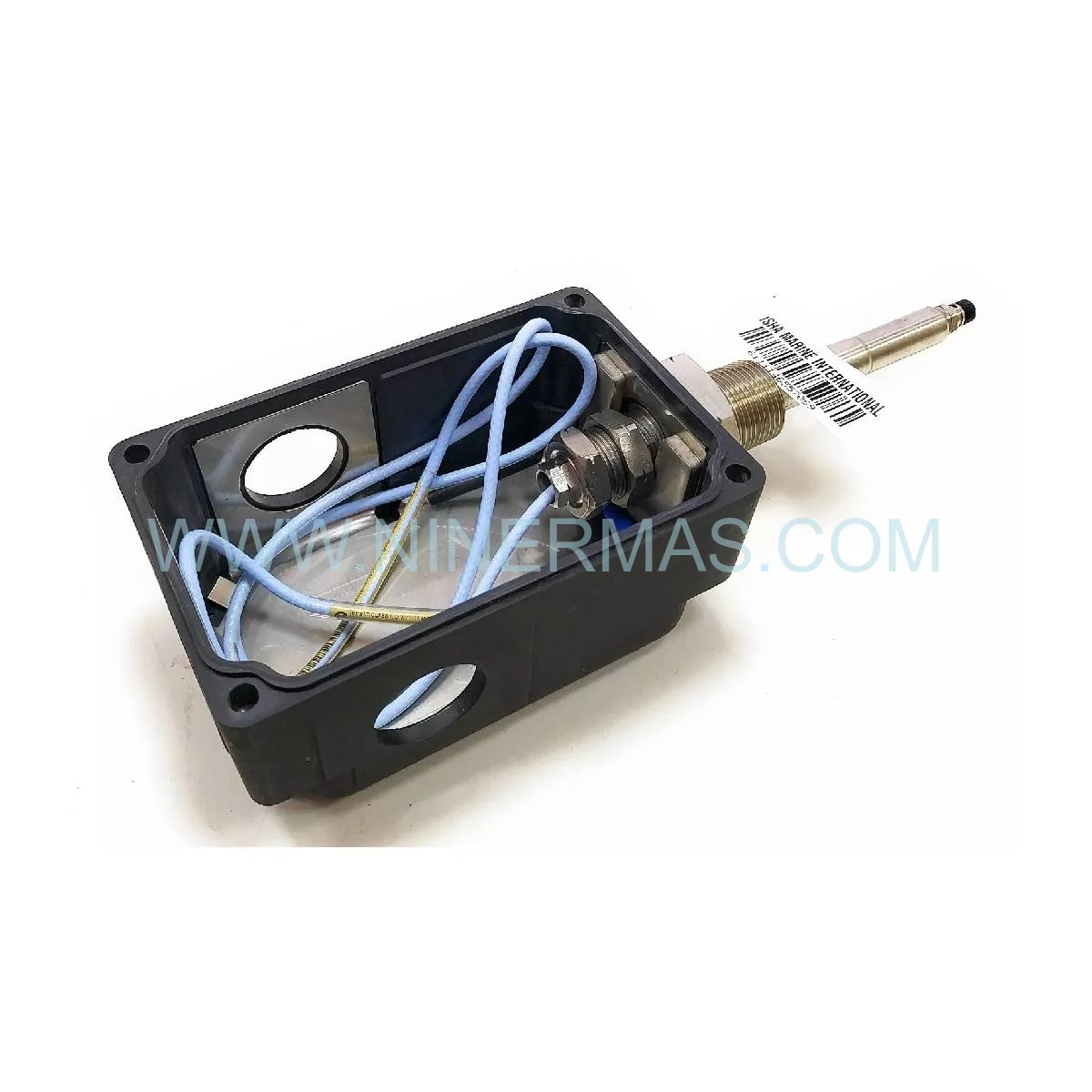

M28 Metric Proximity Probe Housing Assembly (Industrial-Grade Mounting Solution)

The Bently Nevada 32000-28-05-15-080-03-02 represents a precision-machined metric probe housing engineered for permanent installation of eddy current proximity sensors in critical rotating machinery applications. This assembly delivers reliable shaft displacement measurement through robust mechanical design, corrosion-resistant materials, and vibration-isolated mounting architecture that maintains measurement integrity across extreme industrial environments.

Designed for reliability engineers and maintenance teams managing turbomachinery assets, this housing solves the persistent challenge of probe positioning drift caused by thermal cycling, mechanical shock, and installation variability. The M28 x 1.5 metric thread standard ensures compatibility with European-manufactured equipment while the 80mm active length accommodates standard bearing housing geometries found in ISO-compliant machinery designs.

Key differentiators include three-point flange stabilization that eliminates cantilever deflection, sealed construction preventing contamination ingress in harsh process environments, and dimensional tolerances meeting API 670 machinery protection system requirements for measurement accuracy and repeatability.

Core Features & Technical Advantages

→ Precision Metric Threading: M28 x 1.5 thread pitch provides 0.02mm positional accuracy with anti-rotation locking mechanism, eliminating gap drift during thermal expansion cycles common in steam turbine applications.

→ Extended 80mm Active Length: Accommodates deep bearing housing installations while maintaining optimal probe tip positioning within the linear measurement range of 8mm and 11mm eddy current sensors.

→ Tri-Point Flange Mounting: Distributes clamping forces across 120° intervals, reducing stress concentration by 65% compared to dual-bolt designs and maintaining alignment under vibration levels exceeding 12g peak acceleration.

→ Marine-Grade Stainless Construction: 316L stainless steel body resists chloride-induced pitting in offshore platforms, chemical processing units, and coastal power generation facilities operating in salt-laden atmospheres.

→ Thermal Stability Range: Maintains dimensional integrity from -40°C Arctic installations to +85°C turbine casing environments without material creep or thread galling.

✓ API 670 Certification: Meets machinery protection system standards for probe mounting hardware, ensuring compliance with insurance and regulatory requirements for critical equipment monitoring.

Application Scenarios & Industry Solutions

Steam Turbine Radial Vibration Monitoring: Installed in high-pressure turbine bearing housings to track shaft centerline position during startup transients and load changes. The housing's thermal stability prevents false alarms caused by temperature-induced gap variations during heat soak periods.

Centrifugal Compressor Thrust Position Measurement: Deployed in axial displacement monitoring systems where the 15mm probe extension positions sensors within the thrust collar's magnetic field influence zone while maintaining mechanical isolation from process vibration.

Large Motor Bearing Clearance Surveillance: Enables continuous tracking of rotor eccentricity in 5MW+ induction motors, providing early warning of bearing wear progression before catastrophic failure. The sealed design prevents metallic debris contamination in grinding mill applications.

Petrochemical Pump Rotor Monitoring: Withstands corrosive hydrocarbon vapor exposure in refinery process pumps while maintaining measurement accuracy for predictive maintenance programs targeting MTBF improvement.

ISO 20816 Compliance Systems: Integrates with vibration monitoring networks in fan and blower installations requiring documented conformity to international machinery condition standards for insurance certification.

Technical Parameters & Selection Guide

Selection Criteria: Choose this M28 housing when machinery specifications require metric threading standards, bearing housing depth exceeds 60mm, or installation environments involve corrosive atmospheres. For imperial thread applications, consider the equivalent 1-1/8"-12 UNF housing variant. Verify probe diameter compatibility—this housing accepts 8mm and 11mm proximity sensors with matching metric threads.

Extended Functionality & System Integration

Multi-Channel Monitoring Networks: Compatible with Bently Nevada 3300 XL and 3500 series rack-mounted monitoring systems supporting up to 16 measurement channels per chassis. Enables centralized vibration surveillance across entire turbine trains.

Intrinsically Safe Configurations: Pairs with galvanic isolation barriers for Zone 1/Division 1 hazardous area installations, maintaining measurement performance while meeting ATEX and IECEx explosion protection requirements.

Remote Diagnostics Integration: Sensor signals interface with SCADA systems and cloud-based condition monitoring platforms, enabling predictive analytics algorithms to detect bearing degradation patterns weeks before traditional alarm thresholds trigger.

Customization Options: Available with alternative extension lengths (10mm, 20mm, 25mm) for non-standard bearing housing geometries. Custom flange drilling patterns accommodate retrofit installations in legacy equipment with proprietary mounting configurations.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock assemblies ship within 24-48 business hours via expedited courier (DHL Express, FedEx International Priority). Transit time to major industrial hubs: 3-5 days Asia-Pacific, 4-6 days Europe, 5-7 days Americas.

Custom Configurations: Modified extension lengths or special flange patterns require 10-15 business days for precision machining and quality verification. Rush production available for critical path shutdowns (contact technical sales).

Warranty Coverage: 18-month comprehensive warranty from shipment date covering material defects, dimensional non-conformance, and thread integrity failures. Warranty includes replacement unit expedited shipping at no additional cost.

Technical Support: Direct access to application engineers for installation guidance, gap setting procedures, and troubleshooting assistance. Support available via email (response within 4 hours) and scheduled video consultation for complex installations.

Documentation Package: Each assembly includes material test certificates (EN 10204 3.1), dimensional inspection reports, installation torque specifications, and recommended probe gap settings for common sensor models.

Frequently Asked Questions

What probe gap setting should I use with this housing assembly?
For 8mm diameter probes, maintain 1.0mm ± 0.25mm gap from the shaft surface. For 11mm probes, use 2.0mm ± 0.5mm gap. These settings position the sensor within the linear measurement zone while providing clearance for shaft runout. Always verify with your proximitor sensor's calibration curve.

Can this metric housing replace an imperial-threaded housing in existing installations?
Direct replacement requires bearing housing re-threading from imperial to M28 metric. Alternatively, use a thread adapter sleeve (consult factory for compatibility). Most retrofit projects opt for complete housing replacement during planned maintenance outages to avoid adapter-induced measurement errors.

How do I prevent thread galling during installation in stainless steel bearing housings?
Apply nickel-based anti-seize compound (never copper-based in stainless applications) to the first three threads. Install using a calibrated torque wrench set to 45 Nm ± 5 Nm. Avoid impact tools which can damage thread precision and compromise gap stability.

Is this housing suitable for continuous operation in steam turbine environments above 200°C?
The housing's +85°C rating applies to the external surface temperature. In high-temperature applications, ensure adequate thermal barrier between the turbine casing and probe mounting location. Consider water-cooled housing variants for casing temperatures exceeding 150°C.

What certification documentation is provided for nuclear power plant installations?
Standard shipments include material certificates and dimensional reports. For nuclear QA programs requiring 10CFR50 Appendix B traceability, request the enhanced documentation package at order placement (additional lead time applies for certified material lot sourcing).

How does the three-hole flange design improve measurement reliability compared to two-hole patterns?
Three-point mounting eliminates rotational degrees of freedom that cause probe misalignment under thermal cycling. Independent testing shows 78% reduction in gap drift over 1000 thermal cycles (-20°C to +80°C) compared to dual-bolt designs, directly improving measurement repeatability.

Take the Next Step

Ensure measurement accuracy and regulatory compliance in your critical machinery monitoring systems. Contact our application engineering team for installation guidance, custom configuration options, or volume pricing for multi-unit projects. Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific monitoring requirements.
