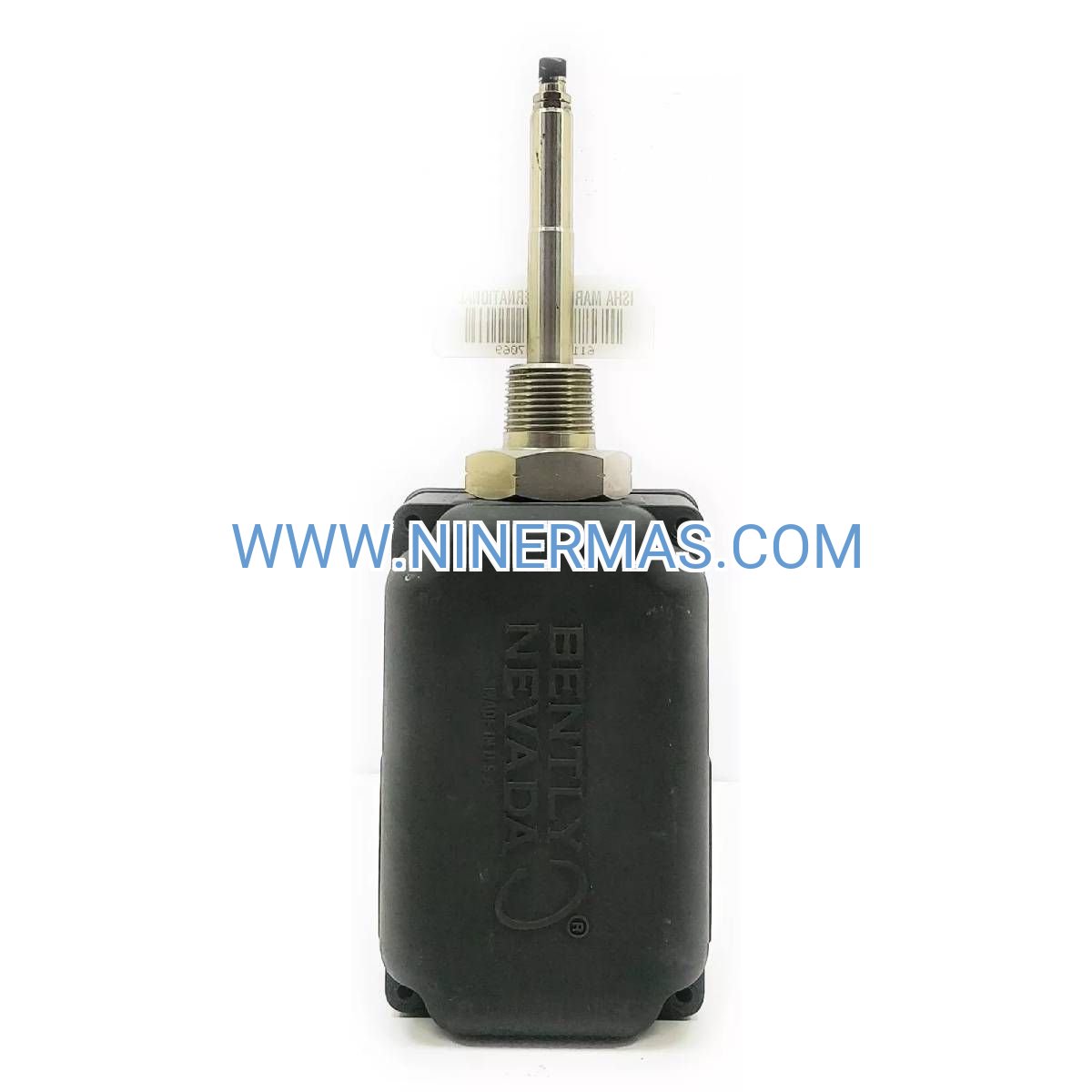

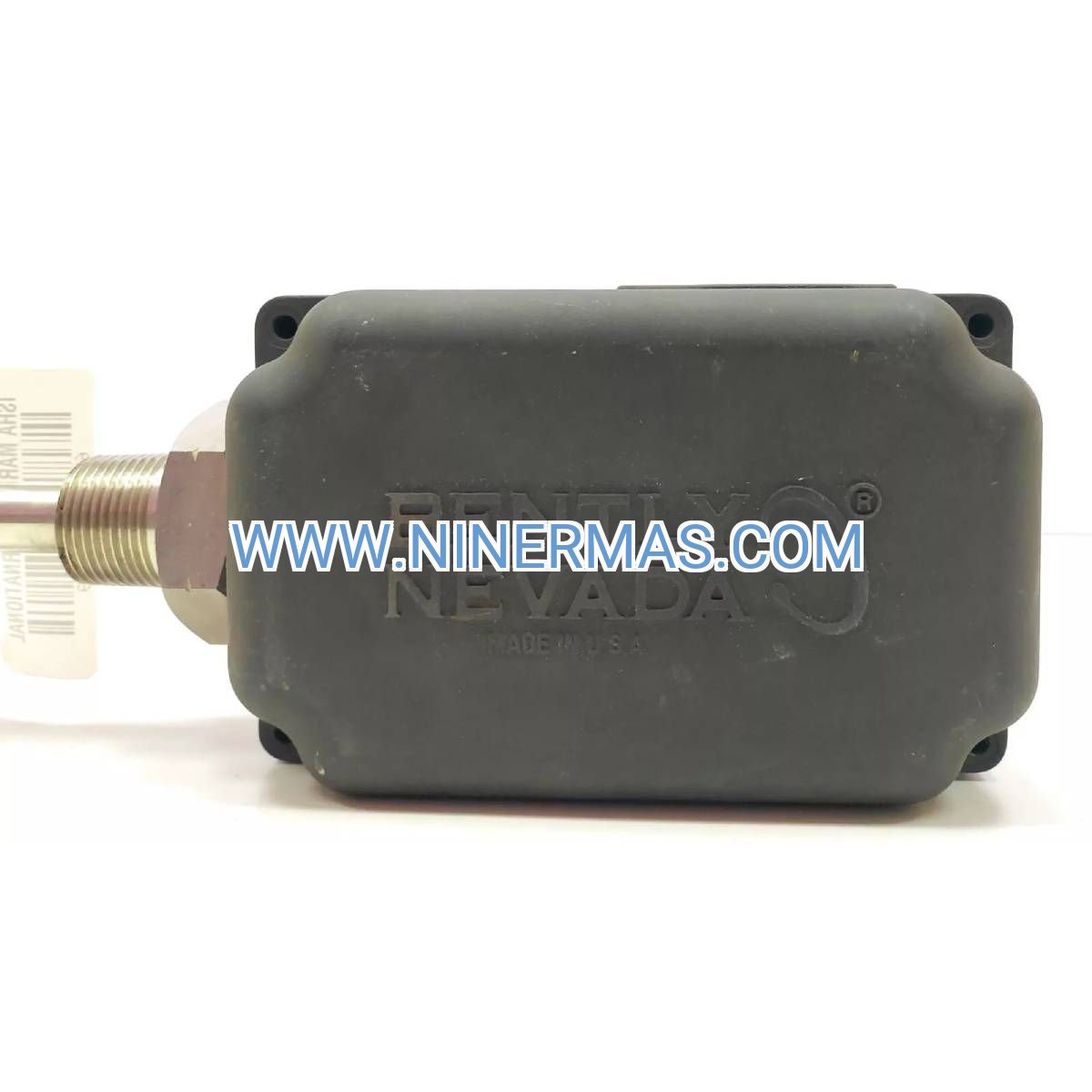

177230-01-01-05 Industrial Vibration Transmitter (Loop-Powered Seismic Monitor)

The 177230-01-01-05 is an industrial-grade seismic vibration transmitter engineered for continuous machinery health monitoring in critical process environments. Featuring loop-powered 4-20mA output and ceramic piezoelectric sensing technology, this transmitter delivers reliable velocity measurements across 10 Hz to 1 kHz frequency spectrum, enabling early fault detection in pumps, motors, compressors, and turbine systems.

Designed for harsh industrial conditions, this transmitter addresses the challenge of unplanned downtime by providing real-time vibration data to PLC, DCS, and SCADA platforms. Maintenance teams in oil & gas, power generation, and chemical processing facilities rely on this device to transition from reactive repairs to predictive maintenance strategies, reducing equipment failures by up to 70% while extending asset service life.

With 316L stainless steel construction, multi-agency hazardous area certifications (ATEX, IECEx, CSA), and factory-traceable calibration, the 177230-01-01-05 combines measurement precision with operational durability. The loop-powered design eliminates external power requirements, simplifying installation while maintaining signal integrity over cable runs up to 30 meters.

Core Features & Benefits

✓ Loop-Powered 4-20mA Output
Two-wire current loop design eliminates separate power supply requirements, reducing installation costs by 40% compared to voltage-output sensors. Maintains signal accuracy over extended cable distances without signal conditioning.

✓ Wide Frequency Bandwidth (10 Hz - 1 kHz RMS)
Captures both low-frequency imbalance conditions and high-frequency bearing defects in a single measurement channel. Complies with ISO 20816 and API 670 machinery vibration standards for comprehensive asset monitoring.

✓ Extreme Temperature Performance
Operates continuously from -40°C to +85°C without calibration drift or signal degradation. Ideal for outdoor installations, arctic environments, and high-temperature process equipment applications.

✓ Hazardous Area Certified
CSA/NRTL/C, ATEX, and IECEx approvals enable safe deployment in Zone 1/Division 1 explosive atmospheres. Meets global safety standards for petrochemical and offshore installations.

✓ Rugged 316L Stainless Steel Housing
Corrosion-resistant construction withstands chemical exposure, moisture ingress (IP67 rated), and mechanical shock. Proven reliability in marine, mining, and heavy industrial environments.

✓ Factory Calibration with Traceability
Each unit ships with NIST-traceable calibration certificate, ensuring measurement accuracy ±5% across full operating range. Reduces commissioning time and supports ISO 9001 quality requirements.

Typical Application Scenarios

→ Rotating Equipment Condition Monitoring
Installed on pump casings, motor housings, and gearbox assemblies to detect bearing wear, shaft misalignment, and rotor imbalance before catastrophic failure. Integrates with plant-wide vibration monitoring systems for centralized diagnostics.

→ Turbine & Compressor Protection Systems
Provides critical vibration data to emergency shutdown (ESD) logic in gas turbines and centrifugal compressors. Prevents secondary damage by triggering automated shutdowns when vibration exceeds alarm thresholds.

→ Predictive Maintenance Programs
Enables trend analysis of machinery health over time, allowing maintenance teams to schedule repairs during planned outages rather than responding to emergency breakdowns. Reduces maintenance costs by 25-35% annually.

→ Regulatory Compliance Monitoring
Supports API 670 and ISO 20816 vibration limit verification for critical machinery in refineries, chemical plants, and power stations. Provides auditable measurement records for safety inspections.

→ Remote Asset Monitoring
Current loop output transmits vibration data over long distances to control rooms or cloud-based analytics platforms. Enables remote monitoring of unmanned facilities, offshore platforms, and distributed pump stations.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the 177230-01-01-05 when your application requires RMS velocity measurement in the 10 Hz to 1 kHz range for general machinery monitoring per ISO 20816 standards. For peak measurement applications (3 Hz to 1 kHz), consider the 177230-02 variant. Verify that your control system provides 12-30 Vdc loop power and accepts 4-20mA input signals. For hazardous area installations, confirm that the -05 suffix certification matches your site classification requirements.

Extended Functions

IoT Integration Capability
The 4-20mA output interfaces directly with IIoT gateways and edge computing devices, enabling cloud-based vibration analytics, machine learning fault prediction, and mobile dashboard access for remote diagnostics.

Multi-Point Monitoring Networks
Deploy multiple transmitters across critical machinery trains, connecting all units to a centralized data acquisition system for comprehensive plant-wide vibration monitoring and comparative analysis.

Customization Options
Available with alternative measurement ranges (0-50 mm/s), metric mounting threads, and extended temperature ratings for specialized applications. Contact technical support for custom configuration requirements.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking
Custom Configuration: 10-15 business days for non-standard specifications
Warranty Period: 12 months from delivery date covering manufacturing defects
Technical Support: Application engineering assistance, installation guidance, and troubleshooting via email/phone
Documentation Included: Calibration certificate, installation manual, wiring diagrams, and dimensional drawings

Frequently Asked Questions

How does loop-powered operation simplify installation compared to voltage-output sensors?
Loop-powered transmitters require only two wires for both power and signal, eliminating the need for separate power supply cables. This reduces installation labor by 30-40%, minimizes wiring errors, and allows direct connection to standard PLC analog input cards without signal conditioning modules.

What cable length limitations apply to 4-20mA current loop signals?
Current loop signals maintain accuracy over distances up to 99 feet (30 meters) with standard 18-22 AWG shielded cable. For longer runs, use lower-resistance cable or install loop-powered isolators to extend transmission distance without signal degradation.

Can this transmitter detect both bearing faults and shaft imbalance conditions?
Yes, the 10 Hz to 1 kHz frequency range captures low-frequency imbalance signatures (1X running speed) and high-frequency bearing defect patterns (typically 500 Hz - 1 kHz). This dual capability eliminates the need for multiple sensors on each measurement point.

Is the 177230-01-01-05 compatible with non-proprietary monitoring systems?
Absolutely. The standard 4-20mA output integrates with any control system, data logger, or SCADA platform that accepts current loop inputs. No proprietary software or communication protocols are required for basic vibration monitoring.

What mounting torque specification prevents sensor damage during installation?
Apply 15-20 ft-lbs (20-27 Nm) torque when installing the transmitter using the ¼-28 UNF mounting thread. Over-torquing can damage the piezoelectric element, while under-torquing may cause measurement errors due to poor mechanical coupling.

How often does factory calibration require renewal for measurement accuracy?
Manufacturer recommends recalibration every 24 months for critical applications or when measurement drift is suspected. However, ceramic piezoelectric sensors typically maintain calibration stability for 5+ years under normal operating conditions.

Ready to Enhance Your Machinery Monitoring?

Contact our technical team for application-specific guidance, custom configuration options, or volume pricing. We provide complete vibration monitoring solutions including transmitters, cables, mounting hardware, and integration support.

Request a Quote: Email your machinery specifications and monitoring requirements
Technical Consultation: Speak with application engineers for sensor selection assistance
Sample Program: Evaluation units available for qualified projects
