Bently Nevada 30004-02-12-18-02 Extension Cable | 4.5m Low-Capacitance Coaxial for 3300 Proximity Monitoring

Bently Nevada 30004-02-12-18-02 Extension Cable (Industrial-Grade Proximity Monitoring Solution)

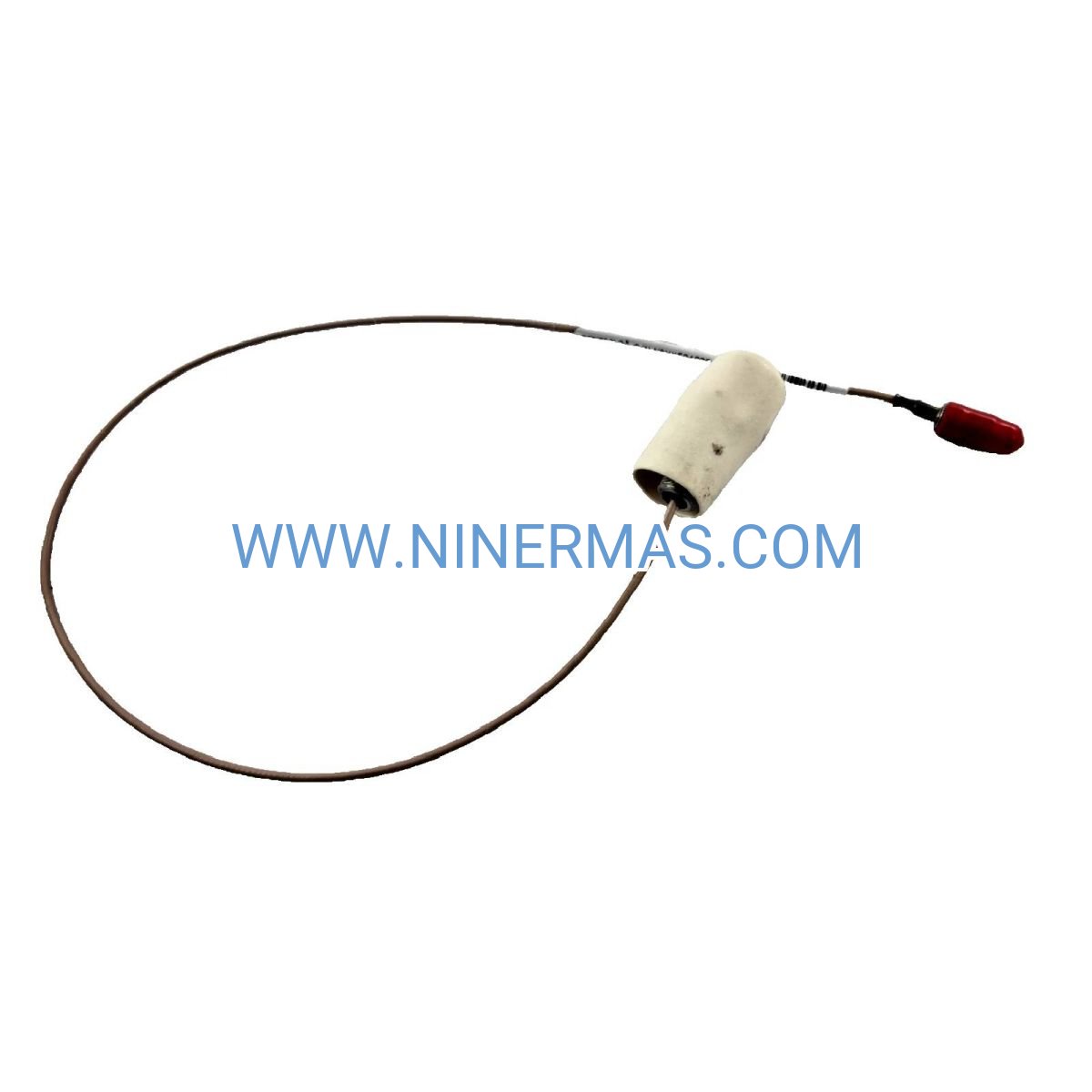

The Bently Nevada 30004-02-12-18-02 Extension Cable is a precision-engineered 4.5-meter coaxial cable designed specifically for 3300 Series proximity monitoring systems. Through factory-calibrated low-capacitance construction and shielded coaxial design, it ensures accurate signal transmission between proximity probes and monitoring modules, maintaining measurement integrity in critical rotating machinery applications.

Ideal for turbine vibration monitoring, compressor shaft displacement measurement, and industrial rotating equipment protection systems, this extension cable addresses challenges such as signal degradation over distance, electromagnetic interference in harsh industrial environments, and the need for flexible installation routing without compromising measurement accuracy.

Featuring standardized BNC connectors and API 670 compliance, the 30004-02-12-18-02 cable delivers reliable performance, easy integration with existing Bently Nevada systems, and long-term stability in demanding applications. Suitable for design engineers, maintenance teams, system integrators, and plant operators requiring certified proximity monitoring solutions. Contact our application engineers for system configuration guidance and technical specifications.

Core Features & Advantages

Factory-Calibrated Low-Capacitance Design
Precision-matched capacitance characteristics ensure accurate gap voltage measurement and minimize signal distortion, maintaining proximity probe sensitivity across the full 4.5-meter cable length for reliable vibration and displacement monitoring.

Shielded Coaxial Construction
Multi-layer shielding protects against electromagnetic interference (EMI) and radio frequency interference (RFI) commonly found in industrial environments, ensuring clean signal transmission even near high-power electrical equipment and variable frequency drives.

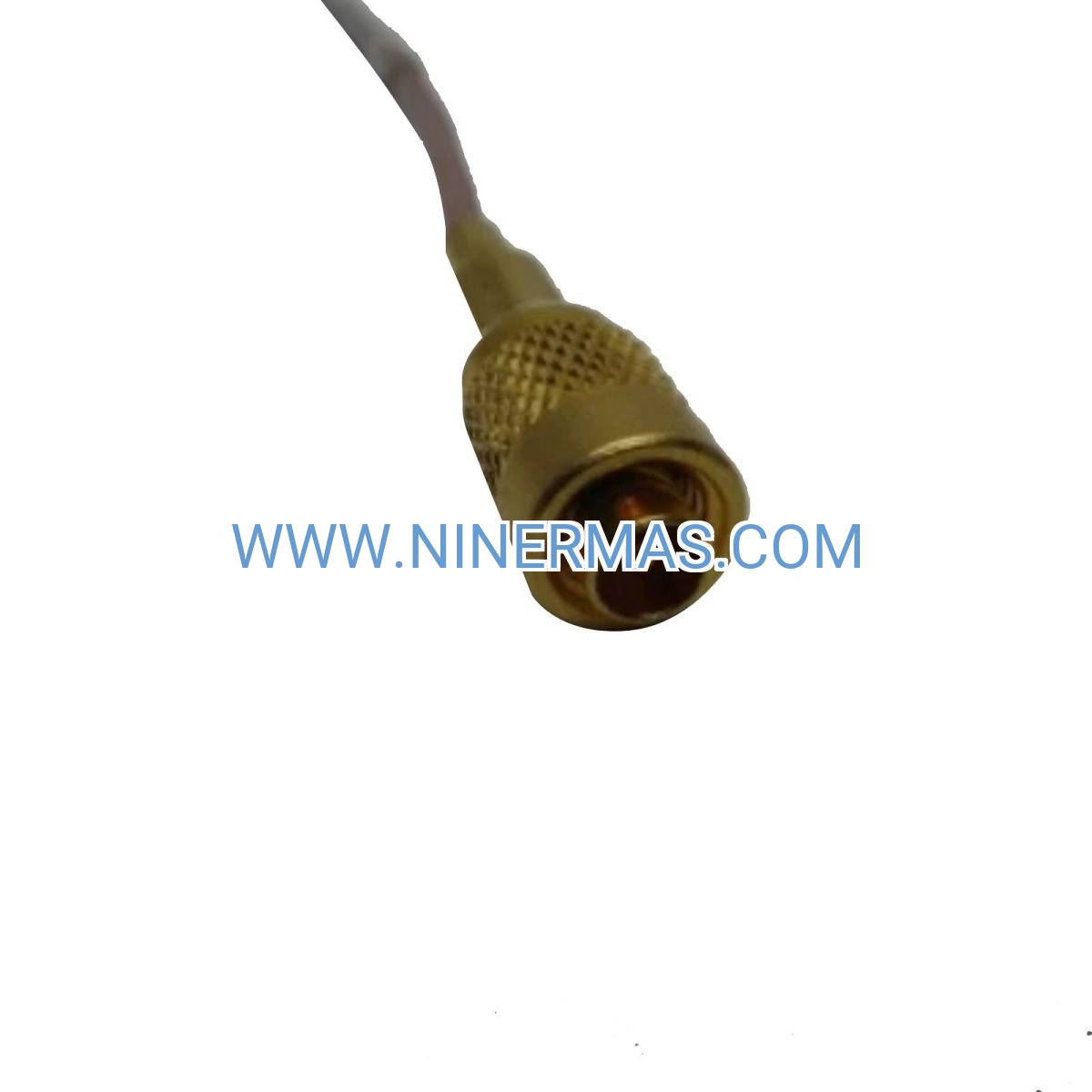

Standardized BNC Connector Interface
Industry-standard BNC connectors provide secure, quick-connect installation with positive locking mechanism, reducing installation time and ensuring consistent electrical contact for long-term reliability in vibration-prone applications.

API 670 Compliance & System Compatibility
Meets API 670 machinery protection system standards, ensuring seamless integration with Bently Nevada 3300 XL, 3300 NSv, and legacy 3300 proximity systems without requiring system recalibration or configuration changes.

Flexible Routing & Installation Versatility
The 4.5-meter length provides optimal flexibility for routing cables through cable trays, conduits, and around machinery structures while maintaining signal integrity, accommodating diverse installation layouts in turbines, compressors, and pumps.

Industrial-Grade Durability
Constructed with oil-resistant, abrasion-resistant outer jacket suitable for harsh industrial environments including temperature extremes, chemical exposure, and mechanical stress, ensuring long service life with minimal maintenance requirements.

Typical Application Scenarios

This extension cable is engineered for applications demanding high signal integrity and reliable proximity measurement, particularly in:

Steam & Gas Turbine Vibration Monitoring
Extends proximity probe signals from turbine bearing housings to monitoring racks in control rooms, enabling real-time shaft vibration and axial position monitoring for critical power generation equipment while maintaining API 670 compliance for machinery protection systems.

Centrifugal Compressor Shaft Displacement Measurement
Provides reliable signal transmission for radial and thrust position monitoring in oil & gas, petrochemical, and air separation compressor trains, supporting predictive maintenance programs and preventing catastrophic bearing failures through continuous condition monitoring.

Large Motor & Generator Rotor Monitoring
Facilitates proximity probe installation on electric motors, generators, and synchronous machines in power plants, steel mills, and mining operations, enabling early detection of rotor eccentricity, bearing wear, and shaft misalignment conditions.

Industrial Pump & Fan Vibration Analysis
Supports temporary and permanent vibration monitoring installations on critical process pumps, induced draft fans, and blowers, allowing maintenance teams to trend vibration levels and schedule interventions before equipment failure occurs.

Machinery Protection System Retrofits
Enables flexible cable routing when upgrading legacy monitoring systems or relocating monitoring equipment, accommodating existing cable tray infrastructure and maintaining system functionality during phased modernization projects.

Technical Parameters & Selection Guide

To facilitate system design and cable selection, we provide comprehensive specifications for the 30004-02-12-18-02 extension cable. Custom lengths and configurations are available for specialized applications.

Selection Considerations:
When selecting extension cables, consider: total cable system length (probe cable + extension cable should not exceed system maximum), installation routing requirements, environmental conditions (temperature, chemical exposure, mechanical stress), and connector orientation needs. For applications requiring custom lengths, multiple cable segments, or specialized connectors, consult with our application engineers who can recommend optimal configurations based on your specific monitoring system architecture.

System Integration & Configuration Options

Multi-Cable Installations: Multiple extension cables can be daisy-chained using BNC barrel connectors for extended reach applications, though total system capacitance must remain within proximitor input specifications (consult 3300 system documentation for maximum cable length guidelines).

Cable Routing Best Practices: Route cables away from high-voltage power cables and variable frequency drives to minimize EMI pickup. Use grounded metal conduit or cable tray for additional shielding in electrically noisy environments. Maintain minimum bend radius of 10× cable diameter to prevent signal degradation.

Connector Protection: For outdoor or washdown environments, consider using BNC protective caps or sealed connector housings to prevent moisture ingress and corrosion, extending cable service life in harsh conditions.

System Calibration: Extension cables are factory-calibrated and do not require field calibration when used with Bently Nevada 3300 systems. However, when replacing cables in existing installations, verify system gap voltage readings to ensure proper probe-to-target spacing is maintained.

Delivery, Service & Quality Assurance

Standard stock items ship within 1-3 business days; custom-length cables or bulk orders typically require 7-14 days lead time depending on configuration complexity and quantity. All cables include 12-month manufacturer warranty covering material defects and workmanship, with extended warranty options available for critical applications.

Each cable ships with factory test certification documenting capacitance measurements and continuity verification. Complete technical documentation including dimensional drawings, electrical specifications, and installation guidelines is provided with every order. Remote technical support and on-site installation assistance are available upon request (subject to location and project scope).

Quality Certifications: Manufactured under ISO 9001 quality management system, with full traceability for materials and production processes. Cables meet or exceed Bently Nevada original equipment specifications and API 670 requirements for machinery protection systems.

Frequently Asked Questions (FAQ)

Q: How do I connect the 30004-02-12-18-02 extension cable to my existing Bently Nevada 3300 proximity system?
A: The cable features standard BNC connectors on both ends. Simply disconnect the proximity probe cable from the proximitor input, connect the extension cable between them using the BNC twist-lock mechanism, and verify secure connection. No system reconfiguration or recalibration is required for standard installations within total cable length limits.

Q: What is the maximum total cable length I can use with Bently Nevada 3300 proximity systems?
A: Total cable system length (probe cable + extension cables) typically should not exceed 9 meters (30 feet) for 3300 XL systems and 7.6 meters (25 feet) for legacy 3300 systems, though exact limits depend on proximitor model and probe type. Consult your system documentation or contact our engineers for specific configuration guidance.

Q: Can this extension cable be used with proximity probes from other manufacturers?
A: While the cable uses standard BNC connectors, it is specifically calibrated for Bently Nevada 3300 system capacitance requirements. Using it with other manufacturers' systems may result in measurement errors. We recommend using manufacturer-specified cables for non-Bently Nevada systems to ensure accuracy.

Q: What environmental conditions can the 30004-02-12-18-02 cable withstand?
A: The cable is rated for -40°C to +85°C operating temperature with oil-resistant, abrasion-resistant jacket suitable for most industrial environments. It provides good resistance to common industrial chemicals, moisture, and mechanical wear. For extreme conditions (high radiation, continuous submersion, or corrosive atmospheres), consult our engineers for specialized cable options.

Q: Does the extension cable support remote monitoring and data acquisition systems?
A: The cable is a passive signal transmission component compatible with any Bently Nevada 3300 monitoring system configuration, including those connected to DCS, SCADA, or condition monitoring software platforms via standard proximitor outputs (4-20mA, -10 to +10V). The cable itself does not contain active electronics or communication protocols.

Q: How do I verify the cable is functioning correctly after installation?
A: After installation, verify that the proximitor displays normal gap voltage readings (typically -8 to -10 VDC for 200 mil probe-to-target gap with standard 3300 XL 8mm probes). Sudden changes in gap voltage or erratic readings may indicate connector issues, cable damage, or excessive total cable length. Use a digital multimeter to check cable continuity and shield integrity if problems are suspected.

Request Technical Support & Quotation

For detailed system configuration recommendations, custom cable specifications, or project quotations, please provide the following information: project name, application type (turbine/compressor/motor/pump), existing Bently Nevada system model, number of measurement points, required cable lengths, installation environment conditions, and any special requirements. Our application engineers will respond with tailored recommendations and competitive pricing within 24 hours.
