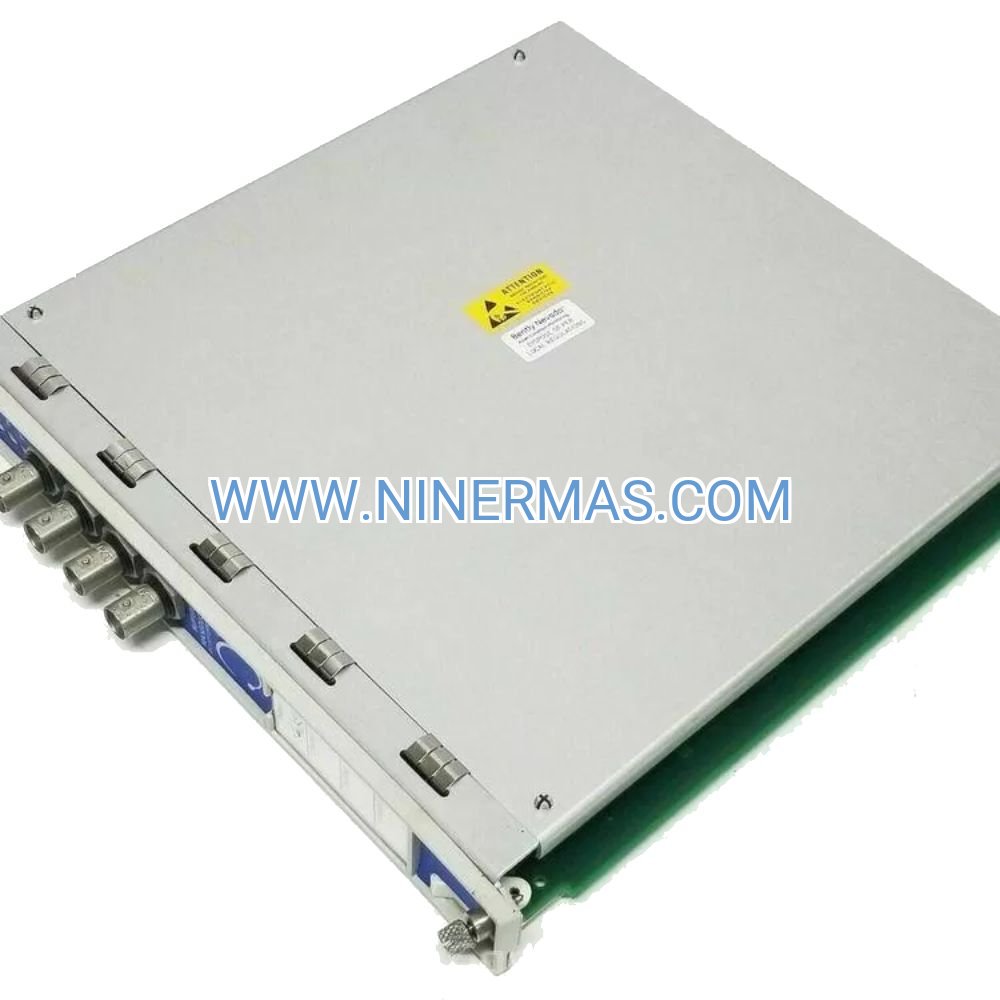

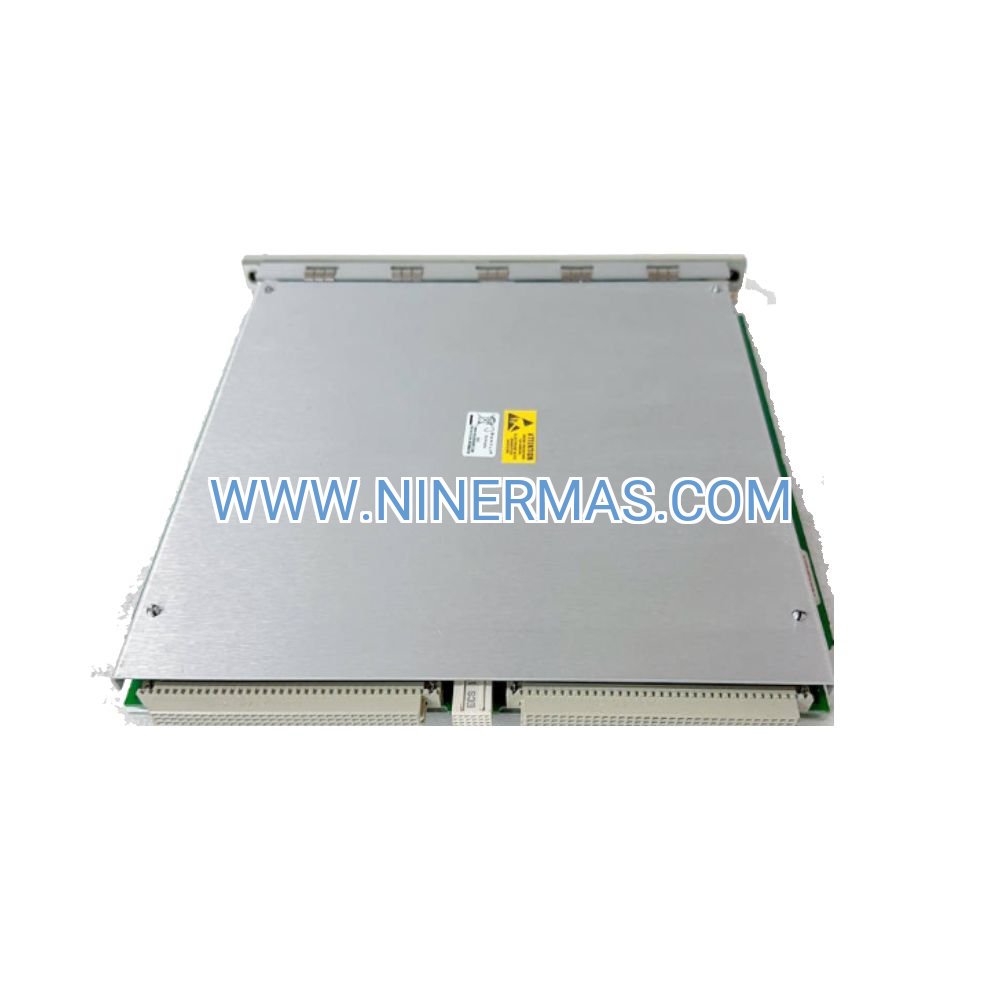

Bently Nevada 286566-01 Overspeed Detection Module (Industrial-Grade Turbomachinery Protection System)

The Bently Nevada 286566-01 Overspeed Detection Module is an industrial control device designed for critical rotating machinery protection. Through ultra-fast speed monitoring and relay-based trip activation, it delivers reliable overspeed shutdown functionality to prevent catastrophic equipment failures in turbines, compressors, and high-speed rotating systems.

Suitable for oil & gas production facilities, power generation plants, petrochemical refineries, steel mills, and industrial manufacturing environments, this module addresses critical challenges including delayed trip response, single-point failure risks, false trip incidents, and inadequate diagnostic visibility during emergency shutdown events.

Through SIL-rated dual-channel architecture and field-configurable setpoints, this product offers fast response time (typically <10ms), continuous self-diagnostics, hot-swappable maintenance capability, and seamless integration with Bently Nevada System 1 platforms. Ideal for design engineers, EPC contractors, system integrators, and plant maintenance teams. Contact our application engineers for customized protection schemes and technical specifications.

Core Functions & Advantages

Ultra-Fast Overspeed Detection
Employs dual-channel speed measurement with proximity probe or magnetic pickup inputs, continuously monitoring shaft speed and triggering relay outputs within 10 milliseconds upon setpoint breach, eliminating mechanical overspeed damage and reducing turbine blade stress.

SIL-Rated Redundant Architecture
Dual-channel design meets Safety Integrity Level (SIL) requirements for critical safety instrumented systems, providing independent voting logic that maintains protection even during single-channel sensor or electronics failure, significantly improving system availability.

Field-Configurable Protection Logic
Supports primary and secondary overspeed setpoints with independent relay outputs, adjustable hysteresis bands, and time-delay filtering via 3500 Rack Configuration Software, allowing customization for diverse machinery types from steam turbines to centrifugal compressors without hardware changes.

Comprehensive Self-Diagnostics
Continuous internal health monitoring detects sensor faults, power supply anomalies, relay coil failures, and configuration errors, with front-panel LED indication and alarm relay outputs that reduce unplanned downtime and simplify troubleshooting during commissioning and operation.

Hot-Swappable Maintenance Design
Standard 3500 rack-mount form factor enables module replacement without system shutdown or rack de-energization, minimizing maintenance windows and supporting online calibration verification, critical for continuous-process industries with high availability requirements.

Seamless System Integration
Native compatibility with Bently Nevada System 1 condition monitoring software provides centralized speed trending, event logging, and remote diagnostics via Modbus or proprietary protocols, enabling predictive maintenance strategies and regulatory compliance documentation.

Typical Application Scenarios

This module is designed for applications demanding high-reliability overspeed protection, continuous operation integrity, and compliance with safety standards, particularly in:

Steam & Gas Turbine Generator Sets
Provides primary and backup overspeed trip protection for utility-scale and industrial cogeneration turbines, meeting NFPA 85 and API 670 requirements, preventing runaway conditions during load rejection or governor failure events in power plants and combined-cycle facilities.

Centrifugal & Axial Compressor Trains
Protects high-speed compressors in natural gas processing, LNG liquefaction, and air separation plants from surge-induced overspeed, integrating with anti-surge control systems and emergency shutdown valves to safeguard multi-million dollar rotating equipment investments.

Petrochemical Process Machinery
Ensures safe operation of ethylene cracker compressors, refinery fluid catalytic cracking (FCC) blowers, and polymer production extruders, where overspeed events can trigger process upsets, product quality deviations, or hazardous material releases.

Industrial Rotating Equipment
Applicable to paper mill dryer sections, steel rolling mill drives, mining hoist systems, and marine propulsion turbines, providing cost-effective overspeed protection with minimal installation complexity and long-term spare parts availability.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standard electrical, mechanical, and environmental specifications. Custom configurations are available based on project-specific requirements.

Selection Recommendations:
When selecting overspeed detection modules, consider: maximum and minimum operating speeds, number of independent trip setpoints required, sensor type and proximity probe gap voltage, available DC power supply capacity, control room ambient temperature range, and integration requirements with existing DCS or SCADA systems. For assistance, please provide machinery nameplate data (rated speed, overspeed trip setting), sensor specifications, and application environment details. Our application engineers will recommend optimal module configuration and rack layout.

Extended Capabilities

Multi-Setpoint Protection Schemes
Configure up to two independent overspeed thresholds: primary trip (e.g., 110% rated speed) for normal shutdown and emergency trip (e.g., 112% rated speed) for backup protection, with separate relay outputs routed to different shutdown logic solvers for defense-in-depth safety architecture.

Speed Trending & Data Logging
When integrated with System 1 software, the module provides continuous speed trending with 1-second resolution, event timestamping for trip activations, and historical data storage supporting root cause analysis after emergency shutdown events or regulatory incident reporting.

Remote Monitoring & Diagnostics
Supports remote access via Ethernet-based rack communication modules, enabling off-site condition monitoring, alarm notification via email/SMS, and virtual commissioning support, reducing site visit requirements and improving response time for critical alarms.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days; custom-configured modules or large-quantity orders require 2-4 weeks. Expedited delivery available upon request.

Warranty Coverage: All modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Factory-trained application engineers provide pre-sale selection assistance, configuration file development, commissioning support (remote or on-site depending on location), and post-installation troubleshooting. Telephone and email support available during business hours (GMT+8).

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software user guide, calibration certificates (when applicable), and dimensional drawings in PDF and CAD formats, facilitating installation planning and as-built documentation.

Spare Parts & Lifecycle Support: Replacement relay modules, sensor cables, and rack accessories maintained in stock. Product lifecycle typically exceeds 15 years with ongoing firmware updates and backward compatibility with legacy 3500 rack infrastructure.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 286566-01 overspeed detection module integrate with existing turbine control systems?
A: The module accepts standard speed sensor inputs (proximity probes or magnetic pickups) and provides dry-contact relay outputs that interface directly with turbine trip solenoids, emergency shutdown logic, or DCS digital input cards. Configuration is performed via 3500 Rack Configuration Software using RS232/RS485 connection. No proprietary control system integration required—relay contacts are universally compatible.

Q: What is the maximum number of turbines or compressors one module can protect?
A: Each 286566-01 module monitors one rotating shaft (dual-channel redundant measurement). For multi-shaft machinery trains (e.g., gas turbine + driven compressor), install one module per shaft. A single 3500 rack can accommodate up to 20 modules depending on chassis size, enabling centralized protection for entire compressor stations or power generation units.

Q: What level of energy savings or efficiency improvement can overspeed protection provide?
A: Overspeed detection modules do not directly reduce energy consumption but prevent catastrophic equipment damage that results in extended downtime, emergency repairs costing $500K-$5M+, and lost production revenue. By enabling safe operation at optimal speeds without conservative derating, they indirectly support efficiency by allowing machinery to operate closer to design points.

Q: What are the installation environment requirements and enclosure protection rating?
A: The module is rated IP20 and designed for installation in climate-controlled control rooms or electrical equipment shelters. Operating temperature range is -30°C to +65°C with 5-95% RH non-condensing humidity. For harsh outdoor or hazardous area installations, house the 3500 rack in NEMA 4X or explosion-proof enclosures with appropriate climate control.

Q: Does the module support remote monitoring and data acquisition? Which communication protocols are available?
A: Yes, when installed in a 3500 rack equipped with communication interface modules (e.g., 3500/92, 3500/95), the system supports Modbus RTU, Modbus TCP/IP, and proprietary Bently Nevada protocols. This enables integration with SCADA systems, historians (OSIsoft PI, Honeywell PHD), and cloud-based condition monitoring platforms for real-time speed trending and alarm management.

Q: Can the module be configured for different overspeed trip setpoints for varying operating modes?
A: Yes, the 286566-01 supports dual independent setpoints (primary and secondary) with adjustable hysteresis and time delays. Setpoint changes require configuration software access and typically performed during planned maintenance windows. For applications requiring frequent setpoint adjustments (e.g., variable-speed drives), consider integrating with supervisory control systems that can enable/disable trip functions via hardwired permissive inputs.

Contact Us for Technical Selection & Quotation

To receive detailed application engineering support, customized protection scheme design, or commercial quotation, please provide the following information:

• Project name and application description (e.g., "Steam turbine overspeed protection for 50 MW cogeneration plant")
• Machinery type and nameplate data (rated speed, maximum continuous speed, overspeed trip setting)
• Existing speed sensor specifications (probe type, gap voltage, cable length) or sensor selection assistance required
• Number of independent trip outputs needed and shutdown logic architecture
• Site electrical specifications (DC power supply voltage, control voltage standards)
• Environmental conditions (ambient temperature range, altitude, hazardous area classification if applicable)
• Integration requirements (DCS/SCADA communication, System 1 software licensing)

Our application engineers will respond within 24 hours with technical recommendations, configuration file templates, and budget pricing. For urgent inquiries, direct phone consultation available.
