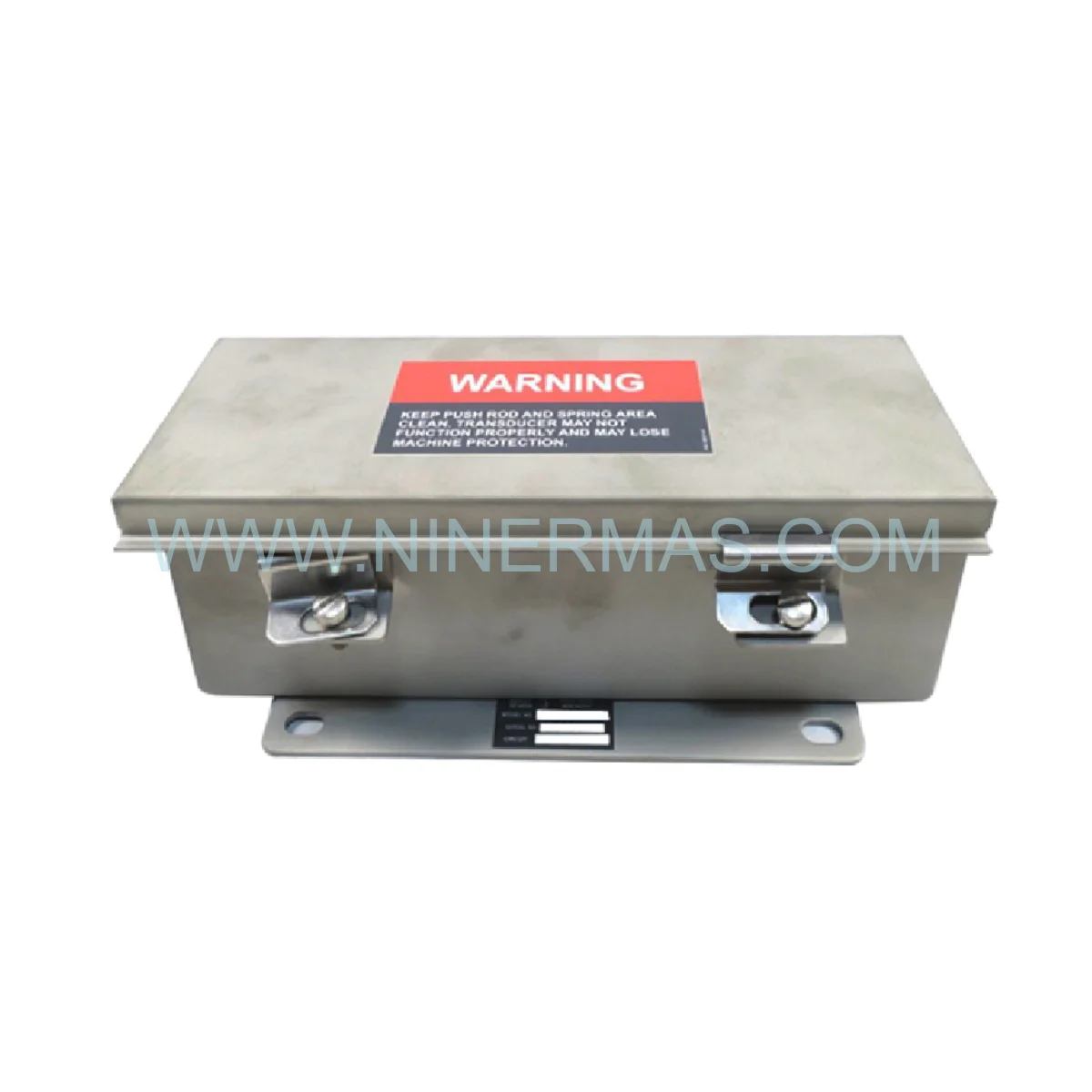

24765-02-00 DC LVDT Transducer (Industrial-Grade Case Expansion Monitor)

The 24765-02-00 is a precision-engineered DC Linear Variable Differential Transformer designed for continuous case expansion monitoring in rotating machinery. Built to withstand extreme industrial environments, this transducer delivers reliable displacement measurement for turbines, compressors, and generators where thermal expansion tracking is mission-critical.

Engineered for power generation facilities, petrochemical plants, and heavy manufacturing operations, this sensor addresses the challenge of detecting differential expansion before it leads to catastrophic equipment failure. Plant engineers and maintenance teams rely on its consistent performance to protect multi-million-dollar assets and maintain operational continuity.

With factory calibration, OEM-grade construction, and proven compatibility with Bently Nevada monitoring ecosystems, the 24765-02-00 reduces commissioning time while ensuring measurement accuracy that meets the most stringent industrial standards.

Core Features & Benefits

→ Extended Measurement Range: 50.8 mm (2.00 in) linear displacement capability captures full thermal expansion cycles during startup, steady-state operation, and shutdown sequences.

→ High-Precision Output: 0.404 V/mm (10.25 V/in) scale factor with ±0.5% full-range linearity ensures accurate data for condition-based maintenance algorithms and protection system logic.

→ Rapid Response Time: 15 Hz frequency response (-3 dB) detects transient expansion events during load changes and thermal transients, enabling early fault detection.

→ Long-Term Stability: 0.125% full-scale drift specification maintains calibration integrity across extended service intervals, reducing recalibration costs and downtime.

✓ Industrial Hardened Design: Operates reliably from -18°C to +71°C with EMC compliance (EN 61000-6-2/6-4), surviving electromagnetic interference, vibration, and contamination common in industrial settings.

✓ Plug-and-Play Integration: Direct compatibility with Bently Nevada 3500 and 3300 series monitoring systems eliminates custom interface requirements and accelerates installation.

Application Scenarios

Steam Turbine Protection Systems
In combined-cycle power plants, differential expansion between the turbine rotor and casing can indicate bearing wear, misalignment, or thermal distortion. The 24765-02-00 provides continuous monitoring that triggers alarms before clearances close, preventing blade rubs and unplanned outages that cost $500K+ per day.

Gas Turbine Startup Monitoring
During rapid temperature changes in aero-derivative gas turbines, uneven thermal growth can cause rotor-to-stator contact. This transducer tracks expansion patterns in real-time, allowing operators to adjust ramp rates and prevent damage to hot gas path components valued at millions of dollars.

Centrifugal Compressor Health Management
In LNG facilities and petrochemical plants, compressor case expansion anomalies signal bearing degradation, seal leakage, or foundation settling. Early detection through continuous LVDT monitoring enables planned maintenance windows instead of emergency shutdowns that disrupt production schedules.

Large Generator Condition Monitoring
Hydroelectric and thermal power generators experience thermal expansion during load cycling. Monitoring case growth relative to the rotor helps identify cooling system failures, bearing temperature rise, and alignment drift—critical factors for maintaining grid reliability and avoiding forced outages.

Industrial Pump Thermal Analysis
High-temperature process pumps in refineries and chemical plants undergo significant thermal expansion. The 24765-02-00 enables engineers to verify design assumptions, optimize clearances, and detect abnormal thermal behavior that precedes seal failures and unplanned maintenance.

Technical Parameters & Selection Guide

Selection Criteria: When specifying this transducer, verify that your expected thermal expansion falls within the 50.8 mm range with adequate margin. For applications requiring faster response (>15 Hz), consider accelerometer-based solutions. Ensure your monitoring system accepts the 0.404 V/mm output scaling or plan for signal conditioning. Confirm ambient temperature at the mounting location remains within the -18°C to +71°C operating window.

Extended Functionality

IoT Integration Capability: When paired with Bently Nevada Orbit 60 or System 1 software platforms, measurement data streams to cloud-based analytics engines for machine learning-driven anomaly detection and fleet-wide benchmarking.

Redundant Monitoring Configurations: Deploy dual transducers in critical applications for 2oo2 voting logic, ensuring continued protection even during single-sensor failures or maintenance activities.

Customization Options: Available with extended cable lengths, alternative mounting brackets, and special calibration ranges for unique applications—consult factory for lead times and minimum order quantities.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance. Bulk orders (10+ units) ship within 7-10 business days.

Custom Configurations: Special cable lengths or mounting adaptations require 4-6 weeks manufacturing lead time with factory coordination.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions as defined in product specifications.

Technical Support: Access to application engineers for installation guidance, troubleshooting assistance, and integration support via email, phone, and remote diagnostics.

Documentation Package: Each unit ships with calibration certificate, dimensional drawings, wiring diagrams, and integration guides for common monitoring platforms.

Frequently Asked Questions

Q: How does this LVDT transducer interface with existing Bently Nevada monitoring systems?
A: The 24765-02-00 connects directly to Bently Nevada 3300 XL and 3500 series monitor inputs via standard coaxial cabling. The 0.404 V/mm output scaling is factory-configured for these systems, requiring only basic setup parameters in the monitoring software. No external signal conditioning is needed for standard installations.

Q: What measurement range should I specify for steam turbine case expansion monitoring?
A: Most industrial steam turbines exhibit 25-40 mm of differential expansion during normal startup cycles. The 50.8 mm range of this transducer provides adequate margin for transient conditions and abnormal events. For turbines with known expansion exceeding 45 mm, consult factory for extended-range options.

Q: Can this transducer reduce energy costs through improved monitoring accuracy?
A: Precise expansion monitoring enables tighter clearance control, reducing steam leakage past seals and improving turbine efficiency by 0.5-1.5%. In a 500 MW plant, this translates to $200K-$600K annual fuel savings. Additionally, early fault detection prevents catastrophic failures that cause extended outages and lost generation revenue.

Q: What installation requirements must be met for accurate case expansion measurement?
A: The transducer requires rigid mounting to the stationary casing with the core contacting the moving reference point (typically the rotor or bearing housing). Mounting surfaces must be flat within 0.05 mm, and alignment should be verified to ensure axial measurement without side loading. Ambient temperature at the sensor location should remain below 71°C.

Q: Does the 24765-02-00 support remote monitoring and predictive maintenance programs?
A: Yes—when integrated with Bently Nevada System 1 or third-party SCADA platforms, the transducer output feeds real-time dashboards, trend analysis tools, and machine learning algorithms. This enables remote diagnostics, automated alarm generation, and predictive maintenance scheduling based on expansion pattern deviations.

Q: How often does this industrial transducer require recalibration in continuous service?
A: The 0.125% full-scale stability specification supports 12-24 month calibration intervals in typical industrial environments. Applications with extreme temperature cycling or high vibration may benefit from annual verification. Factory recalibration services are available with 5-7 day turnaround including shipping.

Take the Next Step

Protect your critical rotating equipment with proven measurement technology. Contact our application engineering team for technical consultation, system integration guidance, or volume pricing. Request a detailed datasheet, CAD models, or schedule a remote demonstration of the 24765-02-00 in action.

Ready to order? Add to cart for immediate checkout, or reach out for custom configurations and bulk discounts on multi-unit deployments.
