Bently Nevada 24710-085-01 Transducer Cable Assembly | 3300/3500 Monitoring Systems | OEM Quality

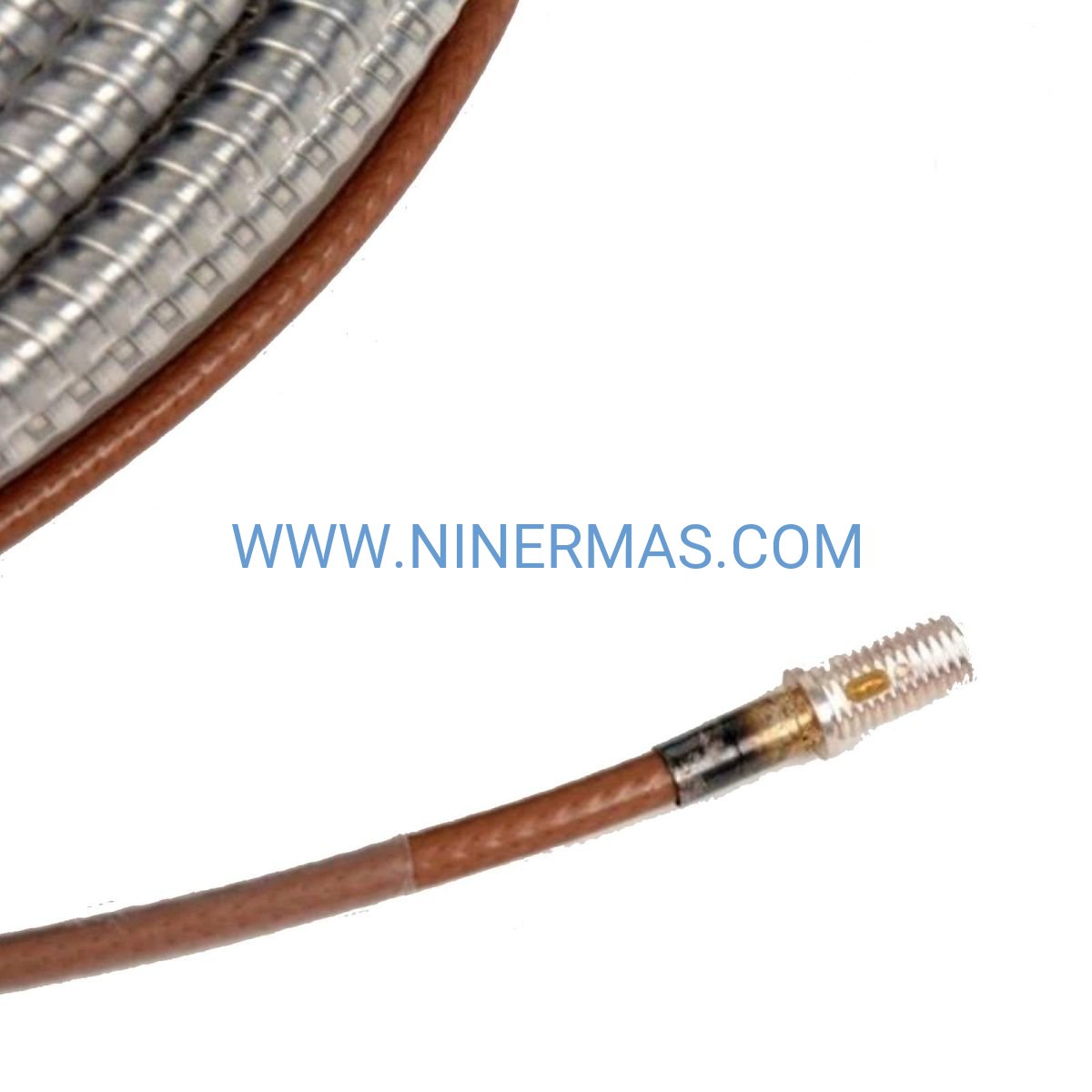

Bently Nevada 24710-085-01 Transducer Cable Assembly (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 24710-085-01 Transducer Cable Assembly is a precision-engineered interconnect solution designed for seamless integration with 3300 and 3500 series vibration monitoring systems. Through advanced EMI shielding technology and ruggedized construction, this cable ensures reliable signal transmission in harsh industrial environments, delivering accurate vibration data for critical rotating machinery protection.

Ideal for power generation plants, petrochemical facilities, oil & gas refineries, steel mills, and heavy manufacturing operations, this cable assembly addresses common challenges including electromagnetic interference, signal degradation, environmental exposure, and installation complexity in mission-critical monitoring applications.

Engineered with API 670 compliance and factory-tested quality assurance, the 24710-085-01 offers superior noise immunity, extended temperature tolerance, flexible routing capability, and plug-and-play compatibility. Suitable for instrumentation engineers, maintenance teams, system integrators, and plant reliability managers seeking dependable connectivity for condition monitoring infrastructure. Contact our technical specialists for application-specific cable length selection and system integration guidance.

Core Features & Technical Advantages

• Superior EMI/RFI Shielding Performance
  Multi-layer braided shield construction provides >90dB electromagnetic interference rejection, ensuring clean signal integrity even in electrically noisy industrial environments with VFDs, motors, and high-voltage equipment.
• Extended Operating Temperature Range
  Rated for continuous operation from -40°C to +105°C (-40°F to +221°F), suitable for extreme ambient conditions in outdoor installations, turbine enclosures, and high-temperature process areas without signal drift or insulation degradation.
• API 670 Compliance & Industry Standards
  Fully compliant with API 670 machinery protection system requirements, meeting stringent specifications for cable capacitance, shield effectiveness, and mechanical durability demanded by critical rotating equipment applications.
• Robust Mechanical Construction
  Features industrial-grade connectors with positive locking mechanisms, abrasion-resistant outer jacket, and strain relief design that withstands vibration, flexing, and mechanical stress during installation and long-term service.
• Plug-and-Play System Integration
  Factory-terminated with precision connectors matched to Bently Nevada 3300/3500 proximitor sensors and monitor racks, eliminating field wiring errors and reducing installation time by up to 60% compared to field-assembled alternatives.
• Low Signal Loss & Capacitance Control
  Engineered with controlled impedance and minimal capacitance loading to preserve high-frequency vibration signal fidelity, critical for accurate detection of bearing defects, unbalance, misalignment, and other machinery faults.

Typical Application Scenarios

This transducer cable assembly is engineered for demanding industrial environments where vibration monitoring reliability directly impacts equipment uptime and safety, including:

• Power Generation & Turbomachinery
  Connects proximity probes to monitoring systems on steam turbines, gas turbines, generators, and compressors in power plants, ensuring continuous protection of high-value rotating assets operating at critical speeds.
• Oil & Gas Production Facilities
  Provides reliable signal transmission in offshore platforms, refineries, and pipeline compressor stations where electromagnetic interference from motors and VFDs can compromise conventional cabling, meeting API standards for safety-critical applications.
• Petrochemical & Process Industries
  Supports vibration monitoring of pumps, blowers, centrifuges, and agitators in chemical plants and refineries, withstanding exposure to temperature extremes, moisture, and corrosive atmospheres while maintaining measurement accuracy.
• Steel Mills & Heavy Manufacturing
  Enables condition monitoring of rolling mills, crushers, conveyors, and large motors in harsh industrial settings with high ambient noise, dust, and mechanical vibration that would degrade standard instrumentation cables.
• Marine Propulsion & Auxiliary Systems
  Facilitates machinery health monitoring on ships, offshore vessels, and marine platforms where salt spray, humidity, and constant vibration demand ruggedized interconnect solutions with proven long-term reliability.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the 24710-085-01 cable assembly is designed with the following key specifications:

Selection Recommendations: When specifying cable assemblies, consider maximum routing distance between proximitor and monitor rack, ambient temperature extremes, presence of electromagnetic interference sources, mechanical protection requirements, and future system expansion needs. For installations exceeding standard cable lengths or requiring special environmental protection, consult our engineering team with site-specific parameters including routing path details, conduit specifications, and electrical noise environment assessment.

Installation Best Practices & System Integration

• Routing & Separation: Maintain minimum 300mm (12") separation from power cables and VFD wiring; use dedicated cable trays or conduit where possible to minimize EMI pickup.
• Connector Care: Inspect connector pins and sockets before mating; ensure positive locking engagement and apply dielectric grease to outdoor connections for moisture protection.
• Strain Relief: Secure cables at regular intervals using appropriate clamps; avoid sharp bends or tension on connectors that could compromise shield integrity or mechanical reliability.
• Grounding Protocol: Follow Bently Nevada grounding guidelines for shield termination; improper grounding can create ground loops or reduce noise immunity effectiveness.
• Documentation: Label both ends of cable with asset tag and routing information; maintain as-built drawings showing cable runs for future troubleshooting and maintenance planning.

Delivery, Quality Assurance & Technical Support

Stock Availability: OEM-certified 24710-085-01 cable assemblies are maintained in inventory for immediate shipment; standard orders typically ship within 1-3 business days. Custom-length configurations and bulk orders require 7-15 days lead time depending on specifications and quantity.

Quality Guarantee: Each cable assembly undergoes factory testing for continuity, insulation resistance, and shield effectiveness before shipment. Products are backed by a comprehensive 12-month warranty covering materials and workmanship defects, with extended warranty options available for critical applications.

Technical Resources: Complete installation documentation package includes dimensional drawings, pinout diagrams, routing guidelines, and compatibility matrices. Our applications engineering team provides remote consultation for system design review, troubleshooting support, and integration assistance at no additional charge.

Compliance Certification: All units ship with certificate of conformance documenting API 670 compliance, material traceability, and test data. Additional certifications (ATEX, IECEx, material certificates) available upon request for regulated industries.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 24710-085-01 cable integrate with existing 3300 and 3500 monitoring systems?
A: The 24710-085-01 features factory-terminated connectors that directly mate with standard Bently Nevada proximitor sensors on one end and monitor rack input modules on the other, ensuring plug-and-play compatibility. Verify your specific sensor and rack model numbers to confirm connector compatibility; our team can cross-reference part numbers if needed.

Q: What is the maximum recommended cable length for maintaining signal integrity in vibration monitoring applications?
A: While the 24710-085-01 is available in various lengths, typical installations use 5-9 meter (16-30 foot) runs. For distances exceeding 9 meters, consult factory guidelines regarding capacitance loading effects on sensor output. Custom longer assemblies can be engineered with impedance compensation if required by site layout.

Q: Can this transducer cable withstand outdoor installation and exposure to industrial chemicals or moisture?
A: Yes, the cable jacket is designed for industrial environments with resistance to oils, coolants, and moisture. The -40°C to +105°C rating covers most outdoor climates. For direct burial, continuous submersion, or exposure to specific aggressive chemicals, contact our engineering team to verify compatibility or specify enhanced protection options.

Q: What EMI shielding performance can I expect in high-noise environments with variable frequency drives?
A: The multi-layer braided shield provides >90dB electromagnetic interference rejection across the frequency spectrum typical of VFDs, motors, and switching power supplies. Proper installation with correct shield grounding and physical separation from power cables is essential to achieve rated performance. We can provide application notes for particularly challenging EMI environments.

Q: Is the 24710-085-01 cable assembly compatible with third-party vibration monitoring systems or only Bently Nevada equipment?
A: This cable is specifically engineered for Bently Nevada 3300/3500 series systems with proprietary connector configurations and electrical characteristics. Using it with non-Bently equipment may result in connector mismatch or improper signal conditioning. For integration with other monitoring platforms, consult our team regarding adapter solutions or alternative cable specifications.

Q: Does the cable support remote monitoring and digital communication protocols like Modbus or HART?
A: The 24710-085-01 is an analog signal cable designed to transmit proximitor sensor outputs to monitoring system inputs. Digital communication and remote monitoring capabilities are provided by the 3500 series monitor rack modules (such as 3500/22M with Ethernet or serial interfaces), not the transducer cable itself. The cable ensures high-fidelity analog signal delivery to enable accurate digital processing downstream.

Request Technical Consultation & Custom Quotation

For detailed application engineering support, custom cable length specifications, or volume pricing, please provide the following project information to our technical sales team:

• Project name and application type (turbine monitoring, pump protection, etc.)
• Bently Nevada system model (3300 XL, 3500/42M, etc.) and firmware version
• Number of measurement points and total cable assemblies required
• Required cable lengths and routing environment (conduit, cable tray, outdoor, etc.)
• Ambient temperature range and EMI environment assessment
• Delivery timeline and any special certification requirements

Our applications engineers will provide one-on-one consultation to ensure optimal cable selection, proper system integration, and compliance with your project specifications and industry standards.
