Bently Nevada 24710-080-01 Transducer Cable Assembly | API 670 Certified | Industrial Vibration Monitoring

Bently Nevada 24710-080-01 Transducer Cable Assembly (API 670 Certified Industrial Vibration Monitoring Solution)

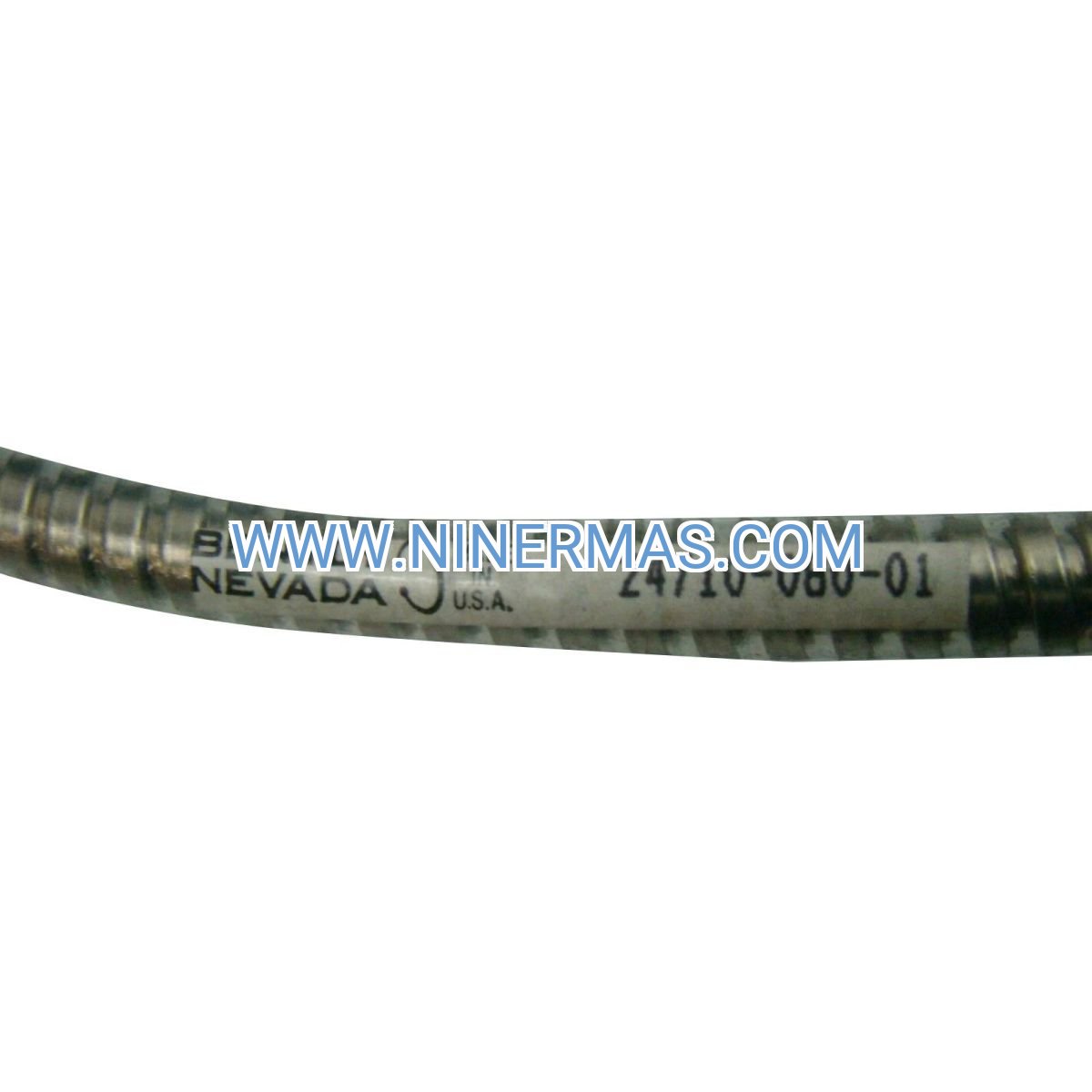

The Bently Nevada 24710-080-01 Transducer Cable Assembly is a factory-terminated, high-reliability interconnect solution designed for proximity probe monitoring systems. Through precision manufacturing and API 670 compliance, it ensures stable signal transmission, electromagnetic interference resistance, and long-term durability in harsh industrial environments.

Ideal for turbomachinery condition monitoring, rotating equipment protection, and critical asset surveillance applications—including power generation plants, oil & gas facilities, petrochemical refineries, steel mills, and paper manufacturing operations. This cable assembly addresses common challenges such as signal degradation, installation complexity, field termination errors, and environmental exposure risks.

Engineered with standardized design and field-proven performance, the 24710-080-01 offers plug-and-play installation, IP65 environmental protection, and full API 670 machinery protection compliance—making it the preferred choice for instrumentation engineers, maintenance teams, system integrators, and OEM equipment manufacturers. Contact our application engineers for cable length customization, connector configuration guidance, and technical specifications.

Core Features & Advantages

• API 670 Certified Compliance
  Meets API 670 machinery protection system standards for vibration and position monitoring, ensuring regulatory compliance and insurance approval for critical rotating equipment installations.
• Factory-Terminated Precision
  Pre-assembled with calibrated connectors and shielded construction, eliminating field termination errors, reducing installation time by up to 60%, and guaranteeing consistent signal integrity across all cable assemblies.
• Superior Signal Integrity
  Low-capacitance coaxial design with triple-layer shielding (foil + braid + drain wire) maintains signal fidelity over extended cable runs, minimizing noise interference and false trip events in proximity monitoring systems.
• Rugged Environmental Protection
  IP65-rated connectors with industrial-grade insulation withstand temperature extremes (-40°C to +85°C), vibration, moisture, chemical exposure, and UV radiation—ideal for outdoor installations and harsh process environments.
• Proven Interoperability
  100% compatible with Bently Nevada 3300 XL, 3500 series monitors, and legacy Proximitor systems. Supports seamless integration with existing infrastructure, reducing retrofit costs and system downtime.
• Extended Service Life
  Constructed with aerospace-grade materials and strain relief design, the cable assembly delivers 10+ years of maintenance-free operation, reducing total cost of ownership and unplanned maintenance interventions.

Typical Application Scenarios

The 24710-080-01 transducer cable assembly is engineered for demanding industrial environments where continuous machinery monitoring and protection are mission-critical:

• Power Generation & Turbomachinery
  Connects proximity probes to monitor shaft vibration, axial position, and eccentricity in steam turbines, gas turbines, generators, and compressor trains. Ensures compliance with NERC reliability standards and prevents catastrophic equipment failures.
• Oil & Gas Production Facilities
  Provides reliable signal transmission in offshore platforms, FPSO vessels, and onshore processing plants where exposure to saltwater, hydrocarbons, and extreme temperatures demands industrial-grade cable assemblies with proven track records.
• Petrochemical & Refining Operations
  Supports continuous monitoring of pumps, blowers, centrifuges, and rotating kilns in hazardous area classifications (Class I Div 2 / Zone 2), maintaining process safety and regulatory compliance per API, IEC, and ATEX standards.
• Steel & Metal Processing
  Withstands high-vibration environments in rolling mills, blast furnaces, and material handling systems, delivering consistent performance despite electromagnetic interference from variable frequency drives and arc furnaces.
• Pulp & Paper Manufacturing
  Ensures reliable operation in high-humidity, corrosive environments with exposure to chemical vapors and temperature cycling, protecting critical assets such as paper machine dryers, refiners, and vacuum pumps.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive technical parameters for the 24710-080-01 cable assembly. Custom configurations are available to meet project-specific requirements.

Selection Recommendations: When specifying cable assemblies, consider the following factors: probe-to-monitor distance, routing path constraints, connector orientation requirements, environmental exposure classification, and existing system compatibility. For installations exceeding 15 meters, consult our application engineers to evaluate signal conditioning requirements and cable capacitance impact on system performance. Provide site layout drawings and equipment datasheets for optimized cable assembly configuration.

Extended Capabilities & Customization Options

• Custom Cable Lengths: Available in 1-meter increments from 3m to 30m to accommodate site-specific installation requirements and minimize excess cable management.
• Connector Variations: Alternative connector types including right-angle configurations, armored cable glands, and explosion-proof fittings for hazardous area installations (ATEX / IECEx certified).
• Integrated Grounding: Enhanced grounding configurations with isolated shield terminations for applications requiring strict EMI/RFI rejection and ground loop elimination.
• Color-Coded Identification: Custom cable jacket colors and laser-etched labeling for multi-channel systems, simplifying installation, troubleshooting, and maintenance documentation.
• Pre-Installation Testing: Factory acceptance testing (FAT) with calibration certificates, insulation resistance reports, and continuity verification per customer specifications.

Delivery, Service & Quality Assurance

Lead Time: Standard 24710-080-01 configurations ship within 3–5 business days from stock. Custom cable assemblies require 10–15 business days for manufacturing and testing.

Warranty Coverage: All cable assemblies include a 12-month manufacturer's warranty covering material defects and workmanship. Extended warranty programs available for critical applications.

Technical Support: Our application engineering team provides remote consultation for cable routing design, system integration troubleshooting, and field installation guidance. On-site commissioning support available in select regions (subject to project scope and location).

Documentation Package: Each cable assembly ships with a complete technical data package including dimensional drawings, electrical schematics, connector pinout diagrams, installation instructions, and material traceability certificates (MTR) for quality assurance and asset management systems.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities with full material traceability. Compliant with API 670, IEC 61508 (SIL 2), RoHS, and REACH directives. Third-party testing reports available upon request.

Frequently Asked Questions (FAQ)

Q: How do I connect the Bently Nevada 24710-080-01 transducer cable to my existing proximity monitoring system?
A: The 24710-080-01 features factory-terminated connectors compatible with Bently Nevada 3300 XL and 3500 series monitors. The probe end uses a standard bayonet connector that threads directly onto 8mm proximity probes (Bently Nevada 330xxx series). The monitor end typically terminates with BNC or MIL-C-5015 connectors depending on your monitor model. Verify your monitor input connector type before ordering—our team can provide connector adaptation solutions if needed.

Q: What is the maximum cable length supported for proximity probe applications?
A: Standard cable assemblies are available up to 30 meters. For installations exceeding 15 meters, cable capacitance becomes a critical factor affecting probe sensitivity and linearity. We recommend consulting our application engineers to evaluate system performance—in some cases, signal conditioning or barrier modules may be required to maintain API 670 compliance and measurement accuracy.

Q: What energy savings or performance improvements can I expect with this cable assembly?
A: While the cable itself does not directly reduce energy consumption, its superior signal integrity and reliability prevent false trips and unplanned shutdowns—which can cost $50,000–$500,000 per event in lost production, depending on your industry. By eliminating signal noise and connection failures, the 24710-080-01 improves machinery protection system availability and reduces maintenance labor by up to 40% compared to field-terminated alternatives.

Q: What are the environmental requirements for installing this transducer cable assembly?
A: The 24710-080-01 is rated IP65 for dust and water jet protection, suitable for outdoor installations and wash-down environments. Operating temperature range is -40°C to +85°C. For installations in hazardous areas (Class I Div 2 / Zone 2), ensure proper cable gland selection and grounding per local electrical codes. Avoid routing cables parallel to high-voltage power lines or VFD motor cables—maintain minimum 300mm separation to prevent electromagnetic interference.

Q: Does the cable support remote monitoring and data acquisition protocols like Modbus or OPC?
A: The 24710-080-01 is an analog signal cable that transmits proximity probe signals (typically -10 to -2 VDC gap voltage) to Bently Nevada monitors. Digital communication and remote monitoring capabilities depend on your monitor model—3500 series monitors support Modbus, proprietary protocols, and integration with DCS/SCADA systems via communication gateways. Contact us for system architecture recommendations if you require remote diagnostics and predictive maintenance integration.

Q: Can I use this cable assembly with non-Bently Nevada proximity probes or monitors?
A: While the 24710-080-01 is optimized for Bently Nevada systems, it can be adapted for use with other 8mm eddy current proximity probes and monitors that meet similar electrical specifications (capacitance, impedance, voltage). However, API 670 compliance and warranty coverage apply only when used with approved Bently Nevada equipment. For third-party system integration, provide equipment datasheets for compatibility verification.

Request Technical Support & Custom Quotation

To receive a detailed cable assembly selection guide, project-specific pricing, or application engineering support, please provide the following information:

• Project name and application description (equipment type, monitoring objectives)
• Required cable length and quantity
• Proximity probe model number and monitor system type
• Environmental conditions (temperature range, hazardous area classification, exposure to chemicals/moisture)
• Installation constraints (cable routing path, connector orientation, mounting requirements)
• Delivery timeline and project schedule

Our application engineers will provide one-on-one consultation, system integration recommendations, and certified documentation to support your machinery protection and condition monitoring initiatives.
