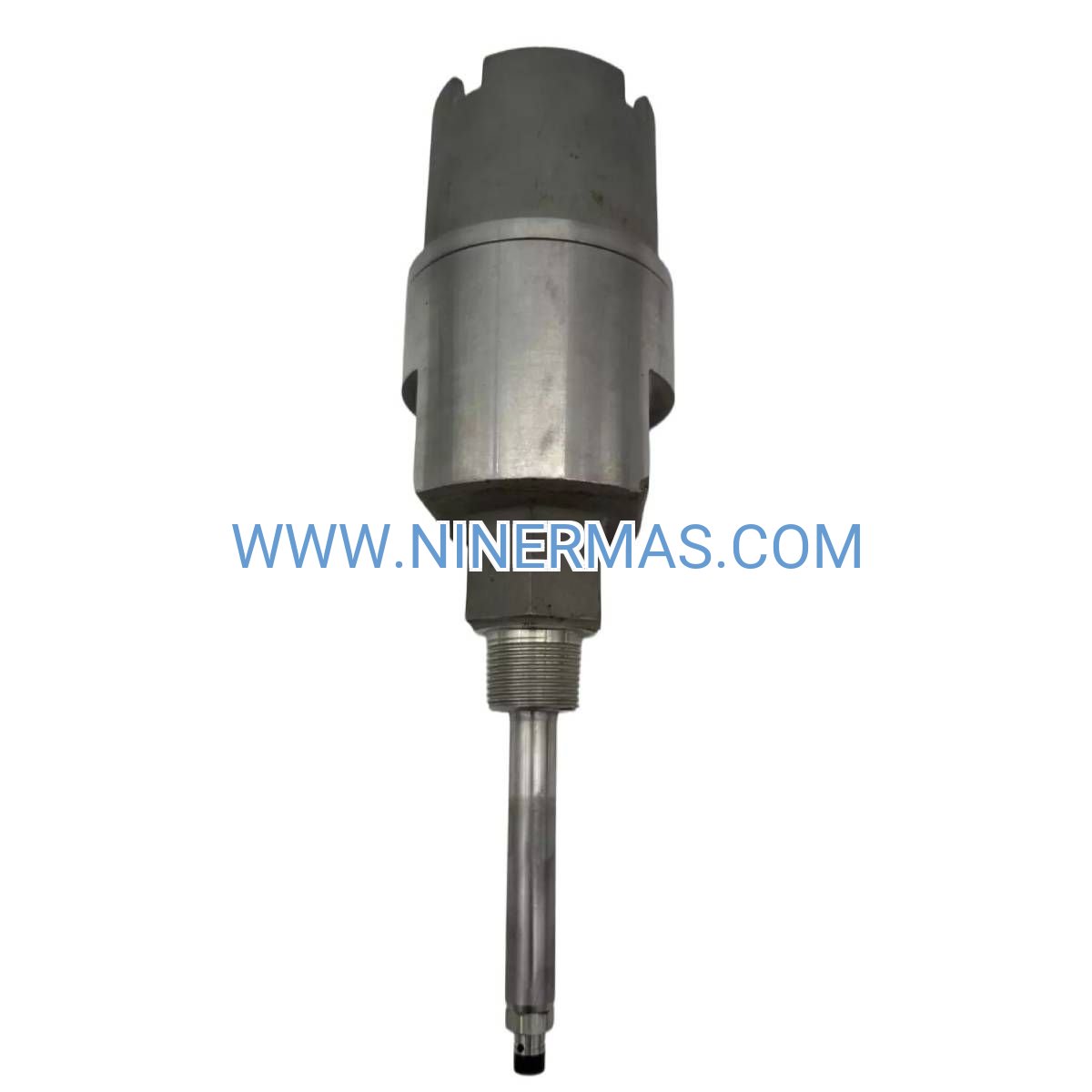

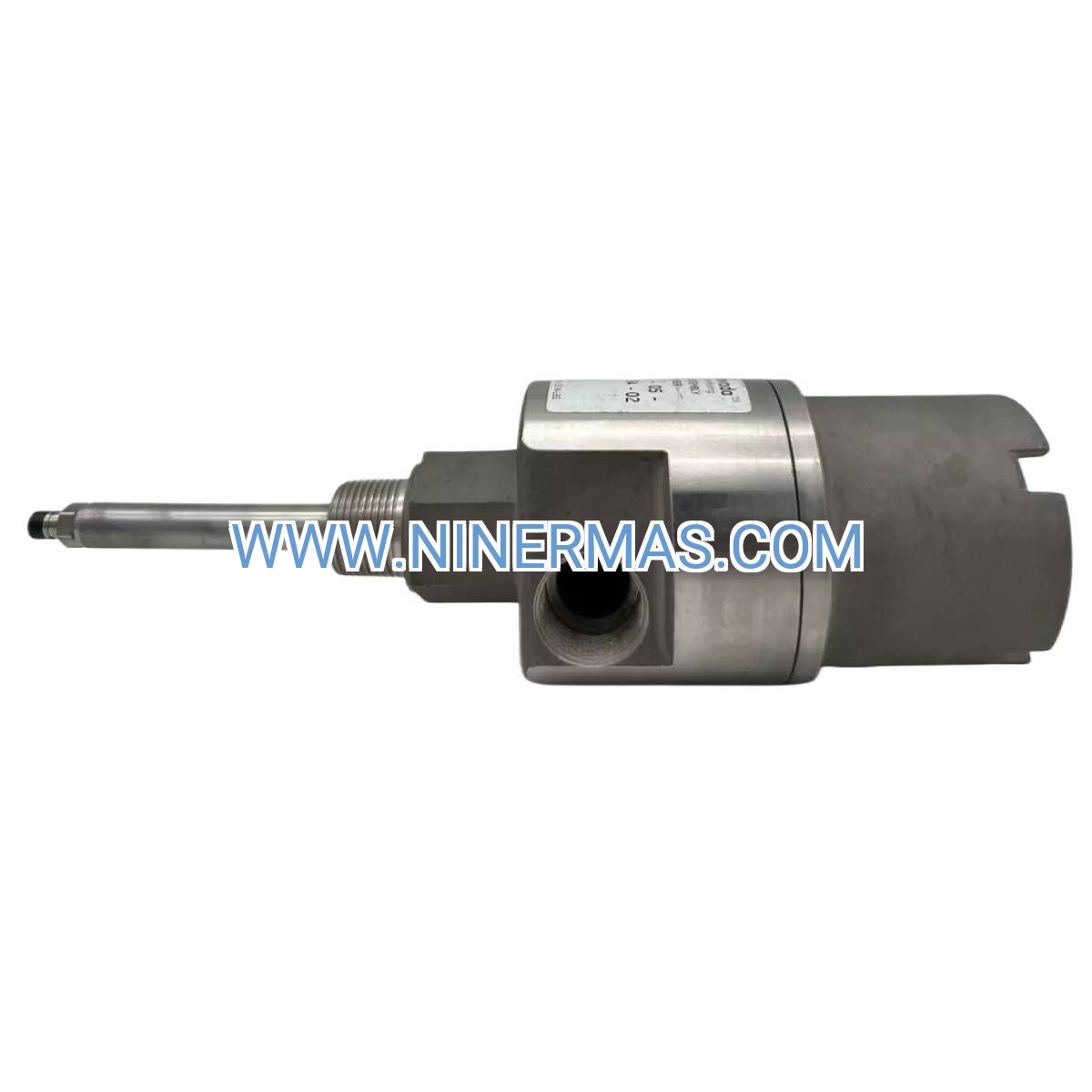

24701-28-10-00-040-00-02 Proximity Sensor Housing (Industrial-Grade External Mount)

The Bently Nevada 24701-28-10-00-040-00-02 represents a mission-critical component in turbomachinery condition monitoring systems, delivering precision-engineered protection for 8mm proximity transducers in the harshest industrial environments. This external mounting housing assembly combines API 670-compliant design with IP65 environmental sealing, ensuring reliable vibration measurement across power generation, oil & gas, and heavy manufacturing sectors.

Engineered for rotating equipment protection, this housing eliminates common failure modes associated with sensor exposure—moisture ingress, thermal drift, and mechanical misalignment—while maintaining measurement accuracy within ±0.5% across its full operating temperature range of -40°C to +85°C. The 28mm threaded interface provides secure mechanical coupling to turbine casings, bearing pedestals, and custom mounting brackets without requiring specialized installation tools.

Industrial operators choose the 24701-28-10-00-040-00-02 for its proven compatibility with Bently Nevada 3300 XL monitoring platforms, factory-verified dimensional tolerances, and comprehensive 12-month warranty coverage. Whether retrofitting legacy systems or commissioning new installations, this housing delivers the reliability demanded by API machinery protection standards.

Technical Advantages & Performance Benefits

→ Environmental Resilience: IP65-rated enclosure shields proximity sensors from water jets, airborne particulates, and corrosive atmospheres—extending sensor lifespan by 3-5 years in offshore and chemical processing applications

→ Thermal Stability: Wide -40°C to +85°C operating window maintains calibration accuracy across seasonal temperature swings and process upsets, eliminating false trip events caused by thermal expansion

→ Precision Alignment: Factory-machined mounting surfaces ensure probe concentricity within 0.05mm, critical for accurate shaft displacement measurements in high-speed turbomachinery (>10,000 RPM)

→ Corrosion Resistance: Stainless steel construction withstands exposure to hydrogen sulfide, chlorides, and acidic condensates common in petrochemical and marine environments

→ Retrofit Compatibility: Standard 28mm thread pitch matches legacy Bently Nevada installations, reducing downtime during sensor upgrades or housing replacements to under 30 minutes per location

→ Compliance Assurance: Meets API 670 machinery protection system requirements and ISO 20816 vibration severity standards, satisfying insurance and regulatory inspection criteria

Industrial Application Scenarios

✓ Steam Turbine Generator Sets (Power Plants)
Challenge: Continuous vibration monitoring of 3600 RPM turbine-generator shafts in coal, gas, and nuclear facilities where unplanned outages cost $500K-$2M per day
Solution: The 24701-28-10-00-040-00-02 housing protects proximity probes measuring radial shaft displacement at journal bearings, enabling early detection of rub conditions, bearing wear, and rotor imbalance before catastrophic failure

✓ Centrifugal Compressor Trains (Oil & Gas)
Challenge: Offshore platforms and LNG facilities require explosion-proof monitoring in Zone 1/Division 1 hazardous areas with salt spray and temperature extremes
Solution: IP65 sealing prevents moisture-induced sensor drift while stainless steel construction resists chloride corrosion, maintaining measurement integrity for 5+ years between maintenance intervals

✓ Refinery Process Pumps (Petrochemical)
Challenge: High-temperature hydrocarbon service pumps experience rapid bearing degradation, requiring real-time vibration trending to prevent seal failures and product contamination
Solution: Housing's -40°C to +85°C rating accommodates pump casing temperatures while protecting sensors from thermal shock during emergency shutdowns and startups

✓ Paper Machine Dryer Rolls (Manufacturing)
Challenge: High-speed rotating cylinders in humid, lint-laden environments demand reliable vibration monitoring to prevent web breaks and production losses
Solution: External mounting design allows non-invasive installation on existing roll assemblies, while IP65 protection prevents fiber buildup and moisture damage to proximity sensors

Technical Parameters & Selection Guide

Selection Criteria: Verify your existing proximity probe diameter (8mm required), mounting surface thread size (28mm), and environmental conditions. For hazardous area installations, confirm whether ATEX/IECEx certification is mandatory—this standard model is suitable for non-classified locations. Consult factory documentation if operating temperatures exceed +85°C or fall below -40°C.

Extended Capabilities & System Integration

Monitoring System Compatibility: The 24701-28-10-00-040-00-02 integrates seamlessly with Bently Nevada 3500 rack-based monitoring systems, ADAPT software platforms, and System 1 condition monitoring networks. When paired with 330103 or 330400 series proximity probes and 3300 XL proximitor sensors, it forms a complete API 670-compliant vibration measurement chain.

Customization Options: Available with alternative thread sizes (24mm, 32mm) and extended temperature ratings (-55°C to +120°C) for specialized applications. Contact engineering support for custom cable gland configurations, exotic material upgrades (Inconel, Hastelloy), or ATEX-certified variants for Zone 0 installations.

IoT Integration: Compatible with wireless vibration transmitters and IIoT gateway devices for remote monitoring deployments. Housing design accommodates cable gland adapters for armored or fiber-optic signal transmission in high-EMI environments.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units with expedited shipping available to major industrial hubs worldwide
Custom Configurations: 4-6 weeks for non-standard thread sizes or material specifications
Warranty Coverage: Comprehensive 12-month manufacturer warranty against defects in materials and workmanship under normal operating conditions
Technical Support: Pre-installation consultation, torque specifications, and compatibility verification provided by certified vibration analysts
Documentation Package: Includes dimensional drawings, material certifications (MTRs), calibration certificates, and installation instructions per API 670 Annex H requirements

Frequently Asked Questions

What proximity probe models are compatible with the 24701-28-10-00-040-00-02 housing assembly?
This housing accepts all Bently Nevada 8mm diameter proximity probes including 330103, 330400, and 330500 series transducers. It is NOT compatible with 11mm (330104 series) or 5mm (330101 series) probes due to bore diameter constraints. Always verify probe diameter before ordering.

Can this housing withstand high-pressure washdown environments in food processing facilities?
The IP65 rating provides protection against water jets from any direction, making it suitable for routine washdown procedures. However, for continuous submersion or high-pressure steam cleaning (>100 bar), consider upgrading to IP67 or IP68-rated housings designed for hygienic applications.

How does the external mounting design compare to flush-mount housings for vibration accuracy?
External mounting offers superior thermal isolation from machinery surfaces, reducing temperature-induced measurement errors by 15-20% compared to flush-mount designs. The trade-off is slightly increased vulnerability to mechanical impact—install protective guards in high-traffic areas or where overhead crane operations occur.

What installation torque specification prevents thread damage while ensuring proper sealing?
Apply 40-50 Nm (30-37 lb-ft) using a calibrated torque wrench. Under-torquing (<35 Nm) may compromise IP65 sealing, while over-torquing (>55 Nm) risks galling stainless steel threads. Use anti-seize compound on threads for installations in high-temperature or corrosive environments.

Does the housing require periodic maintenance or recalibration during its service life?
The housing itself requires no calibration—only visual inspection every 12-24 months for seal integrity and corrosion. However, the proximity probe and proximitor electronics should follow manufacturer-recommended calibration intervals (typically 24-36 months) to maintain API 670 compliance.

Are replacement seals and gaskets available separately for field servicing?
Yes, seal kits (part number 24701-SEAL-KIT) are available for field replacement without removing the housing from machinery. Kits include O-rings, backup rings, and installation instructions. Seal replacement is recommended every 3-5 years or after exposure to chemical cleaning agents.

Order Your Proximity Housing Today

Protect your critical rotating assets with genuine Bently Nevada components backed by factory certification and expert technical support. Our global logistics network ensures rapid delivery to power plants, refineries, and manufacturing facilities worldwide. Contact our vibration monitoring specialists for application-specific recommendations, bulk pricing, or integration with existing condition monitoring systems.

Ready to enhance your machinery protection strategy? Request a quote, verify compatibility with your existing sensors, or speak with a certified vibration analyst about optimizing your monitoring system configuration.
