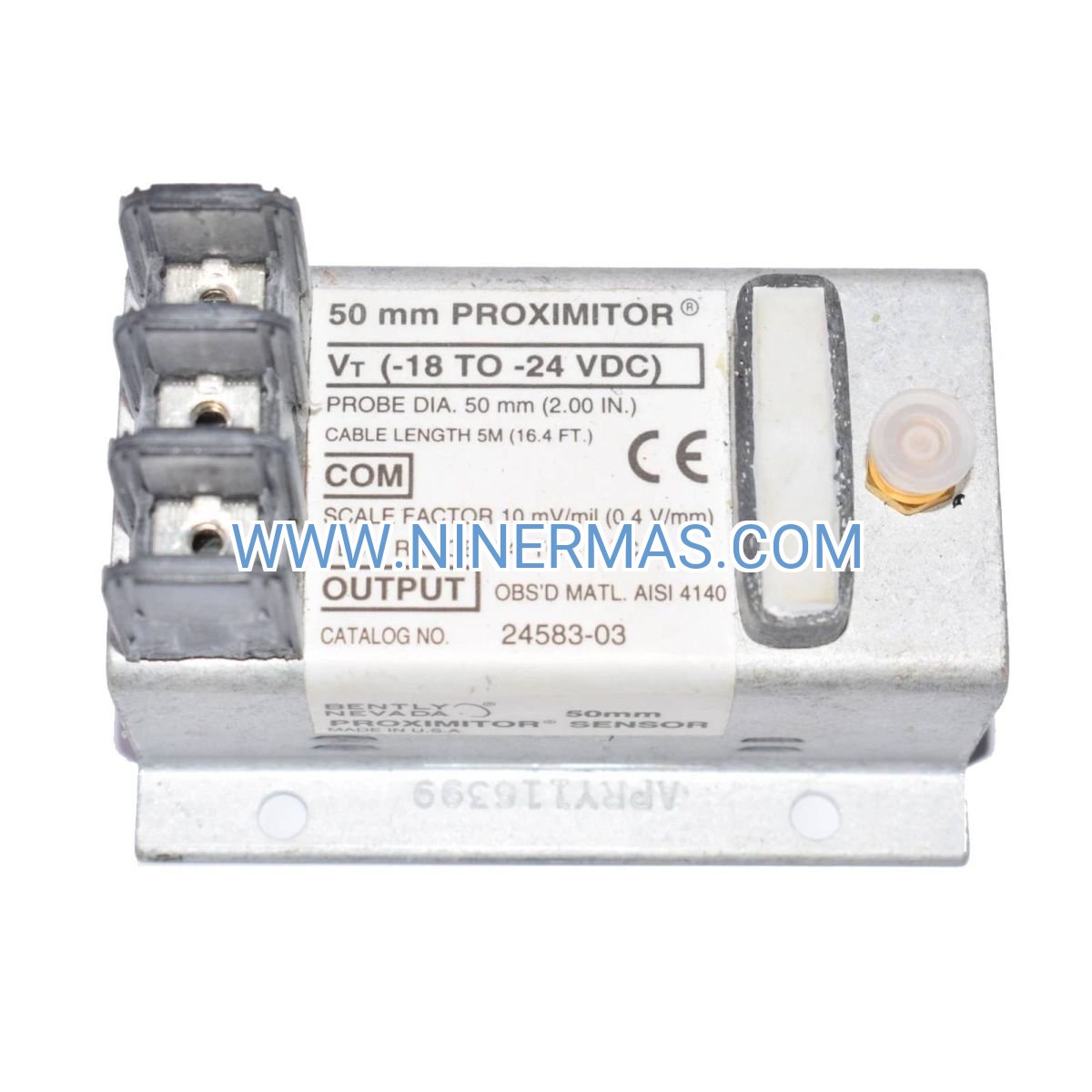

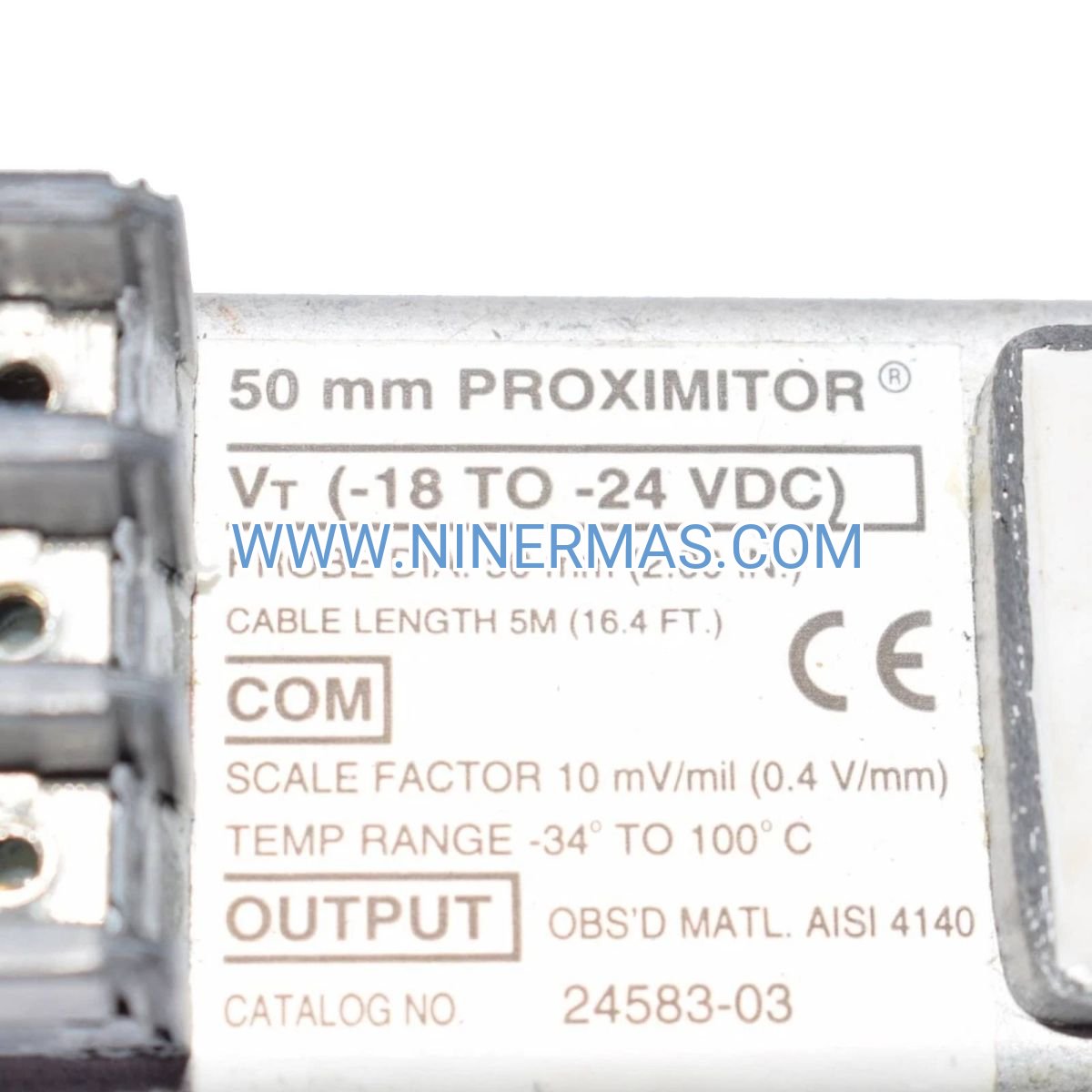

Bently Nevada 24583-03 Proximity Sensor System | API 670 Certified Vibration Monitor | NINERMAS

102046-50 Eddy Current Proximity Sensor (Industrial-Grade Turbomachinery Monitor)

The Bently Nevada 102046-50 represents a precision-engineered eddy current proximity sensor designed for continuous vibration and displacement monitoring in mission-critical rotating machinery. Built to exceed API 670 4th Edition requirements and aligned with ISO 20816 vibration severity standards, this non-contact sensor delivers reliable shaft position measurement across extreme operating conditions—from arctic installations to high-temperature turbine environments.

Engineered for power generation facilities, petrochemical plants, and heavy industrial operations, the 102046-50 provides the foundational data layer for predictive maintenance strategies. By detecting micro-level changes in shaft displacement, bearing clearances, and rotor dynamics, maintenance teams gain early warning of developing mechanical issues—often weeks before traditional inspection methods would reveal problems. This proactive intelligence translates directly into reduced unplanned downtime, extended equipment lifespan, and optimized maintenance budgets.

When integrated with Bently Nevada 3300 XL or 3500 series monitoring platforms, the 102046-50 becomes part of a comprehensive machinery health management ecosystem. Factory calibration with full traceability documentation ensures measurement accuracy from day one, while robust construction guarantees long-term reliability in the harshest industrial environments. Ready to enhance your turbomachinery protection strategy? Contact our application engineers for system design consultation.

Core Capabilities & Technical Advantages

→ Wide-Bandwidth Frequency Response: DC to 10 kHz (-3dB) captures both slow thermal growth and high-frequency transient events, providing complete visibility into machinery behavior across all operating regimes.

→ Extreme Temperature Resilience: Operational range from -40°C to +177°C (-40°F to +350°F) enables deployment in cryogenic compressor applications through superheated steam turbine environments without performance degradation.

→ API 670 Compliance Certification: Meets petroleum and natural gas industry standards for machinery protection systems, ensuring compatibility with safety instrumented systems (SIS) and regulatory requirements.

→ Linear Output Characteristics: -2V to -18V DC output range with exceptional linearity provides accurate displacement measurement across the full operating gap, simplifying calibration and improving measurement confidence.

✓ Factory Calibration with Traceability: Each sensor ships with individual calibration certificate documenting performance against NIST-traceable standards, eliminating field calibration requirements and accelerating commissioning timelines.

✓ System Integration Flexibility: Direct compatibility with Bently Nevada 3300 XL proximitor systems and 3500 rack-based monitors enables seamless integration into existing infrastructure or new installations.

Industrial Application Scenarios

Power Generation Turbines: In combined-cycle power plants and cogeneration facilities, the 102046-50 monitors radial vibration and thrust position on steam and gas turbines operating at speeds exceeding 10,000 RPM. Early detection of bearing wear, rotor unbalance, or thermal bow conditions prevents catastrophic failures that could result in multi-million dollar repair costs and extended outages.

Petrochemical Compressor Trains: Centrifugal and axial compressors handling corrosive or explosive gases demand continuous shaft displacement monitoring. The 102046-50's robust construction and wide temperature range make it ideal for these high-consequence applications where equipment failure poses both economic and safety risks.

Critical Process Pumps: Refineries, chemical plants, and water treatment facilities rely on the 102046-50 to track bearing clearances and detect rotor eccentricity in pumps handling hazardous or essential fluids. Trending data reveals gradual degradation patterns, enabling condition-based maintenance scheduling that maximizes pump availability.

Large Motor & Generator Sets: In industrial facilities and utility substations, the sensor measures air gap variations and shaft runout in motors and generators rated from hundreds to thousands of horsepower. Detecting stator-rotor misalignment or foundation settling issues before they cause winding damage protects capital equipment investments.

High-Speed Gearbox Monitoring: Wind turbines, marine propulsion systems, and industrial gear reducers benefit from proximity sensor monitoring of gear mesh alignment and bearing condition. The 102046-50's high-frequency response captures tooth-pass frequencies and bearing defect signatures that indicate developing failures.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 102046-50, consider shaft material (4140 steel, 400-series stainless, or Inconel), maximum operating speed, ambient temperature extremes, and required measurement range. For applications involving hazardous area classifications, pair with appropriate proximitor housings and intrinsic safety barriers. Our application engineering team can assist with system configuration to ensure optimal performance and regulatory compliance.

Extended Functionality & Integration Options

IoT Connectivity: When connected to Bently Nevada System 1 software platforms or third-party SCADA systems via 3500 rack monitors, the 102046-50 enables remote condition monitoring, automated alarm generation, and integration with enterprise asset management (EAM) systems for work order generation.

Advanced Diagnostics: Pairing multiple 102046-50 sensors in XY probe configurations allows orbit analysis, revealing complex rotor behavior patterns such as oil whirl, rub conditions, and misalignment signatures that single-plane measurements cannot detect.

Customization Capabilities: Special cable lengths, alternative connector types, and application-specific calibration ranges can be specified for unique installation requirements. Consult with our technical team during the design phase to explore customization options.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier with full tracking. Typical transit time to major industrial centers: 5-7 business days globally.

Custom Configurations: Special cable lengths or non-standard calibrations require 3-4 weeks lead time from order confirmation.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions.

Technical Support: Access to certified Bently Nevada application engineers for installation guidance, troubleshooting assistance, and system optimization recommendations throughout product lifecycle.

Documentation Package: Each sensor includes individual calibration certificate with NIST traceability, installation manual, dimensional drawings, and electrical connection diagrams.

Frequently Asked Questions

How does the 102046-50 integrate with existing Bently Nevada 3300 XL monitoring infrastructure?
The sensor connects directly to 3300 XL proximitor housings using standard extension cables, maintaining full API 670 compliance. No special adapters or signal conditioning required—simply connect, verify gap voltage, and begin monitoring.

What target surface preparation is required for accurate eddy current measurements?
Target surfaces should be smooth-turned or ground to 63 microinch (1.6 micron) finish or better, free from plating, paint, or oxide coatings. Minimum target diameter of 3x probe diameter ensures adequate eddy current field development. Surface runout should not exceed 25% of total indicated runout (TIR) budget.

Can this proximity sensor operate in explosive atmosphere classifications?
Yes, when installed with certified intrinsically safe barriers and appropriate proximitor housings, the system achieves Class I Division 1 or ATEX Zone 0 ratings. Specific certifications depend on barrier selection—consult our hazardous area application guide for detailed configurations.

What is the expected service life in continuous operation environments?
With no moving parts or wear surfaces, the 102046-50 typically provides 15-20 years of maintenance-free operation in properly designed installations. Primary failure modes involve cable damage from external mechanical stress rather than sensor element degradation.

How do I verify sensor performance after installation without specialized calibration equipment?
Gap voltage verification provides field confirmation of proper operation. Using a precision feeler gauge or micrometer, measure output voltage at known gaps and compare against the calibration curve provided with the sensor. Deviation beyond ±5% indicates potential installation issues or sensor damage requiring investigation.

Does the sensor require periodic recalibration during its operational life?
No routine recalibration is necessary. The eddy current sensing principle exhibits excellent long-term stability. Recalibration is only recommended following physical damage, exposure to temperatures exceeding rated limits, or as part of regulatory compliance programs requiring periodic verification (typically every 5 years in nuclear or aerospace applications).

Take the Next Step in Machinery Protection

Implementing the Bently Nevada 102046-50 proximity sensor represents a strategic investment in asset reliability and operational excellence. Whether you're designing a new turbomachinery installation or upgrading legacy monitoring systems, our technical team stands ready to support your success.

Request a technical consultation: Share your application details—equipment type, operating conditions, and monitoring objectives—and receive customized recommendations for sensor placement, system architecture, and integration strategies.

Order with confidence: Every sensor ships with complete documentation, factory calibration certification, and backed by our 12-month warranty. Express shipping available to meet urgent project timelines.
