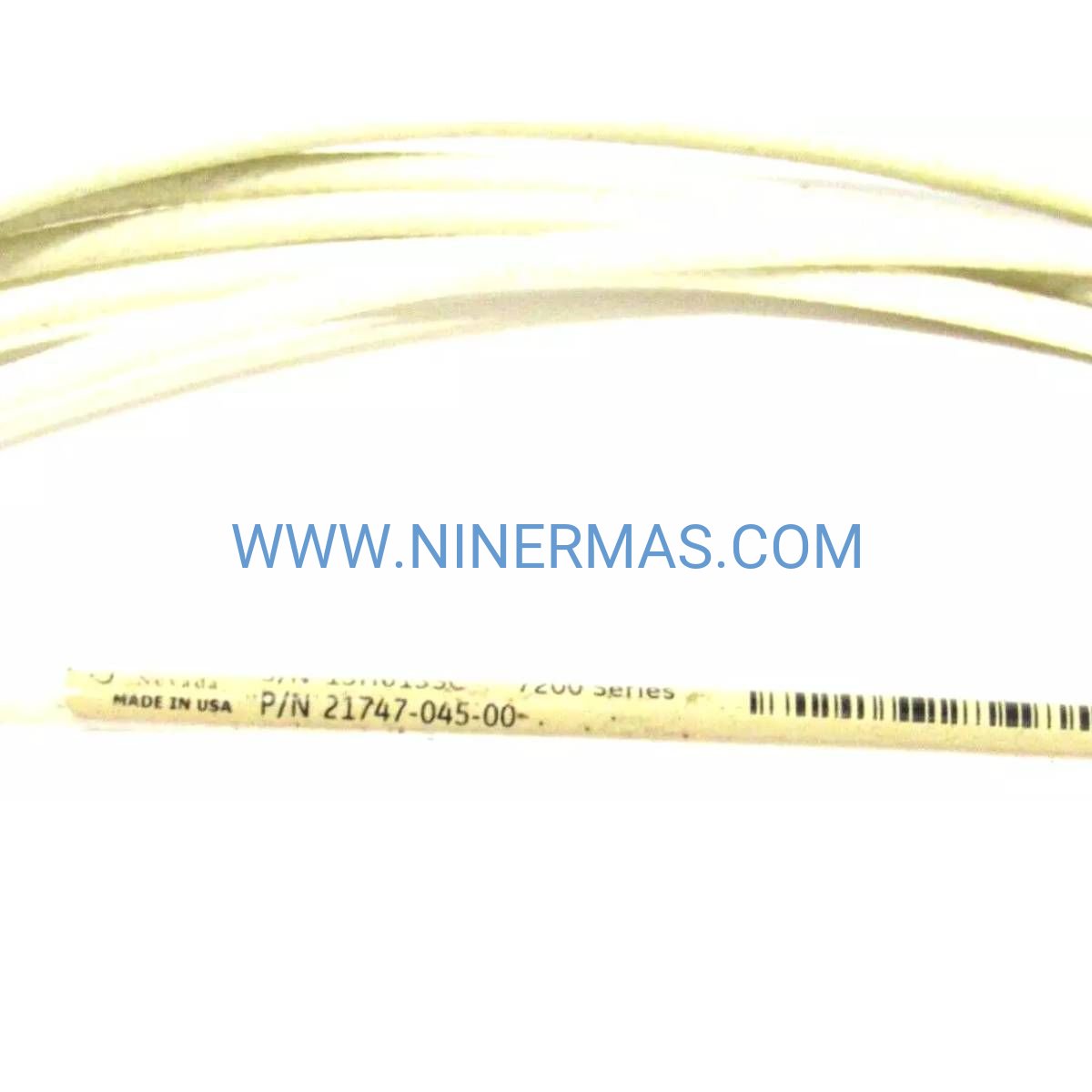

21747-045-00 Proximitor Extension Cable (Industrial-Grade Signal Transmission)

The 21747-045-00 represents a critical connectivity solution for Bently Nevada 7200 Series vibration monitoring architectures. Engineered as a precision extension interface, this cable bridges the gap between proximity probes and monitoring systems in space-constrained industrial installations. Built for power generation, petrochemical processing, and heavy manufacturing environments, it delivers uncompromised signal fidelity across extended measurement chains while withstanding thermal extremes, chemical exposure, and electromagnetic interference.

Designed for reliability engineers and maintenance teams managing turbomachinery assets, this extension cable solves the persistent challenge of sensor placement in inaccessible locations. Whether monitoring steam turbines in combined-cycle plants or tracking compressor shaft displacement in offshore platforms, the 21747-045-00 maintains measurement accuracy that predictive maintenance programs depend on.

Core advantages include EMI/RFI-hardened construction for noise-free signal transmission, temperature resilience from -40°C to +85°C for extreme climate operation, and plug-and-play compatibility with existing 3300 XL and 3500 monitoring frameworks—eliminating costly system retrofits.

Core Features & Performance Benefits

✓ Enhanced Signal Integrity Protection
Triple-layer shielding architecture blocks electromagnetic interference from VFDs, motors, and high-voltage equipment, ensuring clean proximity sensor signals reach monitoring systems without distortion—critical for accurate vibration amplitude and phase measurements.

✓ Extended Temperature Operating Range
Military-grade insulation materials maintain dielectric properties across -40°C to +85°C, enabling deployment in arctic compressor stations, desert gas turbines, and high-temperature steam applications where standard cables fail.

✓ Chemical & Environmental Resistance
Oil-resistant jacket withstands hydraulic fluid spray, coolant exposure, and petrochemical vapors common in refinery and chemical plant installations, extending service life 3-5x compared to general-purpose cables.

→ Backward-Compatible System Integration
Direct-fit connectors mate with legacy 7200 Series probes and modern 3300 XL proximitors without adapters, protecting existing infrastructure investments while enabling phased monitoring system upgrades.

→ Flexible Installation Geometry
Custom length configurations accommodate complex routing through cable trays, conduit runs, and machinery penetrations, solving access challenges in retrofit projects and brownfield expansions.

→ Low-Capacitance Design
Optimized conductor geometry minimizes signal loading effects, maintaining probe sensitivity and linearity across the full measurement range—essential for detecting early-stage bearing faults and rotor anomalies.

Industrial Application Scenarios

Power Generation Turbine Monitoring
In combined-cycle plants, steam turbine pedestals often lack clearance for direct proximitor mounting. The 21747-045-00 extends probe reach to accessible monitoring panels while preserving the 25 mV/mil sensitivity required for thrust bearing wear detection and rotor eccentricity analysis. Result: Enables condition-based maintenance strategies that reduce unplanned outages by 40-60%.

Petrochemical Compressor Protection
Centrifugal compressor trains in ethylene plants demand continuous shaft displacement monitoring in hazardous Zone 1 areas. This extension cable routes signals from explosion-proof probe installations to safe-area monitoring racks, maintaining intrinsic safety certification while supporting API 670 compliance requirements.

Pulp & Paper Machine Surveillance
Paper machine dryer sections expose sensors to 150°C ambient temperatures and corrosive chemical atmospheres. The 21747-045-00's thermal rating and chemical resistance enable reliable vibration monitoring of high-speed dryer rolls, preventing catastrophic bearing failures that cause $500K+ production losses.

Mining Crusher & Mill Monitoring
SAG mills and gyratory crushers generate severe electromagnetic noise from variable-frequency drives. Triple-shielded construction rejects EMI that would otherwise corrupt proximity sensor signals, ensuring accurate measurement of critical bearing clearances in 24/7 grinding operations.

Marine Propulsion System Diagnostics
Ship engine rooms subject cables to salt spray, fuel vapor, and -20°C to +60°C temperature swings. This extension cable's environmental hardening supports reliable shaft vibration monitoring on diesel generators and propulsion turbines throughout 5-year dry-dock intervals.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total system cable length (probe cable + extension) to remain within manufacturer-specified limits—typically 7.6m (25 ft) for 5mm probes, 9.1m (30 ft) for 8mm probes. Verify that extension length doesn't compromise probe sensitivity or introduce resonance effects. For hazardous area installations, confirm that complete measurement chain maintains intrinsic safety certification (consult entity parameters).

Extended Functionality & Integration Options

Condition Monitoring System Integration: Interfaces seamlessly with Bently Nevada Orbit 60, System 1, and third-party SCADA platforms via 3500 rack I/O modules, enabling real-time vibration trending, alarm management, and predictive analytics.

Wireless Monitoring Adaptation: Combine with Bently Nevada 1900/65A wireless transmitters to eliminate cable runs in rotating equipment applications, reducing installation costs by 50-70% in retrofit projects.

Redundant Measurement Architectures: Deploy dual extension cables in critical machinery protection systems (API 670 TMC applications) to achieve 99.9%+ availability through fault-tolerant sensor configurations.

Custom Length Engineering: Factory-configured lengths from 1m to 15m available for specialized applications—contact technical sales with routing diagrams for optimized cable specifications.

Delivery Timeline & Service Guarantee

Standard Delivery: 5-7 business days for stock configurations (1m, 3m, 5m lengths) via express courier with tracking
Custom Configurations: 15-20 business days for non-standard lengths or special connector variants
Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: Lifetime application engineering assistance including installation guidance, troubleshooting protocols, and system integration consulting
Documentation Package: Includes calibration certificate, dimensional drawings, material certifications, and installation best practices guide

Frequently Asked Questions

What is the maximum extension cable length for maintaining measurement accuracy with 7200 Series probes?
Total system cable length (probe cable plus extension) should not exceed 7.6m (25 ft) for 5mm probes or 9.1m (30 ft) for 8mm probes to maintain factory calibration accuracy. Longer runs may require signal conditioning or proximitor relocation.

Can this extension cable be used in Class I Division 1 hazardous locations?
Yes, when installed as part of an intrinsically safe monitoring system with appropriate barriers (e.g., Bently Nevada 330780 or 330880 series). Verify that total system entity parameters (voltage, current, capacitance, inductance) remain within certified limits.

How does cable shielding affect vibration monitoring system performance in high-EMI environments?
The triple-layer shield provides >90 dB rejection at frequencies above 100 MHz, effectively blocking interference from VFDs, welders, and RF transmitters. Proper grounding at the proximitor end (single-point ground) is critical—never ground both ends, as this creates ground loops.

What installation practices ensure optimal signal transmission quality?
Maintain minimum bend radius of 10x cable diameter, route away from power cables (>300mm separation), secure with non-metallic ties every 600mm, and avoid sharp edges that could damage shielding. Use cable glands with strain relief to prevent connector stress.

Is the 21747-045-00 compatible with non-Bently Nevada proximity probe systems?
This cable is engineered specifically for Bently Nevada 7200 Series probe impedance and connector geometry. Using with other manufacturers' systems may cause impedance mismatch, signal reflections, or connector incompatibility—always verify compatibility before cross-application.

How do I verify cable integrity after installation or during troubleshooting?
Measure DC resistance (should be <1 ohm end-to-end), check shield continuity (should be continuous), and verify insulation resistance (>100 megohms to ground at 500V DC). Use a TDR (time-domain reflectometer) to detect cable damage or connector faults in installed systems.

Get Expert Assistance Today

Our vibration monitoring specialists are ready to help you configure the optimal extension cable solution for your machinery protection requirements. Contact us for application-specific recommendations, custom cable engineering, or technical support on existing installations.

Request a quote now or speak with a condition monitoring expert at +0086 187 5021 5667
