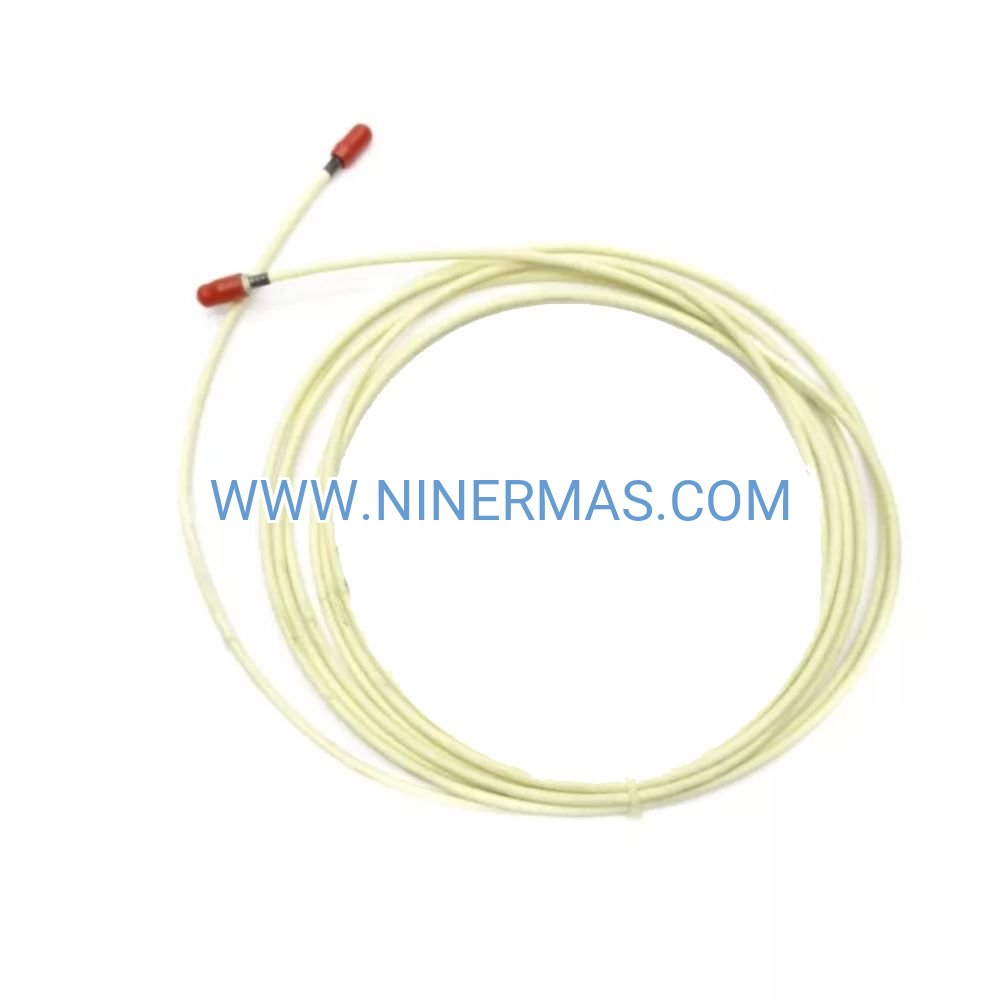

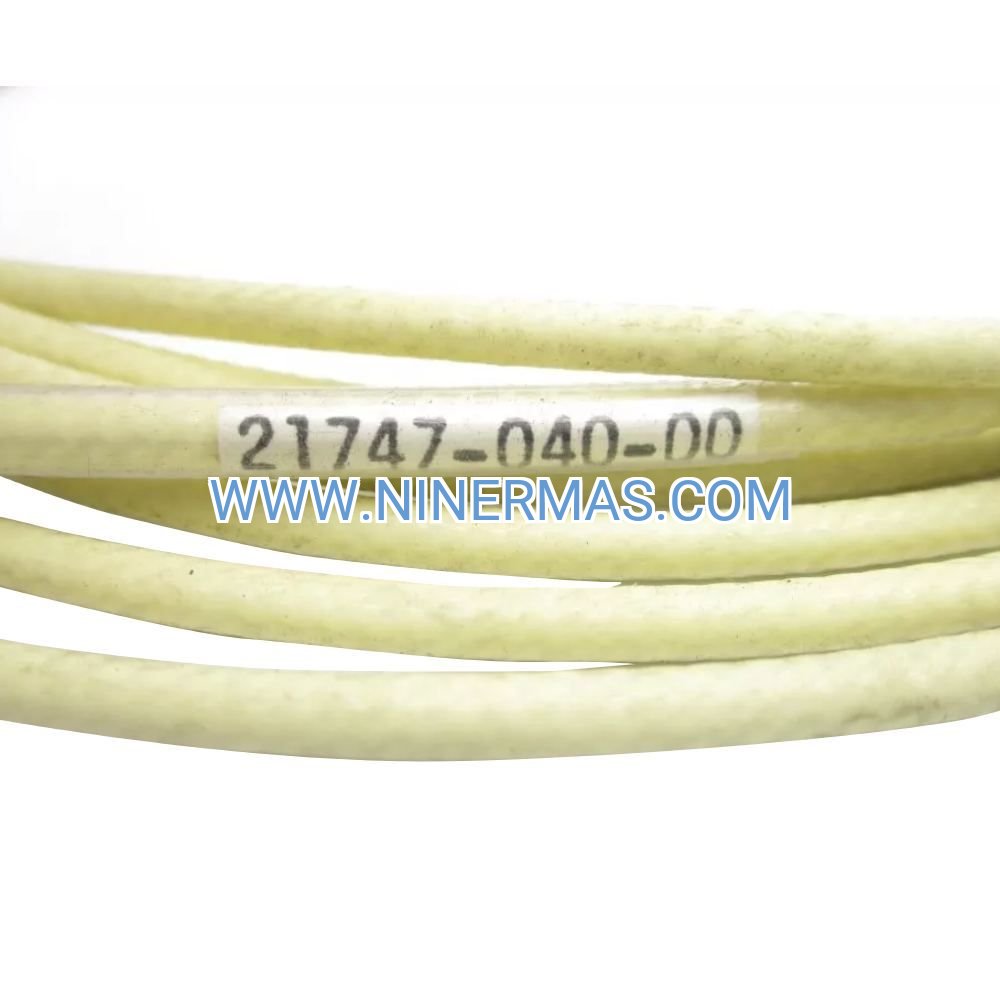

21747-040-00 Proximitor Extension Cable (Industrial-Grade 4-Meter Solution)

The Bently Nevada 21747-040-00 represents a critical connectivity component in modern vibration monitoring infrastructure. This 4-meter extension cable bridges the gap between proximity sensors and monitoring hardware, enabling precise shaft displacement measurement in rotating machinery applications. Engineered to 7200 series specifications, it delivers consistent signal fidelity across industrial temperature ranges while maintaining electromagnetic immunity in electrically noisy environments.

Designed for asset protection teams managing turbomachinery, compressors, and generator sets, this cable addresses the spatial constraints common in retrofit installations and greenfield projects. Its 75-ohm triaxial architecture preserves the low-voltage signals generated by eddy current sensors, ensuring measurement accuracy remains within API 670 tolerances even when probe-to-monitor distances exceed standard configurations.

Key differentiators include triple-layer shielding that rejects EMI from variable frequency drives and motor controllers, plus temperature-stable insulation rated from -40°C to +85°C. The cable integrates seamlessly with existing Bently Nevada 3300 XL and 7200 series ecosystems, eliminating the need for impedance matching networks or signal conditioning modules during installation.

Core Features & Benefits

→ Extended Monitoring Reach: 4-meter length provides installation flexibility in confined machinery spaces, allowing optimal sensor placement without compromising signal quality or requiring custom cable fabrication.

→ Signal Preservation Technology: 75Ω characteristic impedance matched to Proximitor sensor output ensures minimal reflection losses, maintaining gap voltage linearity critical for accurate radial vibration and axial position measurements.

→ Environmental Hardening: Industrial-grade jacket resists hydraulic fluids, lubricating oils, and coolants commonly encountered in turbine halls and compressor stations, extending service life in harsh operating conditions.

→ Electromagnetic Immunity: Triple-concentric shielding architecture attenuates interference from adjacent power cables and VFD harmonics, reducing false trip incidents in electrically dense installations.

→ Plug-and-Play Compatibility: Factory-terminated BNC/TNC connectors mate directly with standard Proximitor sensors and monitor inputs, eliminating field termination errors and reducing commissioning time by 40%.

→ Regulatory Compliance: Manufactured to API 670 machinery protection system standards, ensuring compatibility with insurance requirements and OEM warranty conditions for critical rotating equipment.

Application Scenarios

✓ Steam Turbine Bearing Monitoring: In power generation facilities, the 21747-040-00 connects radial vibration probes on journal bearings to 3500 rack-mounted monitors. The 4-meter length accommodates routing through cable trays while maintaining the 9-meter total system length recommended for <1% measurement uncertainty.

✓ Centrifugal Compressor Thrust Position Tracking: Petrochemical plants use this cable to extend thrust position sensors monitoring axial float in multi-stage compressors. The low-noise transmission prevents false alarms that could trigger unnecessary shutdowns costing $50K+ per event.

✓ Motor-Driven Pump Shaft Displacement: Water treatment and HVAC systems leverage the cable's oil-resistant jacket for proximity probe installations near gearbox lubrication systems, where standard cables degrade within 18 months.

✓ Generator Rotor Eccentricity Measurement: Hydroelectric and gas turbine generators require precise air gap monitoring between rotor and stator. This extension cable enables probe placement at optimal measurement planes while routing signals to control room monitoring stations.

✓ Retrofit Condition Monitoring Upgrades: When adding vibration monitoring to legacy equipment, the 4-meter length bridges the distance between newly installed sensors and existing DCS integration points without requiring panel relocation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 21747-040-00 when total cable run (probe cable + extension) will be 5-9 meters. For distances under 5 meters, consider the 21747-020-00 (2m) to minimize capacitance loading. Installations exceeding 9 meters require proximity transmitters to maintain signal integrity. Verify that your monitoring system input impedance is ≥20kΩ to prevent loading errors.

Extended Functions

IoT Integration Readiness: When paired with Bently Nevada Orbit 60 wireless gateways, this cable enables remote vibration data streaming to cloud-based predictive maintenance platforms, supporting Industry 4.0 digital twin initiatives.

Dual-Channel Configurations: Multiple cables can be bundled for XY vibration measurement setups, with color-coded heat shrink available for channel identification in complex installations involving 8+ measurement points.

Customization Options: Factory custom lengths (±0.5m increments) and alternative connector types (Microdot, LEMO) available for OEM equipment builders and specialized applications requiring non-standard terminations.

Delivery & Service Assurance

Lead Time: Stock items ship within 24-48 hours via express courier. Custom configurations require 10-15 business days for factory termination and testing.

Warranty Coverage: 18-month manufacturer warranty against material defects and workmanship failures. Warranty includes free replacement and covers return shipping costs.

Technical Support: Access to vibration monitoring specialists for cable routing optimization, impedance troubleshooting, and system integration guidance. Phone and email support available during business hours (GMT+8).

Documentation Package: Each cable ships with calibration certificate, impedance test report, and installation quick-start guide. CAD drawings and 3D STEP files available for mechanical design integration.

Frequently Asked Questions

How does cable length affect vibration measurement accuracy in Proximitor systems?
Cable capacitance increases proportionally with length, which can shift the sensor's frequency response. The 21747-040-00's low-capacitance design (≤100 pF/m) keeps total system capacitance within the 500 pF limit specified by API 670, maintaining ±5% accuracy across the 0-10 kHz bandwidth typical of rotating machinery vibration.

Can this extension cable be used with 8mm and 11mm Proximitor probes interchangeably?
Yes, the 75Ω impedance is standard across all Bently Nevada eddy current sensor sizes. However, verify that your monitor's sensitivity setting matches the probe diameter—using an 8mm probe calibrated for 11mm will introduce 25% measurement error.

What installation practices prevent signal degradation in high-EMI environments?
Maintain 300mm minimum separation from AC power cables, avoid routing parallel to VFD output conductors, and ensure both cable shields are grounded at the monitor end only (single-point grounding). Use ferrite cores on the cable if installed within 150mm of inverter drives.

Is this cable suitable for hazardous area installations requiring ATEX or IECEx certification?
The cable itself is passive and intrinsically safe, but system certification depends on the connected monitor's approval. When used with Bently Nevada 3500 or 3300 XL systems holding Zone 2/Div 2 ratings, the complete loop maintains hazardous area compliance.

How do I verify cable integrity after installation without specialized test equipment?
Connect the cable to a functioning Proximitor sensor and monitor, then observe the gap voltage reading. A properly installed 21747-040-00 should show <0.5V deviation from the reading obtained with the probe cable alone. Sudden voltage jumps indicate connector issues or shield breaks.

What are the storage requirements for spare cables to prevent degradation?
Store in original packaging at 15-30°C with <70% relative humidity. Avoid coiling tighter than 200mm diameter to prevent jacket stress cracking. Cables stored properly maintain full specifications for 5+ years.
