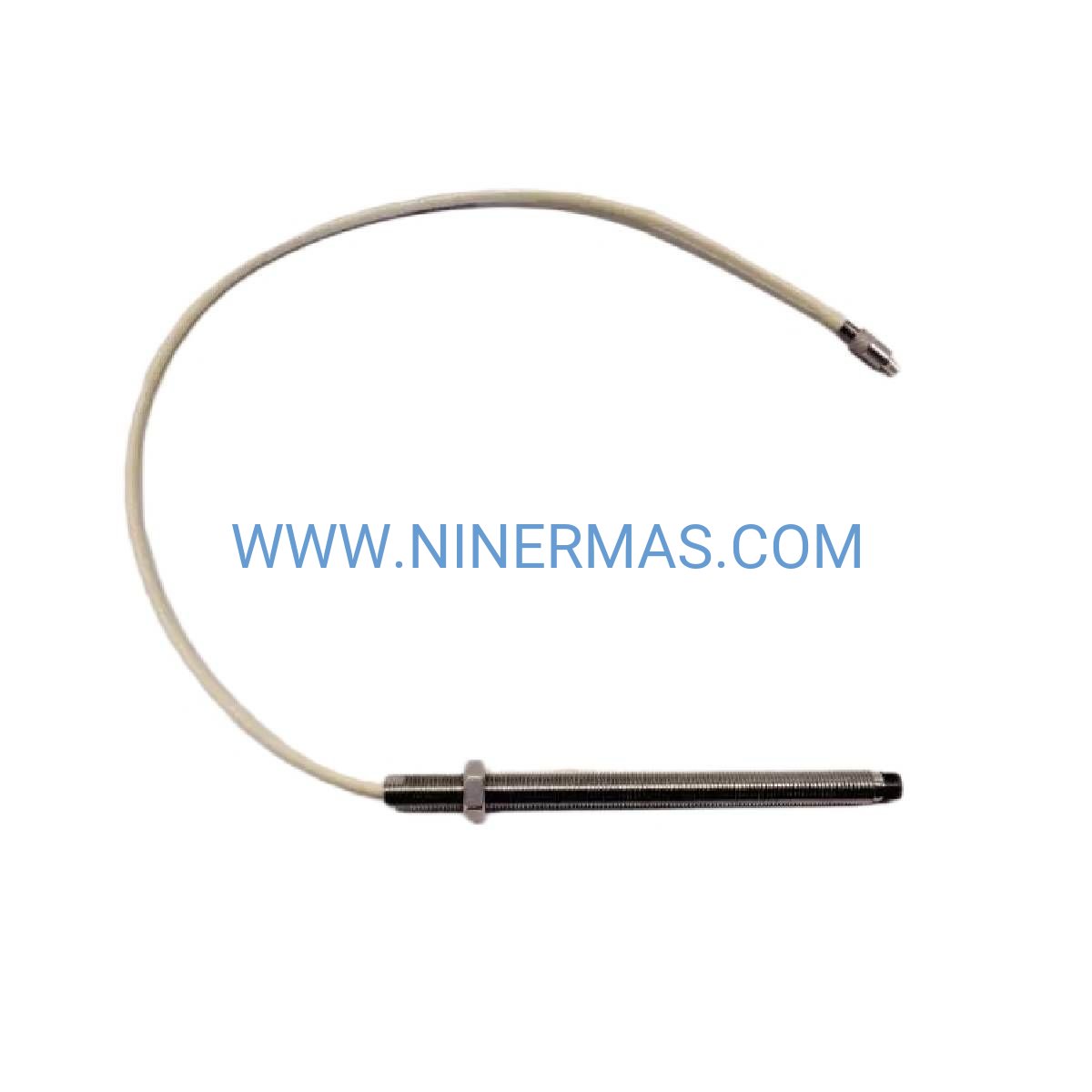

21504-00-52-10-02 Proximity Sensor (Industrial-Grade Eddy Current Technology)

The 21504-00-52-10-02 is a precision-engineered eddy current proximity sensor designed for continuous shaft displacement and vibration monitoring in mission-critical rotating equipment. Built on the proven 7200 Series platform, this non-contact sensor provides real-time machinery health data for turbines, compressors, generators, and high-speed pumps across power generation, petrochemical, and heavy manufacturing facilities.

Engineered to withstand extreme industrial environments, this probe addresses the challenge of early fault detection in rotating machinery where catastrophic failures can result in millions in downtime costs. Target users include reliability engineers, maintenance teams, and plant operators managing critical assets requiring 24/7 uptime. The sensor's exceptional linearity and thermal stability ensure accurate measurements even under harsh operating conditions, while its rugged construction delivers years of maintenance-free service.

Key advantages include proven compatibility with both legacy 3300 XL and modern 7200 Series monitoring systems, field-replaceable design for rapid maintenance, and industry-leading signal-to-noise ratio that minimizes false alarms. The probe's standardized mounting interface simplifies installation across diverse machinery types, reducing commissioning time and engineering costs.

Core Features & Benefits

→ Extended Measurement Range (0-200 mils)
Captures full shaft excursion during startup, shutdown, and transient events. Prevents data clipping during abnormal operating conditions, ensuring complete fault signature capture for root cause analysis.

→ Wide Temperature Tolerance (-40°C to +125°C)
Maintains calibration accuracy across extreme thermal cycling. Eliminates sensor drift in applications with variable ambient conditions, reducing false trip incidents and maintenance interventions.

→ High-Frequency Response (0-10 kHz)
Detects high-speed bearing defects, gear mesh frequencies, and blade pass phenomena. Enables early identification of developing faults before they escalate to catastrophic failures.

✓ Rugged Industrial Construction
Sealed housing withstands corrosive atmospheres, vibration exposure, and mechanical shock. Reduces sensor replacement frequency in harsh environments, lowering total cost of ownership.

✓ Universal System Compatibility
Works seamlessly with Proximitor sensors, extension cables, and both current and legacy monitoring platforms. Protects existing infrastructure investments while enabling phased system upgrades.

✓ Field-Proven Reliability
Backed by decades of deployment in the world's most demanding industrial applications. Minimizes unplanned downtime through consistent performance and predictable service life.

Typical Application Scenarios

Steam & Gas Turbine Monitoring
Tracks rotor axial position and radial vibration in power generation turbines operating at 3,000-3,600 RPM. Solves the challenge of detecting thrust bearing wear and rotor rubs before catastrophic failure. Delivers early warning of developing issues, enabling planned maintenance during scheduled outages rather than emergency shutdowns.

Centrifugal Compressor Protection
Monitors shaft displacement in multi-stage compressors handling corrosive or explosive gases. Addresses the critical need for continuous surveillance in applications where bearing failure can trigger process safety incidents. Provides reliable trip signals to emergency shutdown systems, protecting personnel and assets.

Critical Pump Surveillance
Measures shaft runout and bearing clearances in boiler feed pumps, pipeline pumps, and process circulation systems. Overcomes the difficulty of detecting cavitation, impeller imbalance, and seal degradation in real-time. Enables condition-based maintenance strategies that reduce spare parts inventory and extend equipment life.

Generator Rotor Tracking
Continuously monitors rotor eccentricity and air gap variations in large synchronous generators. Solves the problem of detecting stator-rotor contact risks in machines where repairs require extended outages. Supports predictive maintenance programs that optimize overhaul intervals and reduce lifecycle costs.

High-Speed Gearbox Analysis
Captures gear mesh frequencies and bearing fault signatures in industrial gearboxes operating above 1,500 RPM. Addresses the challenge of differentiating normal wear patterns from developing defects. Facilitates oil analysis correlation and vibration trending for comprehensive asset health assessment.

Technical Parameters & Selection Guide

Selection Criteria: Choose this probe for applications requiring measurement ranges up to 200 mils with operating temperatures between -40°C and +125°C. Verify target shaft material is ferrous and surface finish meets minimum requirements (typically 32 RMS or better). For non-ferrous targets or higher temperature applications, consult factory for alternative sensor configurations. Ensure adequate clearance for probe installation and cable routing during machinery design phase.

Extended Functions

IoT Integration Capabilities: When paired with modern 7200 Series monitors featuring Ethernet connectivity, sensor data can be streamed to plant-wide condition monitoring networks, SCADA systems, and cloud-based analytics platforms. Enables remote diagnostics, automated alarm notification, and integration with computerized maintenance management systems (CMMS).

Advanced Diagnostic Features: Supports orbit analysis, Bode plots, polar plots, and shaft centerline position tracking when used with compatible monitoring hardware. Facilitates advanced troubleshooting techniques including modal analysis, resonance identification, and transient event capture.

Customization Options: Available with specialized cable jackets for chemical resistance, armored conduit protection, or high-temperature applications. Custom calibration certificates, extended cable lengths, and application-specific mounting hardware can be specified for unique installation requirements.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-3 business days. Custom configurations typically require 2-4 weeks for factory preparation and quality verification.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical applications.

Technical Support: Access to application engineering team for installation guidance, calibration assistance, and troubleshooting support. Phone and email support available during business hours with emergency contact options for critical situations.

Documentation Package: Each unit includes calibration certificate, installation instructions, dimensional drawings, and electrical specifications. Digital copies of user manuals and integration guides available for download.

Frequently Asked Questions

What cable length should I specify for my turbine monitoring application?
Standard configurations include 1-meter integral cables for direct Proximitor mounting, 5-meter cables for typical machinery installations, and 9-meter options for large turbine casings. Extension cables can be added to reach monitoring cabinets up to 100 meters away when using appropriate signal conditioning.

Can this proximity sensor work with my existing 3300 XL monitoring system?
Yes, the 21504-00-52-10-02 maintains backward compatibility with legacy 3300 XL Proximitor sensors and monitors when properly configured. Verify system voltage requirements and consult wiring diagrams to ensure correct connections. Some advanced features may require 7200 Series hardware.

How much energy efficiency improvement can I expect from implementing vibration monitoring?
While the sensor itself doesn't directly reduce energy consumption, early detection of bearing wear, misalignment, and imbalance can prevent efficiency losses of 5-15% in rotating equipment. Optimized machinery operation through condition-based maintenance typically delivers 3-8% energy savings compared to run-to-failure strategies.

What are the installation clearance requirements for this probe?
Minimum radial clearance of 40-80 mils (1-2 mm) between probe tip and shaft surface is required for optimal operation. Mounting holes should accommodate the probe thread size plus wrench clearance for installation. Consult dimensional drawings for specific mounting dimensions and cable bend radius requirements.

Does the sensor support remote monitoring and diagnostics?
When integrated with 7200 Series monitors equipped with Ethernet or Modbus connectivity, sensor data can be accessed remotely through plant networks or secure internet connections. This enables off-site experts to perform diagnostics, review trends, and provide recommendations without site visits.

What maintenance is required for proximity probes in continuous service?
Proximity probes are maintenance-free sensors with no moving parts or consumables. Periodic verification of gap voltage and cable integrity is recommended during scheduled machinery outages. Typical service life exceeds 10 years in properly installed applications with appropriate environmental protection.

Take the Next Step

Protect your critical rotating assets with proven proximity sensing technology. Contact our application engineering team to discuss your specific monitoring requirements, receive technical specifications, and obtain a detailed quotation. We provide comprehensive support from sensor selection through installation commissioning to ensure optimal system performance.

Ready to order? Add to cart for fast processing and global shipping. Questions about compatibility or custom configurations? Reach out to our technical specialists for personalized assistance.
