High-Temperature Proximity Probe 350°F | Bently Nevada 21504-00-36-05-02 | Industrial Vibration Monitoring

High-Temperature Proximity Probe for Industrial Vibration Monitoring (Extreme Environment Solution)

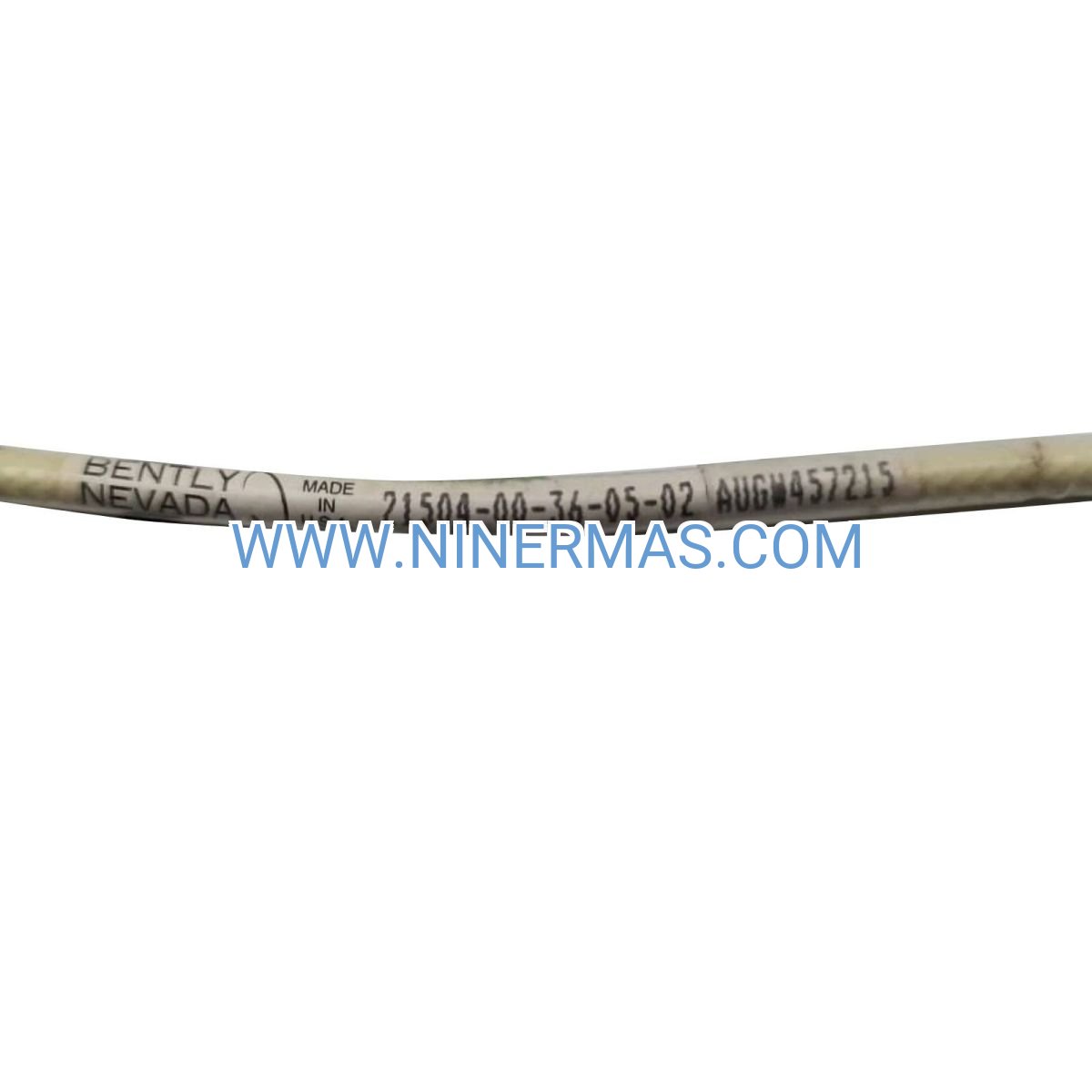

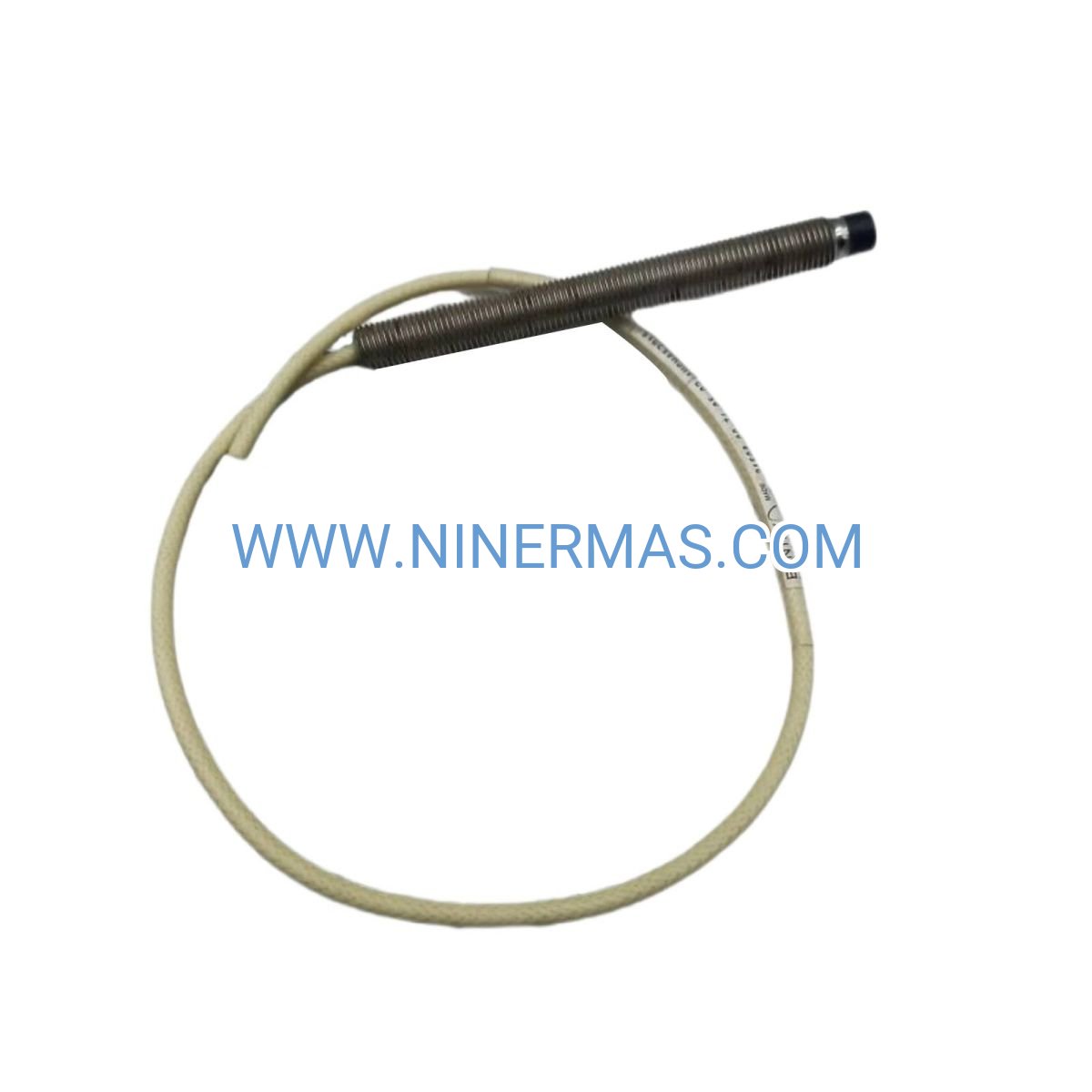

The Bently Nevada 21504-00-36-05-02 is a precision-engineered high-temperature proximity probe designed for continuous vibration and displacement monitoring in extreme industrial environments up to 350°F (177°C). Through advanced eddy current sensing technology and ruggedized stainless steel construction, this probe delivers reliable, real-time shaft position data critical for protecting rotating machinery in power generation, petrochemical processing, and heavy industrial applications.

Engineered for installations where standard sensors fail, this probe addresses critical challenges in high-heat zones such as turbine bearing housings, compressor casings, and furnace-adjacent equipment. It eliminates measurement drift caused by thermal expansion, prevents premature sensor failure from heat degradation, and maintains API 670 compliance even under sustained thermal stress—ensuring your condition monitoring system remains operational when it matters most.

Combining proven Bently Nevada reliability with application-specific thermal protection, the 21504-00-36-05-02 offers stable output linearity across its full temperature range, hermetically sealed electronics resistant to moisture and contaminants, and plug-and-play compatibility with 3300 XL and 3500 series monitoring systems. Ideal for plant engineers, instrumentation contractors, OEM integrators, and maintenance teams managing critical rotating assets. Contact our application engineers for site-specific installation guidance, cable routing recommendations, and system integration support.

Core Features & Performance Advantages

Extended Temperature Rating
Operates continuously at ambient temperatures up to 350°F (177°C), maintaining measurement accuracy within ±1% across the full thermal range. Proprietary high-temp coil winding and ceramic insulation prevent thermal drift common in standard probes.

Rugged Stainless Steel Construction
316 stainless steel housing resists corrosion from steam, process chemicals, and industrial atmospheres. Hermetically sealed design protects internal electronics from moisture ingress, dust, and vibration-induced mechanical stress.

API 670 Compliance
Meets API Standard 670 requirements for machinery protection systems in petroleum, chemical, and gas industry services. Certified for use in critical safety instrumented systems (SIS) and turbomachinery monitoring applications.

Integrated 5-Meter Armored Cable
Factory-terminated with 5m (16.4 ft) stainless steel armored cable featuring PTFE insulation rated for high-temperature zones. Reduces installation time and eliminates field termination errors that can compromise signal integrity.

Wide Frequency Response
0 to 10 kHz bandwidth captures both low-speed shaft runout and high-frequency bearing fault signatures. Compatible with Bently Nevada proximitor systems for real-time gap voltage conversion and signal conditioning.

Universal System Compatibility
Direct replacement for legacy 7200 series probes; works seamlessly with 3300 XL proximitors, 3500 rack monitors, and System 1 software platforms. Simplifies upgrades without requiring full system replacement.

Typical Application Scenarios

This high-temperature proximity probe is engineered for demanding installations where thermal stress, mechanical vibration, and process reliability converge:

Steam Turbine Bearing Monitoring
Installed in turbine bearing housings where exhaust steam and radiant heat create ambient temperatures exceeding 300°F. Provides continuous radial vibration and axial position monitoring to detect bearing wear, rotor imbalance, and thrust failures before catastrophic damage occurs.

Gas Turbine & Compressor Applications
Monitors shaft displacement in gas turbine generators, centrifugal compressors, and turboexpanders operating in high-temperature zones. Critical for detecting surge conditions, blade rubs, and seal degradation in power generation and LNG facilities.

Petrochemical Rotating Equipment
Deployed on pumps, blowers, and agitators handling hot process fluids in refineries, chemical plants, and polymer production lines. Withstands exposure to hydrocarbon vapors, thermal cycling, and corrosive atmospheres while maintaining measurement integrity.

Kiln & Furnace Drive Systems
Monitors large slow-speed drives on rotary kilns, calciners, and industrial furnaces where radiant heat from the process vessel elevates sensor zone temperatures. Ensures continuous operation in cement, lime, and mineral processing industries.

Power Plant Auxiliary Equipment
Protects boiler feed pumps, induced draft fans, and forced draft blowers operating in high-temperature boiler environments. Integrates with distributed control systems (DCS) for automated shutdown and alarm management.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review the following specifications when designing your monitoring system:

Operating Temperature Range: -40°F to +350°F (-40°C to +177°C)
Probe Tip Diameter: 8mm (0.315 in)
Thread Size: M18 x 1.5 metric
Sensing Distance: 0.5 to 2.0 mm (20 to 80 mils) typical
Frequency Response: 0 to 10 kHz (-3dB)
Cable Length: 5 meters (16.4 ft) integral armored cable
Cable Type: Stainless steel armored with PTFE insulation
Housing Material: 316 stainless steel
Sealing: Hermetically sealed, IP67 rated
Compliance: API 670, ISO 20816
Mating Proximitor: 3300 XL 8mm system (e.g., 330180-50-00)
Mounting: Threaded installation with lock nut

Selection Considerations:
When specifying this probe, confirm the following site parameters: maximum ambient temperature at installation point, target shaft material and surface finish (for eddy current coupling), required sensing gap range, available mounting thread depth, and proximitor system compatibility. For installations above 300°F or with non-standard shaft materials (e.g., ceramic-coated, titanium), consult with our application engineers to verify suitability and optimize system calibration.

System Integration & Customization Options

Beyond the standard configuration, we support tailored solutions for complex installations:

Custom Cable Lengths: Available in 1m, 3m, 7m, and 9m lengths to minimize cable routing complexity and reduce electromagnetic interference in high-noise environments.

Explosion-Proof Certifications: ATEX, IECEx, and FM-approved versions available for hazardous area installations (Zone 1, Division 1).

Extended Warranty Programs: Multi-year service agreements with calibration verification, on-site spares, and priority technical support for critical asset protection programs.

Turnkey System Packages: Pre-configured probe + proximitor + extension cable kits with factory calibration certificates, reducing commissioning time and ensuring measurement accuracy from day one.

Delivery, Quality Assurance & Technical Support

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom configurations (special cable lengths, certifications) typically require 2-3 weeks for manufacturing and testing.

Warranty: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options available for critical service applications.

Documentation Package: Each probe ships with calibration certificate, dimensional drawing, installation instructions, and recommended proximitor pairing guide. Electrical schematics and 3D CAD models available upon request.

Technical Support: Access to Bently Nevada-certified application engineers for installation planning, troubleshooting, and system optimization. Remote diagnostic support and on-site commissioning services available in major industrial regions.

Quality Certifications: Manufactured under ISO 9001:2015 quality management system. Traceable calibration to NIST standards. RoHS and REACH compliant.

Frequently Asked Questions (FAQ)

Q: How does the high-temperature proximity probe integrate with existing Bently Nevada monitoring systems?
A: The 21504-00-36-05-02 is a direct replacement for standard 8mm probes and connects to any 3300 XL or 3500 series proximitor via the integral armored cable. Simply thread-mount the probe at the specified gap, connect to your existing proximitor, and verify gap voltage. No system reconfiguration or software changes required for drop-in replacements.

Q: What is the maximum number of probes I can install on a single machine?
A: Probe quantity depends on your monitoring architecture. Typical turbomachinery installations use 2 probes per bearing (X-Y radial measurement) plus 1-2 axial probes for thrust position. A four-bearing turbine might employ 10-12 probes total. Each probe requires a dedicated proximitor channel.

Q: What energy savings or reliability improvements can I expect?
A: While the probe itself doesn't reduce energy consumption, it enables predictive maintenance strategies that prevent unplanned shutdowns—which in power generation can cost $500K-$1M per day. Early detection of bearing degradation or rotor imbalance allows scheduled repairs during planned outages, avoiding emergency shutdowns and extending equipment life by 20-30%.

Q: What are the installation environment requirements? What is the ingress protection rating?
A: The probe is rated IP67 (dust-tight, protected against temporary immersion). Install in locations with ambient temperatures ≤350°F, away from direct process fluid spray. Mounting surface should be rigid (vibration <0.5g) to prevent measurement noise. Avoid routing cables near high-current power lines or VFD enclosures to minimize EMI.

Q: Can I connect this probe to a PLC or DCS for remote monitoring and data logging?
A: Yes, when paired with a 3500 rack monitor (e.g., 3500/42M Proximitor module), the conditioned 4-20mA output can feed directly into your DCS or SCADA system. For digital integration, the 3500 rack supports Modbus TCP/IP and OPC protocols. Alternatively, use a 3300 XL proximitor with a separate vibration transmitter for analog PLC interfacing.

Request a Custom Solution

To receive a tailored recommendation, technical datasheet, or project quotation, please provide the following details: Project name and application (e.g., steam turbine retrofit, compressor upgrade), operating conditions (max temperature, shaft speed, shaft material), quantity required, monitoring system in use (3300 XL, 3500 rack, or third-party), and site location for delivery and support planning. Our engineering team will respond within one business day with a detailed selection guide and pricing.
