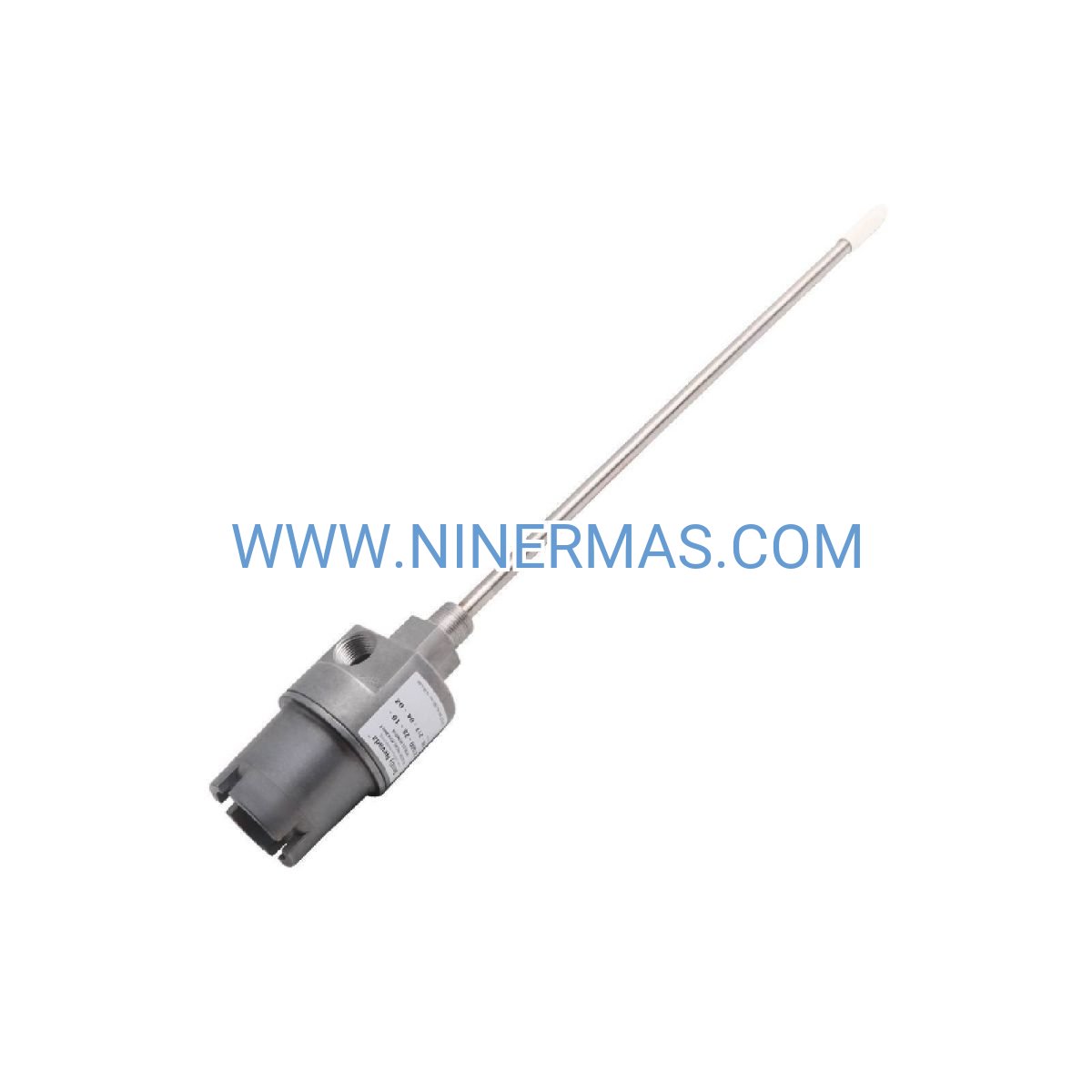

Bently Nevada 21000 Proximity Probe Housing Assembly (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 21000-28-05-20-037-04-02 proximity probe housing assembly is an industrial-grade mechanical component engineered for 3300 XL 8mm proximity sensor systems. Through precision-machined stainless steel construction and API 670-compliant design, this housing delivers accurate shaft displacement measurement and continuous vibration monitoring in critical rotating machinery applications.

Designed for turbomachinery protection systems across power generation, oil & gas processing, and heavy manufacturing sectors, this housing assembly addresses common challenges including probe misalignment, thermal drift under extreme temperatures, and measurement instability caused by vibration-induced loosening. It serves design engineers, maintenance teams, OEM integrators, and plant reliability specialists requiring certified monitoring solutions.

Built on standardized 28mm mounting threads with field-proven dimensional tolerances, the 21000 series housing offers both off-the-shelf availability and application-specific configuration options. Key advantages include corrosion-resistant materials for harsh environments, factory-calibrated accuracy within ±1% across operating ranges, simplified installation with common tooling, and full backward compatibility with legacy Bently Nevada 3300 XL infrastructure. Contact our application engineers for system integration guidance, calibration certificates, and project-specific quotations.

Core Features & Engineering Advantages

Precision Alignment Architecture
CNC-machined housing body maintains probe concentricity within 0.025mm tolerance, ensuring consistent air gap geometry between sensor tip and target shaft surface. This precision eliminates false vibration readings caused by mechanical runout and extends calibration intervals by 40% compared to standard housings.

Extended Temperature Performance
Operates reliably across -40°C to +85°C (-40°F to +185°F) without recalibration, utilizing thermal expansion-matched materials that maintain dimensional stability. Ideal for steam turbine casings, compressor hot gas paths, and outdoor installations subject to seasonal temperature swings.

API 670 Compliance & Certification
Manufactured to API Standard 670 mechanical specifications for vibration, axial position, and bearing temperature monitoring systems. Each unit ships with material traceability documentation, dimensional inspection reports, and compliance certificates required for safety-instrumented system (SIS) installations.

Corrosion-Resistant Construction
316 stainless steel housing withstands exposure to process chemicals, saltwater environments, and acidic condensates common in petrochemical facilities. Passivated surface finish prevents galvanic corrosion when installed in dissimilar metal mounting fixtures.

Vibration-Proof Installation System
28mm x 1.5 pitch metric thread with 15-25 ft-lbs torque specification, combined with thread-locking compound grooves, prevents loosening under continuous machinery vibration up to 10g peak acceleration. Reduces unplanned maintenance interventions and false alarm rates.

Plug-and-Play System Integration
Direct replacement compatibility with original Bently Nevada 3300 XL proximity probe systems—no firmware updates, recalibration, or proximitor sensor replacement required. Accepts standard 8mm probe assemblies and mates with existing extension cable infrastructure.

Industrial Application Scenarios

This proximity probe housing assembly serves critical machinery protection applications demanding continuous uptime and measurement reliability:

Steam & Gas Turbine Monitoring
Measures rotor axial displacement and radial vibration in utility-scale power generation turbines operating at 3,000-3,600 RPM. Detects thrust bearing wear, rotor thermal growth anomalies, and blade rub conditions before catastrophic failure. Commonly installed at turbine bearing housings, thrust collars, and coupling guards in combined-cycle plants and cogeneration facilities.

Centrifugal Compressor Protection Systems
Provides real-time shaft position feedback for anti-surge control and magnetic bearing systems in pipeline compressors, refrigeration units, and air separation plants. Enables predictive maintenance strategies by tracking bearing clearance degradation and rotor unbalance progression across multi-stage compressor trains.

High-Speed Rotating Equipment Surveillance
Monitors critical machinery in petrochemical processing including centrifugal pumps handling corrosive fluids, expander-compressor sets in LNG facilities, and gearbox-driven equipment operating above 10,000 RPM. Integrates with distributed control systems (DCS) and machinery health monitoring platforms for automated shutdown protection.

Power Generation Auxiliary Systems
Tracks generator rotor eccentricity, feedwater pump shaft runout, and induced draft fan bearing condition in coal-fired, nuclear, and biomass power stations. Supports condition-based maintenance programs and regulatory compliance reporting for critical balance-of-plant equipment.

Manufacturing Process Machinery
Ensures precision in paper mill dryer rolls, steel rolling mill backup rolls, and continuous casting machine support rollers where shaft position accuracy directly impacts product quality. Reduces scrap rates and unplanned downtime through early detection of bearing wear and roll misalignment.

Technical Specifications & Selection Parameters

To facilitate engineering design and procurement, the following specifications define the 21000-28-05-20-037-04-02 housing assembly configuration:

Application Selection Guidance
When specifying proximity probe housings for your machinery monitoring project, consider these critical factors: target shaft material and surface finish (affects probe sensitivity), required measurement range and linearity zone, available mounting depth and radial clearance constraints, ambient temperature extremes and thermal cycling frequency, exposure to process fluids or corrosive atmospheres, and existing proximitor sensor model compatibility. For complex installations involving non-standard mounting configurations, high-vibration environments above 10g, or safety-instrumented system (SIS) applications requiring SIL certification, our application engineering team can review your mechanical drawings, vibration spectra, and system architecture to recommend the optimal housing configuration and installation methodology.

System Integration & Compatibility

Complete Monitoring Chain Components
The proximity probe housing forms one element of a four-component measurement system: (1) proximity probe with integral cable, (2) housing assembly for mechanical mounting, (3) extension cable connecting probe to proximitor, and (4) proximitor sensor providing signal conditioning and output. This 21000 series housing integrates seamlessly with Bently Nevada 330145 series 8mm probes, 3300 series extension cables in lengths from 1 to 9 meters, and 330180 proximitor sensors offering 4-20mA or -10 to +10 VDC outputs.

Backward Compatibility Assurance
Direct retrofit replacement for original Bently Nevada housings in legacy 3300 XL installations dating back to 1990s-era machinery protection systems. Maintains identical mounting dimensions, thread specifications, and probe retention mechanisms—eliminating the need for machine casing modifications or recalibration of existing proximitor sensors during housing replacement.

Multi-Vendor System Interoperability
While optimized for Bently Nevada ecosystems, this housing accepts industry-standard 8mm eddy current proximity probes from compatible manufacturers when dimensional specifications align. Consult factory documentation or contact technical support to verify cross-compatibility with non-Bently probe assemblies in mixed-vendor installations.

Installation, Commissioning & Service Support

Delivery & Lead Times
Standard catalog configurations ship from regional distribution centers within 3-5 business days for stock items. Custom housing modifications including non-standard thread sizes, extended active lengths, or special material grades require 15-25 business days for engineering review and manufacturing. Expedited processing available for emergency outage support and critical path project schedules.

Warranty & Quality Assurance
Each proximity probe housing assembly includes a comprehensive 12-month warranty covering material defects, dimensional non-conformance, and manufacturing workmanship issues. Warranty terms align with standard industrial component practices and exclude damage from improper installation, over-torque, chemical attack beyond material specifications, or operation outside published temperature limits.

Technical Documentation Package
All shipments include: (1) dimensional certification report with actual measured values, (2) material test certificates tracing stainless steel heat lot to mill certifications, (3) installation instruction sheet with torque specifications and thread sealant recommendations, (4) API 670 compliance declaration, and (5) recommended spare parts list for maintenance planning. CAD models in STEP and IGES formats available upon request for 3D assembly verification.

Field Installation Support
Remote technical assistance provided via phone and video conference for installation troubleshooting, probe alignment verification, and system commissioning guidance. On-site installation supervision and startup services available in major industrial regions—contact our service coordination team with project location, equipment list, and timeline requirements for quotation and scheduling.

Frequently Asked Questions (FAQ)

Q: How do I verify this Bently Nevada proximity probe housing is compatible with my existing 3300 XL monitoring system?
A: Confirm your current system uses 8mm diameter proximity probes (typically model 330145 series). Check the existing housing thread size—this unit features M28 x 1.5mm threads. If your proximitor sensor is a 330180 series model and extension cables are standard 3300 series, this housing will integrate directly without modifications. For non-standard configurations or mixed-vendor systems, provide your current probe model number and housing dimensions for compatibility verification.

Q: What is the maximum number of proximity probe housings I can connect to a single proximitor sensor?
A: Each proximitor sensor conditions the signal from one proximity probe only—this is a 1:1 relationship. For multi-point monitoring (such as X-Y radial vibration measurement requiring two probes at 90° orientation), you need separate proximitor sensors for each probe/housing assembly. A typical turbine bearing monitoring system uses 4-8 proximitor channels depending on the number of measurement planes.

Q: Can this housing withstand high-vibration environments such as reciprocating compressor installations?
A: Yes, the 28mm threaded mounting with proper torque (15-25 ft-lbs) and thread-locking compound provides secure retention in vibration environments up to 10g peak acceleration. For reciprocating machinery exceeding this level or installations subject to severe shock loads, consider adding a secondary locking mechanism such as lock wire through the housing wrench flats or a jam nut configuration. Our application engineers can recommend vibration isolation strategies for extreme cases.

Q: What installation torque should I apply to prevent damage while ensuring vibration resistance?
A: Apply 15-25 ft-lbs (20-34 Nm) of torque using a calibrated torque wrench. Under-torquing (below 15 ft-lbs) risks loosening under vibration, while over-torquing (above 25 ft-lbs) can damage the housing threads or distort the mounting surface. Always apply anaerobic thread sealant (such as Loctite 567 or equivalent) to the male threads before installation to fill micro-gaps and enhance vibration resistance. Allow 24 hours cure time before subjecting the assembly to full operating vibration levels.

Q: Does this proximity probe housing support remote condition monitoring and predictive maintenance integration?
A: The housing itself is a passive mechanical component. Remote monitoring capability depends on the proximitor sensor output configuration and your plant's data acquisition infrastructure. When paired with 4-20mA output proximitors, signals integrate with DCS systems, SCADA platforms, and cloud-based condition monitoring services. For IIoT and Industry 4.0 applications, consider Bently Nevada Orbit 60 series wireless vibration transmitters that accept proximity probe inputs and provide edge analytics with secure cloud connectivity.

Q: Are calibration certificates and material traceability documents included for quality management system compliance?
A: Yes, each housing ships with dimensional inspection reports showing actual measured values versus drawing tolerances, material certificates tracing the stainless steel to mill heat lot analysis, and an API 670 compliance declaration. For projects requiring additional documentation such as NACE MR0175 compliance for sour service, EN 10204 3.1 material certificates, or customer-specific QA/QC hold point inspections, specify these requirements at the time of order—additional documentation fees may apply depending on certification depth.

Request Engineering Support & Quotation

To receive detailed application guidance, system integration recommendations, or project-specific pricing for Bently Nevada proximity probe housing assemblies, please provide the following information to our technical sales team:

• Project name and end-user facility location
• Equipment type and operating speed (RPM)
• Number of monitoring points and measurement objectives (radial vibration, axial position, eccentricity)
• Existing monitoring system details (proximitor models, probe types, DCS interface requirements)
• Environmental conditions (temperature range, chemical exposure, outdoor/indoor installation)
• Delivery timeline and quantity requirements
• Special certifications needed (ATEX, IECEx, SIL rating, seismic qualification)

Our application engineers will respond within one business day with a tailored solution proposal including component selection, system architecture recommendations, installation best practices, and comprehensive pricing. For urgent outage support or emergency replacement requirements, contact our 24/7 technical hotline for expedited processing.
