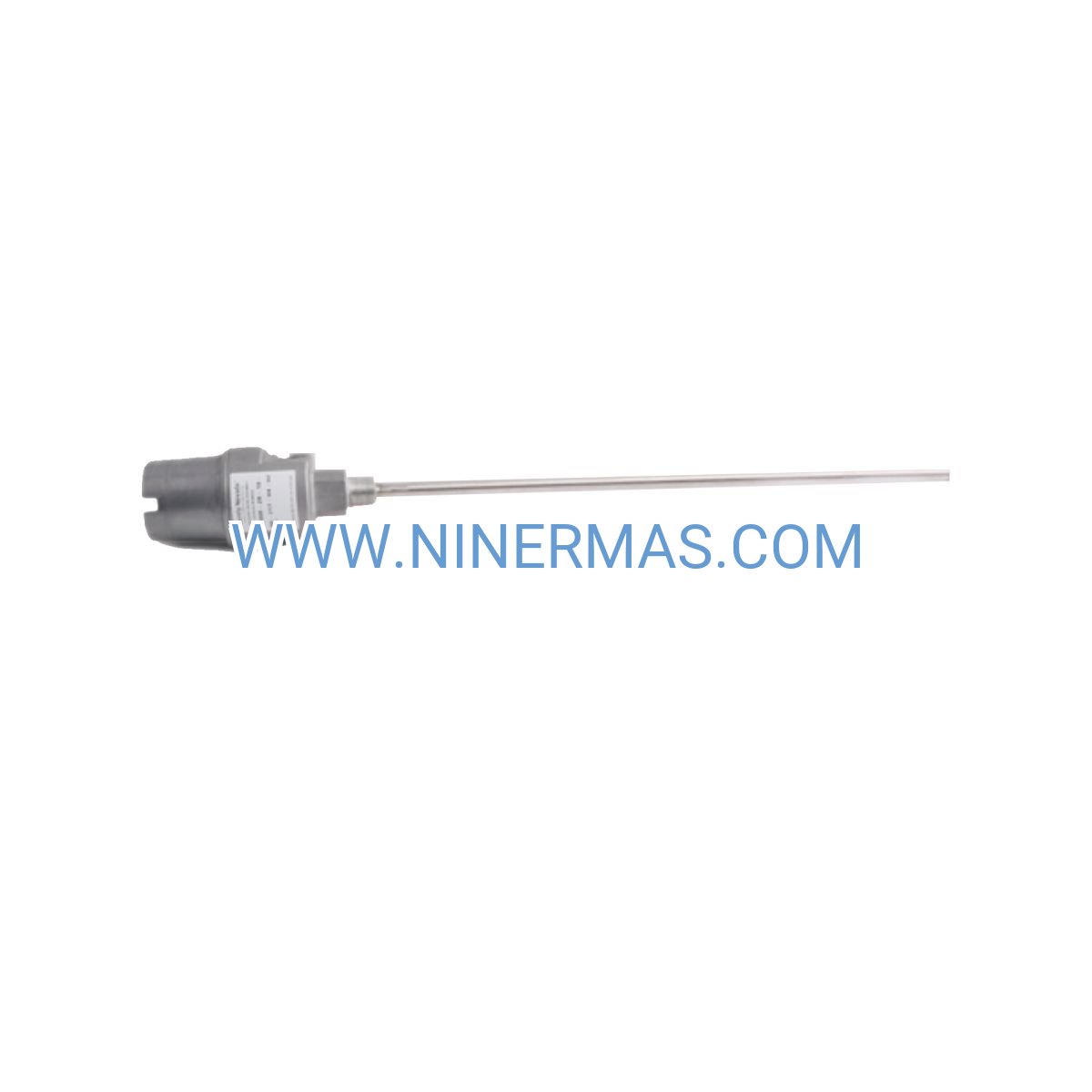

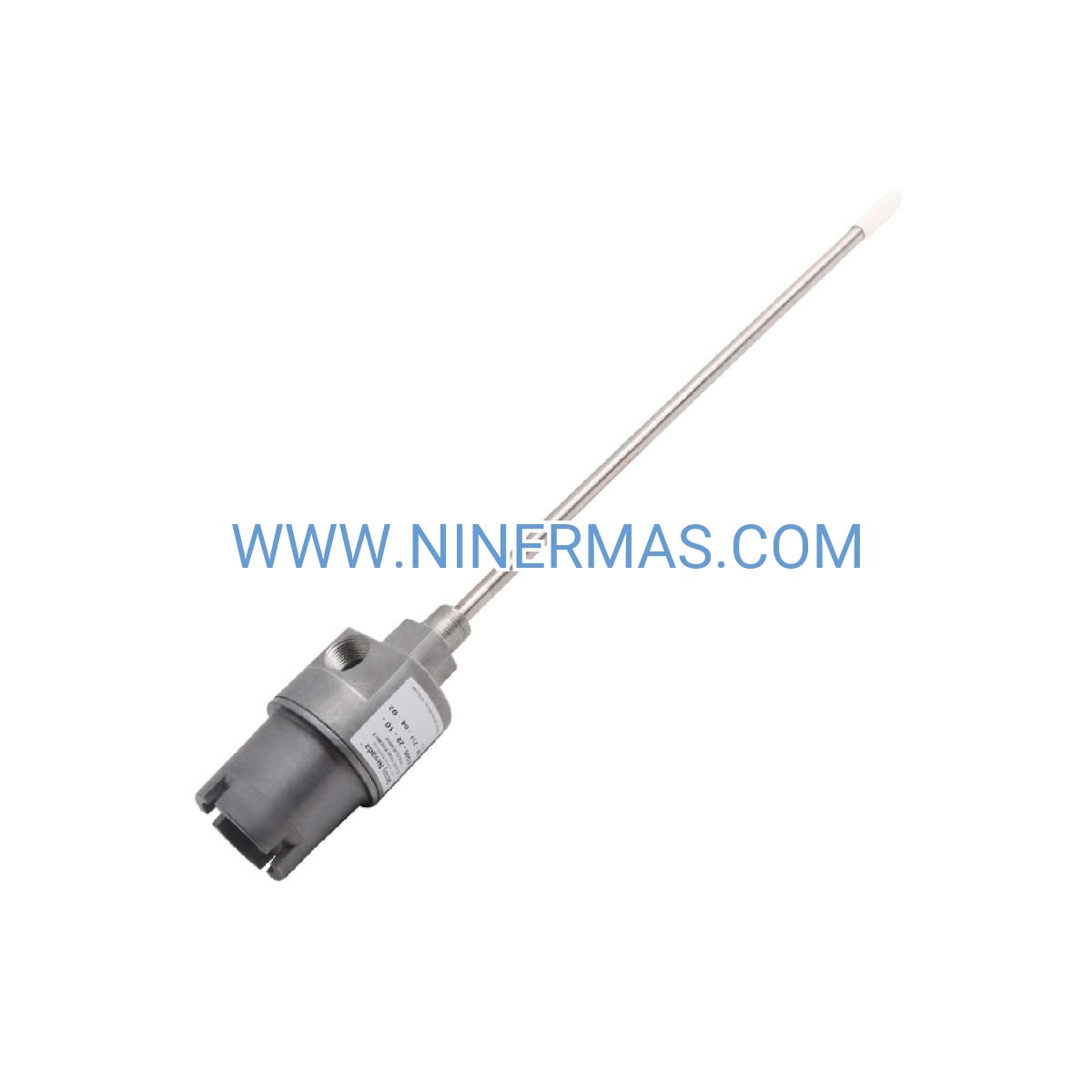

Bently Nevada 21000 Aluminum Proximity Probe Housing Assembly (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 21000-28-05-15-022-01-03 is an industrial-grade aluminum proximity probe housing assembly designed for critical turbomachinery vibration monitoring applications. Through precision-machined construction and electromagnetic shielding technology, it delivers stable probe positioning, reliable sensor protection, and long-term measurement accuracy in harsh industrial environments.

Ideal for rotating machinery condition monitoring scenarios including steam turbines, gas turbines, centrifugal compressors, generator sets, and high-speed pumps, this housing assembly addresses common challenges such as probe misalignment, electromagnetic interference, mechanical vibration damage, installation complexity, and environmental corrosion that compromise measurement reliability.

Featuring standardized design with customizable mounting options, this product offers API 670 compliance, multi-probe compatibility (8mm/11mm), corrosion-resistant aluminum construction, thermal stability across wide temperature ranges, and simplified installation procedures—making it suitable for design institutes, EPC contractors, system integrators, and end-user maintenance teams. Contact our application engineers for selection assistance and technical quotations.

Core Features & Advantages

Precision Mechanical Design
CNC-machined aluminum housing ensures dimensional accuracy within ±0.05mm tolerance, maintaining consistent probe-to-target gap for reliable vibration measurement. Eliminates drift caused by thermal expansion or mechanical stress.

Superior Electromagnetic Shielding
High-conductivity aluminum alloy construction provides effective EMI/RFI shielding, reducing signal noise by up to 40dB in electrically noisy industrial environments. Ensures clean sensor output for accurate condition assessment.

Multi-System Compatibility
Seamlessly integrates with Bently Nevada 3300 XL, 3500 series monitoring systems and industry-standard 8mm/11mm proximity probes. Supports both new installations and retrofit projects without extensive system reconfiguration.

Robust Environmental Protection
Anodized aluminum surface treatment resists corrosion from moisture, oil mist, and chemical exposure. Operating temperature range -40°C to +85°C accommodates extreme industrial conditions while maintaining mechanical integrity.

Simplified Installation & Maintenance
Pre-drilled mounting holes with standard thread specifications (M12×1.5) enable quick field installation. Modular design allows probe replacement without housing removal, reducing maintenance downtime by approximately 60%.

Compliance & Quality Assurance
Manufactured to API 670 machinery protection system standards and ISO 20816 vibration severity guidelines. Each unit undergoes factory calibration with full dimensional inspection reports and material certifications.

Typical Application Scenarios

This proximity probe housing assembly is engineered for applications demanding high measurement reliability, continuous operation capability, and resistance to harsh environmental conditions, particularly in:

Steam & Gas Turbine Monitoring
Provides critical shaft vibration and axial position measurement for turbine protection systems. Withstands high-temperature radiant heat and steam leakage environments common in power generation facilities.

Centrifugal Compressor Surveillance
Enables real-time monitoring of rotor dynamics in oil & gas processing, petrochemical, and air separation plants. Aluminum construction prevents galvanic corrosion in corrosive gas atmospheres.

Generator & Motor Condition Monitoring
Supports bearing vibration analysis and rotor eccentricity detection in large rotating electrical machines. EMI shielding eliminates interference from strong electromagnetic fields generated by stator windings.

High-Speed Pump & Fan Systems
Facilitates predictive maintenance programs for critical pumping and ventilation equipment in water treatment, HVAC, and industrial process applications. Lightweight design simplifies installation on space-constrained equipment.

Industrial Gearbox & Drivetrain Analysis
Enables torsional vibration and gear mesh frequency monitoring in heavy machinery, mining equipment, and marine propulsion systems. Rugged construction survives shock loads and continuous vibration exposure.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide standardized configuration parameters with customization capabilities for project-specific requirements:

Selection Recommendations
When selecting proximity probe housing assemblies, consider the following factors: target machinery type and rotational speed, required probe sensing distance (typically 1-2mm gap), ambient temperature and environmental conditions (corrosive gases, moisture, dust), available mounting space and orientation, electrical noise environment, and compliance requirements (API, ATEX, IECEx). For application-specific guidance, please provide equipment parameters including machine type, shaft diameter, operating speed, temperature range, and environmental classification—our engineers will recommend optimal configurations.

Extended Functionality & Integration

System Integration Capabilities
This housing assembly supports integration with distributed control systems (DCS), programmable logic controllers (PLC), and SCADA platforms via compatible proximitor modules. Analog output signals (4-20mA, -10V to +10V) and digital communication protocols (Modbus RTU, HART) enable seamless data acquisition for centralized monitoring dashboards.

Advanced Monitoring Features
When paired with Bently Nevada 3500 rack-based monitoring systems, enables advanced diagnostic capabilities including orbit analysis, Bode plots, polar plots, shaft centerline position tracking, and automated alarm generation based on ISO 10816 vibration severity criteria.

Hazardous Area Certification
Optional ATEX Zone 1/2 and IECEx certification available for installations in explosive atmospheres (gas groups IIA, IIB, IIC). Intrinsically safe (IS) barrier compatibility ensures compliance with global hazardous location regulations.

Delivery, Service & Quality Assurance

Lead Time & Logistics
Standard catalog items ship within 3-5 business days from regional distribution centers. Custom configurations (special mounting threads, extended temperature ratings, hazardous area certifications) require 15-20 business days manufacturing lead time. International shipments include full export documentation and compliance certificates.

Warranty & Technical Support
All units include a comprehensive 18-month manufacturer warranty covering material defects and workmanship under normal operating conditions. Extended warranty programs available for critical applications. Technical support includes remote troubleshooting assistance, on-site commissioning services (region-dependent), and 24/7 emergency hotline access.

Documentation Package
Each housing assembly ships with complete technical documentation including dimensional drawings (PDF/DWG formats), installation instructions with torque specifications, material test certificates (MTR), dimensional inspection reports, and electrical grounding guidelines. Digital documentation portal provides access to 3D CAD models (STEP/IGES formats) for design integration.

Quality Certifications
Manufactured in ISO 9001:2015 certified facilities with full traceability. Material sourcing complies with RoHS and REACH directives. Pressure equipment directive (PED) compliance available for European installations.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 21000 proximity probe housing integrate with existing monitoring systems?
A: The housing accommodates standard M12-threaded proximity probes compatible with Bently Nevada 3300 XL and 3500 series proximitor modules. Connection requires appropriate extension cables (typically 5-9 meters) and proximitor signal conditioning. Our engineers can verify compatibility with your specific monitoring system configuration and recommend required accessories.

Q: What is the maximum number of probes that can be installed on a single machine using these housings?
A: Probe quantity depends on machinery type and monitoring requirements. Typical configurations include 2 probes per bearing (X-Y vibration), plus 1-2 axial position probes per machine. Steam turbines often require 8-12 probes total, while smaller pumps may need only 2-4. We provide application-specific probe layout drawings based on API 670 recommendations.

Q: What installation environment requirements must be met for optimal performance?
A: The housing requires stable mounting surfaces with flatness within 0.1mm, adequate clearance for probe adjustment (minimum 50mm radial space), protection from direct water spray (IP65 rating protects against jets, not submersion), and ambient temperatures within -40°C to +85°C range. Electrical grounding to machine frame is mandatory to prevent ground loop interference.

Q: Can this housing be used with non-Bently Nevada proximity probes from other manufacturers?
A: Yes, the housing accepts industry-standard 8mm and 11mm proximity probes with M12×1.5 threads from manufacturers including SKF, IFM, Metrix, and Emerson. However, system calibration and sensitivity may require adjustment. We recommend maintaining single-vendor probe/proximitor combinations for optimal performance and warranty coverage.

Q: Does the aluminum construction provide sufficient electromagnetic shielding in high-noise environments?
A: The 6061-T6 aluminum alloy provides 35-45dB EMI attenuation across 10kHz-1MHz frequency range, adequate for most industrial environments. For extreme cases (arc furnaces, large VFD installations, high-power RF transmitters), we recommend additional ferrite core filters on extension cables or upgrading to stainless steel housings with enhanced shielding.

Q: What maintenance intervals are recommended for these probe housings?
A: Quarterly visual inspection for mounting bolt torque (recommended 15-20 Nm), annual probe gap verification (should maintain 1-2mm ±0.2mm), and bi-annual cleaning of anodized surfaces in corrosive environments. Probe replacement typically occurs every 5-7 years or per manufacturer recommendations. Housing assemblies have 15+ year service life when properly maintained.

Request Technical Consultation

To receive detailed selection guidance, technical quotations, or application engineering support, please provide the following information: project name and location, machinery type and application (turbine, compressor, pump, etc.), shaft diameter and rotational speed, number of monitoring points required, operating temperature range and environmental conditions (corrosive, explosive atmosphere, etc.), existing monitoring system brand and model, and preferred delivery timeline. Our application engineers will respond within 24 hours with customized recommendations and budget pricing.
