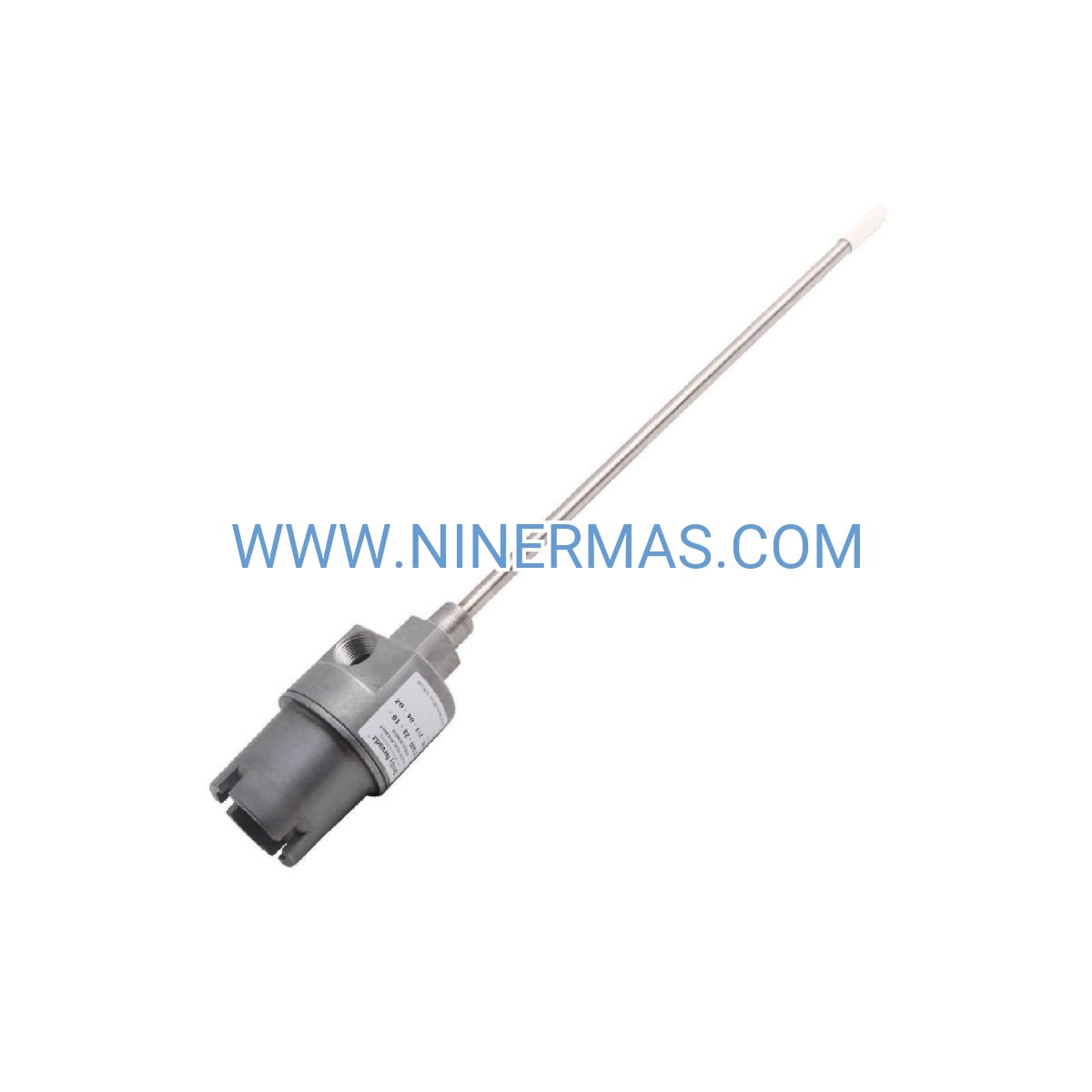

Bently Nevada 21000-16-05-00-105-03-02 Proximity Probe Housing Assembly (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 21000-16-05-00-105-03-02 is a precision-engineered proximity probe housing assembly designed for critical rotating machinery vibration monitoring applications. Through robust stainless steel construction and precision-machined 16mm mounting threads, this housing delivers reliable shaft displacement measurement and bearing condition surveillance in demanding industrial environments. Compatible with 3300 XL 8mm proximity sensors, it ensures accurate signal transmission while protecting sensitive probe electronics from harsh operational conditions.

Ideal for power generation facilities, petrochemical plants, oil & gas processing units, and heavy manufacturing operations where continuous machinery health monitoring is essential. This housing assembly addresses common challenges including probe misalignment, environmental contamination, installation complexity, and calibration drift—helping maintenance teams prevent catastrophic equipment failures, reduce unplanned downtime, and optimize predictive maintenance programs.

Featuring standardized dimensions with customizable installation configurations, the 21000-16-05-00-105-03-02 offers IP67 environmental protection, API 670 compliance certification, and wide temperature tolerance (-40°C to +85°C). Suitable for design engineers, instrumentation specialists, plant maintenance teams, and OEM integrators. Contact our application engineers for site-specific installation guidance, compatibility verification, and technical documentation.

Core Features & Engineering Advantages

• Precision Mechanical Interface
  CNC-machined 16mm mounting threads ensure accurate probe positioning and secure installation in bearing housings, turbine casings, and compressor bodies. Maintains factory calibration integrity with ±0.02mm dimensional tolerance, eliminating measurement errors caused by improper probe alignment.
• Extended Installation Flexibility
  105mm active housing length accommodates deep-penetration installations through thick bearing housings, insulation layers, and multi-wall casings. Provides optimal probe-to-target gap adjustment range for various machinery configurations and retrofit applications.
• Superior Environmental Protection
  IP67-rated sealing system protects probe electronics from moisture ingress, dust contamination, oil mist, and chemical exposure. Corrosion-resistant 316 stainless steel construction withstands aggressive industrial atmospheres, extending service life in coastal, chemical processing, and offshore environments.
• Wide Operating Temperature Range
  Engineered for continuous operation from -40°C to +85°C, suitable for arctic installations, desert climates, and high-temperature process equipment monitoring. Thermal stability ensures consistent measurement accuracy across seasonal temperature variations and process condition changes.
• Industry Standards Compliance
  Fully compliant with API 670 machinery protection system requirements and ISO 20816 vibration severity standards. Pre-certified for use in critical machinery applications requiring regulatory approval, reducing commissioning time and documentation burden.
• Plug-and-Play System Integration
  Direct compatibility with Bently Nevada 3300 XL monitoring platforms, 3500 rack systems, and System 1 condition monitoring software. Seamless integration with existing infrastructure eliminates costly system modifications and reduces installation complexity.

Typical Application Scenarios

This proximity probe housing assembly is engineered for high-reliability machinery monitoring installations where measurement accuracy, environmental durability, and long-term stability are critical requirements:

• Steam & Gas Turbine Monitoring
  Provides precise shaft displacement and differential expansion measurement in power generation turbines operating at 3,000-3,600 RPM. Monitors thrust bearing position, rotor axial movement, and casing expansion to prevent blade rubs and catastrophic failures in 50-500 MW generating units.
• Centrifugal Compressor Protection
  Enables real-time bearing clearance monitoring and surge detection in process gas compressors, refrigeration units, and air separation plants. Supports multi-stage compressor installations requiring simultaneous monitoring of journal bearings, thrust positions, and rotor eccentricity across 4-8 measurement points.
• Large Motor & Generator Surveillance
  Facilitates continuous vibration monitoring in electric motors (500 kW to 50 MW) and synchronous generators used in industrial drives, pump stations, and independent power production. Detects bearing wear, rotor imbalance, and foundation looseness before developing into forced outages.
• Critical Pump Shaft Monitoring
  Supports boiler feed pumps, pipeline transfer pumps, and reactor circulation pumps in power plants, refineries, and chemical facilities. Measures shaft radial displacement and bearing condition in high-pressure, high-temperature pumping applications where failure consequences are severe.
• Industrial Fan & Blower Systems
  Monitors induced draft fans, forced draft fans, and process blowers in cement kilns, steel mills, and waste-to-energy plants. Provides early warning of bearing degradation, rotor imbalance, and structural resonance in large-diameter, low-speed rotating equipment.

Technical Parameters & Selection Guide

To ensure optimal performance and compatibility, the following specifications define the mechanical, electrical, and environmental characteristics of this housing assembly:

Selection Recommendations: When specifying this housing assembly, consider the following application parameters: (1) Bearing housing wall thickness and material composition, (2) Required probe penetration depth and target surface accessibility, (3) Ambient temperature extremes and chemical exposure conditions, (4) Existing monitoring system architecture (3300 XL, 3500, or System 1), (5) Installation space constraints and mounting orientation. For custom configurations, non-standard thread sizes, or extended-length requirements, provide detailed machinery drawings and installation environment specifications. Our application engineers will recommend the optimal housing configuration and verify compatibility with your existing instrumentation.

Advanced Configuration Options

Beyond standard specifications, this housing platform supports several field-configurable enhancements for specialized applications:

• Armored Cable Integration: Optional stainless steel braided cable protection for installations exposed to mechanical damage, rodent activity, or moving machinery components.
• Explosion-Proof Variants: ATEX Zone 1 and IECEx certified housings available for hazardous area installations in refineries, offshore platforms, and chemical processing units.
• High-Temperature Extensions: Ceramic-insulated housing extensions rated to 200°C for kiln, furnace, and high-temperature process monitoring applications.
• Sanitary Designs: Electropolished 316L stainless steel housings with 3-A sanitary certifications for food processing, pharmaceutical, and biotechnology installations.

Delivery, Service & Quality Assurance

Lead Times: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured assemblies require 10-15 business days for manufacturing and quality verification. Expedited processing available for critical outage support and emergency replacements.

Warranty Coverage: All units include a comprehensive 18-month manufacturer warranty covering material defects, dimensional non-conformance, and workmanship issues under normal operating conditions. Extended warranty programs available for critical machinery applications.

Technical Support: Factory-trained application engineers provide remote installation guidance, troubleshooting assistance, and system integration consultation at no additional charge. On-site commissioning support and vibration analysis services available in major industrial regions (quoted separately based on location and scope).

Documentation Package: Each housing assembly ships with complete technical documentation including: dimensional drawings with tolerances, material certifications and traceability reports, installation instructions with torque specifications, probe gap setting procedures, API 670 compliance certificates, and calibration data sheets. Digital documentation available via secure download portal.

Quality Certifications: Manufactured under ISO 9001:2015 quality management systems with full material traceability. Every unit undergoes dimensional inspection, thread gauge verification, and pressure testing before shipment. Individual serial number tracking enables lifetime traceability and warranty administration.

Frequently Asked Questions (FAQ)

Q: How do I verify compatibility between this housing assembly and my existing proximity probes?
A: This housing is specifically designed for Bently Nevada 3300 XL series 8mm diameter proximity probes (models 330400, 330425, and similar). Verify your probe diameter using calipers—it should measure 8mm (0.315 inches). Check probe model number against Bently Nevada compatibility matrices. If using non-Bently probes or 5mm/11mm sensors, contact our technical team for alternative housing recommendations.

Q: What is the maximum installation depth this housing can accommodate, and how does it affect measurement accuracy?
A: The 105mm active length allows installation through bearing housings up to 100mm thick while maintaining proper probe gap. For installations requiring deeper penetration (120-150mm), extended-length housings are available. Installation depth does not affect measurement accuracy provided the probe tip extends beyond the housing face and maintains the recommended 1.0-1.5mm gap to the target surface.

Q: Can this proximity probe housing be installed in explosive atmosphere environments such as Zone 1 or Division 1 areas?
A: The standard 21000-16-05-00-105-03-02 housing is suitable for general industrial environments (non-hazardous areas). For installations in classified hazardous locations requiring ATEX, IECEx, or NEC 500 certifications, specify explosion-proof housing variants with intrinsically safe barrier systems. Consult our hazardous area application guides or contact engineering for proper selection.

Q: What are the recommended installation torque values, and what happens if I over-tighten the housing?
A: Apply 40-50 Nm (30-37 lb-ft) installation torque using a calibrated torque wrench. Over-tightening beyond 60 Nm can damage the housing threads, distort the mounting face, or crack the bearing housing material. Under-tightening below 35 Nm may result in housing loosening due to vibration, causing measurement drift and potential probe damage. Always use thread sealant rated for your operating temperature range.

Q: How often should I verify the probe gap after initial installation, and what tools are required?
A: Verify probe gap during initial commissioning, after any maintenance work involving probe removal, and annually during scheduled machinery outages. Use a calibrated feeler gauge set (metric) or a Bently Nevada TK-3 gap measurement tool. The target gap is 1.0-1.5mm (40-60 mils) from probe tip to shaft surface. Gap verification should be performed with the rotor stationary and at multiple circumferential positions to check for shaft runout.

Q: Is this housing compatible with wireless vibration monitoring systems or only wired 3300 XL systems?
A: This housing is primarily designed for wired Bently Nevada 3300 XL proximitor systems using standard coaxial extension cables. For wireless monitoring applications, the housing can accommodate wireless proximity transmitters (such as Bently Nevada Orbit 60 series) with appropriate adapter kits. Consult wireless system compatibility guides to ensure proper signal conditioning and power supply integration.

Request Technical Consultation

For detailed application engineering support, custom configuration assistance, or project-specific quotations, please provide the following information to our technical team:

• Project name and machinery identification (turbine model, compressor type, motor rating, etc.)
• Application scenario and monitoring objectives (vibration limits, alarm setpoints, protection functions)
• Bearing housing specifications (wall thickness, material, mounting surface condition)
• Required probe penetration depth and target surface characteristics (shaft diameter, material, surface finish)
• Quantity requirements and delivery timeline expectations
• Existing monitoring system architecture (3300 XL, 3500 rack, System 1 software version)
• Environmental conditions (temperature range, chemical exposure, hazardous area classification)

Our application engineers will respond within 24 hours with customized recommendations, compatibility verification, installation drawings, and competitive pricing. For urgent outage support or emergency replacements, call our 24/7 technical hotline for immediate assistance.
