Bently Nevada 21000 Proximity Probe – API 670 Certified Industrial Vibration Sensor

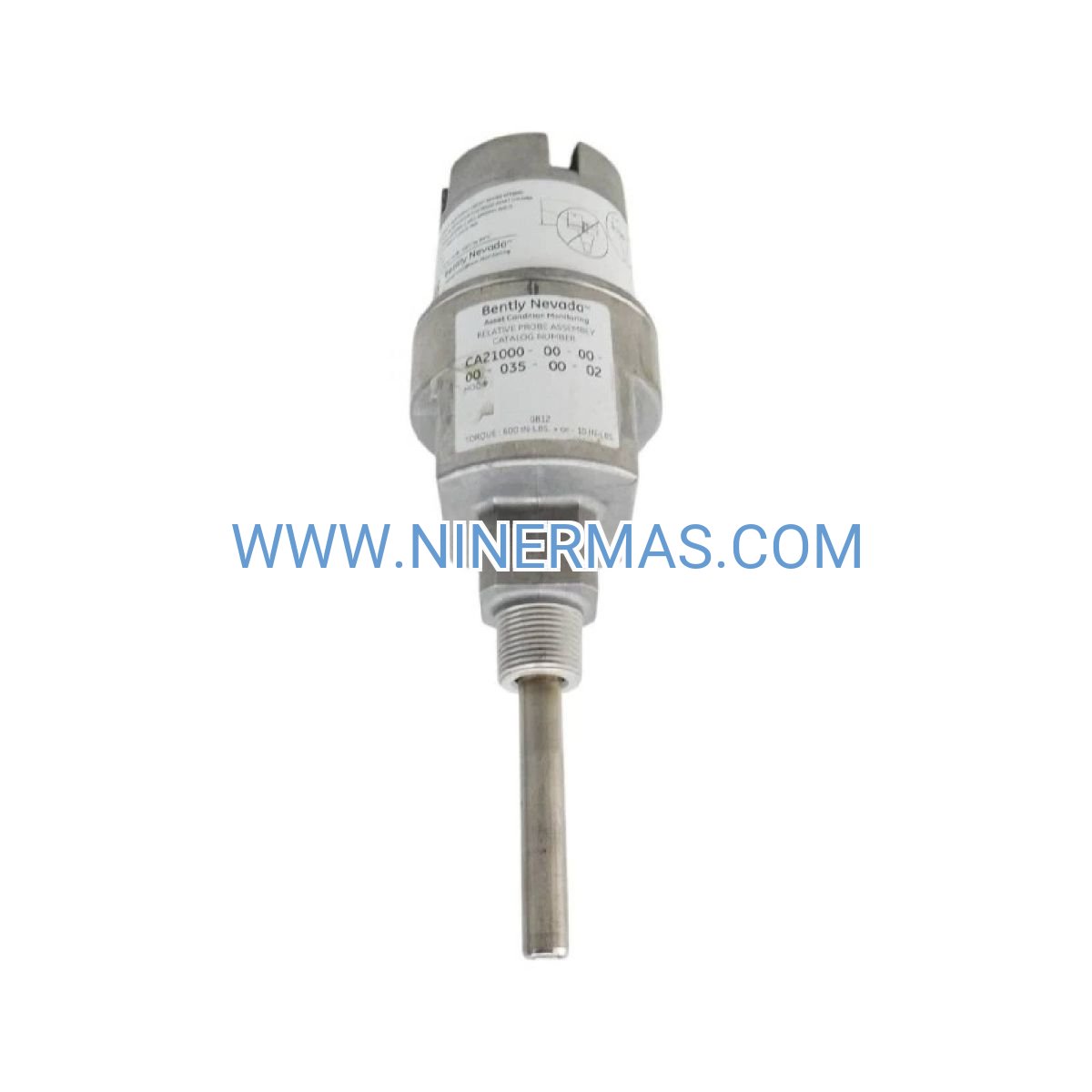

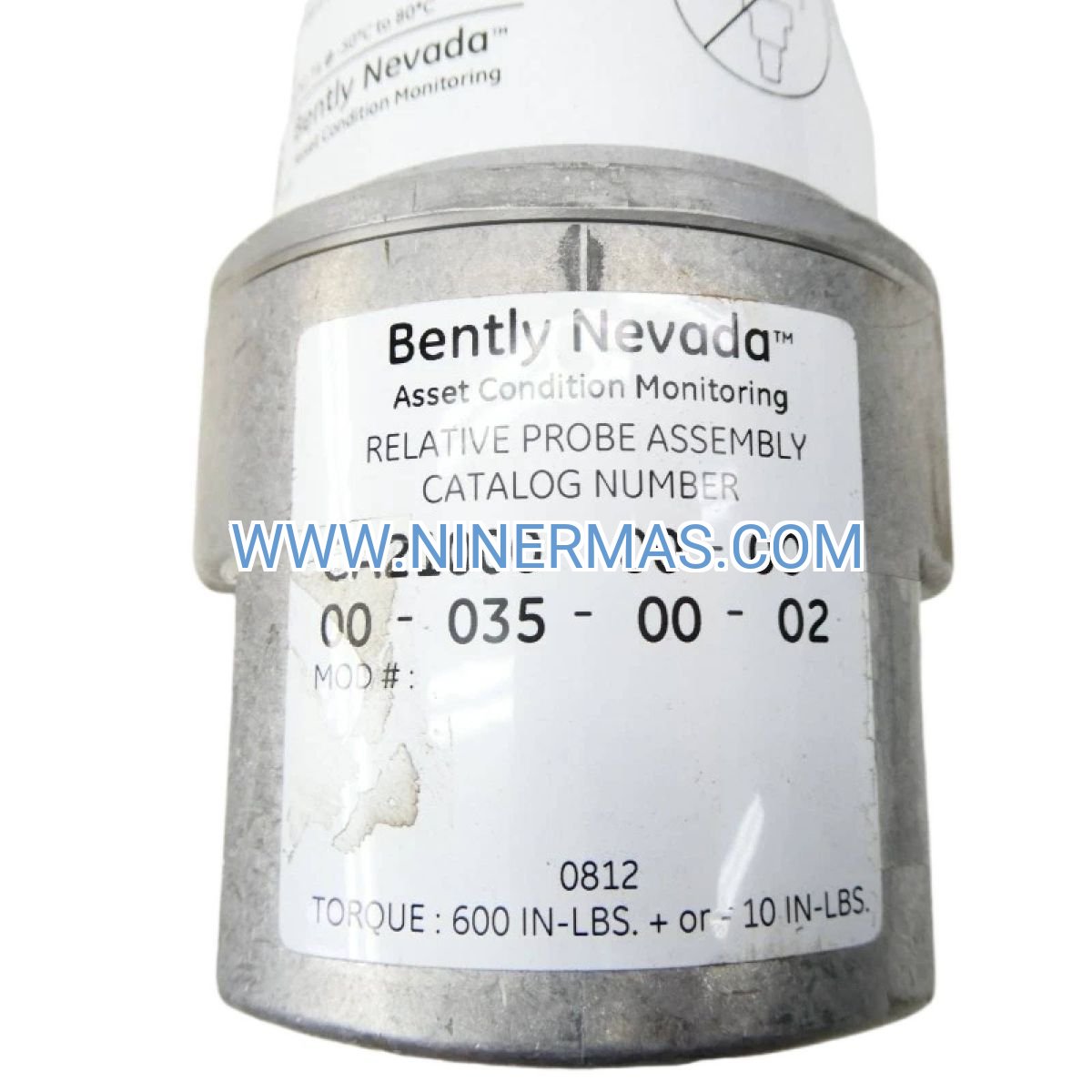

The Bently Nevada 21000-00-00-00-035-00-02 proximity probe is a precision eddy current sensor engineered for continuous vibration monitoring in critical rotating machinery. Utilizing advanced non-contact measurement technology, this probe delivers real-time shaft displacement and vibration data, enabling predictive maintenance and protecting high-value assets from catastrophic failure.

Designed for demanding industrial environments including power generation, oil & gas, petrochemical processing, and heavy manufacturing, this probe addresses common challenges such as bearing wear detection, rotor imbalance identification, shaft misalignment monitoring, and early fault diagnosis. It meets stringent API 670 compliance standards, ensuring reliability in safety-critical applications.

Through factory calibration and standardized design, the Bently Nevada 21000 series offers exceptional measurement accuracy, electromagnetic interference resistance, and long-term stability. Ideal for plant engineers, maintenance teams, OEM integrators, and condition monitoring specialists seeking proven vibration sensing solutions. Contact our technical team for application-specific selection guidance and integration support.

Core Features & Technical Advantages

API 670 Compliance & Industry Certification
Fully compliant with API 670 machinery protection system standards, meeting requirements for critical turbomachinery applications in oil, gas, and power industries. Third-party certified for safety-instrumented systems (SIS).

Wide Frequency Response Range
DC to 10 kHz frequency bandwidth captures both low-speed shaft runout and high-frequency bearing defects, providing comprehensive vibration spectrum analysis for diverse machinery types.

Extended Operating Temperature Range
Operates reliably from -40°C to +177°C (-40°F to +350°F), suitable for extreme environments including arctic installations, desert facilities, and high-temperature process equipment.

Factory Calibration & Interchangeability
Each probe is individually calibrated with traceable certification, ensuring measurement consistency across installations. Standardized sensitivity allows direct replacement without system recalibration.

Robust Construction & EMI Immunity
Stainless steel housing with hermetically sealed electronics protects against moisture, corrosive gases, and electromagnetic interference. Designed for 20+ year service life in harsh industrial conditions.

Flexible Mounting & Installation Options
Compatible with standard 3/8-24 UNF threaded mounting, adjustable probe gap settings, and various cable termination options. Supports both radial and axial vibration measurement configurations.

Typical Application Scenarios

This proximity probe is engineered for applications demanding high reliability, continuous operation, and precise vibration measurement:

Steam & Gas Turbine Monitoring
Protects critical turbine bearings in power plants and combined-cycle facilities by detecting abnormal vibration patterns, preventing unplanned shutdowns and extending maintenance intervals.

Centrifugal Compressor Protection
Monitors shaft displacement in oil & gas compression systems, petrochemical plants, and air separation units, ensuring safe operation within design clearances and preventing rotor-to-stator contact.

Large Motor & Generator Surveillance
Tracks rotor eccentricity and bearing condition in electric motors, generators, and synchronous machines rated above 500 kW, supporting condition-based maintenance strategies.

Pump & Fan Vibration Analysis
Enables predictive maintenance for critical pumps (boiler feed, cooling water, process transfer) and industrial fans, reducing energy consumption and minimizing unplanned downtime.

Gearbox & Coupling Monitoring
Detects misalignment, gear tooth wear, and coupling degradation in high-speed gearboxes and flexible couplings used in rolling mills, paper machines, and mining equipment.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, the Bently Nevada 21000 series offers standardized specifications with customization options for specific applications:

Key Technical Parameters:

• Measurement Range: 0 to 80 mils (0 to 2.0 mm) typical linear range
• Frequency Response: DC to 10 kHz (-3 dB)
• Sensitivity: 200 mV/mil (7.87 V/mm) nominal at 1 kHz
• Operating Temperature: -40°C to +177°C (-40°F to +350°F)
• Probe Tip Material: Stainless steel (corrosion resistant)
• Thread Size: 3/8-24 UNF standard mounting
• Cable Length: Custom lengths available (standard 5m/16ft)
• Protection Rating: IP67 (when properly installed)
• Compliance Standards: API 670, ISO 20816, ISO 7919

Selection Considerations:
When specifying a proximity probe system, consider: target machinery type and speed range, required measurement gap (typically 40-80 mils), ambient temperature and environmental conditions, proximitor/signal conditioner compatibility, mounting space constraints, and cable routing requirements. Our application engineers can assist with system design, probe positioning optimization, and integration with existing monitoring platforms (Bently Nevada 3500, System 1, or third-party DCS/SCADA).

System Integration & Compatibility

Proximitor Signal Conditioning
Requires compatible proximitor (signal conditioner) such as Bently Nevada 3300 XL series or equivalent. Proximitor provides excitation voltage, linearizes probe output, and interfaces with monitoring systems.

Monitoring System Connectivity
Integrates seamlessly with Bently Nevada 3500 rack-based monitors, System 1 condition monitoring software, and third-party vibration analyzers. Supports 4-20mA output, buffered voltage, and digital communication protocols.

Retrofit & Upgrade Capability
Direct replacement for legacy Bently Nevada 7200 and 3300 series probes in existing installations. Backward compatible with most proximitor models, minimizing upgrade costs and system downtime.

Delivery, Service & Quality Assurance

Lead Time & Availability: Standard catalog items ship within 3-5 business days; custom cable lengths or special configurations require 10-15 business days. Expedited service available for critical shutdowns.

Warranty & Support: Backed by a 24-month manufacturer warranty covering defects in materials and workmanship. Technical support includes installation guidance, troubleshooting assistance, and remote diagnostics (region-dependent).

Documentation Package: Each probe ships with factory calibration certificate, dimensional drawings, installation instructions, and wiring diagrams. Digital copies available for documentation management systems.

Quality Certifications: Manufactured under ISO 9001 quality management system. Traceable calibration to NIST standards. Material certifications (MTR) and compliance declarations available upon request.

Frequently Asked Questions (FAQ)

Q: How do I integrate a Bently Nevada 21000 proximity probe with my existing vibration monitoring system?
A: The probe requires a compatible proximitor (signal conditioner) such as the Bently Nevada 3300 XL series. Connect the probe to the proximitor input, then interface the proximitor output to your monitoring system via 4-20mA, buffered voltage, or digital protocol. Verify probe gap setting (typically 40-80 mils) and proximitor calibration match your application requirements.

Q: What is the maximum number of proximity probes I can connect to a single monitoring channel?
A: Each probe requires a dedicated proximitor channel. A typical turbomachinery installation uses 2 probes per bearing (X-Y radial measurement) plus optional axial position probe. Multi-channel monitor racks like the Bently Nevada 3500 can accommodate 8-16 probe channels per rack.

Q: What energy savings or reliability improvements can I expect from implementing proximity probe monitoring?
A: Continuous vibration monitoring enables predictive maintenance, reducing unplanned downtime by 30-50% and extending bearing life by 20-40%. Early fault detection prevents catastrophic failures that can cost $500K-$5M in lost production and equipment damage. Condition-based maintenance reduces unnecessary inspections and lubricant consumption.

Q: What are the installation environment requirements and protection rating for this probe?
A: The probe is rated IP67 when properly installed with appropriate cable glands and sealing. Operating temperature range is -40°C to +177°C. Avoid direct exposure to corrosive chemicals, high-velocity steam jets, or submersion beyond IP rating. Mounting location should provide stable mechanical reference and adequate clearance from rotating components.

Q: Can I connect this probe to remote monitoring systems or SCADA for data acquisition?
A: Yes, when paired with compatible proximitors and monitor systems. The Bently Nevada 3500 series supports Modbus TCP/IP, OPC, and proprietary protocols for integration with DCS, SCADA, and cloud-based condition monitoring platforms. System 1 software provides advanced analytics, trending, and remote diagnostics capabilities.

Q: Is factory recalibration required, and what is the recommended calibration interval?
A: Proximity probes are factory calibrated as a matched set with their extension cable. Recalibration is typically recommended every 5-7 years or after mechanical damage. Field verification can be performed using calibration fixtures and oscilloscopes. Proximitor calibration should be verified annually per API 670 guidelines.

Request Technical Support & Custom Solutions

For detailed application engineering, custom cable configurations, or project-specific quotations, please provide: project name and industry sector, machinery type and operating speed, required measurement parameters (radial/axial vibration, shaft position), number of monitoring points, environmental conditions (temperature, humidity, hazardous area classification), existing monitoring system details, and preferred delivery timeline. Our engineering team will provide tailored recommendations and comprehensive technical documentation.
