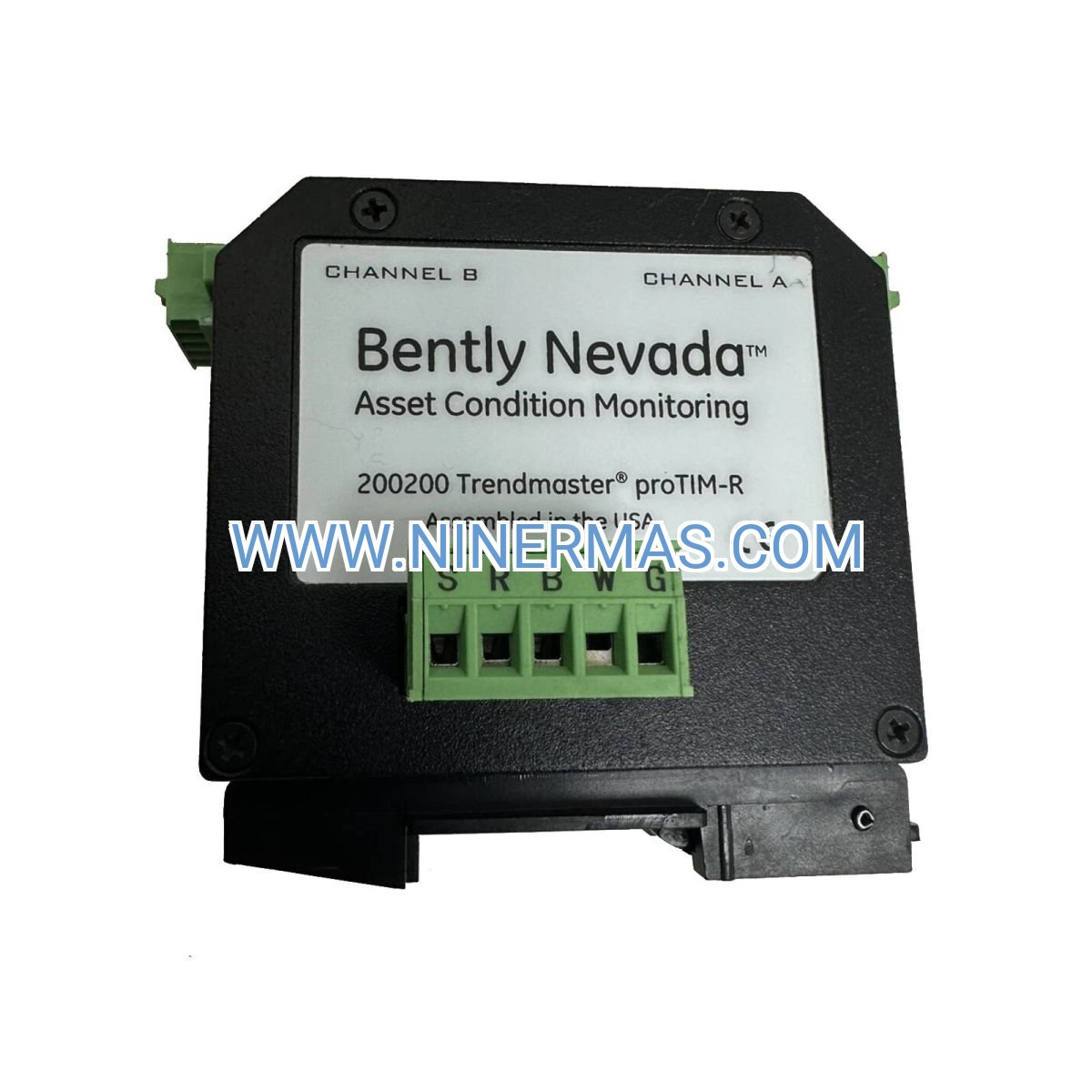

Bently Nevada 200200-06-06-05 Dual-Channel Vibration Monitoring Module (Industrial-Grade Condition Monitoring Solution)

The Bently Nevada 200200-06-06-05 proTIM-R is a precision dual-input transducer interface module engineered for continuous vibration monitoring in critical rotating machinery. Through advanced acceleration signal conditioning and integrated velocity conversion algorithms, this rack-mount module delivers real-time machinery health assessment with acceleration enveloping capabilities for early fault detection.

Designed for turbomachinery, compressors, and high-speed rotating equipment across power generation, petrochemical, and heavy industrial sectors, the module addresses common challenges including bearing degradation, gear mesh failures, pressure fluctuations in fluid systems, and unplanned downtime. It serves design engineers, maintenance teams, reliability engineers, and system integrators requiring ISO 10816 and API 670 compliant vibration surveillance.

Built on proven Trendmaster DSM architecture with hot-swappable design and factory calibration, the 200200-06-06-05 offers simultaneous dual-channel monitoring, 25.6 kHz high-frequency bandwidth, seamless System 1 integration, and field-proven reliability in harsh industrial environments. Contact our application engineers for customized monitoring solutions, sensor pairing recommendations, and technical specifications tailored to your machinery profile.

Core Capabilities & Technical Advantages

Dual-Channel Simultaneous Acquisition
Monitors two independent vibration measurement points through a single module, reducing rack space consumption by 50% compared to single-channel alternatives while maintaining full signal fidelity and independent alarm thresholds for each input.

Acceleration Enveloping Technology
Employs high-pass filtering and envelope detection algorithms to isolate bearing defect frequencies from background vibration, enabling detection of incipient bearing failures 3-6 months before catastrophic damage in rolling element bearings and gearboxes.

Extended Frequency Response
Captures vibration events up to 25.6 kHz bandwidth, essential for monitoring high-speed turbomachinery blade pass frequencies, gear mesh harmonics, and ultrasonic bearing defect signatures that standard 1-2 kHz systems cannot detect.

Integrated Velocity Conversion
Digitally integrates accelerometer signals to velocity units (mm/s RMS or in/s RMS), ensuring compliance with ISO 10816 machinery vibration standards and API 670 turbomachinery protection requirements without external signal processors.

Factory-Calibrated Sensor Interfacing
Pre-configured for IEPE accelerometer sensitivity ranges from 2 to 30 mV/g, eliminating field calibration errors and ensuring measurement accuracy within ±5% across the operating temperature range of -30°C to +65°C.

Hot-Swap Maintenance Architecture
Supports online module replacement without system shutdown or data loss, critical for continuous process industries where monitoring system downtime directly impacts production safety and regulatory compliance.

Multi-Parameter Signal Processing
Simultaneously outputs RMS acceleration, peak-peak acceleration, integrated velocity, and acceleration envelope values, providing comprehensive machinery health indicators from a single sensor installation point.

Industrial Application Scenarios

The 200200-06-06-05 module delivers proven performance across demanding machinery monitoring applications:

Turbomachinery Condition Monitoring
Gas turbines, steam turbines, and centrifugal compressors in power plants, LNG facilities, and petrochemical complexes require continuous vibration surveillance to prevent catastrophic failures. This module monitors bearing housing vibration, casing resonances, and blade pass frequencies while integrating with emergency shutdown systems.

Rotating Equipment Health Management
Critical pumps, motors, fans, and blowers in water treatment plants, HVAC systems, and manufacturing facilities benefit from dual-channel monitoring that tracks both drive-end and non-drive-end bearing conditions, detecting misalignment, unbalance, and looseness before failure progression.

Bearing Defect Detection Programs
Paper mills, steel rolling mills, cement plants, and mining operations utilize acceleration enveloping to identify outer race, inner race, and rolling element defects in large industrial bearings, enabling condition-based maintenance scheduling that reduces spare parts inventory and emergency repair costs.

Predictive Maintenance Integration
When networked with Bently Nevada System 1 software platforms, the module enables automated trend analysis, alarm management, diagnostic rule execution, and maintenance work order generation, transforming raw vibration data into actionable reliability intelligence for asset performance management systems.

Regulatory Compliance Monitoring
Industries subject to API 670, ISO 20816, or ATEX/IECEx requirements deploy this module for continuous vibration monitoring with certified measurement accuracy, alarm verification, and data logging capabilities required for safety integrity level (SIL) rated protection systems.

Technical Specifications & Selection Parameters

To facilitate engineering design and procurement, the following specifications define the module's operational envelope and compatibility requirements:

Selection Guidance for Engineers
When specifying the 200200-06-06-05 module, consider the following application parameters: maximum machinery operating speed (to verify frequency bandwidth adequacy), sensor mounting locations and cable run distances (affecting sensor sensitivity selection), environmental conditions including temperature extremes and electromagnetic interference levels, integration requirements with existing DCS/SCADA systems, and alarm threshold requirements per ISO or API standards. Our application engineering team can review P&ID drawings, machinery datasheets, and vibration acceptance criteria to recommend optimal sensor-module pairings and rack configurations. Provide machinery type, rated speed, bearing specifications, and monitoring objectives for customized technical proposals.

Advanced Integration & Connectivity

The 200200-06-06-05 module functions as a critical node within comprehensive machinery protection and condition monitoring architectures. When installed in Trendmaster DSM racks alongside complementary proTIM-R modules for proximity probes, velocity sensors, and temperature inputs, it creates a unified machinery health monitoring system.

Data acquisition occurs at configurable sampling rates up to 51.2 kHz per channel, with onboard DSP processing generating real-time RMS, peak, and envelope values transmitted to System 1 software via TDXnet proprietary protocol or industry-standard Modbus TCP/IP. System 1 platforms execute automated diagnostic algorithms including spectral analysis, order tracking, and bearing defect frequency calculations, correlating vibration signatures with process parameters from DCS systems.

Alarm outputs support both local relay contacts for emergency shutdown integration and networked alarm messaging to SCADA systems, enabling multi-tier protection strategies. Historical data storage facilitates regulatory compliance documentation, failure mode analysis, and machine learning model training for predictive analytics applications. The module's hot-swap capability ensures continuous data streams during maintenance activities, critical for SIL-rated safety instrumented systems.

Frequently Asked Questions

Q: What accelerometer models are compatible with the 200200-06-06-05 vibration monitoring module?
A: This module accepts any industrial IEPE (Integrated Electronics Piezo-Electric) accelerometer with output sensitivity between 2 and 30 mV/g and DC bias voltage compatibility with 18-30 VDC constant current excitation. Recommended sensors include Bently Nevada 200150 series, 330400 series, and third-party equivalents from PCB Piezotronics, Wilcoxon, and Meggitt. Sensor selection depends on measurement range requirements—high-sensitivity models (100 mV/g) for low-vibration precision machinery, low-sensitivity models (10 mV/g) for high-shock applications like reciprocating compressors.

Q: Can the dual channels monitor different sensor types simultaneously on the 200200-06-06-05?
A: No, the 06-06 configuration designates both Channel A and Channel B for identical signal processing: acceleration with velocity integration plus acceleration enveloping. Each channel operates independently with separate alarm thresholds and calibration factors, but both must connect to accelerometers. For mixed-sensor monitoring (combining accelerometers with proximity probes or velocity sensors), specify alternative proTIM-R models such as 200200-02-06 or contact our configuration specialists for custom rack assemblies.

Q: Does the proTIM-R module require external power supplies or signal conditioners?
A: No external components are required. The 200200-06-06-05 draws all operating power (24 VDC nominal, 16W maximum for dual channels) directly from the Trendmaster DSM rack backplane power distribution system. Sensor excitation, signal amplification, anti-aliasing filtering, analog-to-digital conversion, and digital signal processing occur entirely within the module. Only the DSM rack requires connection to facility 100-240 VAC mains power or 24 VDC industrial power supplies.

Q: What is the maximum cable length between accelerometers and the 200200-06-06-05 module?
A: IEPE accelerometer cable runs up to 300 meters (1000 feet) are supported using low-capacitance coaxial cable (typically 30-50 pF/ft) such as Bently Nevada 14-pin Proximitor cable or equivalent RG-174/RG-58 types. Longer distances may require in-line signal boosters or transition to 4-20mA transmitter-based systems. Cable routing should avoid high-voltage power conductors and variable frequency drive (VFD) cables to minimize electromagnetic interference; use shielded twisted-pair with single-point grounding at the module end.

Q: How does acceleration enveloping improve bearing fault detection compared to standard RMS vibration?
A: Standard RMS vibration measurements average all frequency components, often masking low-energy bearing defect signals beneath dominant rotor imbalance and misalignment vibrations. Acceleration enveloping applies high-pass filtering (typically above 5-10 kHz) to isolate high-frequency stress waves generated by bearing impacts, then demodulates the signal to reveal bearing defect frequencies (BPFO, BPFI, BSF, FTF). This technique detects bearing faults 3-6 months earlier than RMS trending, when defect sizes are still 10-20% of critical dimensions, enabling planned maintenance before secondary damage to shafts and housings.

Q: Is the 200200-06-06-05 suitable for hazardous area installations requiring ATEX or IECEx certification?
A: The base 05-suffix model includes international safety certifications (CE, UL, CSA) for general industrial use. For Zone 1/Division 1 hazardous locations requiring ATEX/IECEx intrinsic safety or flameproof enclosures, specify the 200200-06-06-CN variant with certified barriers or consult factory representatives for IS barrier integration with standard modules. The DSM rack itself must be installed in non-hazardous areas or appropriate purged/pressurized enclosures per local electrical codes.

Delivery, Warranty & Technical Support

Lead Times & Availability
Standard 200200-06-06-05 modules typically ship within 3-5 business days from regional distribution centers for North America, Europe, and Asia-Pacific. Custom-configured DSM rack assemblies with multiple module types require 2-3 weeks for factory integration testing and documentation. Expedited shipping options (next-day air, international courier) are available for critical machinery outages and emergency replacements.

Warranty Coverage
All new modules include a comprehensive 24-month manufacturer warranty covering defects in materials, workmanship, and electronic component failures under normal operating conditions. Warranty terms include advance replacement service (cross-ship) to minimize downtime, with return freight prepaid for defective units. Extended warranty programs up to 5 years are available for large system deployments.

Technical Documentation Package
Each module ships with complete technical documentation including installation quick-start guide, detailed user manual with wiring diagrams, System 1 configuration templates, calibration certificates traceable to NIST/PTB standards, and dimensional drawings for rack layout planning. Digital documentation libraries provide access to application notes, troubleshooting flowcharts, and firmware update procedures.

Application Engineering Support
Our technical support team provides pre-sales consultation for sensor selection, rack configuration design, and system integration planning. Post-installation support includes remote diagnostics via System 1 connectivity, alarm threshold optimization based on machinery baseline data, and vibration analysis training for maintenance personnel. On-site commissioning services and annual health checks are available through authorized service partners.

Calibration & Repair Services
Factory-certified calibration services maintain measurement accuracy over the module's operational lifetime, with recommended recalibration intervals of 3-5 years or per plant quality management system requirements. Repair services include component-level diagnostics, firmware updates, and performance verification testing, with typical turnaround times of 5-7 business days.

Request Technical Consultation

To receive customized monitoring system recommendations, detailed quotations, or application-specific technical guidance, please provide the following information to our engineering team:

• Project Overview: Facility type, machinery criticality classification, monitoring objectives (protection vs. diagnostics)
• Machinery Details: Equipment type (turbine, compressor, pump, motor), manufacturer, model, rated power/speed, bearing types
• Measurement Requirements: Number of monitoring points, sensor mounting locations, required frequency range, alarm threshold criteria
• System Integration: Existing monitoring infrastructure (System 1 version, DCS/SCADA platform), communication protocols, data historian requirements
• Environmental Conditions: Ambient temperature range, humidity, vibration/shock exposure, hazardous area classification
• Timeline & Budget: Project schedule, procurement constraints, installation windows, training requirements

Our application engineers will respond within 24 business hours with preliminary recommendations, followed by detailed technical proposals including system architecture diagrams, bill of materials, installation labor estimates, and commissioning plans. For urgent machinery protection needs, emergency technical support is available via direct phone consultation.
