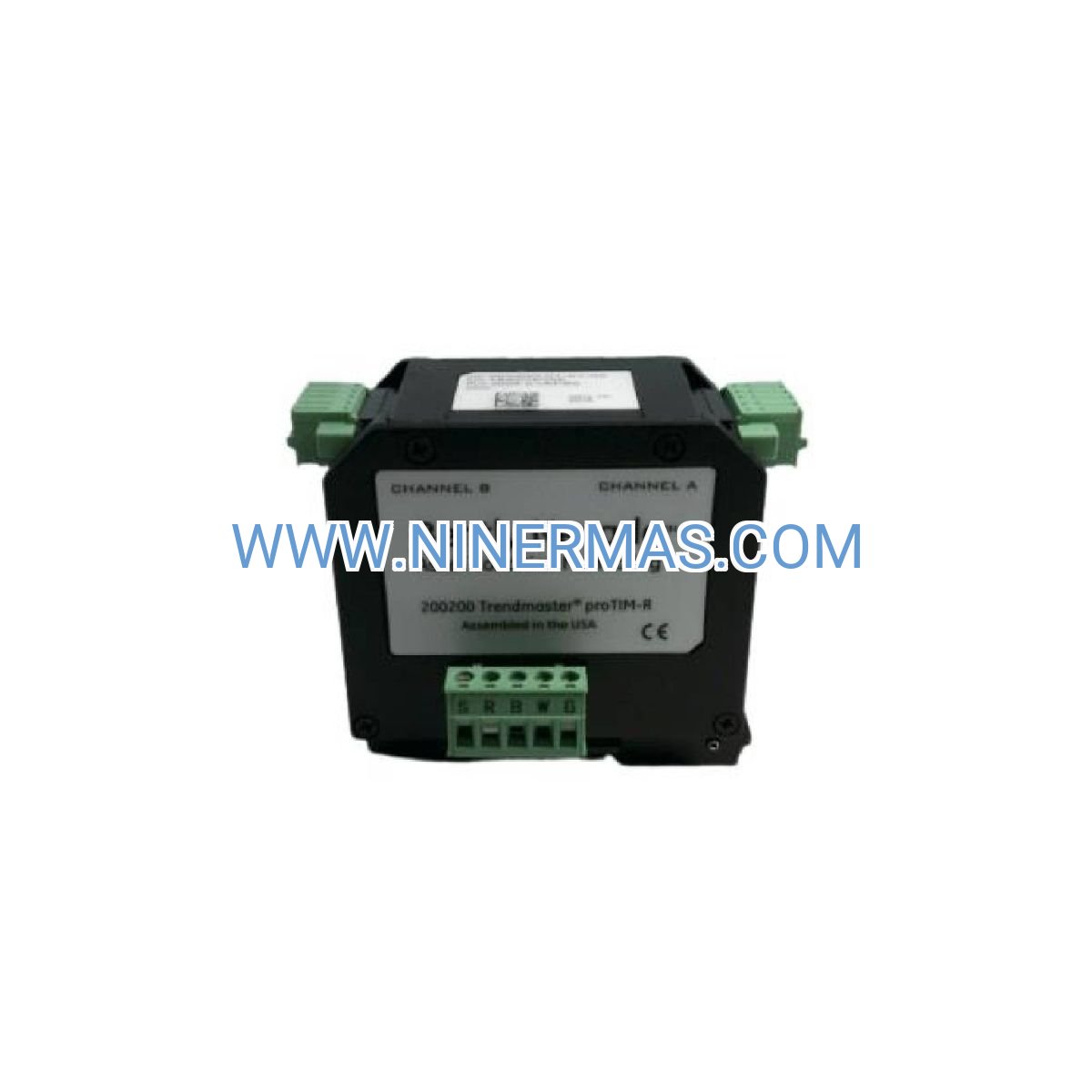

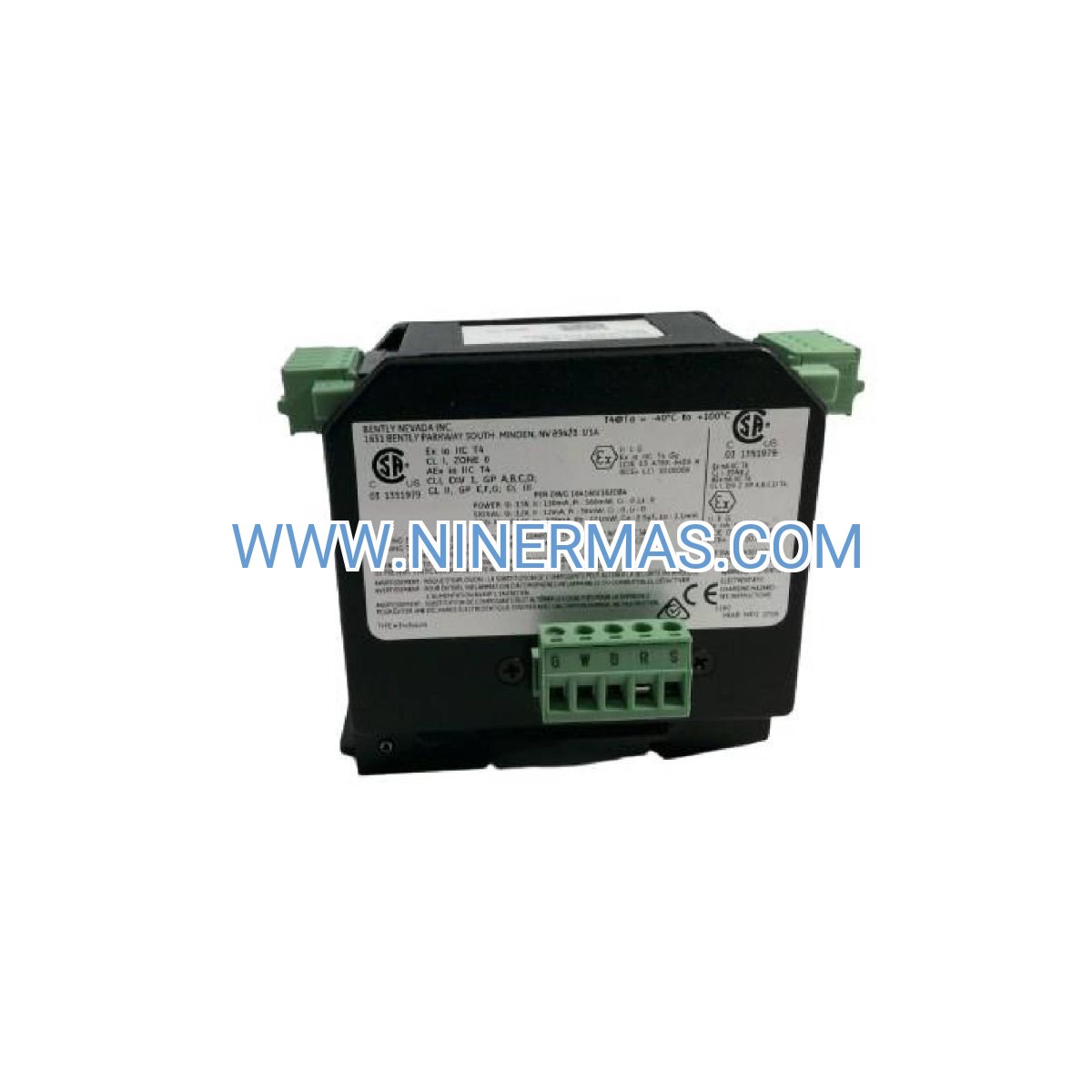

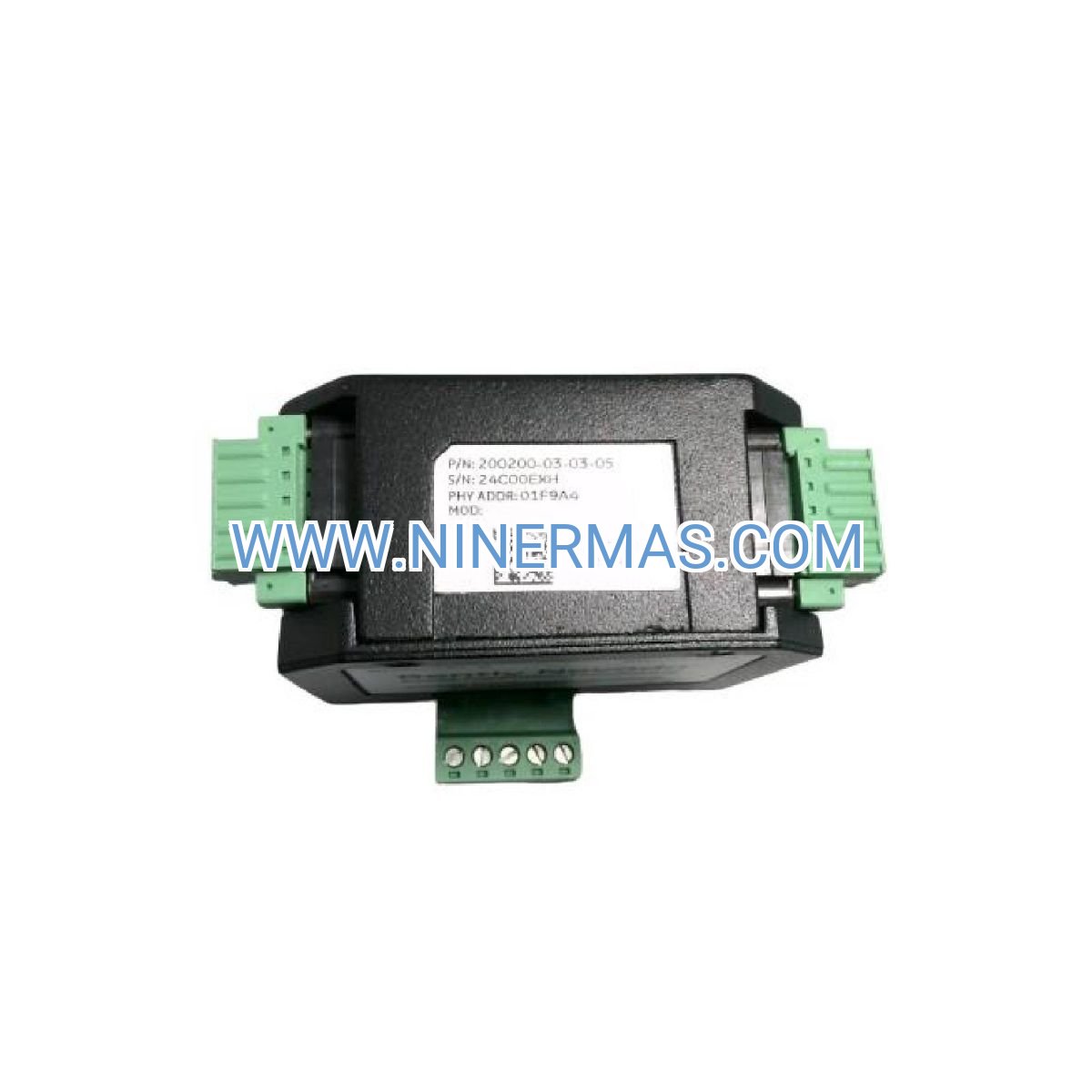

Bently Nevada 200200-03-03-05 proTIM-R Data Acquisition Module (Industrial Vibration Monitoring System)

The Bently Nevada 200200-03-03-05 proTIM-R Module is a professional-grade data acquisition device designed for continuous vibration and process parameter monitoring in rotating machinery applications. Through advanced high-speed sampling technology and multi-channel signal processing, it delivers real-time condition assessment, trend analysis, and predictive fault detection capabilities for critical industrial assets.

Ideal for power generation facilities, oil & gas processing plants, petrochemical refineries, and heavy manufacturing operations, this module addresses common challenges including unplanned downtime, bearing failures, shaft misalignment, rotor imbalance, and inadequate early warning systems for machinery degradation.

Built on proven Trendmaster architecture with field-configurable options, the 200200-03-03-05 offers exceptional reliability, seamless system integration, straightforward installation procedures, and comprehensive diagnostic tools. Suitable for design engineers, maintenance teams, reliability engineers, and plant operators seeking to implement condition-based monitoring strategies. Contact our application specialists for customized system configuration and technical consultation.

Core Functions & Advantages

Continuous Real-Time Data Acquisition
Captures vibration waveforms, spectral data, and process variables through 16-bit A/D conversion at configurable sampling rates, enabling immediate detection of developing faults such as bearing defects, gear mesh issues, and resonance conditions before they escalate to catastrophic failures.

Multi-Sensor Compatibility & Flexibility
Accepts inputs from proximity probes (8mm/11mm eddy current), piezoelectric accelerometers, velocity transducers, and temperature sensors, allowing comprehensive monitoring of radial vibration, axial position, thrust bearing condition, and thermal parameters within a unified platform.

Advanced Diagnostic Capabilities
Provides time-domain waveform analysis, FFT spectral analysis, orbit generation, Bode plots, polar plots, and cascade diagrams for in-depth machinery health assessment, supporting root cause analysis and informed maintenance decision-making.

Proven Industrial Reliability
Engineered with ruggedized components rated for -30°C to +65°C operation, electromagnetic interference immunity, and vibration-resistant construction, ensuring dependable performance in harsh industrial environments including offshore platforms, desert installations, and high-humidity facilities.

Scalable System Architecture
Supports expansion from single-machine monitoring to plant-wide asset management networks through Ethernet connectivity and Modbus TCP/IP protocol, facilitating integration with SCADA systems, DCS platforms, and enterprise asset management software.

Comprehensive Protection Functions
Incorporates configurable alarm thresholds, automatic data logging during transient events, power supply redundancy options, and self-diagnostic routines to minimize false alarms and ensure continuous monitoring integrity even during utility disturbances.

Typical Application Scenarios

This module is specifically engineered for applications demanding high reliability, continuous operation, and early fault detection, particularly in:

Power Generation & Turbomachinery
Monitors steam turbines, gas turbines, generators, and associated auxiliary equipment in combined-cycle plants, cogeneration facilities, and independent power producers, protecting assets valued at millions of dollars while ensuring grid stability and contractual availability commitments.

Oil & Gas Production and Processing
Provides critical protection for compressor trains, centrifugal pumps, gas turbine drivers, and rotating equipment in upstream production, midstream pipeline operations, and downstream refining processes, reducing safety risks and environmental incidents associated with mechanical failures.

Petrochemical & Chemical Manufacturing
Ensures operational continuity for process pumps, agitators, centrifuges, and reactor cooling systems where unplanned shutdowns result in product quality issues, batch losses, and extended restart procedures, supporting lean manufacturing and Six Sigma initiatives.

Heavy Industry & Manufacturing
Applies to paper machine drives, steel mill rolling equipment, mining conveyors, cement kiln systems, and other high-value production machinery where vibration-induced failures directly impact throughput, product quality, and worker safety.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide standardized configurations with customization options to match specific project requirements:

Selection Recommendations:
When specifying this module, consider the following factors: number and type of monitored machines, sensor types and quantities required, desired sampling rates and frequency ranges, environmental conditions (temperature, humidity, vibration exposure), network infrastructure and protocol requirements, integration with existing monitoring systems, and data storage/trending duration needs. For application-specific guidance, please provide your machinery specifications, monitoring objectives, and site conditions—our engineering team will recommend the optimal configuration and compatible accessories.

System Integration & Extended Capabilities

Backward Compatibility: Integrates seamlessly with Bently Nevada 3500 series monitoring systems and legacy Trendmaster platforms, protecting existing infrastructure investments during phased upgrades.

Remote Diagnostics: Ethernet connectivity enables secure remote access for expert analysis, software updates, and configuration changes, reducing site visit requirements and accelerating troubleshooting response times.

Data Management: Supports extended historical data archiving for regulatory compliance (ISO 9001, API standards), failure mode analysis, and machine learning applications in predictive maintenance programs.

Alarm & Notification: Configurable multi-level alarms (alert, danger, shutdown) with email, SMS, and relay output options ensure appropriate personnel receive timely notifications matched to fault severity.

Delivery, Service & Quality Assurance

Lead Time: Standard configurations typically ship within 3-5 business days from stock; custom-configured systems require 10-15 business days for factory programming and testing.

Warranty Coverage: Each module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available for mission-critical applications.

Technical Support: Our application engineering team provides pre-sale consultation, installation guidance, commissioning assistance, and ongoing technical support via phone, email, and remote desktop sessions (subject to regional availability).

Documentation Package: Complete delivery includes installation manual, wiring diagrams, configuration software, calibration certificates, and quick-start guides in PDF format, facilitating efficient deployment and knowledge transfer to maintenance personnel.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 200200-03-03-05 proTIM-R module integrate with existing plant control systems?
A: The module communicates via standard Ethernet and Modbus TCP/IP protocols, allowing direct integration with most SCADA, DCS, and HMI platforms. Configuration requires network IP assignment, protocol selection, and data mapping according to your system architecture—our technical team can provide integration support and sample configuration files.

Q: What is the maximum number of sensors this module can monitor simultaneously?
A: Channel capacity depends on the specific configuration variant; typical installations support 4-16 dynamic channels plus auxiliary inputs. For large machinery trains requiring extensive monitoring points, multiple modules can be networked together in a distributed architecture.

Q: Can this module detect specific fault types like bearing defects or misalignment?
A: Yes, when combined with appropriate analysis software, the module's high-resolution data enables identification of bearing outer race defects, inner race defects, rolling element damage, cage frequencies, gear mesh problems, misalignment signatures, unbalance, looseness, and resonance conditions through spectral pattern recognition.

Q: What environmental protection does the module offer for harsh industrial locations?
A: The module features conformal coating on circuit boards, sealed connectors, and operates reliably in temperatures from -30°C to +65°C with resistance to vibration, electromagnetic interference, and humidity. For extremely harsh environments (offshore, corrosive atmospheres), consult regarding additional protective enclosures.

Q: Is specialized training required for installation and operation?
A: Basic installation can be performed by qualified instrumentation technicians familiar with industrial wiring practices. Advanced configuration and diagnostic interpretation benefit from vibration analysis training—we offer on-site commissioning services and can recommend certified training programs for your maintenance team.

Q: Does the system support cybersecurity requirements for industrial networks?
A: The module supports network segmentation, VLAN configuration, and encrypted communication protocols consistent with IEC 62443 industrial cybersecurity guidelines. Specific implementation depends on your facility's IT/OT security policies and network architecture.

Request Technical Consultation

To receive a detailed system proposal, pricing quotation, or application engineering support, please provide the following information: project name and location, machinery types and quantities to be monitored, existing monitoring infrastructure (if any), sensor types and installation points, environmental conditions, communication protocol preferences, and timeline requirements. Our specialists will respond within one business day with customized recommendations and technical documentation.
