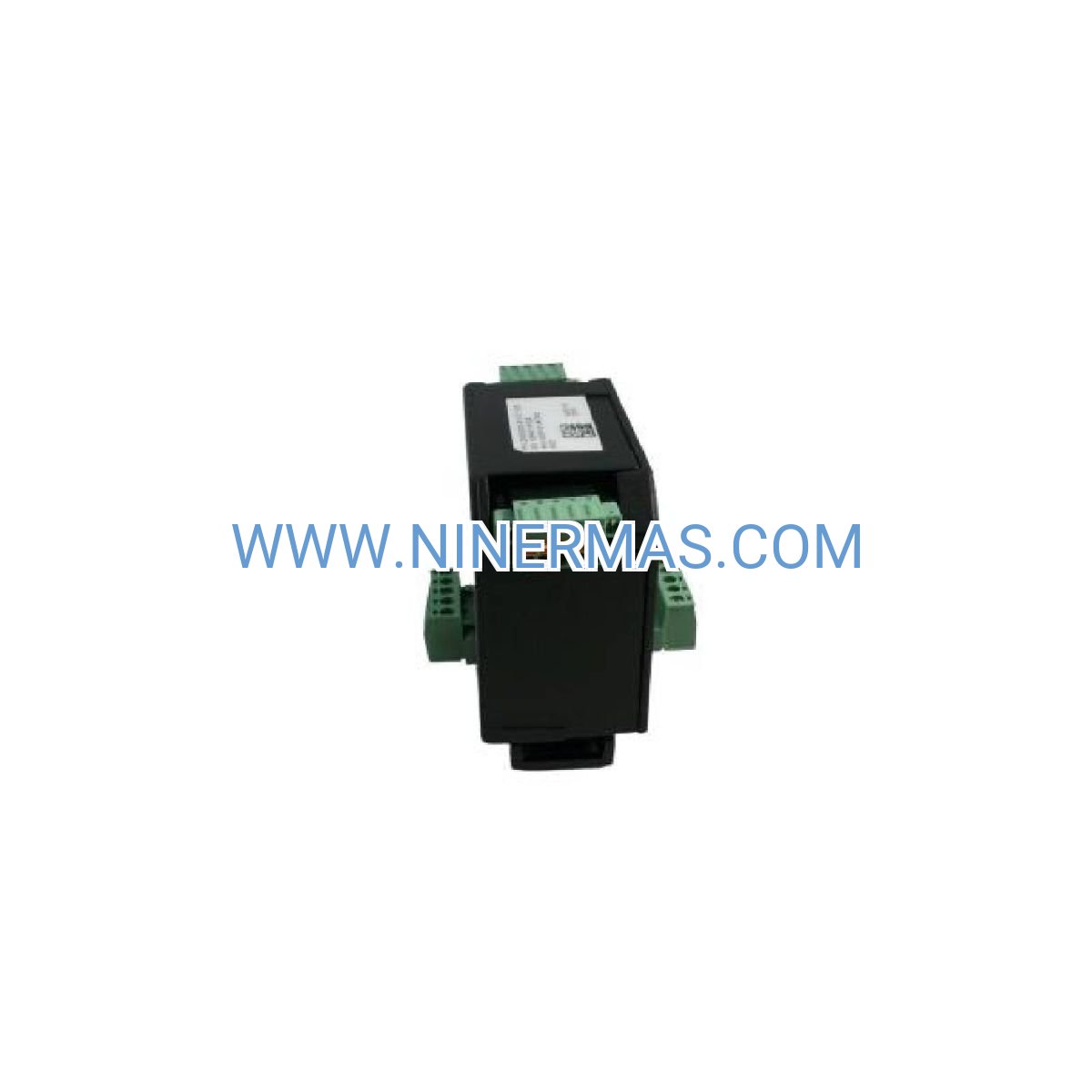

Bently Nevada 200200-02-02-CN Dual-Input proTIM-R Module (Industrial Vibration Monitoring System)

The Bently Nevada 200200-02-02-CN is an industrial-grade dual-input proTIM-R (Programmable Transducer Interface Module - Rack) designed for continuous vibration monitoring and machinery health assessment in critical rotating equipment. Through advanced digital signal processing and real-time data acquisition technology, it delivers precise vibration signature analysis, enabling early fault detection and optimized maintenance scheduling.

Ideal for turbomachinery installations in power generation, oil & gas, petrochemical, and heavy industrial facilities, this module addresses common challenges including unplanned downtime, catastrophic bearing failures, excessive vibration levels, and delayed fault diagnosis. It integrates seamlessly with Trendmaster DSM racks and System 1 software platforms, providing comprehensive machinery protection and performance trending capabilities.

Featuring factory calibration, dual independent input channels, and compliance with ISO 20816 and API 670 standards, the 200200-02-02-CN offers reliable operation, simplified installation, and long-term measurement accuracy. Suitable for design engineers, system integrators, maintenance teams, and plant operators seeking proven condition monitoring solutions. Contact our application engineers for customized configuration guidance and technical specifications.

Core Features & Advantages

• Dual Independent Input Architecture
  Simultaneous monitoring of two measurement points through isolated input channels, reducing hardware costs while maintaining signal integrity. Supports proximity probes, accelerometers, and velocity transducers with configurable input ranges.
• High-Speed Data Acquisition
  Real-time digital signal processing with sampling rates up to 40 kHz per channel, capturing transient events and high-frequency vibration components critical for early fault detection in high-speed rotating machinery.
• Trendmaster DSM & System 1 Integration
  Native compatibility with legacy Trendmaster Dynamic Scanning Module racks and modern System 1 software platforms, protecting existing infrastructure investments while enabling phased migration to advanced analytics capabilities.
• Factory Calibration & Certification
  Pre-calibrated to traceable standards before shipment, eliminating field calibration requirements and reducing commissioning time. Each module includes calibration certificates and configuration documentation.
• Comprehensive Protection Functions
  Built-in diagnostics for transducer health, cable continuity, signal quality, and module self-test. Automatic fault annunciation and relay outputs for integration with plant DCS/SCADA systems.
• Industrial-Grade Reliability
  Operating temperature range from -30°C to +65°C (-22°F to +149°F), conformal-coated PCBs for harsh environments, and MTBF exceeding 100,000 hours. Designed for continuous 24/7 operation in mission-critical applications.

Typical Application Scenarios

The 200200-02-02-CN proTIM-R module is engineered for installations requiring continuous vibration surveillance, predictive maintenance capabilities, and machinery protection, particularly in:

• Turbomachinery Monitoring
  Steam turbines, gas turbines, centrifugal compressors, and axial compressors in power plants and process industries. Monitors bearing vibration, shaft displacement, and casing acceleration to prevent catastrophic failures and optimize overhaul intervals.
• Rotating Equipment Protection
  Critical pumps, motors, generators, blowers, and fans in refineries, chemical plants, and manufacturing facilities. Detects imbalance, misalignment, bearing wear, and resonance conditions before they escalate to forced outages.
• Oil & Gas Production Assets
  Compressor trains, pipeline pumps, and offshore platform equipment requiring API 670 compliant monitoring systems. Provides continuous surveillance in remote locations with integration to centralized control rooms.
• Predictive Maintenance Programs
  Condition-based maintenance strategies leveraging vibration trending, spectral analysis, and alarm management. Enables transition from time-based to reliability-centered maintenance, reducing spare parts inventory and maintenance labor costs.
• Multi-Point Surveillance Networks
  Expansion of existing Trendmaster installations monitoring multiple bearing housings, thrust positions, and shaft relative vibration across plant-wide rotating equipment populations.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide standard configuration parameters below. Custom configurations are available based on specific transducer types, measurement ranges, and communication requirements.

Selection Recommendations: When specifying the 200200-02-02-CN module, consider the following application parameters: transducer type and sensitivity, measurement range requirements, cable length and capacitance, environmental conditions (temperature, humidity, vibration), existing rack infrastructure, and System 1 software version compatibility. For assistance with configuration selection, please provide your machinery specifications, monitoring objectives, and installation constraints. Our application engineers will recommend the optimal module variant and configuration settings.

Extended Capabilities

• Remote Diagnostics: Module health monitoring and remote configuration via System 1 software, reducing site visit requirements
• Data Logging: Continuous waveform recording and event capture for root cause analysis and forensic investigation
• Alarm Management: Configurable alert and danger setpoints with hysteresis, time delays, and voting logic
• Trend Analysis: Long-term vibration trending with statistical analysis, baseline comparison, and degradation tracking
• Integration Options: Modbus TCP/IP, OPC DA/UA connectivity for plant-wide data aggregation and enterprise asset management systems

Delivery, Service & Quality Assurance

Standard catalog modules ship from stock within 3-5 business days; custom-configured units require 10-15 business days lead time. Each 200200-02-02-CN module includes a 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available.

Technical support includes remote configuration assistance, troubleshooting guidance, and System 1 software integration consulting (availability varies by region). Complete documentation package accompanies each shipment: installation manual, configuration guide, calibration certificates, electrical schematics, and dimensional drawings for seamless commissioning and future maintenance reference.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 200200-02-02-CN proTIM-R module integrate with existing Trendmaster systems?
A: The module installs directly into available Trendmaster DSM rack slots via the backplane connector. Configuration is performed through System 1 software using standard Ethernet connectivity. No field wiring modifications are required beyond transducer cable terminations to the module's front panel connectors.

Q: What is the maximum number of monitoring points one module can support?
A: Each 200200-02-02-CN module provides two independent input channels, supporting two simultaneous measurement points. For expanded monitoring coverage, multiple modules can be installed in the same rack, with typical DSM chassis accommodating 8-16 modules depending on configuration.

Q: What vibration reduction or energy savings can be expected from implementing this monitoring system?
A: While the module itself does not directly reduce vibration, it enables predictive maintenance strategies that prevent catastrophic failures (reducing unplanned downtime by 30-50% in typical installations), optimize maintenance intervals (extending bearing life by 20-40%), and identify operational inefficiencies. Actual benefits depend on equipment criticality, baseline maintenance practices, and response protocols.

Q: Are there specific environmental requirements for installing the 200200-02-02-CN module?
A: The module operates reliably in ambient temperatures from -30°C to +65°C with relative humidity up to 95% non-condensing. Installation requires a Trendmaster DSM rack with adequate ventilation and protection from direct water spray or corrosive atmospheres. The module carries an IP20 protection rating when installed in an enclosed rack.

Q: Does the module support remote monitoring and data export for integration with plant SCADA systems?
A: Yes, through System 1 software the module supports Modbus TCP/IP and OPC DA/UA protocols for real-time data streaming to DCS, SCADA, and enterprise asset management platforms. Historical data can be exported in CSV, XML, or database formats for offline analysis and reporting.

Contact for Technical Support & Quotation

To obtain detailed configuration recommendations, pricing quotations, or application engineering support, please provide the following information: project name and location, application type (turbine, compressor, pump, etc.), machinery specifications (speed range, bearing types), number of monitoring points required, transducer types and models, environmental conditions, and existing monitoring infrastructure. Our technical team will respond within 24 hours with customized selection guidance and commercial proposals.
