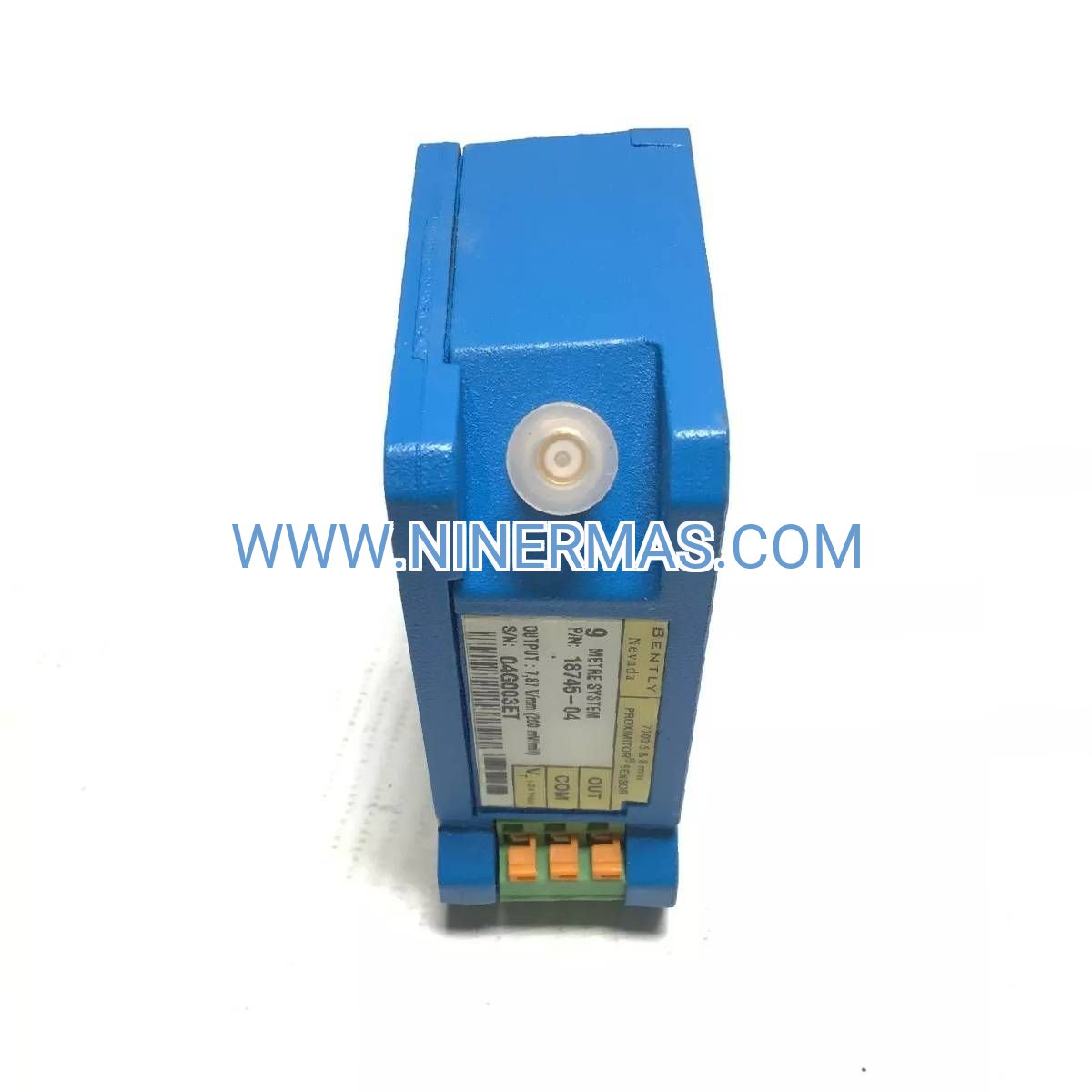

18745-04 Proximitor Sensor (Industrial-Grade Vibration Monitoring Solution)

The 18745-04 Proximitor Sensor represents a proven solution for non-contact vibration and displacement measurement in rotating machinery applications. Designed for direct integration with Bently Nevada 7200 series monitoring platforms, this sensor delivers consistent performance across turbines, compressors, pumps, and high-speed motors where equipment reliability is non-negotiable.

Built for industrial environments where temperature extremes, vibration exposure, and corrosive atmospheres challenge conventional sensors, the 18745-04 combines stainless steel construction with factory-verified calibration to ensure measurement integrity throughout its operational lifecycle. Each unit ships with traceable certification documentation, supporting compliance with API 670 machinery protection protocols and ISO 20816 vibration severity benchmarks.

Whether you're implementing condition-based maintenance programs, upgrading legacy monitoring systems, or protecting critical assets in petrochemical, power generation, or process industries, the 18745-04 provides the measurement accuracy and environmental resilience required for long-term reliability.

Core Features & Benefits

✓ Factory-Calibrated Precision
Each sensor undergoes rigorous calibration with -7.87 V/mm (-200 mV/mil) nominal output, delivering ±1% full-scale accuracy. Traceable certification eliminates field calibration requirements and accelerates commissioning timelines.

✓ 7200 Series Native Compatibility
Engineered specifically for Bently Nevada 7200 monitoring systems, ensuring plug-and-play integration without adapter modules or signal conditioning concerns. Reduces installation complexity and minimizes potential failure points.

✓ Extended Environmental Range
Operates reliably from -30°C to +100°C (-22°F to +212°F) with corrosion-resistant stainless steel housing. Proven performance in offshore platforms, desert installations, and arctic processing facilities.

✓ Wide Frequency Response
0 to 10 kHz bandwidth captures both low-frequency imbalance signatures and high-frequency bearing defect indicators, enabling comprehensive machinery health assessment from a single measurement point.

✓ API 670 Compliance
Meets stringent machinery protection standards required for critical rotating equipment in oil & gas, refining, and power generation sectors. Supports regulatory compliance and insurance requirements.

✓ Rugged Industrial Construction
Stainless steel body withstands shock, vibration, and chemical exposure typical in process environments. Field-proven reliability reduces sensor replacement frequency and maintenance costs.

Application Scenarios & Solutions

→ Steam & Gas Turbine Protection
Monitor shaft radial vibration and axial position in power generation turbines operating at 3,000-3,600 RPM. Early detection of rotor imbalance, misalignment, and bearing degradation prevents catastrophic failures that can result in multi-million dollar outages and extended downtime.

→ Centrifugal Compressor Surveillance
Track thrust bearing position and radial vibration in multi-stage compressors handling corrosive gases or high-pressure applications. Predictive maintenance strategies enabled by continuous monitoring reduce unplanned shutdowns by 40-60% compared to time-based maintenance approaches.

→ Critical Pump Monitoring
Detect cavitation, impeller damage, and seal wear in boiler feed pumps, pipeline pumps, and process pumps where failure impacts production throughput. Real-time vibration trending identifies developing issues 2-4 weeks before functional failure.

→ High-Speed Motor Applications
Monitor rotor eccentricity and bearing condition in motors exceeding 1,800 RPM, particularly in variable frequency drive (VFD) applications where electrical noise complicates traditional vibration analysis. Non-contact measurement eliminates bearing loading concerns.

→ Hydro Turbine Monitoring
Assess guide bearing clearances and runner balance in hydroelectric installations where water ingress and moisture exposure challenge conventional accelerometer-based systems. Sealed construction ensures long-term reliability in wet environments.

Technical Parameters & Selection Guide

Selection Criteria: Verify 7200 series monitor compatibility before ordering. For 3300 XL or 3500 system integration, alternative proximitor models (330180 or 330850 series) are recommended. Extension cable length should be determined based on probe mounting location and monitor rack distance—consult our technical team for site-specific cable selection guidance.

Extended Capabilities

Multi-Channel Integration: Deploy multiple 18745-04 sensors across X-Y radial planes and axial thrust positions for comprehensive rotor behavior analysis. Supports orbit plot generation and phase angle measurement when paired with keyphasor inputs.

Retrofit Compatibility: Direct replacement for aging 7200 series proximitors without system reconfiguration. Maintains existing cable infrastructure and monitor settings, minimizing upgrade costs and commissioning time.

Harsh Environment Options: Available with specialized coatings and sealing configurations for extreme chemical exposure, high-pressure steam environments, or subsea applications. Contact our engineering team for custom environmental specifications.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days. Custom configurations or bulk orders typically require 7-14 days for quality verification and documentation preparation.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical applications requiring enhanced coverage.

Technical Support: Access to application engineers with turbomachinery expertise for installation planning, troubleshooting assistance, and vibration analysis consultation. Phone and email support available during business hours (GMT+8).

Documentation Package: Each sensor includes calibration certificate, installation instructions, dimensional drawings, and electrical specifications. Digital documentation available upon request for asset management systems.

Frequently Asked Questions

Q: Can the 18745-04 proximitor sensor work with 3300 XL monitoring systems?
A: No, this sensor is engineered exclusively for 7200 series monitors. For 3300 XL compatibility, we recommend the 330180 or 330850 proximitor series which feature different electrical characteristics and connector configurations.

Q: What extension cable length is optimal for turbine monitoring installations?
A: Standard proximitor extension cables range from 1 to 9 meters. For turbine applications, 4.5-5 meter cables are most common, balancing signal integrity with installation flexibility. Longer runs may require signal conditioning—consult our cable selection guide or contact technical support.

Q: How does the 18745-04 improve predictive maintenance program effectiveness?
A: Continuous vibration monitoring enables trend analysis that identifies bearing wear, imbalance, and misalignment 2-6 weeks before functional failure. This advanced warning allows planned maintenance during scheduled outages rather than emergency shutdowns, reducing maintenance costs by 30-50%.

Q: Does this proximitor require periodic recalibration in service?
A: The sensor maintains factory calibration accuracy throughout its operational life under normal conditions. However, API 670 guidelines recommend verification every 24-36 months for critical machinery protection applications. We offer calibration verification services with traceable certification.

Q: What installation clearances are required for proper sensor operation?
A: Minimum target area of 3x probe diameter is recommended, with 1.5-2.0mm nominal gap for optimal linearity. Avoid installation near shaft keyways, coupling faces, or areas with surface irregularities exceeding 3.2 μm Ra. Detailed mounting specifications are included with each sensor.

Q: Can the 18745-04 withstand offshore platform environmental conditions?
A: Yes, the stainless steel construction and sealed design are proven in offshore applications including salt spray exposure, high humidity, and temperature cycling. For subsea or extreme corrosive environments, specialized coating options are available—contact our engineering team for environmental specification review.

Ready to Enhance Your Machinery Protection Strategy?

Contact our technical sales team for application-specific recommendations, system integration support, or volume pricing. We provide detailed technical specifications, installation guidance, and compatibility verification to ensure successful deployment in your critical rotating equipment.

Request a Quote: Email sale@ninermas.com with your equipment details and monitoring requirements.
Technical Consultation: Call +0086 187 5021 5667 to speak with our vibration monitoring specialists.
