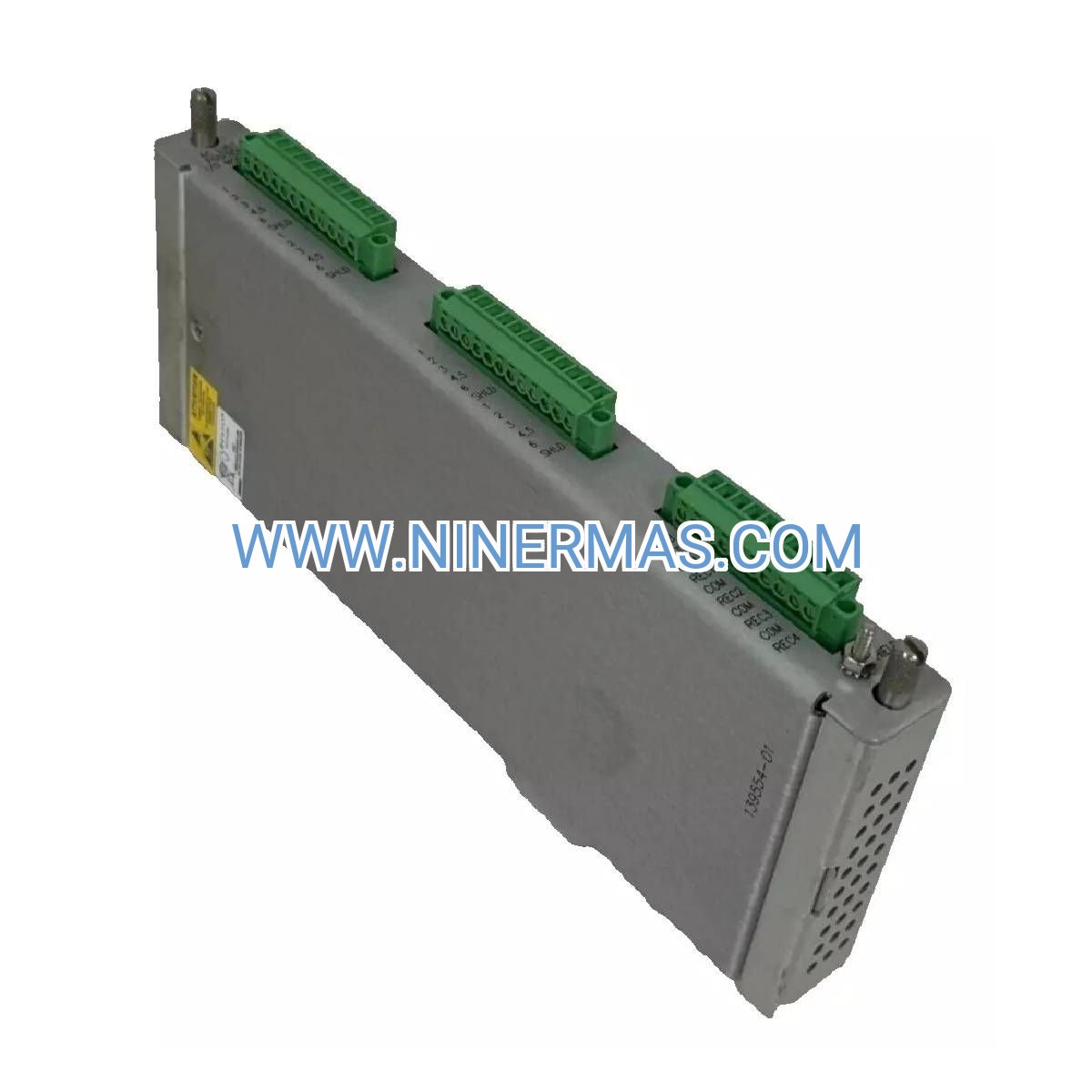

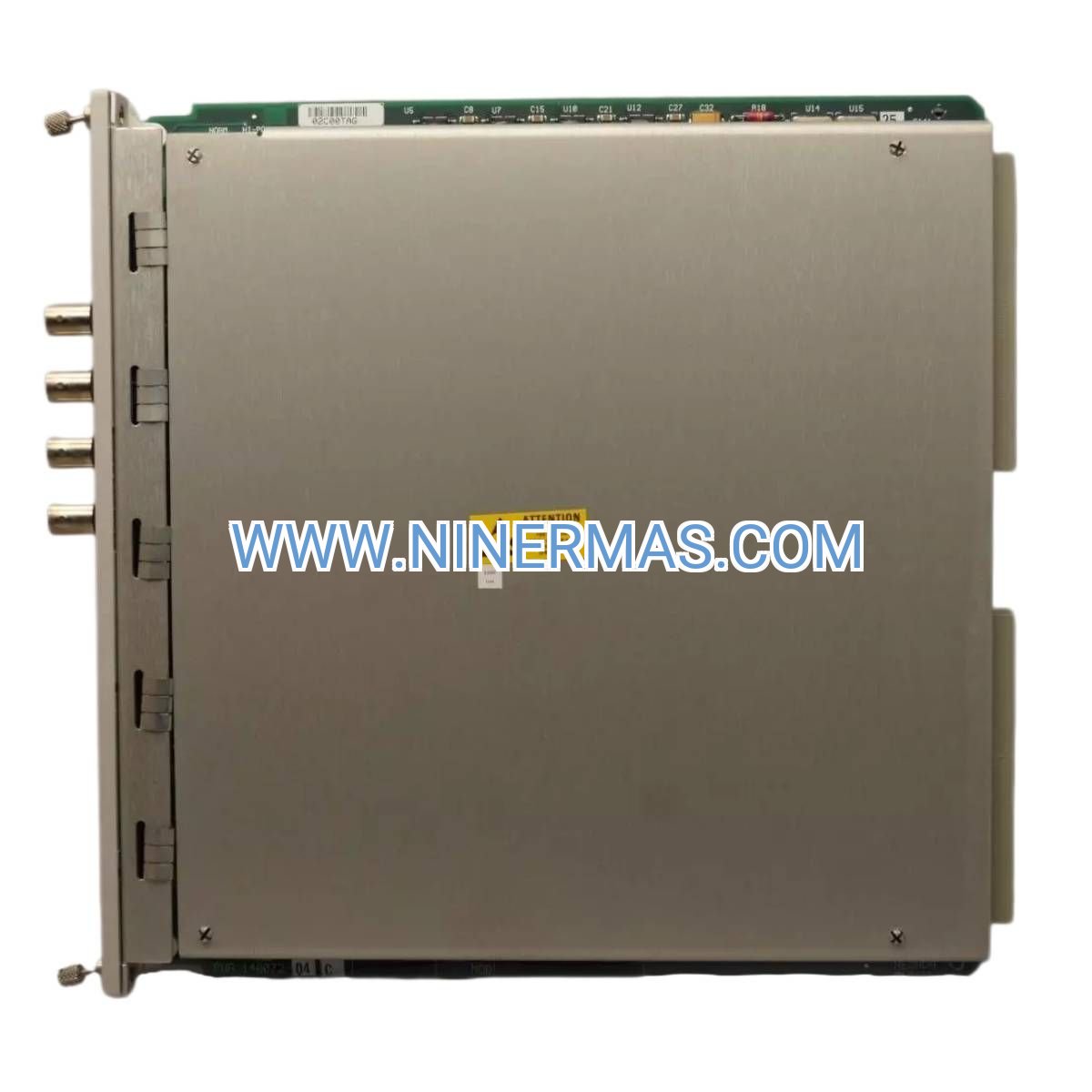

176449-04 Position Monitor – Industrial-Grade Machinery Protection

The Bently Nevada 3500/45 Position Monitor (176449-04) represents a critical advancement in machinery health surveillance for industrial rotating equipment. This four-channel monitoring solution provides real-time position tracking through multiple transducer technologies, enabling predictive maintenance strategies that prevent unplanned downtime and catastrophic equipment failures.

Designed for integration into comprehensive condition monitoring systems, this module serves process industries requiring continuous oversight of shaft displacement, valve positioning, and bearing clearances. Its universal input architecture accommodates proximity probes, LVDT sensors, rotary potentiometers, and RPT transducers without hardware reconfiguration.

With programmable alarm thresholds and visual diagnostic indicators, the 3500/45 delivers actionable intelligence for maintenance teams managing turbomachinery, compressors, pumps, and hydraulic control systems across power generation, oil & gas, chemical processing, and manufacturing sectors.

Core Capabilities & Business Value

→ Multi-Sensor Compatibility
Accepts five distinct transducer types (proximity, DC LVDT, AC LVDT, RPT, rotary potentiometer) through software-selectable inputs, eliminating inventory complexity and reducing spare parts costs by 40-60% compared to single-function monitors.

✓ Four Independent Monitoring Channels
Simultaneous tracking of multiple measurement points enables comprehensive machine coverage with a single module, reducing rack space requirements and system complexity while maintaining measurement integrity across all channels.

→ Programmable Alarm Architecture
User-defined setpoints with Alert and Danger thresholds trigger automated responses through relay outputs, integrating seamlessly with DCS/SCADA systems to initiate protective shutdowns or maintenance notifications before damage occurs.

✓ Front-Panel Diagnostics
Tricolor LED indicators (OK, TX/RX, Bypass) provide instant visual confirmation of module health, communication status, and operational mode, reducing troubleshooting time by 70% during commissioning and maintenance activities.

→ Hazardous Area Certification
Available with cNRTLus (Class I Division 2) and ATEX/IECEx (Zone 2) approvals for deployment in explosive atmospheres, ensuring compliance with global safety standards in petrochemical and offshore installations.

✓ Ecosystem Integration
Native compatibility with 3500 rack infrastructure including 3500/20 RIM, 3500/93 displays, and System 1 software creates unified monitoring platforms with centralized data acquisition, trending, and predictive analytics capabilities.

Industrial Application Scenarios

Steam Turbine Thrust Monitoring
Continuous axial position measurement detects thrust bearing degradation in power generation turbines operating at 3,600 RPM. Early detection of 0.5mm displacement changes prevents rotor-to-stator contact events that cause $2M+ repair costs and 30-90 day outages.

Compressor Anti-Surge Valve Control
Real-time valve stem position verification in centrifugal compressor protection systems ensures accurate anti-surge response within 50-millisecond control loops, preventing surge events that damage impellers and reduce equipment lifespan by 15-25 years.

Hydroelectric Generator Bearing Clearance
Radial displacement monitoring on guide bearings in 150MW+ hydro units identifies wear patterns 6-12 months before failure thresholds, enabling planned maintenance during low-demand periods rather than emergency shutdowns during peak generation.

Process Pump Shaft Position Tracking
Axial and radial position surveillance on multi-stage centrifugal pumps handling corrosive fluids detects seal degradation and impeller wear, reducing unplanned maintenance by 45% and extending mean time between overhauls from 18 to 30 months.

Gas Turbine Rotor Positioning
Differential expansion and absolute shaft position monitoring in industrial gas turbines prevents rub events during thermal transients, protecting hot gas path components valued at $500K-$3M per turbine section.

Technical Parameters & Selection Guide

Selection Criteria: Choose I/O module configuration (01/02/05/06) based on transducer type and termination preference. Internal terminations (01/05) simplify wiring for proximity and LVDT sensors within 7.6m (25ft) of the rack. External terminations (02/06) accommodate field-mounted junction boxes for extended cable runs exceeding 15m (50ft). Specify agency approvals (00/01/02) according to installation area classification and regional regulatory requirements.

Extended Functionality

System 1 Integration: Native connectivity to Bently Nevada's System 1 condition monitoring platform enables cloud-based data analytics, machine learning-driven anomaly detection, and fleet-wide performance benchmarking across multiple facilities.

Modbus TCP/IP Gateway: Optional 3500/92 communication module provides Modbus protocol conversion, allowing integration with third-party SCADA systems, historians, and enterprise asset management platforms without proprietary software licensing.

Customizable Alarm Logic: Advanced configuration options support hysteresis bands, time delays, voting logic (2oo3, 2oo4), and conditional alarming based on machine operating state (startup, steady-state, shutdown), reducing nuisance alarms by 60-80%.

Remote Configuration: Network-based setup through 3500 Rack Configuration Software eliminates the need for on-site visits during commissioning or setpoint adjustments, reducing engineering costs by $2,000-$5,000 per deployment.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from regional distribution centers. Custom I/O configurations or agency-certified units require 2-3 weeks for factory preparation and certification documentation.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for critical applications requiring 5-year coverage with advance replacement service.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting, and system optimization. Phone/email support available 8AM-6PM EST, with emergency hotline for critical production issues.

Documentation Package: Includes installation manual, configuration guide, transducer compatibility matrix, wiring diagrams, dimensional drawings, and calibration certificates. Software licenses for 3500 Rack Configuration utility provided with each module.

Frequently Asked Questions

What communication protocols does the 3500/45 monitor support for integration with plant DCS systems?
The module communicates via proprietary protocol through the 3500/20 RIM (Rack Interface Module). For DCS integration, add a 3500/92 Communication Gateway supporting Modbus TCP/IP, or 3500/95 for Ethernet/IP connectivity to Allen-Bradley, Siemens, or Honeywell control systems.

Can this position monitor handle both radial and axial displacement measurements simultaneously on a single machine?
Yes. The four independent channels allow monitoring of two radial positions (X-Y plane) plus axial thrust position, with one channel remaining available for valve position or secondary measurement point on the same equipment train.

How does the 176449-04 configuration differ from other 3500/45 part number variants?
The -04 suffix indicates internal terminations for proximity/DC LVDT transducers without agency certifications. Compare to 176449-02 (external terminations) or 176449-01 (internal + cNRTLus certification) based on your wiring architecture and hazardous area classification.

What minimum firmware versions are required for the 3500/45 to operate with RPT valve position transducers?
RPT functionality requires 3500/20 RIM firmware Rev. G or later, 3500 Rack Configuration Software version 3.00+, and Data Acquisition Interface version 2.20 or higher. Verify compatibility before ordering for valve monitoring applications.

Does the monitor provide 4-20mA output signals for trending on external recorders or historians?
No. The 3500/45 outputs alarm relay contacts only. For analog trending, add a 3500/42M Proximitor/Seismic Monitor with 4-20mA outputs, or use the 3500/20 RIM's serial data stream to a 3500/92 gateway for digital historian integration.

Can I retrofit this module into an existing 3500 rack without system downtime or reconfiguration?
Yes, if the rack contains a compatible 3500/20 RIM (Rev. G+). Hot-swap capability allows module replacement during operation. Configuration files transfer via 3500 Rack Configuration Software without affecting adjacent modules or machine protection logic.

Secure Your Machinery Investment Today

Protect critical rotating assets with proven position monitoring technology trusted by Fortune 500 manufacturers and utilities worldwide. Contact our application engineers to configure the optimal 3500/45 solution for your machinery protection requirements, or request a detailed quotation including transducers, cabling, and System 1 integration services.
