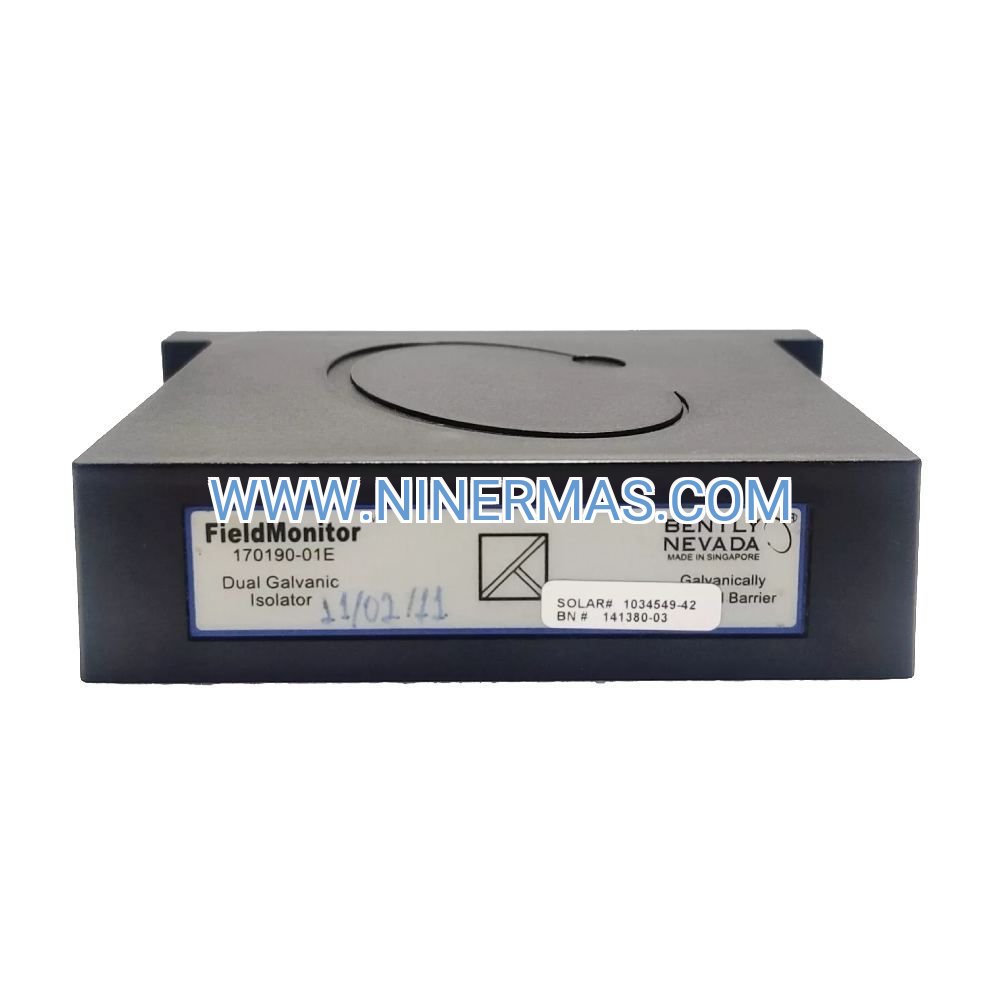

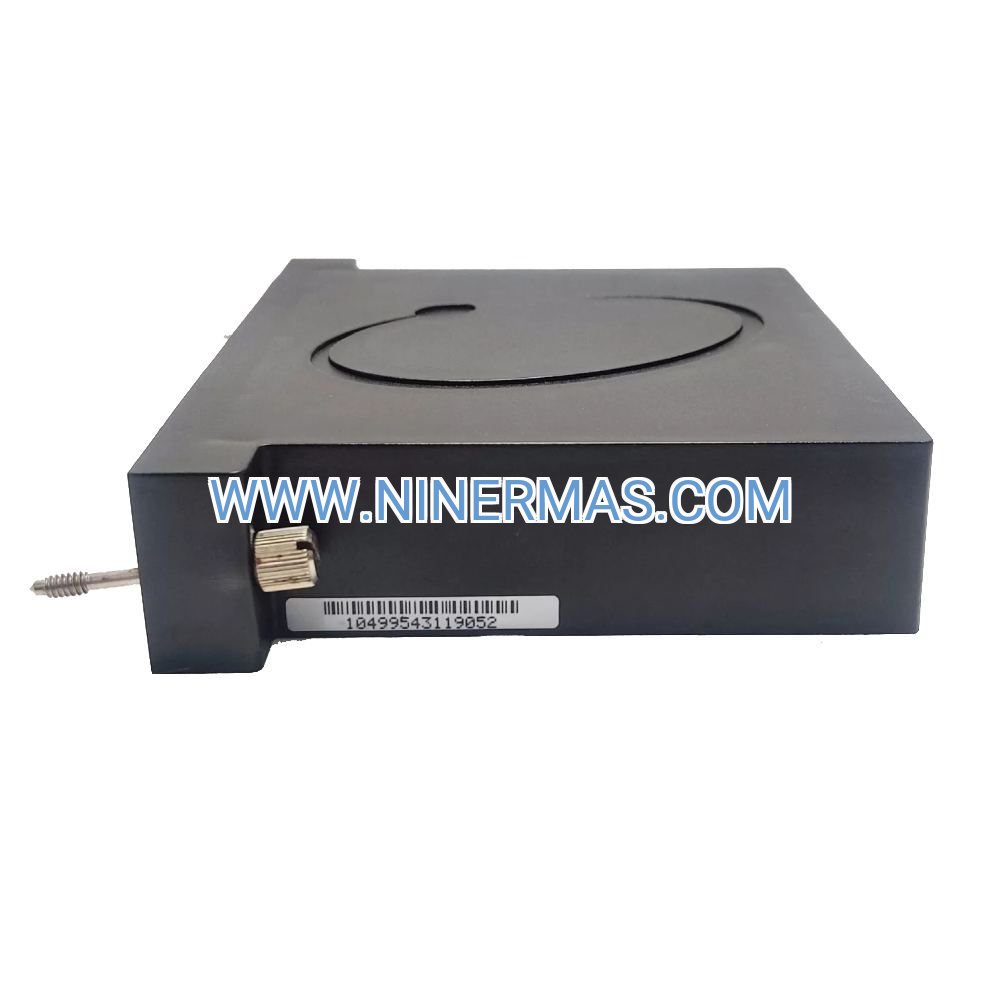

170190-01E Dual-Channel Galvanic Isolator (Industrial-Grade Signal Protection)

The Bently Nevada 170190-01E represents a critical infrastructure component for industrial facilities requiring uncompromised signal integrity in vibration monitoring and machinery protection networks. Engineered to eliminate ground loop interference across dual independent channels, this isolator safeguards measurement accuracy in electrically complex environments where multiple grounding points create potential differences that corrupt sensor data.

Designed for turbomachinery installations, petrochemical processing units, and power generation facilities, the 170190-01E addresses the persistent challenge of maintaining clean 4-20mA current loop signals across distributed control architectures. Plant engineers and reliability teams deploy this module to bridge field instrumentation with control room systems while preventing voltage transients from propagating through measurement circuits.

With 1500V RMS continuous isolation capability and ±0.1% accuracy retention, this dual-channel solution delivers measurable improvements in signal-to-noise ratio, reduces false alarm rates in condition monitoring systems, and extends the operational lifespan of connected instrumentation by blocking damaging electrical surges.

Core Capabilities & Technical Advantages

→ Dual Independent Isolation Channels
Simultaneous protection for two measurement circuits eliminates the need for multiple single-channel units, reducing panel footprint by 40% while maintaining complete electrical separation between input and output stages.

→ 1500V Continuous Isolation Barrier
Industrial-grade galvanic separation withstands sustained voltage differentials common in large grounding networks, protecting downstream equipment from ground potential rise events during electrical faults.

→ Sub-100ms Response Time
Fast signal transmission preserves dynamic characteristics of vibration waveforms, ensuring transient events like bearing impacts and blade rubs are captured without distortion in time-domain analysis.

✓ 4-20mA Loop Compatibility
Universal current loop interface integrates with Bently Nevada 3300/3500 monitors, third-party PLCs, DCS platforms, and SCADA systems without requiring signal conversion hardware.

✓ Extended Temperature Range (-30°C to +65°C)
Operates reliably in outdoor enclosures, unheated equipment rooms, and high-ambient process areas where standard electronics fail, reducing climate control requirements.

✓ DIN Rail Mounting with Hot-Swap Design
Tool-free installation on standard 35mm DIN rail enables rapid deployment during turnarounds; hot-swappable architecture allows replacement without system shutdown, minimizing production interruptions.

Industrial Application Scenarios

Steam Turbine Vibration Monitoring Networks
In combined-cycle power plants, the 170190-01E isolates proximity probe signals traveling from turbine pedestals to control room monitors across 200+ meter cable runs. By breaking ground loops between turbine foundation grounding and control building earth, the isolator eliminates 60Hz noise pickup that previously masked subsynchronous vibration signatures indicating steam whirl instability.

Multi-Unit Compressor Stations
Natural gas pipeline facilities with 6-8 reciprocating compressors experience severe ground potential differences during motor starting events. Deploying 170190-01E modules at each compressor's local instrument panel prevents voltage spikes from damaging centralized monitoring systems while maintaining continuous vibration trending during electrical transients.

Petrochemical Reactor Monitoring Retrofit
When integrating modern condition monitoring into 1980s-era process units with non-isolated grounding schemes, the 170190-01E enables connection of legacy Bently Nevada 1900 series monitors to contemporary DCS platforms without costly facility-wide grounding system upgrades, reducing project costs by 60-70%.

Hazardous Area Signal Transmission
For Zone 1/Division 1 installations requiring intrinsically safe sensor circuits, this isolator provides the galvanic separation mandated between IS and non-IS zones, allowing safe transmission of vibration data from explosion-proof proximity probes to standard control room equipment.

Offshore Platform Machinery Protection
Marine environments with cathodic protection systems create complex grounding scenarios where stray currents induce measurement errors. The 170190-01E's high isolation voltage blocks these interference sources, ensuring accurate shaft vibration monitoring on critical gas turbine generators and seawater injection pumps.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 170190-01E when you need dual-channel isolation for 4-20mA signals in standard industrial environments. For higher channel density, consider the 170180 series I/O modules. For voltage signal isolation, specify the 1701/06 isolator terminal. For SIL-rated safety applications, consult factory documentation regarding certification status.

Advanced Integration & IoT Connectivity

The 170190-01E serves as a foundational element in modern Industrial IoT architectures by enabling secure data transmission from legacy vibration monitoring systems to cloud-based analytics platforms. When combined with Bently Nevada System 1 software and edge computing gateways, isolated signals feed machine learning algorithms for predictive maintenance without exposing critical control networks to cybersecurity vulnerabilities.

For facilities implementing IEC 62443 industrial cybersecurity standards, the galvanic isolation provides a physical security boundary between OT (operational technology) and IT networks, preventing malicious code injection through measurement circuits while maintaining real-time data flow for condition-based maintenance programs.

Custom configurations support integration with third-party vibration analysis tools including SKF @ptitude, Emerson AMS Suite, and AVEVA PI System through standard Modbus RTU/TCP and OPC UA protocols when paired with appropriate signal converters.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier to major industrial centers. Expedited same-day shipping available for critical outage support.

Custom Configuration: 10-15 business days for factory-programmed units with specific calibration ranges or extended temperature ratings.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and calibration drift. Extended 36-month warranty programs available for high-reliability applications.

Technical Support: Unlimited application engineering assistance including grounding system analysis, signal integrity troubleshooting, and integration guidance with existing Bently Nevada or third-party monitoring platforms.

Documentation Package: Each unit ships with calibration certificate, dimensional drawings, wiring diagrams, and compliance declarations (CE, RoHS, ATEX where applicable).

Frequently Asked Questions

How does galvanic isolation improve vibration measurement accuracy in multi-grounded systems?
Galvanic isolation breaks the electrical path between field sensors and control room equipment, preventing ground loop currents from inducing voltage drops across signal cables. In facilities with multiple grounding points (turbine foundations, electrical substations, control buildings), potential differences of 5-50V commonly exist. Without isolation, these voltages create measurement errors of 2-10% of span. The 170190-01E eliminates this error source by using transformer coupling or optical isolation to transfer the signal while blocking DC and low-frequency ground currents.

Can the 170190-01E interface with non-Bently Nevada monitoring equipment and modern DCS platforms?
Yes, the 170190-01E is protocol-agnostic and works with any 4-20mA current loop source or receiver. It successfully interfaces with Emerson DeltaV, Honeywell Experion, Siemens PCS 7, Rockwell PlantPAx, and Yokogawa Centum DCS systems. The isolator is transparent to the signal—it simply provides electrical separation while maintaining the analog current value. Configuration is passive; no programming or setup is required.

What maintenance procedures are required for optimal long-term performance?
The 170190-01E is a solid-state device with no moving parts, requiring minimal maintenance. Recommended practices include: (1) Annual verification of isolation resistance using a 500V megohmmeter (should exceed 100MΩ), (2) Biennial calibration verification by injecting known 4-20mA signals and measuring output accuracy, (3) Visual inspection of terminal connections for corrosion or looseness during scheduled outages, (4) Firmware updates not applicable—this is analog hardware. Typical service life exceeds 15 years in controlled environments.

Is this isolator suitable for SIL 2/SIL 3 safety instrumented systems?
The 170190-01E provides excellent signal isolation but is not certified for use in SIL-rated safety loops per IEC 61508. For safety instrumented systems requiring SIL certification, Bently Nevada offers the 3500/15 and 3500/22M rack-mounted monitors with documented safety integrity levels. However, the 170190-01E is commonly deployed in non-safety vibration monitoring circuits that run parallel to SIL-rated protection systems, providing additional diagnostic data without impacting safety loop integrity.

How do I size power supply requirements for multiple isolator installations?
Each 170190-01E channel draws approximately 50mA at 24VDC (1.2W per channel, 2.4W per dual-channel module). For a typical installation with 10 modules (20 channels), total power consumption is 24W. Specify a 24VDC DIN rail power supply rated for 50W minimum (100% derating) to accommodate inrush current during power-up. Use 18AWG wire for power distribution buses serving up to 15 modules; larger installations require load calculations per NEC Article 725.

What are the differences between the 170190-01E and newer 170180 series I/O modules?
The 170190-01E is a dedicated dual-channel galvanic isolator optimized for 4-20mA current loop signals with passive isolation technology. The 170180 series represents a more advanced architecture with microprocessor-based signal conditioning, higher channel density (up to 8 channels per module), configurable input/output types (voltage, current, proximity probe), and digital communication interfaces (Modbus, Ethernet). Choose 170190-01E for simple, cost-effective isolation in retrofit applications; select 170180 for new installations requiring flexibility and digital integration.

Take the Next Step

Protect your critical vibration monitoring infrastructure from ground loop interference and electrical transients. Contact our application engineering team for a complimentary grounding system assessment and isolator sizing calculation tailored to your facility's specific electrical architecture.

Request a technical consultation: Our specialists will review your P&IDs, grounding drawings, and existing monitoring system configuration to recommend optimal isolation strategies that improve signal quality while reducing installation costs.

Order now for fast delivery: In-stock units ship within 24 hours to minimize downtime during planned outages or emergency repairs. Volume pricing available for multi-unit projects and annual supply agreements.
