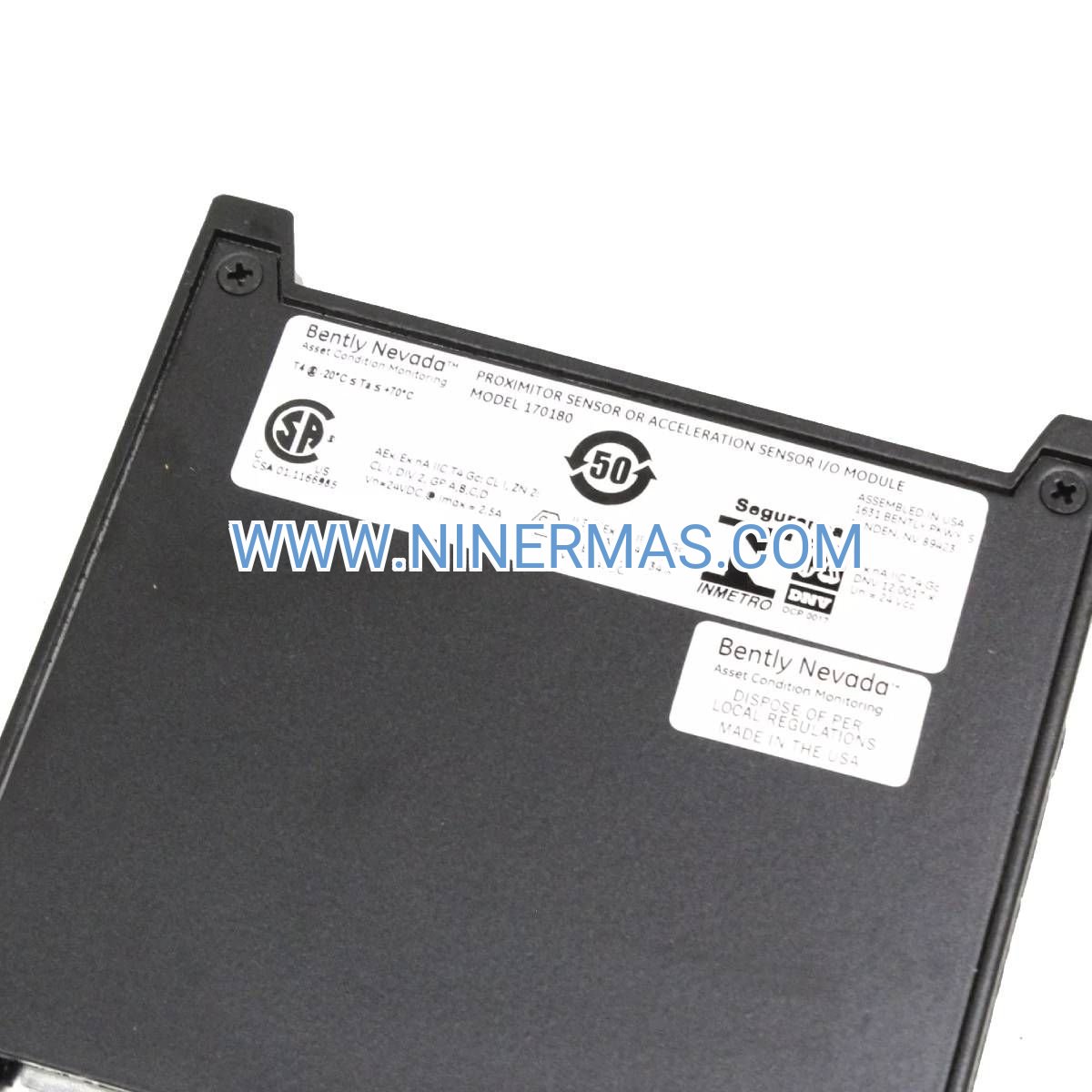

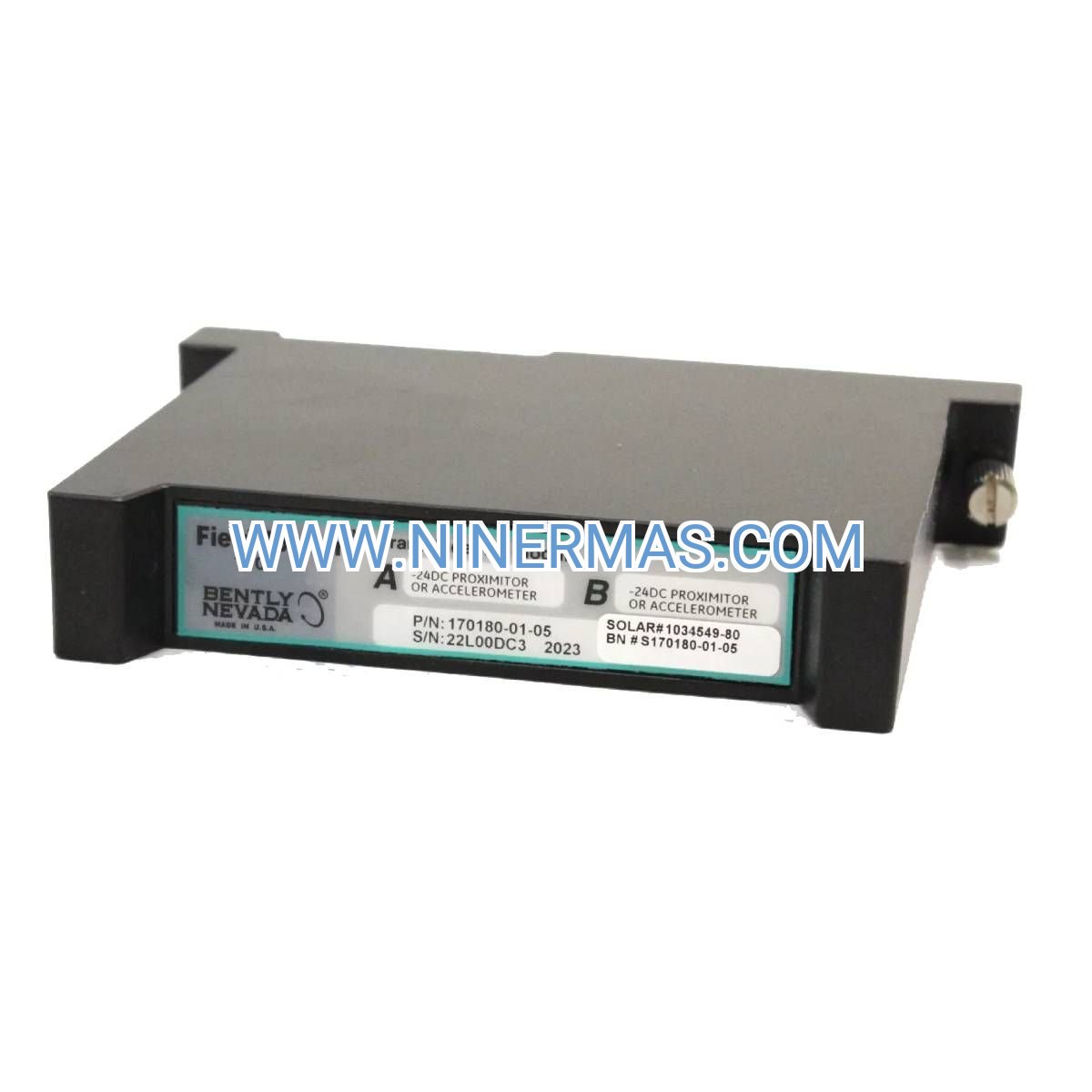

170180-01-05 Proximitor I/O Module – Industrial-Grade Vibration Monitoring for Explosive Environments

Designed for mission-critical machinery protection in ATEX Zone 0 and Zone 1 classified locations, the Bently Nevada 170180-01-05 delivers intrinsically safe signal conditioning for proximity transducers and accelerometer sensors. This dual-channel interface module transforms raw sensor data into actionable vibration intelligence, enabling predictive maintenance strategies in oil & gas, petrochemical, mining, and pharmaceutical facilities where explosive atmospheres demand uncompromising safety standards.

Built to withstand extreme industrial conditions from -34°C to +85°C, this Proximitor I/O module serves as the critical link between field instrumentation and monitoring systems, ensuring continuous equipment surveillance without compromising hazardous area integrity. Whether protecting turbomachinery in offshore platforms or monitoring process equipment in chemical plants, the 170180-01-05 provides the reliability and accuracy demanded by asset-intensive industries.

Engineered for seamless integration with Bently Nevada 3300 and System 1 platforms, this module reduces installation complexity through dual-channel architecture while maintaining full compliance with international explosion protection standards. Contact our technical team today to configure a complete condition monitoring solution tailored to your hazardous area requirements.

Core Capabilities & Business Value

✓ ATEX Zone 0/1 Explosion Protection
Certified for continuous operation in the most hazardous explosive atmospheres where flammable gases or vapors are present. Intrinsically safe design eliminates ignition sources through energy-limiting circuitry, ensuring regulatory compliance across global jurisdictions while protecting personnel and assets.

✓ Dual-Channel Monitoring Architecture
Simultaneously condition signals from two independent measurement points, reducing hardware investment by 50% compared to single-channel alternatives. Streamlines cabinet space requirements and simplifies wiring infrastructure in congested hazardous area installations.

✓ Extended Temperature Performance
Operates reliably across -34°C to +85°C (-29°F to +185°F) ambient conditions without signal degradation. Eliminates the need for environmental enclosures in many applications, reducing total cost of ownership while maintaining measurement accuracy in Arctic offshore platforms and desert refineries alike.

✓ Universal Transducer Compatibility
Interfaces seamlessly with Proximitor proximity probes for shaft displacement measurement and piezoelectric accelerometers for bearing condition assessment. Single module type supports diverse sensor technologies, simplifying spare parts inventory and technician training requirements.

→ Proven Reliability in Critical Service
Industrial-grade components and rigorous quality control deliver MTBF exceeding 100,000 hours. Minimizes unplanned downtime through robust construction that withstands vibration, electromagnetic interference, and corrosive atmospheres common in process industries.

→ Rapid Integration & Commissioning
DIN rail or panel mounting options with standardized terminal blocks accelerate installation. Pre-configured for Bently Nevada monitoring systems, reducing commissioning time by up to 40% compared to third-party interface modules requiring extensive parameter setup.

Industry Applications & Problem Resolution

Upstream Oil & Gas Production
Monitor gas compression trains, crude oil pumps, and turbine generators on offshore platforms and FPSO vessels where Zone 0/1 classifications are mandatory. The 170180-01-05 enables continuous vibration surveillance of equipment operating in explosive atmospheres, detecting bearing degradation, shaft misalignment, and rotor imbalance before catastrophic failures occur. Prevents production losses averaging $500K-$2M per day from unplanned shutdowns in remote offshore locations.

Petrochemical & Refining Operations
Protect critical rotating equipment in fluid catalytic cracking units, ethylene crackers, and aromatics complexes where hydrocarbon vapor concentrations create persistent explosion hazards. Real-time vibration data from the 170180-01-05 feeds predictive maintenance algorithms, extending mean time between overhauls by 25-35% while maintaining safety integrity levels required by IEC 61511 functional safety standards.

Chemical Manufacturing Facilities
Safeguard reactor feed pumps, centrifugal separators, and agitator drives handling flammable solvents and reactive intermediates. Dual-channel monitoring captures both radial vibration and axial position data, enabling early detection of mechanical seal failures, impeller erosion, and coupling wear that could lead to process upsets or hazardous material releases.

Underground Mining & Mineral Processing
Ensure continuous operation of main ventilation fans, conveyor drive systems, and crushing equipment in underground coal mines and potash facilities where methane gas presence mandates intrinsically safe instrumentation. The 170180-01-05's wide temperature range accommodates both frigid intake air streams and elevated temperatures near processing equipment, maintaining measurement accuracy across diverse operating conditions.

Pharmaceutical & Fine Chemical Production
Maintain GMP compliance while monitoring sterile processing equipment, tablet presses, and coating systems in solvent-handling areas classified as Zone 1. Vibration trending identifies bearing wear and mechanical looseness before contamination risks arise, supporting both equipment reliability and product quality objectives in highly regulated manufacturing environments.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 170180-01-05 when your application requires ATEX Zone 0 or Zone 1 certification. For non-hazardous locations, consider standard Proximitor I/O modules to optimize cost. Verify that your power supply meets intrinsically safe requirements and that cable lengths remain within specified limits for your chosen transducer types. Consult our application engineers for system-level design validation.

Advanced Integration & Customization Options

IoT & Remote Monitoring Connectivity
Interface the 170180-01-05 with wireless gateways and edge computing platforms to enable remote condition monitoring from centralized control rooms. Cloud-based analytics platforms can process vibration data streams for machine learning-based anomaly detection, extending predictive capabilities beyond traditional threshold alarming.

Multi-Parameter Monitoring Systems
Combine vibration data from the 170180-01-05 with temperature, pressure, and flow measurements to create comprehensive equipment health profiles. Integrated monitoring architectures correlate mechanical condition with process parameters, identifying root causes of performance degradation more rapidly than single-parameter systems.

Functional Safety Integration
Deploy the 170180-01-05 as part of SIL-rated machinery protection systems where vibration monitoring serves as a critical safety instrumented function. The module's diagnostic capabilities support proof testing requirements and contribute to overall safety integrity level calculations per IEC 61508 standards.

Custom Calibration & Configuration
Factory calibration services available for application-specific transducer combinations and measurement ranges. Custom firmware configurations can optimize signal processing for unique machinery signatures or specialized sensor technologies not covered by standard settings.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 1-2 business days. Custom configurations require 2-3 weeks for factory preparation and testing.

Express Delivery: Emergency replacement modules available for next-day delivery to minimize critical equipment downtime. Contact our 24/7 support line for expedited processing.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects and material failures. Extended warranty programs available for long-term asset protection.

Technical Support: Our application engineering team provides pre-sales system design consultation, installation guidance, and post-commissioning troubleshooting assistance. Access to Bently Nevada technical documentation, wiring diagrams, and configuration software included with purchase.

Documentation Package: Each module ships with installation manual, ATEX certification documents, calibration certificates, and dimensional drawings. Digital resources include CAD models, software drivers, and integration guides for common DCS/SCADA platforms.

Frequently Asked Questions

How does ATEX Zone 0 certification differ from Zone 1 for vibration monitoring applications?
Zone 0 certification permits installation in locations where explosive gas atmospheres exist continuously or for extended periods—typically inside process vessels or storage tanks. Zone 1 covers areas where explosive atmospheres are likely during normal operations, such as around pump seals or compressor flanges. The 170180-01-05's dual certification provides maximum flexibility, allowing a single module type to serve both classification levels and simplifying spare parts management.

What maximum cable length is supported between the module and field sensors?
Maximum cable length depends on transducer type, cable capacitance, and environmental factors. For standard Proximitor proximity probes, typical limits range from 5 to 9 meters. Accelerometer circuits may support longer runs up to 100 meters with appropriate low-capacitance cable. Always verify cable specifications against sensor manufacturer requirements and use genuine Bently Nevada extension cables to maintain signal integrity and preserve intrinsic safety ratings.

Can this module interface with third-party monitoring systems beyond Bently Nevada platforms?
Yes, the 170180-01-05 outputs industry-standard conditioned vibration signals compatible with most DCS, PLC, and SCADA systems. Integration typically requires appropriate signal conversion modules or analog input cards rated for hazardous areas. Our technical team can recommend interface solutions for Siemens, Rockwell Automation, Honeywell, and other control system platforms.

What power supply specifications are required for intrinsically safe operation?
The module requires a certified intrinsically safe power supply meeting ATEX requirements for Zone 0/1 applications. Power sources must limit energy delivery to levels incapable of igniting explosive atmospheres under fault conditions. Consult the installation manual for specific voltage, current, and entity parameter requirements. We can recommend compatible power supplies from Phoenix Contact, Pepperl+Fuchs, and other certified manufacturers.

How do I verify proper module operation after installation?
Post-installation verification should include checking transducer excitation voltage (typically -24 VDC for Proximitor sensors), confirming output signal levels match expected vibration amplitudes, and validating proper grounding per ATEX installation standards. Built-in diagnostics accessible through connected monitoring systems provide continuous health status. Refer to the technical manual for detailed commissioning procedures and acceptance test criteria.

Is the 170180-01-05 compatible with legacy 3300 series monitoring systems?
Full compatibility with Bently Nevada 3300 series monitors, racks, and accessories is maintained. The module also interfaces with newer System 1 condition monitoring platforms and third-party systems via appropriate signal converters. Backward compatibility ensures protection of existing infrastructure investments while enabling migration paths to advanced diagnostic capabilities.

Ready to Enhance Your Hazardous Area Monitoring?

The Bently Nevada 170180-01-05 represents proven technology for critical machinery protection in explosive atmospheres. Our technical specialists are ready to assist with system design, sensor selection, and integration planning to ensure optimal performance for your specific application.

Request a technical consultation today: Our team will review your equipment configuration, hazardous area classifications, and monitoring objectives to recommend a complete solution including sensors, cabling, and monitoring infrastructure.

Need emergency replacement modules? Contact our 24/7 support line for expedited processing and next-day delivery to minimize critical equipment downtime.

Exploring predictive maintenance strategies? Ask about our turnkey condition monitoring packages that combine the 170180-01-05 with complementary sensors, wireless gateways, and cloud analytics platforms for comprehensive asset health management.
