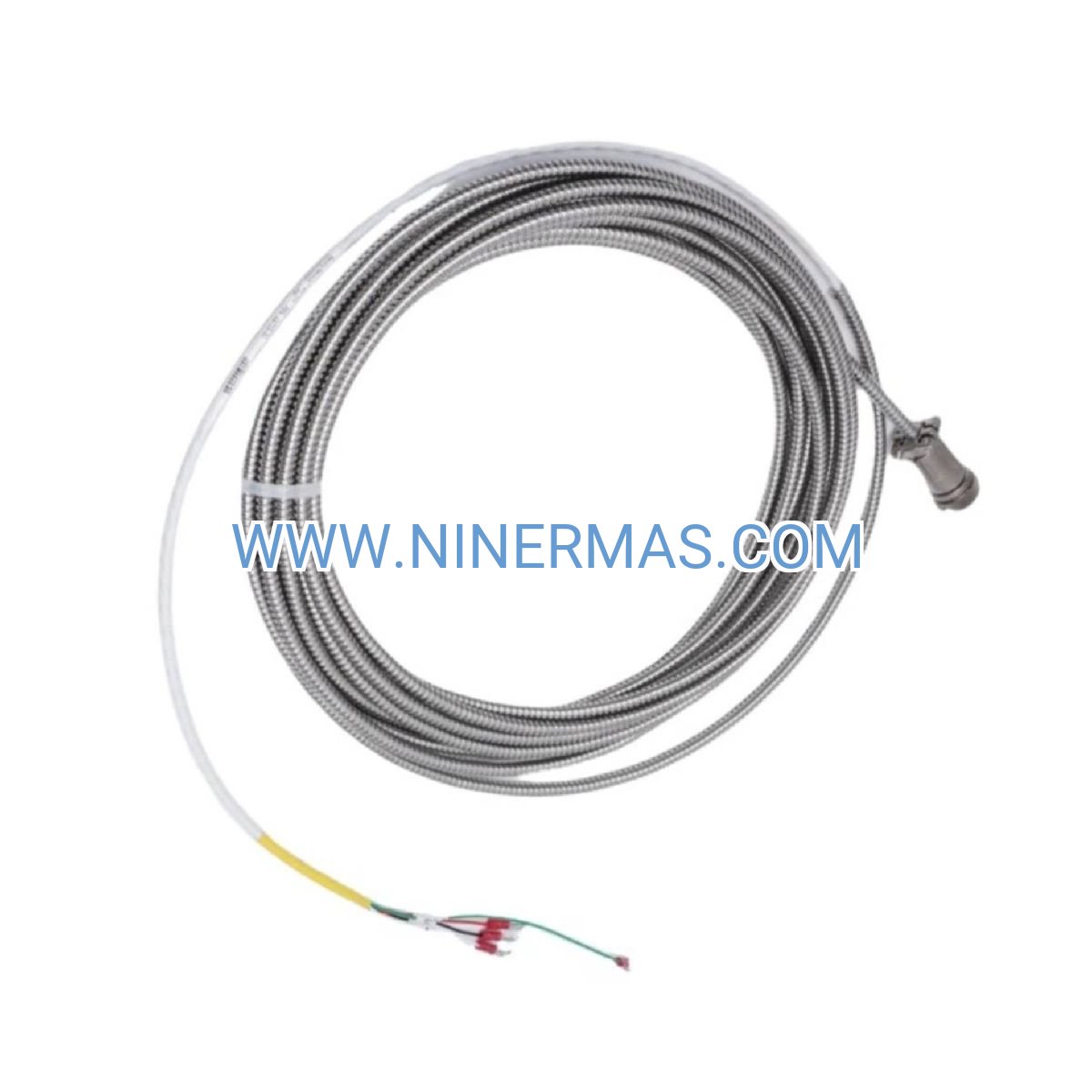

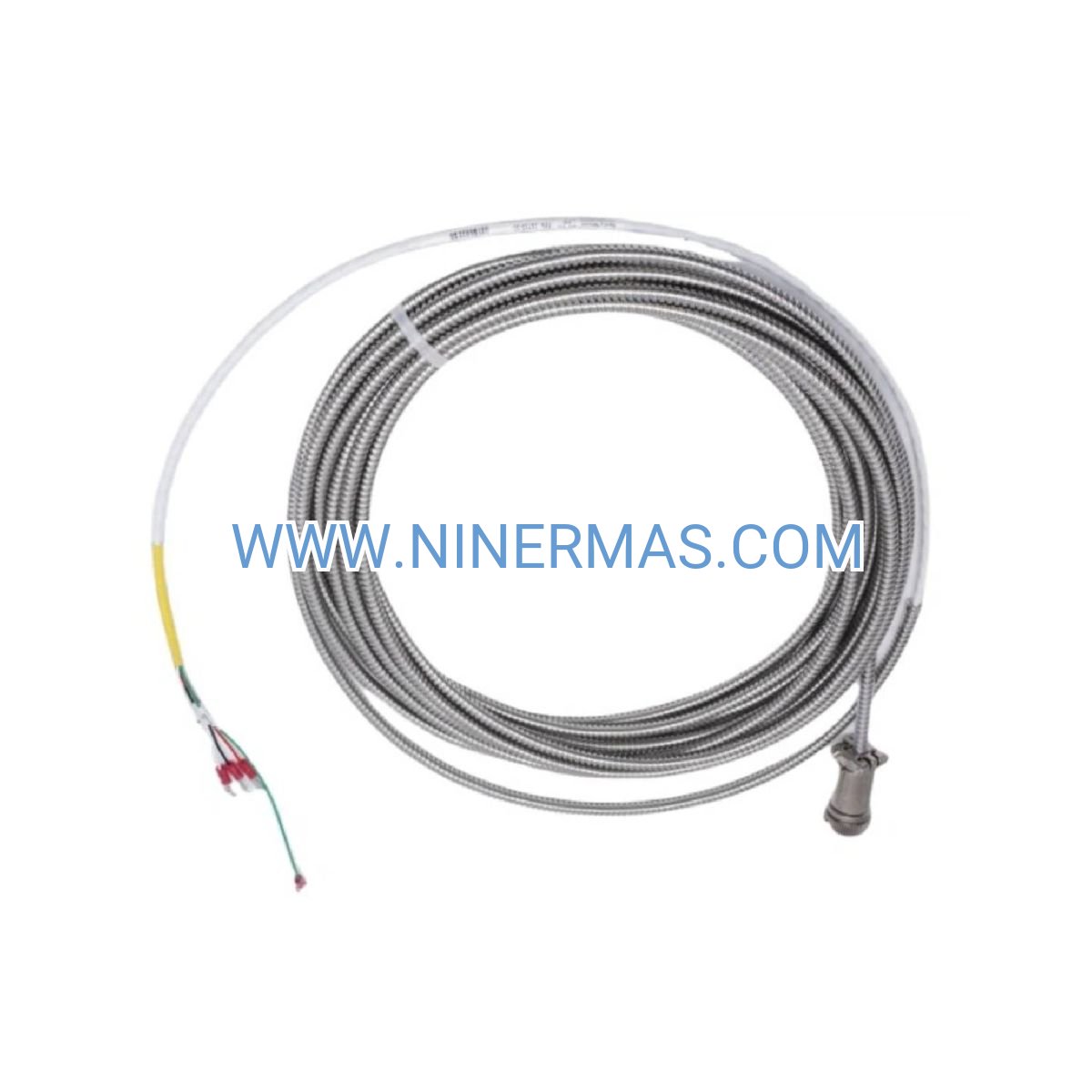

Bently Nevada 16710-32 Interconnect Cable (Industrial-Grade 32ft Shielded Solution)

The Bently Nevada 16710-32 is a precision-engineered interconnect cable designed for critical machinery protection and vibration monitoring applications. This 32-foot shielded cable provides dependable signal transmission between proximity probes, accelerometers, and monitoring modules in industrial environments where equipment reliability directly impacts operational uptime and safety.

Built for industries including power generation, oil & gas, petrochemical processing, and heavy manufacturing, the 16710-32 addresses the challenge of maintaining signal integrity across extended cable runs in electrically noisy environments. Plant engineers and maintenance teams rely on this cable to ensure accurate vibration data reaches monitoring systems without degradation or interference.

With its robust 3-conductor shielded construction, industrial-grade insulation, and proven compatibility with Bently Nevada 3300 Series platforms, the 16710-32 delivers the performance and durability required for continuous condition monitoring in mission-critical rotating machinery installations.

Core Features & Benefits

✓ Electromagnetic Interference Protection
Braided shield with drain wire construction eliminates signal noise from VFDs, motors, and high-voltage equipment, ensuring measurement accuracy within ±0.5% across the full cable length.

✓ Extended Temperature Performance
Operates reliably from -40°C to +85°C, making it suitable for outdoor installations, boiler proximity applications, and extreme climate conditions without signal degradation.

✓ Optimized Cable Length
32-foot span balances installation flexibility with signal quality—ideal for turbine monitoring systems, compressor installations, and multi-point sensor networks where standard 20ft cables fall short.

✓ Rapid Deployment Design
Factory-terminated connectors reduce installation time by 60% compared to field-terminated alternatives, minimizing commissioning costs and eliminating termination errors.

✓ Industrial Durability Standards
PVC jacket resists oil, coolant, and chemical exposure common in process environments, with abrasion resistance tested to 100,000 flex cycles for long-term reliability.

✓ Universal System Integration
Direct compatibility with Bently Nevada 3300 XL, 3300 NSv, and legacy 3300 systems eliminates adapter requirements and simplifies spare parts inventory management.

Application Scenarios

→ Turbomachinery Vibration Monitoring
Connect proximity probes to monitor modules in steam turbines, gas turbines, and compressor trains. The 16710-32's shielding prevents false alarms caused by electrical interference from generator fields and control systems, reducing unplanned shutdowns by up to 40%.

→ Rotating Equipment Health Analysis
Link accelerometers to data acquisition systems in pump stations, blowers, and motor-driven equipment. The cable's 22 AWG conductors maintain signal fidelity for frequency analysis up to 10 kHz, enabling early detection of bearing defects and misalignment.

→ Power Generation Asset Protection
Establish reliable sensor networks across generator sets, cooling tower fans, and auxiliary systems. The 32ft length accommodates typical equipment spacing in power plants while maintaining the low capacitance required for eddy current probe operation.

→ Petrochemical Process Monitoring
Integrate transducer networks in refineries, chemical plants, and offshore platforms where hazardous area classifications demand certified connectivity. Pair with intrinsically safe barriers for Zone 1/Division 1 installations.

→ Predictive Maintenance Programs
Deploy permanent monitoring installations that feed vibration data to CMMS platforms and condition-based maintenance systems, enabling transition from time-based to condition-based maintenance strategies with documented ROI of 3:1 or better.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 16710-32 when your installation requires cable runs between 25-35 feet. For shorter distances (15-25ft), the 16710-25 variant reduces material costs. Extended runs (35-50ft) benefit from the 16710-35 or armored cable options that provide additional mechanical protection. Always verify that total cable capacitance remains within your proximity probe system's specifications—consult Bently Nevada documentation for probe-specific limits.

In applications with severe mechanical stress, chemical exposure, or rodent activity, consider armored cable variants. For standard industrial environments with proper cable tray routing, the 16710-32's PVC jacket provides adequate protection at lower cost.

Extended Functions

IoT Integration Capability
When paired with Bently Nevada Orbit 60 or System 1 software platforms, vibration data transmitted through the 16710-32 can be integrated into IIoT ecosystems for remote monitoring, predictive analytics, and cloud-based asset management dashboards.

Multi-Channel Configurations
Deploy multiple 16710-32 cables in parallel for XY vibration monitoring, thrust position measurement, and multi-plane balancing applications. Color-coded labeling options available for complex installations with 10+ measurement points.

Customization Options
Custom cable lengths (±5 feet from standard), alternative connector configurations, and armored jacket upgrades available for OEM integrations and specialized applications. Minimum order quantities apply—contact our technical sales team for custom specifications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom configurations require 3-4 weeks for manufacturing and quality testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Lifetime access to application engineering support including cable routing guidance, EMI troubleshooting, and system integration assistance. Phone and email support available during business hours (GMT+8).

Documentation Package: Each cable ships with calibration certificate, material compliance declarations (RoHS/REACH), and installation guidelines. CAD drawings and 3D models available for download.

Frequently Asked Questions

Q: What is the maximum cable length recommended for proximity probe applications?
A: Bently Nevada systems typically support cable runs up to 100 feet, but optimal performance occurs below 50 feet. The 16710-32's 32-foot length maintains signal quality well within system specifications. For runs exceeding 40 feet, verify total system capacitance including probe and monitor input capacitance.

Q: Can this cable be installed in outdoor or wet environments?
A: The PVC jacket provides moisture resistance suitable for protected outdoor installations and occasional water exposure. For continuous wet environments, direct burial, or submersion applications, specify armored cable variants with enhanced sealing. Always use appropriate cable glands and conduit entries to maintain IP ratings.

Q: How does shielding effectiveness impact measurement accuracy?
A: The braided shield provides >90% coverage, reducing electromagnetic interference by 30-40 dB across the frequency range of typical industrial noise sources (50 Hz - 10 kHz). Proper shield grounding at the monitor end is critical—never ground both ends as this creates ground loops that degrade performance.

Q: Is the 16710-32 compatible with non-Bently Nevada monitoring systems?
A: While electrically compatible with most 3-wire proximity probe systems, connector configurations are optimized for Bently Nevada equipment. Adapters may be required for third-party systems. Verify voltage ratings and pinout configurations before cross-platform use.

Q: What installation practices ensure optimal cable performance?
A: Maintain minimum 6-inch separation from power cables, avoid sharp bends (minimum bend radius: 10x cable diameter), secure cables every 18-24 inches to prevent vibration-induced fatigue, and route through grounded metal conduit in high-EMI areas. Never run signal cables parallel to VFD output cables.

Q: Does cable length affect vibration monitoring sensitivity?
A: Cable capacitance increases proportionally with length, which can reduce high-frequency response in proximity probe systems. The 16710-32's low-capacitance design (<100 pF/ft) ensures flat frequency response to 10 kHz at 32 feet, adequate for detecting bearing defects, gear mesh frequencies, and blade pass frequencies in most rotating machinery.
