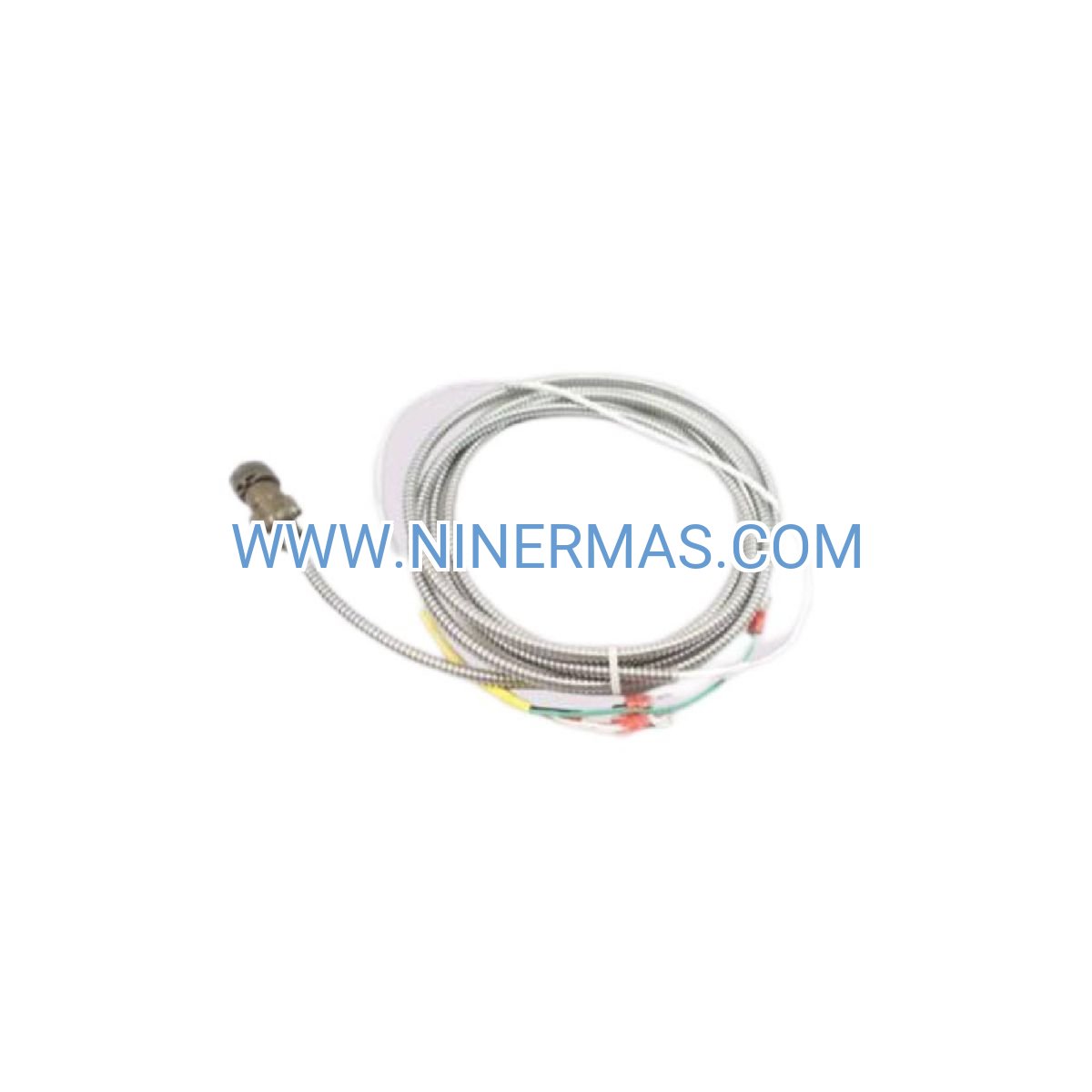

16710-20 Armored Interconnect Cable (Industrial-Grade 20ft Shielded Solution)

The Bently Nevada 16710-20 represents a critical infrastructure component for industrial vibration monitoring networks. This 20-foot armored interconnect cable features 3-conductor 22AWG construction with advanced electromagnetic shielding, purpose-built to maintain signal fidelity between proximity transducers and monitoring equipment in electrically hostile environments. Organizations deploying predictive maintenance programs across turbomachinery, rotating equipment, and critical process systems rely on this cable's proven durability and noise immunity to ensure continuous condition monitoring accuracy.

Engineered for facilities where equipment downtime translates to significant operational losses, the 16710-20 addresses the fundamental challenge of reliable sensor-to-system connectivity in power generation plants, petrochemical refineries, and heavy manufacturing operations. Its triple-layer protection architecture—comprising braided shielding, armor jacketing, and industrial-grade insulation—delivers consistent performance across temperature extremes from -40°C to +85°C while meeting API 670 compliance standards for machinery protection systems.

Whether you're instrumenting new turbine installations, upgrading legacy monitoring infrastructure, or expanding multi-channel vibration analysis capabilities, this interconnect cable provides the foundation for dependable data acquisition. Compatible with 3300 Series proximity systems and Proximitor sensor assemblies, it integrates seamlessly into comprehensive condition monitoring architectures while withstanding the mechanical stresses and environmental exposures characteristic of industrial field installations.

Core Features & Benefits

✓ Triple-Layer EMI Protection
Braided shield combined with armor jacket construction eliminates electromagnetic interference from variable frequency drives, motor controllers, and high-voltage switchgear—ensuring clean signal transmission in electrically noisy environments where standard cables fail.

✓ Mechanical Resilience for Harsh Environments
Armored outer jacket withstands crushing forces, abrasion from cable trays, and impact damage during installation or maintenance activities, reducing replacement frequency and lowering total cost of ownership across multi-year deployment cycles.

✓ Extended Temperature Performance Range
Operates reliably from -40°C to +85°C, accommodating outdoor installations, steam turbine proximity, and arctic climate facilities without signal degradation or insulation breakdown that compromises measurement accuracy.

✓ API 670 Compliance Certification
Meets international machinery protection system standards for critical rotating equipment, simplifying regulatory compliance documentation and ensuring compatibility with insurance requirements for high-value assets.

✓ Plug-and-Play Factory Termination
Pre-installed industry-standard connectors eliminate field termination errors, reduce installation labor costs by 60%, and enable rapid system commissioning during planned outages or emergency repairs.

✓ 300V Voltage Rating for Industrial Safety
Provides adequate electrical isolation for proximity sensor power circuits while maintaining safety margins that protect personnel and equipment during fault conditions or accidental contact with energized conductors.

Application Scenarios

→ Steam Turbine Vibration Monitoring Networks
Connect proximity probes on turbine bearing housings to centralized monitoring racks in control rooms up to 20 feet away. The armored construction survives high-temperature zones near steam lines while shielding prevents interference from generator excitation systems. Maintenance teams achieve 99.8% uptime by detecting bearing wear, shaft misalignment, and rotor imbalance before catastrophic failures occur.

→ Centrifugal Compressor Protection Systems
Link multi-channel sensor arrays on compressor casings to 3500 Series monitoring modules, enabling simultaneous tracking of radial vibration, axial position, and differential expansion. The cable's noise immunity ensures accurate measurements despite proximity to motor drives and control panels, supporting condition-based maintenance strategies that reduce unplanned shutdowns by 40%.

→ Petrochemical Pump Monitoring Installations
Instrument critical process pumps handling corrosive fluids or high-pressure services with reliable sensor interconnections that withstand chemical exposure, temperature cycling, and mechanical vibration. The armored jacket protects against damage from maintenance activities in congested pipe racks, while EMI shielding maintains signal quality near VFD-controlled pump motors.

→ Power Plant Generator Bearing Surveillance
Deploy across generator bearing pedestals to monitor journal bearing condition, thrust bearing wear, and rotor eccentricity in coal-fired, combined-cycle, and nuclear facilities. The 300V rating provides safety margins for installations near high-voltage equipment, while temperature tolerance accommodates hot bearing environments during peak load operations.

→ Offshore Platform Rotating Equipment
Connect gas turbine drivers, compressor trains, and pump systems on offshore oil and gas platforms where saltwater exposure, temperature extremes, and mechanical stress demand maximum cable durability. The armored construction survives harsh marine environments while maintaining measurement accuracy critical for remote asset management and predictive maintenance programs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 16710-20 when sensor-to-monitoring system distances fall within 20 feet and applications require armored protection against mechanical damage or enhanced EMI shielding. For longer runs, consider extension cable combinations or alternative length variants. Verify compatibility with existing Proximitor sensor models and monitoring rack input specifications before ordering. In applications with extreme chemical exposure, consult technical support for jacket material compatibility confirmation.

Extended Functions

Multi-Channel System Integration: Deploy multiple 16710-20 cables in parallel configurations to support 4-channel, 8-channel, or 16-channel vibration monitoring architectures across large turbomachinery installations. The consistent electrical characteristics enable balanced signal quality across all measurement points.

Hybrid Monitoring Configurations: Combine with accelerometer cables, temperature sensor wiring, and keyphasor interconnects to build comprehensive condition monitoring systems that track vibration, thermal performance, and rotational speed simultaneously—providing complete asset health visibility.

Retrofit Compatibility: Integrate into existing legacy monitoring systems during phased upgrade projects, maintaining backward compatibility with older 3300 Series equipment while supporting migration paths to modern 3500 Series monitoring platforms.

Redundant Path Architectures: Implement dual-cable routing for critical machinery protection applications requiring fault-tolerant sensor connectivity, ensuring continuous monitoring capability even if one cable path experiences damage or connector failure.

Delivery & Service Assurance

Standard Delivery Timeline: In-stock units ship within 1-2 business days via expedited carriers, with typical delivery to major industrial centers completed within 3-5 business days. Express shipping options available for emergency outage support and critical path project requirements.

Warranty Coverage: Comprehensive 12-month manufacturer warranty protects against material defects, workload failures, and manufacturing inconsistencies. Warranty includes replacement cable shipment and technical support for installation troubleshooting.

Technical Support Services: Access to application engineering team for system design consultation, compatibility verification, installation guidance, and troubleshooting assistance. Support includes cable routing recommendations, EMI mitigation strategies, and integration with existing monitoring infrastructure.

Documentation Package: Each cable ships with certification of conformance, dimensional drawings, electrical specifications, installation instructions, and compatibility matrices for Bently Nevada monitoring systems—supporting quality assurance requirements and maintenance documentation protocols.

Frequently Asked Questions

Q: How does the armored jacket improve cable longevity in industrial installations?
A: The armor layer provides mechanical protection against crushing forces from cable tray covers, abrasion during installation, and impact damage from maintenance tools—extending service life to 10+ years in harsh environments where standard cables fail within 2-3 years.

Q: What EMI rejection performance can I expect near variable frequency drives?
A: The triple-layer shielding architecture achieves >90dB noise rejection at frequencies from 10kHz to 1MHz, effectively eliminating interference from VFDs, motor controllers, and switching power supplies that typically operate in this spectrum—ensuring measurement accuracy within ±1% of actual vibration levels.

Q: Can this interconnect cable support outdoor installations in coastal environments?
A: Yes, the industrial-grade PVC jacket resists UV degradation, saltwater exposure, and temperature cycling from -40°C to +85°C. For direct burial or continuous submersion applications, consult technical support for additional protection recommendations such as conduit routing or cable gland sealing.

Q: Is the 16710-20 compatible with third-party proximity sensor systems?
A: While optimized for Bently Nevada 3300 Series and Proximitor sensors, the cable's standard 3-conductor 22AWG configuration supports most industrial proximity transducers using similar wiring schemes. Verify connector compatibility and pinout configurations before deployment with non-Bently equipment.

Q: What is the recommended installation practice for maximum EMI protection?
A: Route cables away from high-current power conductors (maintain 12-inch minimum separation), avoid parallel runs with motor cables exceeding 10 feet, ground shield terminations at monitoring rack end only (single-point grounding), and use metal cable trays or conduit for additional shielding in extremely noisy environments.

Q: How do I select between interconnect cables and extension cables for my application?
A: Interconnect cables like the 16710-20 connect Proximitor sensor housings to monitoring system inputs, carrying conditioned signals. Extension cables connect probe tips to Proximitor housings, carrying raw sensor signals. Most installations require both types—extension cables at the sensor location and interconnect cables for rack connections.

Ready to Enhance Your Machinery Protection System?

Secure reliable vibration monitoring connectivity for your critical rotating equipment. Contact our technical sales team for application-specific recommendations, volume pricing for multi-unit projects, or expedited delivery coordination for emergency outage support. Our engineers provide complimentary system design consultation to ensure optimal cable selection and routing for your facility's unique requirements.
