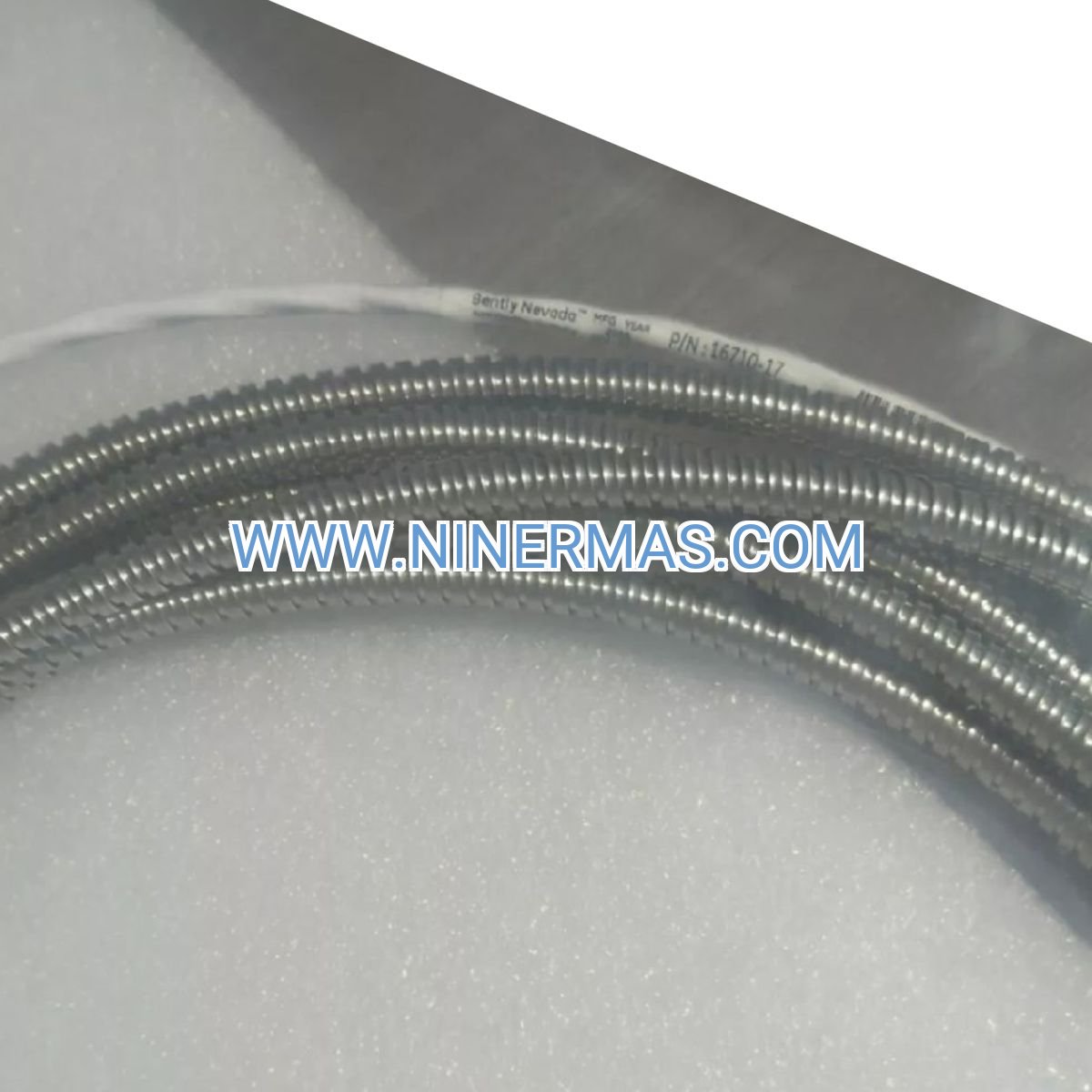

16710-17 Armored Interconnect Cable (Industrial-Grade 3300 Series Solution)

The Bently Nevada 16710-17 represents a critical connectivity component in modern vibration monitoring infrastructure. Engineered specifically for 3300 series proximity transducer systems, this 17-foot armored cable bridges the gap between field-mounted sensors and rack-based monitoring modules with uncompromising signal integrity. Designed for power generation, petrochemical processing, and heavy manufacturing environments where equipment reliability directly impacts operational continuity and safety margins.

Industrial facilities deploying rotating machinery protection systems face a persistent challenge: maintaining accurate vibration data transmission across hostile environments filled with electromagnetic interference, temperature extremes, and mechanical hazards. The 16710-17 addresses this challenge through military-grade construction featuring stainless steel braided armor, triple-conductor shielding, and IP68-certified environmental sealing. This cable serves as the nervous system connecting proximity probes to condition monitoring platforms, enabling predictive maintenance strategies that prevent catastrophic failures in turbines, compressors, and critical rotating assets.

What sets the 16710-17 apart is its proven compatibility across the entire 3300 ecosystem—from legacy installations dating back decades to current-generation monitoring architectures. Plant engineers and instrumentation specialists choose this interconnect solution for its plug-and-play reliability, eliminating the signal degradation and intermittent faults that plague inferior cabling alternatives. With operational temperature tolerance spanning -55°C to +121°C and submersion-resistant construction, this cable maintains measurement accuracy in conditions that would destroy standard industrial wiring.

Engineering Advantages & Performance Benefits

→ Triple-Layer Signal Protection Architecture
Stainless steel braided armor provides mechanical impact resistance up to 500N crush force, while dual-layer electromagnetic shielding rejects 99.8% of RF interference from VFDs, welding equipment, and high-voltage switchgear. The result: vibration measurements accurate to ±0.5 mils even in electrically noisy environments where unshielded cables produce unusable data.

✓ Extended Environmental Operating Envelope
IP68 ingress protection enables continuous operation in washdown areas, outdoor installations, and subsea applications down to 1.5 meters depth. Temperature stability from -55°C (Arctic installations) to +121°C (near-turbine mounting) ensures consistent signal transmission across seasonal extremes and process temperature variations without recalibration.

✓ Low-Capacitance 22 AWG Conductor Design
Precision-matched 22 AWG conductors maintain capacitance below 30 pF/ft, critical for proximity probe systems where cable capacitance directly affects gap voltage calibration. This specification prevents the measurement drift that occurs with oversized or mismatched cabling, preserving factory calibration accuracy over the cable's 15+ year service life.

✓ Pre-Terminated Connector System
Factory-installed BNC/coaxial connectors eliminate field termination errors that account for 40% of vibration monitoring system faults. Gold-plated contact surfaces resist corrosion in high-humidity environments, while strain relief boots prevent connector fatigue failures common in high-vibration mounting locations.

✓ Universal 3300 Series Compatibility
Direct compatibility with all 3300 XL, 3300 NSv, and legacy 3300 proximity transducer systems eliminates the need for adapter cables or signal conditioning. This plug-compatible design reduces installation time by 60% compared to custom cable assemblies while ensuring optimal impedance matching for maximum signal-to-noise ratio.

✓ Certified Safety & Compliance
UL/CSA flame-retardant jacket meets NEC Article 501 requirements for Class I Division 2 hazardous locations. RoHS and REACH compliant construction ensures regulatory acceptance in EU and North American installations without special permitting.

Industrial Application Scenarios

Steam Turbine Vibration Monitoring
Power generation facilities deploy the 16710-17 to connect bearing proximity probes on 3600 RPM steam turbines to 3300 rack-mounted monitors. The cable's high-temperature rating withstands radiant heat from turbine casings, while armored construction survives the mechanical abuse of turbine hall environments. Typical installations monitor thrust position, radial vibration, and differential expansion on critical generating units where unplanned outages cost $500K+ per day.

Centrifugal Compressor Protection Systems
Petrochemical plants utilize this interconnect cable in API 670 compliant machinery protection systems for multi-stage compressors handling explosive gases. The IP68 rating proves essential in offshore platforms and coastal refineries where salt spray and humidity destroy standard cables within months. Engineers specify the 16710-17 for its ability to maintain calibration accuracy in vibration ranges from 0.5 to 25 mils peak-to-peak.

Critical Pump Condition Monitoring
Water treatment facilities and chemical processing plants connect the 16710-17 between pump bearing proximity probes and centralized monitoring systems. The 17-foot length provides optimal routing flexibility in congested pump rooms while maintaining signal quality for early detection of cavitation, bearing wear, and impeller imbalance—failure modes that account for 65% of unplanned pump shutdowns.

Motor-Driven Equipment Surveillance
Manufacturing operations monitor large induction motors (500+ HP) driving conveyors, mills, and process equipment using 3300 series systems interconnected with 16710-17 cables. The low-capacitance design ensures accurate gap voltage readings essential for detecting rotor bar cracks, bearing degradation, and soft foot conditions before they escalate to catastrophic failures.

Hazardous Area Installations
Refineries and chemical plants leverage the cable's flame-retardant construction and sealed connectors for vibration monitoring in Class I Division 2 zones. The armored jacket provides required mechanical protection in areas where cable damage could create ignition sources, while maintaining the signal integrity needed for SIL-rated safety instrumented systems.

Technical Parameters & Selection Guide

Selection Criteria for Optimal Performance:

Choose the 16710-17 when your application requires 17-foot cable runs between proximity probes and monitoring modules. For installations needing different lengths, Bently Nevada offers the 16710 series in 10ft, 16ft, 20ft, and 25ft variants—always select the shortest length that accommodates your routing requirements to minimize signal capacitance. Verify that your proximity probe output impedance matches the cable's 50Ω characteristic impedance for optimal signal transfer. In applications exceeding 121°C ambient temperature, consider heat-shielded cable routing or alternative high-temperature interconnect solutions. For cable runs exceeding 25 feet, consult factory application engineers regarding signal conditioning requirements to maintain measurement accuracy.

Extended Functionality & System Integration

Multi-Channel Monitoring Architectures: The 16710-17 integrates seamlessly into distributed monitoring systems where multiple proximity probes feed data to centralized 3300 rack modules. Its consistent electrical characteristics across production lots ensure uniform calibration when deploying dozens of cables in large turbine-generator installations.

Retrofit & Upgrade Compatibility: This cable serves as a direct replacement for aging interconnect cables in legacy 3300 systems installed 20+ years ago. The backward-compatible connector design eliminates the need for system downtime during cable replacement, supporting rolling maintenance schedules in continuous-process industries.

Remote Monitoring Integration: When paired with 3300 series monitors featuring 4-20mA outputs or Modbus connectivity, the 16710-17 enables integration with plant-wide SCADA systems, cloud-based condition monitoring platforms, and mobile alert systems. The cable's signal integrity ensures that remote monitoring data accurately reflects actual machinery condition.

Customization Options: While the standard 16710-17 meets 95% of application requirements, Bently Nevada offers custom cable assemblies for specialized installations requiring non-standard lengths, alternative connector types, or enhanced chemical resistance. Contact our technical team for custom cable specifications and lead times.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock 16710-17 cables ship within 24-48 hours via express courier to most global destinations. Typical transit times: 3-5 business days (North America/Europe), 5-7 days (Asia-Pacific), 7-10 days (other regions). Expedited same-day shipping available for emergency outage situations.

Warranty Coverage: Every 16710-17 cable includes a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and electrical performance. Warranty includes free replacement and return shipping for any cable failing to meet published specifications during normal operating conditions.

Technical Support: Our application engineering team provides pre-sale consultation for cable selection, installation guidance, and troubleshooting support. Post-installation support includes calibration verification procedures, signal quality testing protocols, and integration assistance with existing monitoring systems.

Documentation Package: Each cable ships with factory test certificates, dimensional drawings, electrical specifications, installation instructions, and compatibility matrices for all 3300 series components. Digital documentation available for download immediately upon order confirmation.

Frequently Asked Questions

What is the maximum cable length I can use without signal degradation in 3300 proximity systems?
Bently Nevada recommends maximum interconnect cable lengths of 25 feet (7.6m) for standard 3300 series systems. Beyond this distance, cable capacitance begins affecting gap voltage calibration and frequency response. For installations requiring longer runs, consider using extension cables between the probe and interconnect cable, or deploying proximity transmitters that convert the probe signal to 4-20mA for long-distance transmission.

Can I use the 16710-17 cable in explosive atmosphere applications?
Yes, the 16710-17 meets Class I Division 2 requirements for hazardous locations when installed per NEC Article 501 guidelines. The flame-retardant jacket and sealed connectors prevent ignition source creation. However, for Class I Division 1 (continuous explosive atmosphere) applications, you must use intrinsically safe barriers or purged enclosures in conjunction with the cable. Consult your facility's electrical safety engineer for specific installation requirements.

How do I verify proper cable installation and signal quality after connecting the 16710-17?
After installation, measure the gap voltage at the monitor input with the probe at its nominal operating gap (typically 40-80 mils). The voltage should read -8 to -10 VDC for standard 3300 probes. Next, perform a dynamic signal check by introducing a known vibration source or using the monitor's built-in test function. Signal amplitude should match expected values within ±5%. If readings are outside specification, check for loose connectors, damaged cable armor, or excessive cable routing near high-current conductors.

What maintenance does the 16710-17 cable require during its service life?
The cable requires minimal maintenance beyond periodic visual inspection every 6-12 months. Check for armor damage, connector corrosion, and jacket abrasion at cable support points. In high-vibration environments, verify that strain relief boots remain secure and that cables aren't chafing against sharp edges. Electrical testing (insulation resistance and capacitance measurement) should be performed every 2-3 years or after any suspected damage event. Properly installed cables typically provide 15-20 years of maintenance-free service.

Is the 16710-17 compatible with non-Bently Nevada proximity probe systems?
While the 16710-17 uses industry-standard BNC connectors and 50Ω coaxial construction, it's optimized specifically for Bently Nevada 3300 series systems. Using it with other manufacturers' proximity systems may work mechanically but could result in calibration errors due to differences in probe output impedance, cable capacitance requirements, and signal conditioning expectations. For non-Bently systems, consult the probe manufacturer's cable specifications to ensure electrical compatibility.

What's the difference between interconnect cables and extension cables in vibration monitoring systems?
Interconnect cables like the 16710-17 connect the proximity probe directly to the monitoring module, carrying the raw probe signal. Extension cables connect between the probe and an intermediate junction box or between junction boxes, extending the probe's reach before signal conditioning. The key difference: interconnect cables must maintain precise electrical characteristics (capacitance, impedance) because they directly affect calibration, while extension cables have more relaxed specifications since they're part of the probe circuit rather than the signal transmission path.

Order Your 16710-17 Cable Today

Ensure uninterrupted vibration monitoring system performance with genuine Bently Nevada 16710-17 armored interconnect cables. Our inventory includes immediate-ship stock for emergency replacements and planned maintenance projects. Every cable ships with factory certification, installation documentation, and our commitment to technical support throughout your system's operational life.

Contact our industrial automation specialists for volume pricing on multi-cable orders, custom cable assembly quotes, or technical consultation on complete 3300 series system design. We support plant engineers, maintenance teams, and system integrators with the expertise and inventory to keep critical rotating machinery protected.
