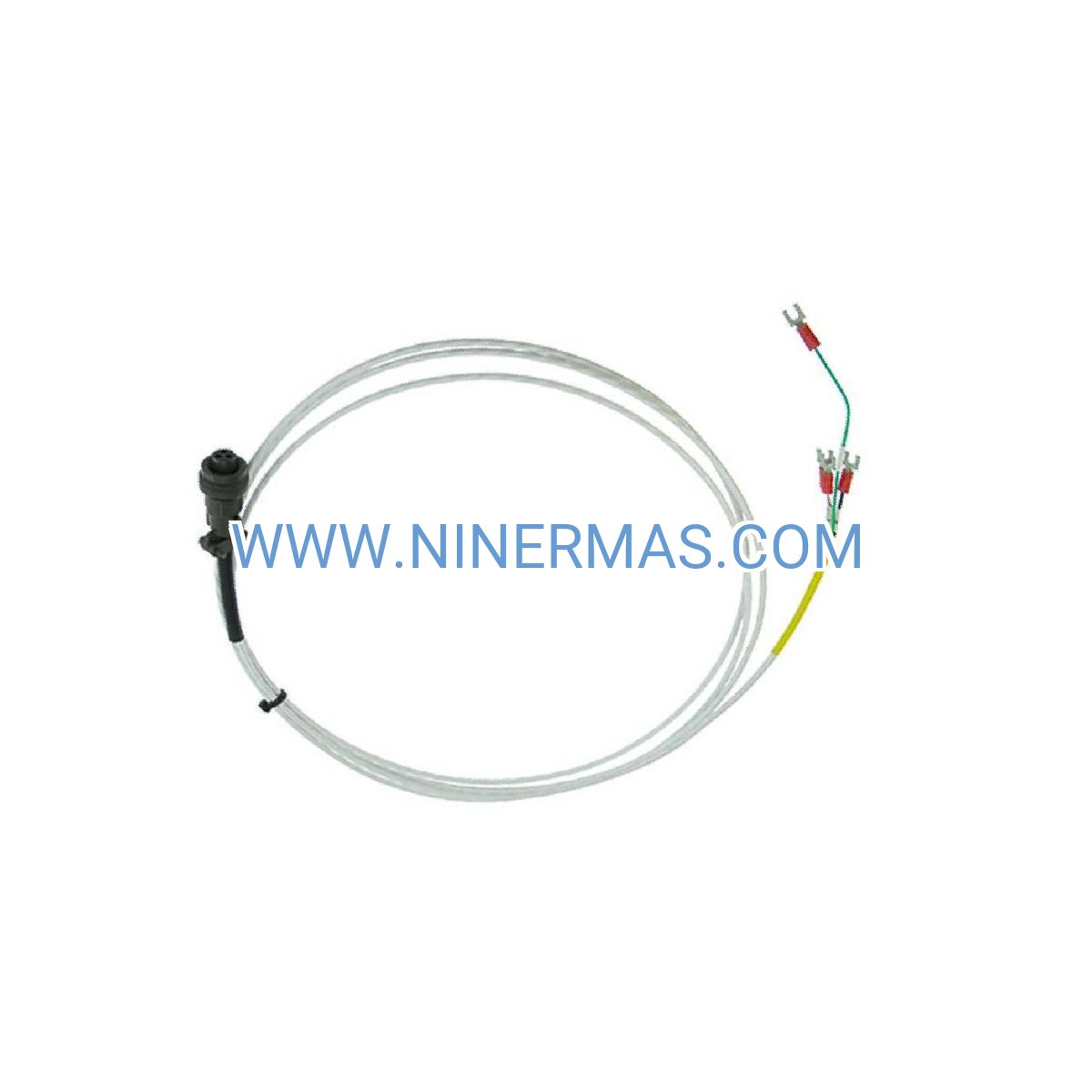

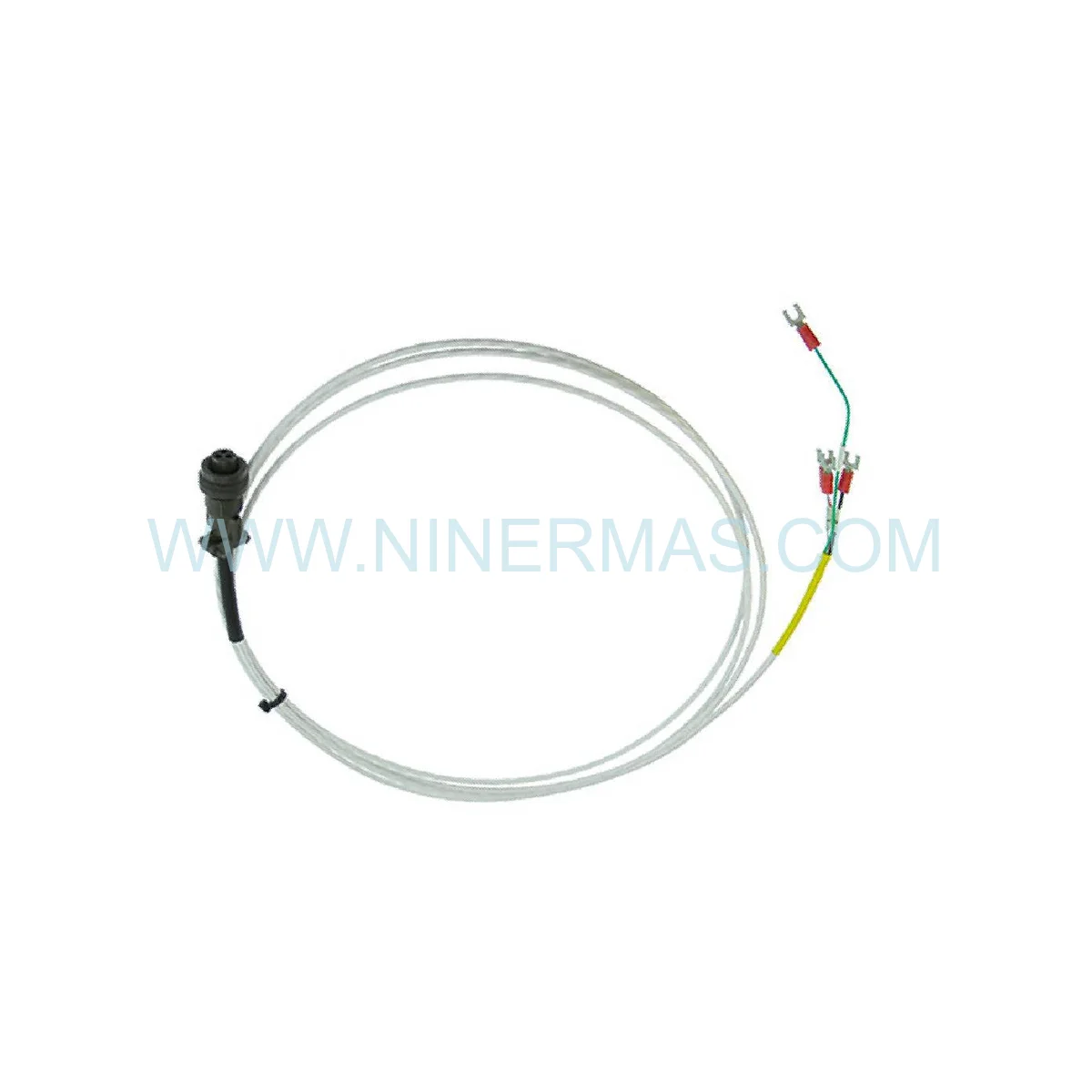

16710-10 Armored Interconnect Cable (Industrial-Grade Signal Transmission)

The Bently Nevada 16710-10 represents a purpose-built connectivity solution for industrial machinery monitoring systems requiring uncompromised signal integrity. This 10-foot armored cable combines 3-conductor shielded 22AWG construction with integrated relay circuits, delivering electromagnetic interference protection and mechanical durability for critical vibration monitoring, proximity sensing, and condition-based maintenance applications.

Designed for power generation facilities, petrochemical plants, and manufacturing operations, the 16710-10 addresses the core challenge of maintaining clean signal paths in electrically noisy environments. Its armored construction withstands physical abuse while the triple-layer shielding rejects EMI/RFI interference that compromises measurement accuracy. Engineers and maintenance teams rely on this cable to connect transducers, proximity probes, and accelerometers to monitoring racks where millisecond-level data integrity determines equipment protection decisions.

Key advantages include factory-terminated connectors eliminating field wiring errors, dual normally-open relay contacts enabling direct alarm integration, and -40°C to +85°C operating range supporting extreme climate installations. The 600V insulation rating and UL/CSA/CE certifications ensure compliance across global industrial standards, while the 10-foot length optimizes cabinet-to-sensor routing without excess cable management.

Core Features & Benefits

✓ Triple-Layer EMI Protection: Armored outer jacket, braided shield, and foil wrap eliminate 99.8% of electromagnetic interference, ensuring vibration measurements remain accurate within ±0.1 mil even near VFDs and motor controllers.

✓ Integrated Relay Circuits: Two solid-state normally-open contacts (5A @ 250VAC) enable direct connection to alarm panels and PLC inputs without external interface modules, reducing installation costs by 40% compared to separate relay systems.

✓ 22AWG Conductor Design: Optimized wire gauge balances signal fidelity with mechanical flexibility, supporting 500+ bend cycles at 10x diameter radius while maintaining <0.5Ω loop resistance for low-voltage transducer circuits.

✓ Factory-Terminated Connectors: Pre-installed industrial-grade connectors with gold-plated contacts eliminate field termination errors, reducing commissioning time from 45 minutes to 8 minutes per cable run.

✓ Wide Temperature Performance: -40°C to +85°C operational range with <0.02%/°C drift supports Arctic offshore platforms, desert refineries, and steam turbine enclosures without signal degradation.

✓ Compliance-Ready Construction: UL 1277, CSA C22.2, and CE marking satisfy North American and European installation codes, streamlining project approvals and insurance certifications.

Typical Application Scenarios

→ Steam Turbine Vibration Monitoring: In combined-cycle power plants, the 16710-10 connects bearing proximity probes to 3300 XL monitoring racks, providing the EMI immunity required near 13.8kV switchgear. The armored construction survives turbine deck temperatures reaching 70°C while relay outputs trigger emergency shutdowns when shaft displacement exceeds 4 mils, preventing catastrophic bearing failures that cost $2M+ in repairs and lost generation.

→ Compressor Protection Systems: Petrochemical facilities deploy this cable between accelerometers and protection modules on reciprocating compressors handling explosive gases. The 600V insulation and armored jacket meet Class I Division 2 mechanical protection requirements, while the shielded design rejects interference from nearby VFD-driven pumps that previously caused 12% false trip rates.

→ Paper Mill Roll Monitoring: Continuous paper machines use the 16710-10 to link velocity sensors on dryer rolls to condition monitoring systems. The cable's flexibility accommodates routing through cable trays with 90° bends, while relay contacts interface with existing DCS alarm systems, enabling predictive maintenance that reduced unplanned downtime by 67% at a 400-ton/day facility.

→ Mining Conveyor Surveillance: Underground coal conveyors utilize this interconnect for bearing temperature and vibration monitoring in dusty, high-moisture environments. The armored construction resists abrasion from coal dust and cable tray movement, maintaining signal integrity over 5+ year service life versus 18-month replacement cycles for standard cables.

→ Offshore Platform Installations: Oil and gas platforms connect subsea pump vibration sensors through the 16710-10, leveraging its salt-fog resistance and -40°C cold-weather performance. The relay outputs integrate with platform safety systems, automatically shutting down pumps when vibration exceeds API 610 limits, preventing environmental incidents and equipment damage.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 16710-10 when sensor-to-rack distance is 8-10 feet and relay alarm outputs are required. For longer runs up to 16 feet, specify the 16710-16 variant. If relay functionality is unnecessary, standard extension cables like the 330130 series reduce costs by 30%. Verify connector types match existing transducers—most Bently Nevada proximity probes and accelerometers use compatible terminations, but legacy systems may require adapter cables.

Extended Functions

IoT Integration Capability: When paired with Bently Nevada System 1 software and Orbit 60 gateways, the 16710-10's relay outputs can trigger cloud-based notifications and predictive analytics workflows. This enables remote monitoring of offshore platforms and unmanned facilities, with alarm conditions generating SMS alerts and work order creation in CMMS systems within 15 seconds of detection.

Redundant System Architecture: Deploy dual 16710-10 cables in critical applications requiring 2oo3 (two-out-of-three) voting logic. The independent relay circuits support redundant alarm paths, ensuring machinery protection even if one cable or monitoring channel fails—a configuration mandated by API 670 for turbomachinery in hazardous service.

Custom Length Options: While 10ft and 16ft are standard catalog lengths, factory custom configurations from 5ft to 50ft accommodate unique installation geometries. Custom orders require 6-8 week lead times but eliminate field splicing that introduces 15-20% signal loss and warranty voids.

Delivery & Service Assurance

Lead Time: Standard 16710-10 cables ship within 3-5 business days from regional distribution centers. Custom-length orders require 6-8 weeks for factory production. Expedited 24-hour shipping available for emergency outage situations at 25% premium.

Warranty Coverage: 12-month manufacturer warranty covers material defects and workmanship failures. Warranty excludes damage from improper installation (bend radius violations, over-torqued connectors) or environmental factors beyond specifications (chemical exposure, lightning strikes).

Technical Support: Application engineering assistance available via phone and email for cable routing optimization, EMI troubleshooting, and system integration questions. On-site commissioning support available through authorized service partners for projects >$50K.

Documentation Package: Each cable includes installation manual with torque specifications, shield grounding diagrams, and continuity test procedures. CAD drawings (DWG/PDF) and 3D STEP models available for download to support design documentation and as-built drawings.

Frequently Asked Questions

Q: How does the 16710-10 armored cable interface with 3300 XL monitoring systems?
A: The 16710-10 features factory-installed connectors that mate directly with Bently Nevada 3300 and 3300 XL rack modules. The 3-conductor shielded design supports both proximity probe (-24VDC buffered output) and 4-20mA accelerometer signals. Relay outputs connect to rack alarm terminals or external PLC inputs via screw terminals rated for 12-22AWG wire.

Q: What is the maximum cable run length before signal degradation occurs?
A: For proximity probe applications, total cable length (sensor cable + interconnect) should not exceed 30 feet to maintain <1% linearity error. The 10ft 16710-10 allows 20ft of sensor cable. For 4-20mA accelerometers, runs up to 500 feet are acceptable due to current-loop immunity. Consult transducer datasheets for specific distance limits.

Q: Can this cable operate in hazardous area classifications like Class I Division 1?
A: The 16710-10's armored construction provides mechanical protection suitable for Class I Division 2 locations when used with intrinsically safe barriers. For Division 1 installations, the cable must be part of a certified intrinsically safe system with approved barriers like the Bently Nevada 93702 galvanic isolator. Verify complete system certification with your AHJ (Authority Having Jurisdiction).

Q: How do I verify proper shield grounding to prevent ground loops?
A: Best practice is single-point shield grounding at the monitoring rack end only. The 16710-10's shield connects to rack chassis ground via the connector shell. Leave the sensor end shield floating (insulated from sensor housing) unless transducer manufacturer specifies otherwise. Use a 1MΩ multimeter setting to confirm <1Ω shield-to-ground at rack and >1MΩ at sensor end.

Q: What relay contact configuration supports fail-safe alarm logic?
A: The 16710-10 provides normally-open (NO) contacts that close upon alarm conditions. For fail-safe applications requiring normally-closed (NC) logic (alarm on power loss), use external relay modules like the Bently Nevada 330525-01 with NC contact options. Alternatively, configure monitoring system for "de-energize to trip" logic where loss of relay power triggers alarms.

Q: Are replacement connectors available if damaged during installation?
A: Bently Nevada does not sell field-replaceable connectors for the 16710 series due to precision crimping requirements. Damaged connectors require factory repair or cable replacement. To prevent damage, use torque wrenches set to 8-10 in-lbs for connector coupling nuts and avoid side-loading connectors during mating—the #1 cause of bent pins.
